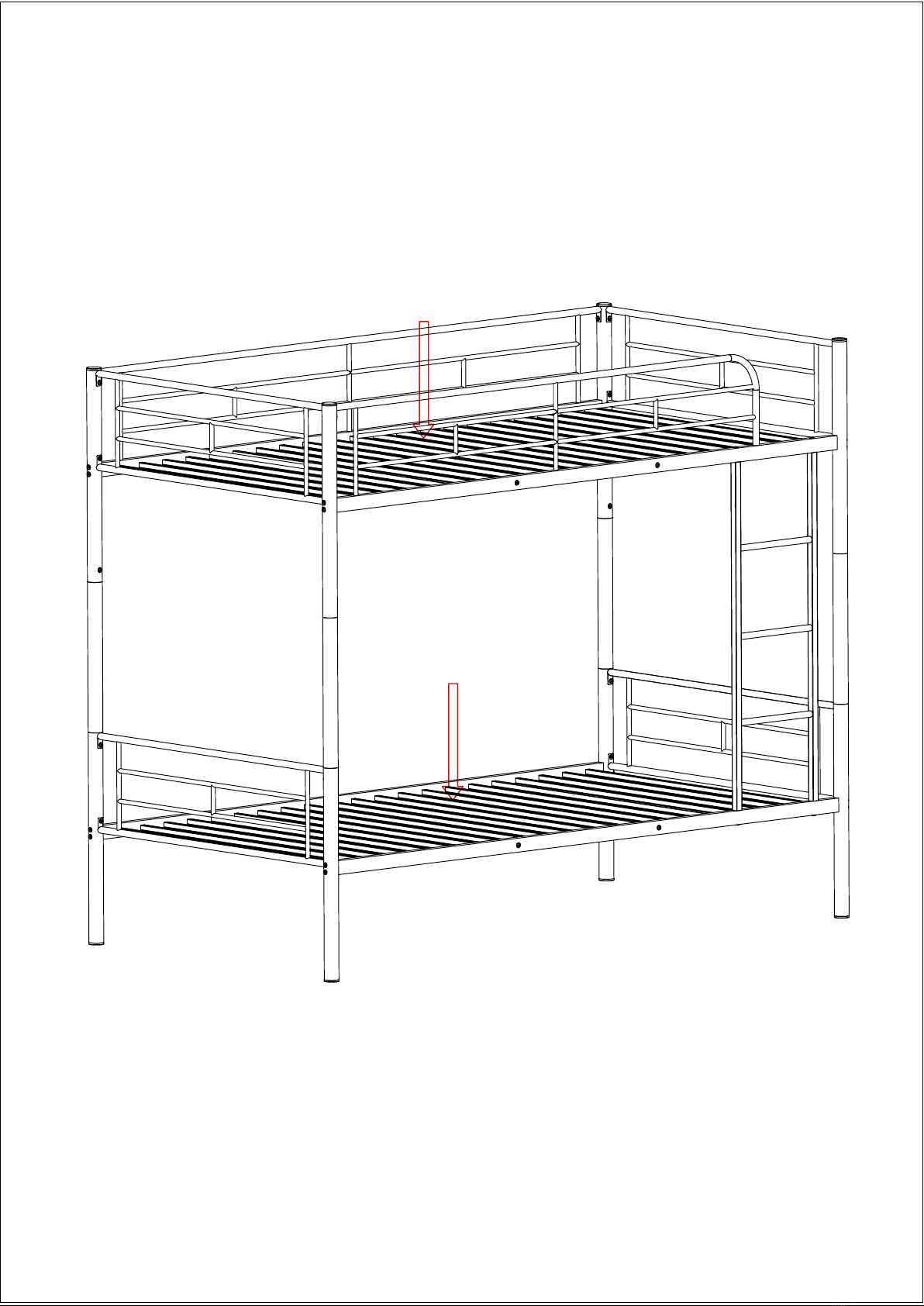

Weight Limit
350 Lbs
Weight Limit
250 Lbs
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
PAGE 2 OF 11
SAFETY WARNING
1.This bed is designed for use only mattress (es) meeting the
following specifications on the upper bunk, and lower bunk:
Upper bunk (bunk bed and tribed included)
Bed type Length Width Thickness
Twin 74” – 75” 38½’’ 6’’ max
Lower bunk
Bed type Length Width Thickness
Twin 74” – 75” 38½’’ 8’’
2.Replacement parts, including additional guardrails, maybe obtained
from any of our (GIGACLOUD TECHNOLOGY(USA) INC. 18961
ARENTH AVENUE, CITY OF INDUSTRY, CA, 91748) dealers.
3.Follow the information on the warnings appearing on the upper
bunk bed end structure and on the carton. Do not remove warning
label from bed.
4.Always use the recommended size mattresses or mattress supports,
or both, to help prevent the likelihood of entrapment or falls.
5.Surface of mattress must be at least 5" (127mm) below the upper
edge of guardrails.
6.Do not allow children under 6 years of age to use the upper bunk.
7.Periodically check and ensure that the guardrail, ladder, and other
components are in their proper position, free from damage, and that all
connectors are tight.
8.Do not allow horseplay on or under the bed and prohibit jumping on
the bed.
9.Always use the ladder for entering and leaving the upper bunk.
10.Do not use substitute part. Contact the manufacture or dealer for
replacement part.
11.Use of a night light may provide added safety precaution for a
child using the upper bunk.
12.Always use guardrails on both long sides of the upper bunk. If the
bunk bed will be placed next to the wall, the guardrail that runs the
full length of the bed should be placed against the wall to prevent
entrapment between the bed and wall.
13.The use of water or sleep flotation mattresses is prohibited.
14.STRANGULATION HAZARD – Never attach or hang items to
any part of the bunk bed that are not designed for use with the bed; for
example, but not limited to, hook, belts and jump ropes.
15.Keep these instruction for future reference.
16.Prohibit more than one person on upper bunk
17.We recommend assembling your bunk bed on the shipping carton
to protect your floor or carpet.
18.Be certain all staples are out of the box before beginning assembly
on the shipping carton.
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
1
1
1
1
4
3
2
4
4
4
3
2
6
7
5
9
8
5
5
5
11
12
10
*2
*19
12
*19 11
*2
PAGE 3 OF 11

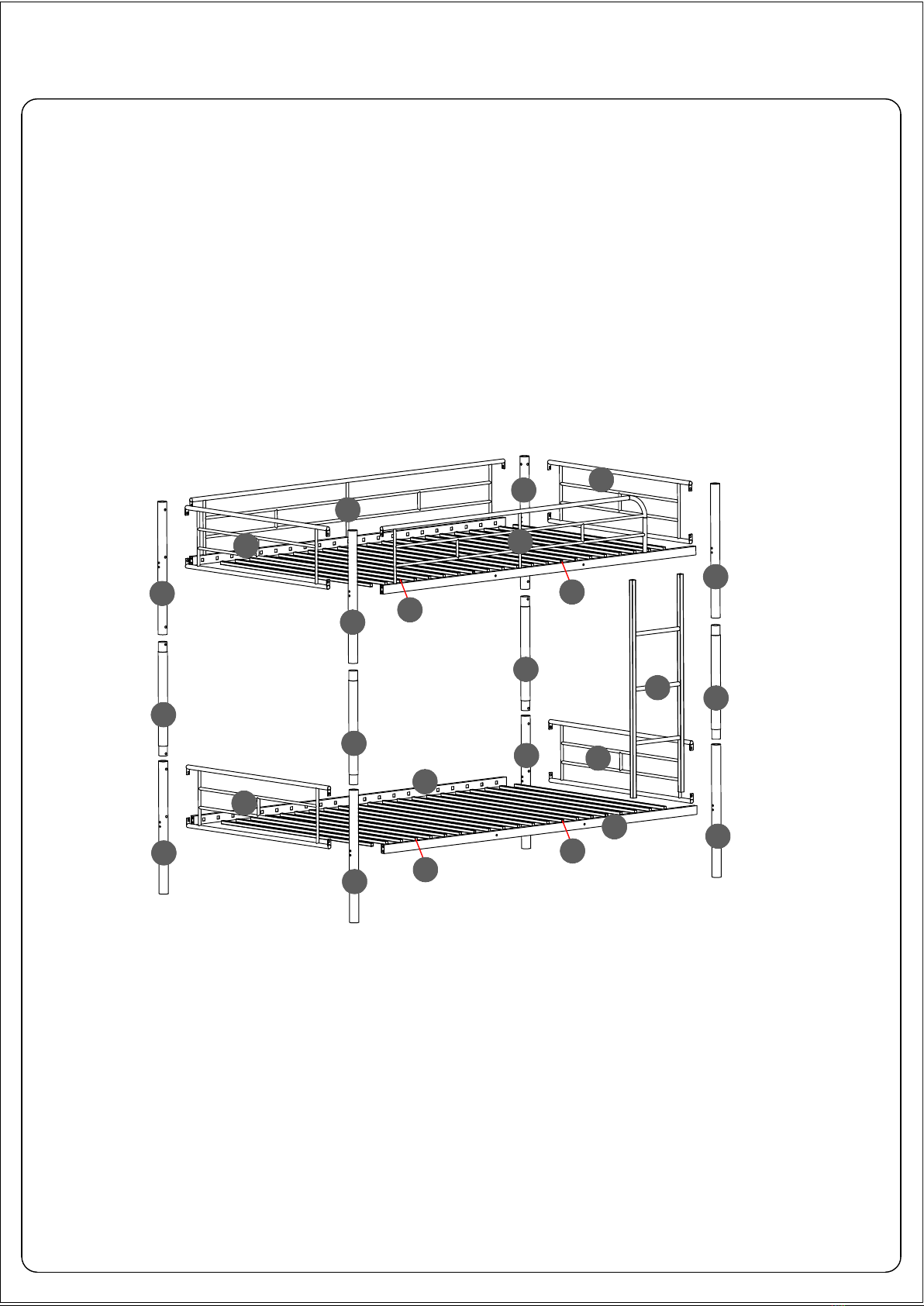

DETAIL VIEW
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
PAGE 4 OF 11

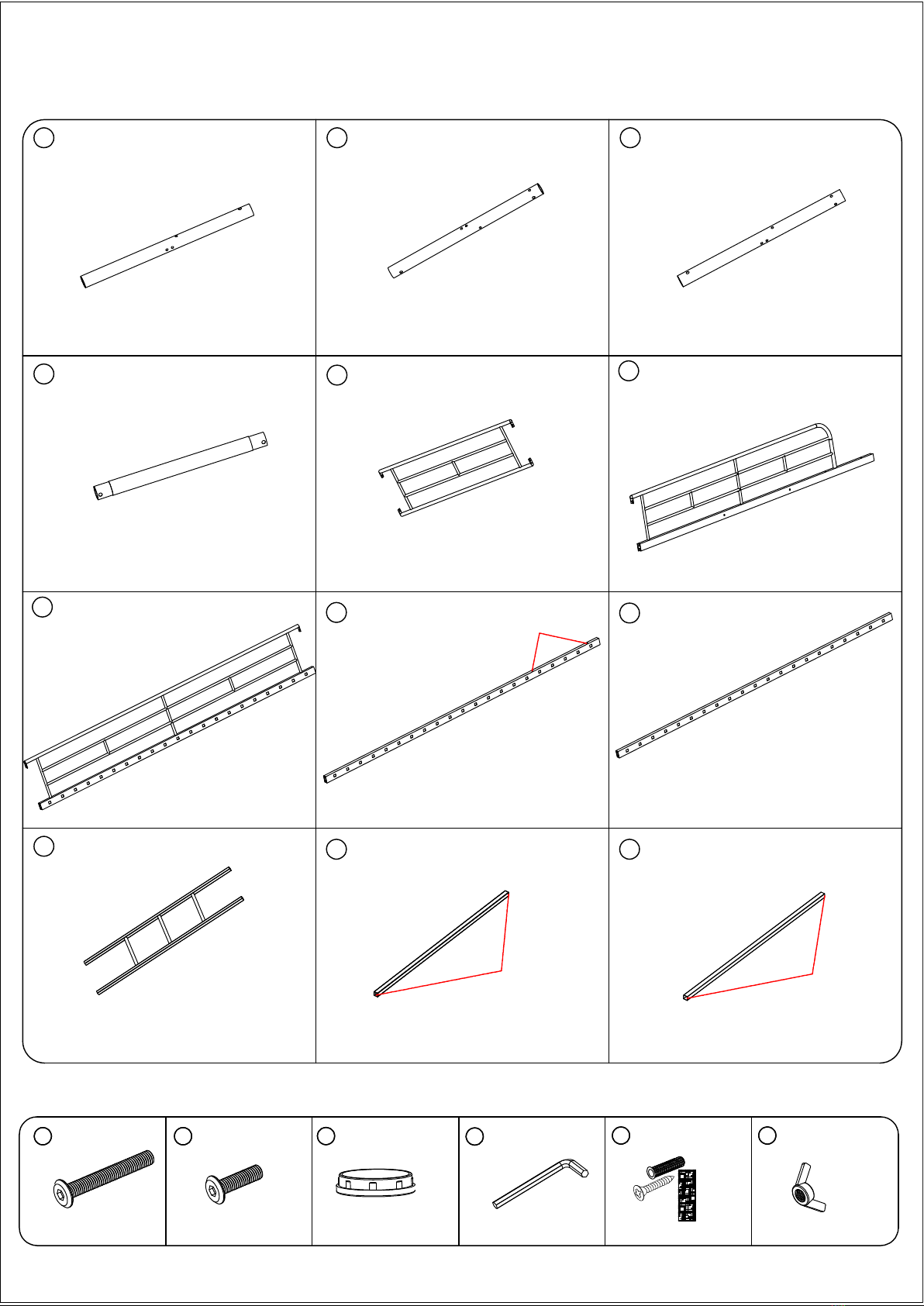

A Bolts
1/4*60
20PCS
1/4*15
31PCS
Ø42
16PCS
C End cap
HARDWARE LIST
B Bolts Allen key
D
4*59
1PC
1/4*40
2 SET
E
Connect wall
Hollow
4 Post
7
Guard rail
Screw hole
8 Side rail
4PCS
1 Post
2 Post 3 Post
6 Guard rail
5 End guard rail
4PCS
2PCS
4PCS
2PCS
1PC
1PC 1PC
Hole
9 Side rail
1PC
10
Ladder
1PC
11
Slats 12
Slats
4PCS 38PCS
PART LIST
F
Hex nut
1/4
4PCS
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.

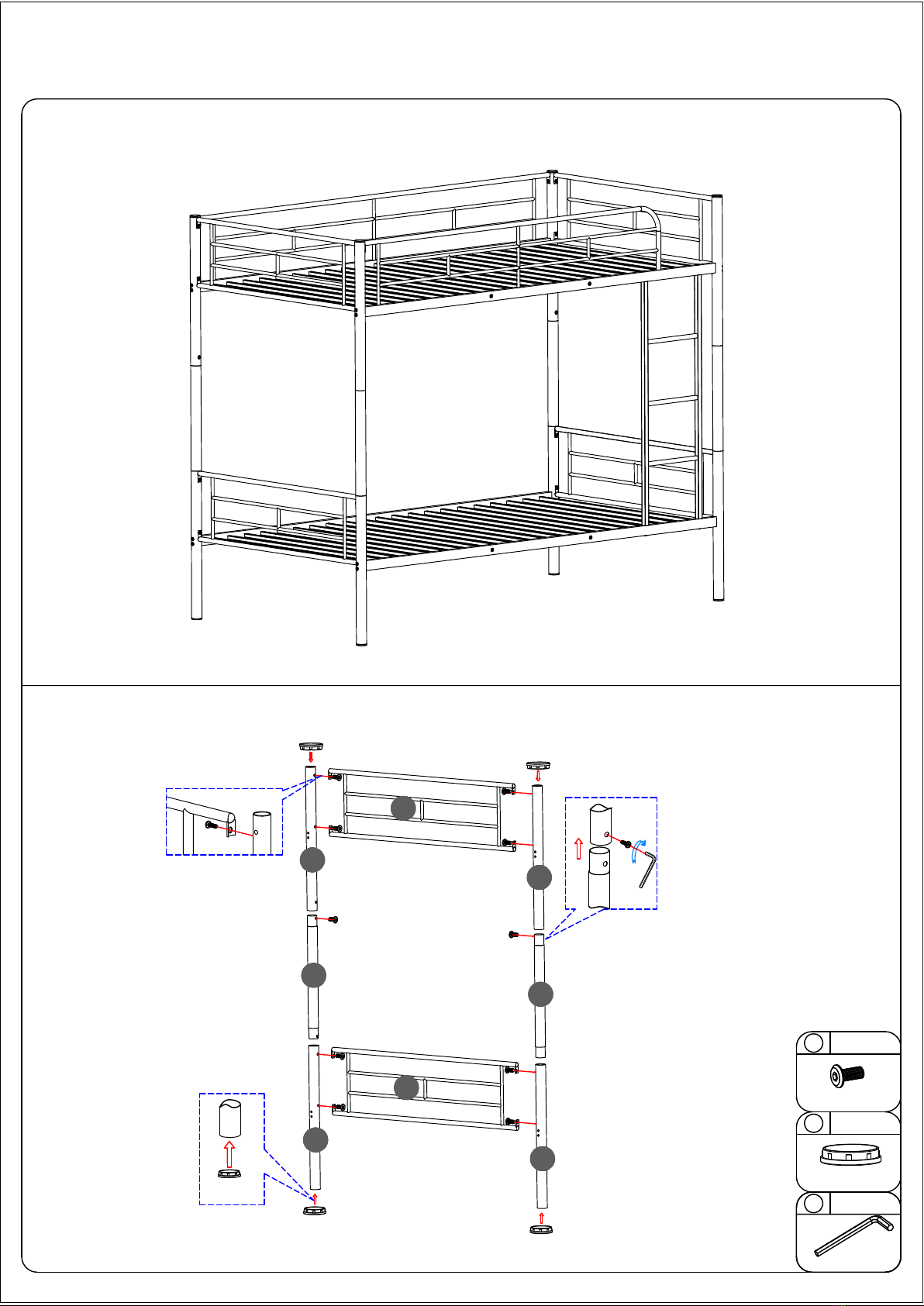

STEP 1 : Following below illustration Assembly Frame #1.Using hardware #B, #C connect #1 , #2,
#3, #4 with #5 to complete Frame #1.
C*4
B*10
32
5
5
1
44
1
B 10PCS
1/4*15
C 4PCS
Ø42
D 1PC
4*59
B
B
C
PAGE 5 OF 11
OPTION A STEP 1-7
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
PAGE 6 OF 11
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
B 10PCS
1/4*15
C 4PCS
Ø42
D 1PC
4*59
C*4
23
5
5
1
44
1
BB
C
B*10
D 1PC
4*59
B 4PCS
1/4*15
STEP 3 : Following below illustration Assembly Frame #3.
Using hardware #B connect #6, #7 with #11, #12 to complete Frame #3.
12
*19 11
*2
6
7
STEP 2 : Following below illustration Assembly Frame #2.Using hardware #B, #C connect #1 , #2,
#3, #4 with #5 to complete Frame #2.
B
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
D 1PC
4*59
D 1PC
4*59
B 3PCS
1/4*15
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
PAGE 7 OF 11
B 4PCS
1/4*15
8
9
11
*2
12
*19
B
B
B
B
A*4
A 16PCS
1/4*60
STEP 4 : Following below illustration Assembly Frame #4.
Using hardware #B connect #8, #9 with #11, #12 to complete Frame #4.
A
A*4
STEP 5 : Following below illustration Assembly Frame #5.
Using hardware #A, #B connect Frame #1, Frame #2 with Frame #3, Frame #4 to complete Frame #5.
Frame #1
Frame #2
Frame #4
Frame #3
A*4
A*4
B
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
D 1PC
4*59
A 4PCS
1/4*60
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
D 1PC
4*59
PAGE 8 OF 11
E 2 SET
STEP 7 : Following below illustration Assembly Frame #7.
Using hardware #E connect Frame #6 with Wall to complete .
NOTE: Tighten all step before using. Thank you.
A
A*4
E
E

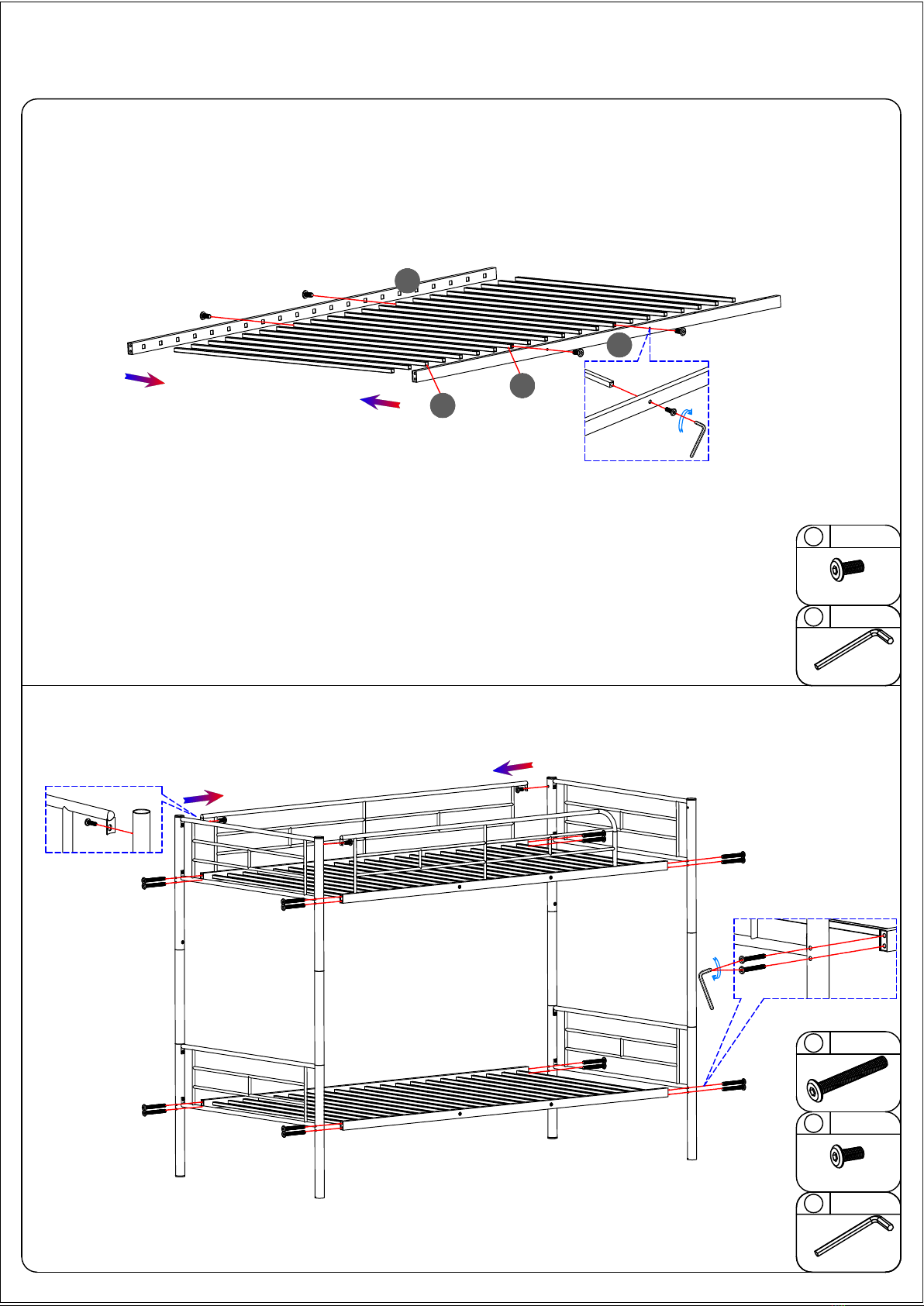

STEP 6 : Following below illustration Assembly Frame #6.
Using hardware #A connect Frame #5 with #10 to complete Frame #6.
10
Wall
Wall
OPTION A FINAL
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663

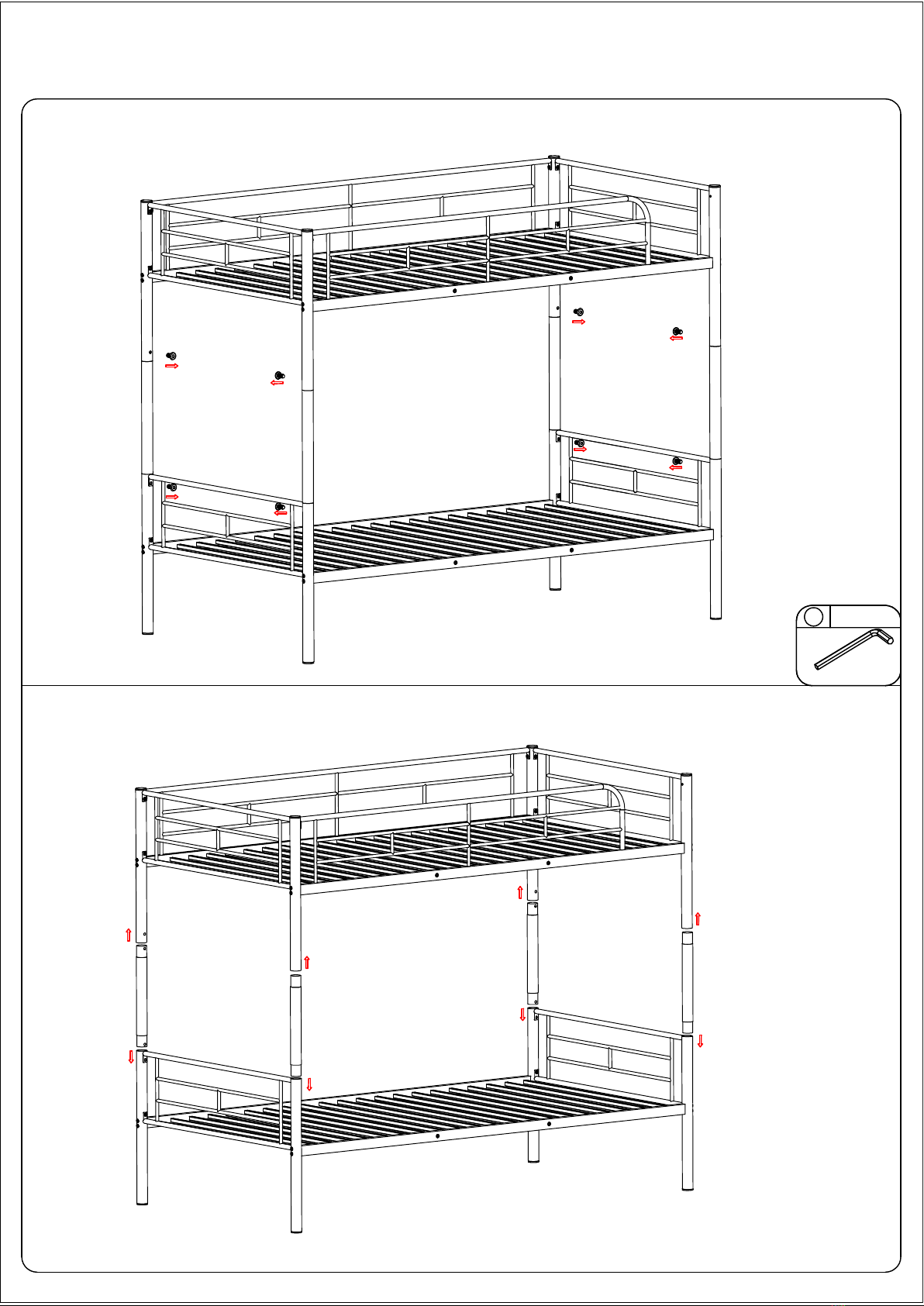

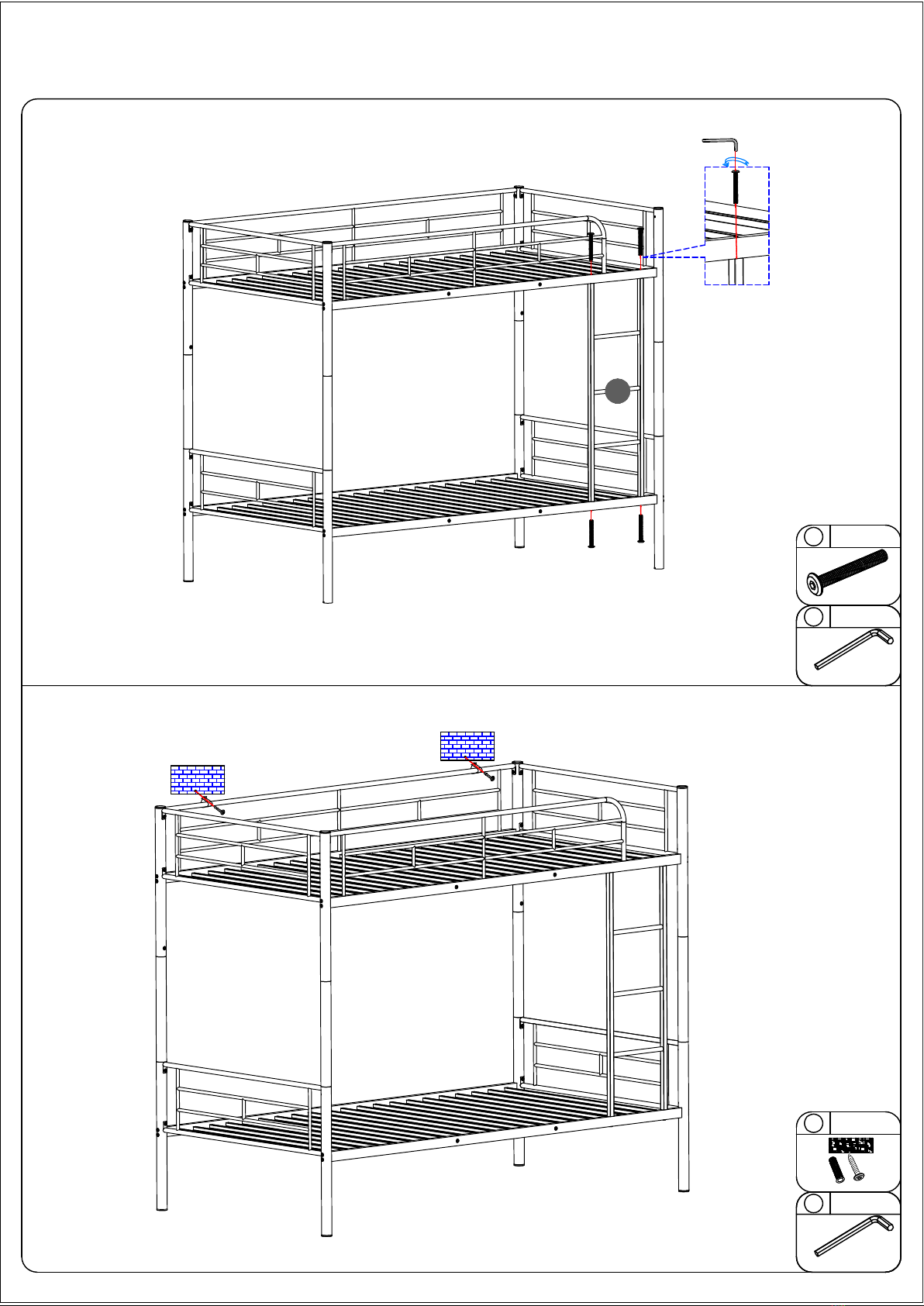

OPTION B STEP 8-12
STEP 8 : Following below illustration Assembly Frame #8.
Using allen key D open #10 to complete.
D 1PC
4*59
10
PAGE 9 OF 11
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663

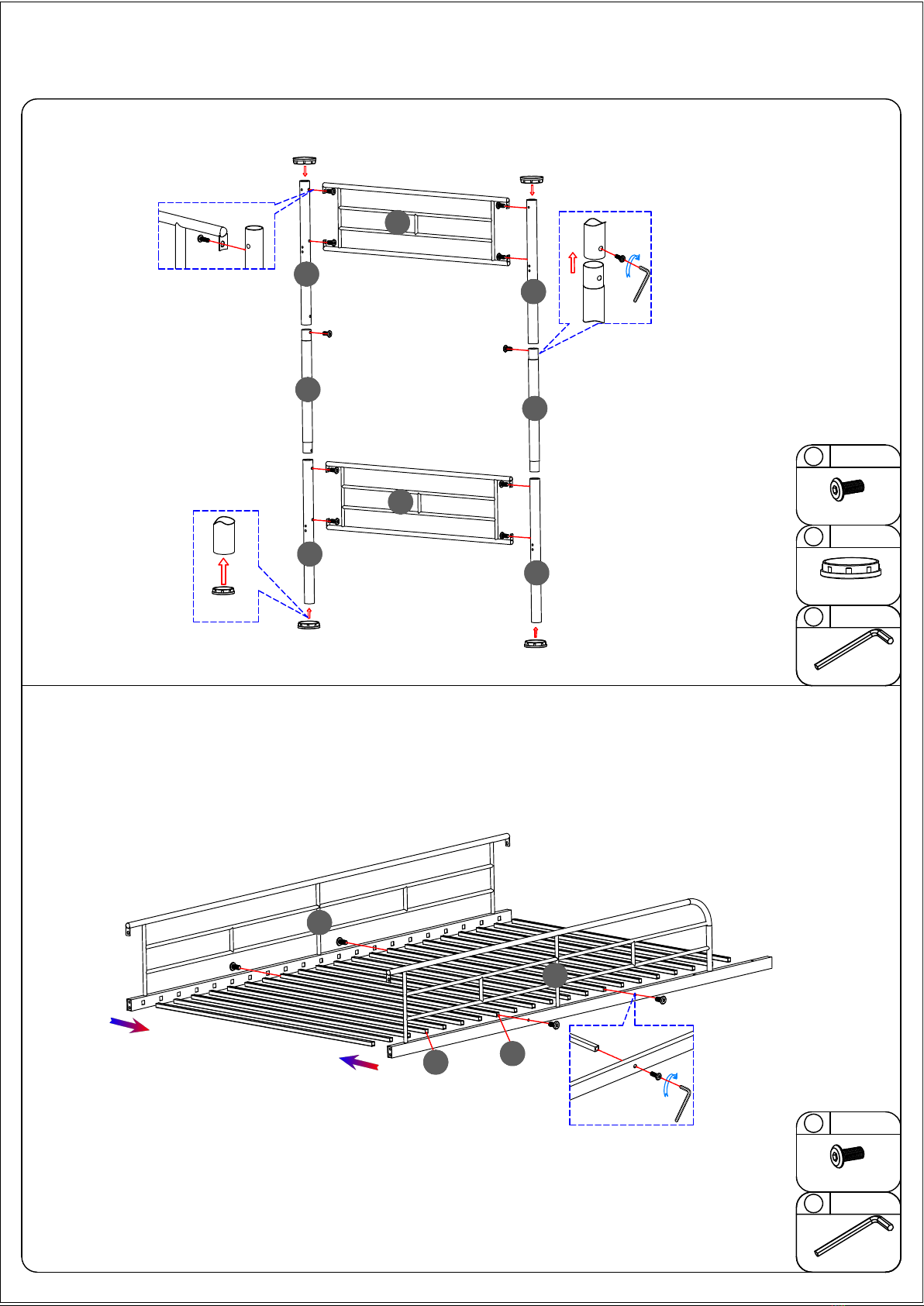

STEP 9 : Following below illustration Assembly Frame #9.
Using allen key D open hardware B to complete.
D 1PC
4*59
STEP 10 : Following below illustration Assembly Frame #10.
PAGE 10 OF 11
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
NOTE:In this step, DO NOT tighten any bolt until you connect all part together.
TWIN OVER TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
SKU MF291663
