FLOS TOIO Bedienungsanleitung

REV. 2

DATE 25/11/2021

TOIO

F7600035

Flos reserves the right to introduce any changes to its own models, without prior notice.

01. RF02774

–Nickel-plated brass little cage

02. RF04607

–Electric wiring transformer to bulb

03. RF02775

–Rod

04. RF02581

–Red base

05. RF17929

–Autotransformer direct

06. RF05784

–Fuse holder

09. RF7600100

–Wires loop assembly

10. RF06730

–Cable winder support

11. RF06732

–Nickel tap grip

12. RF19850

–Electrical wiring assembly with dimmer

13. RF24160

–Rondò dimmer

TOIO

F7600035

REV. 2

DATE 25/11/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

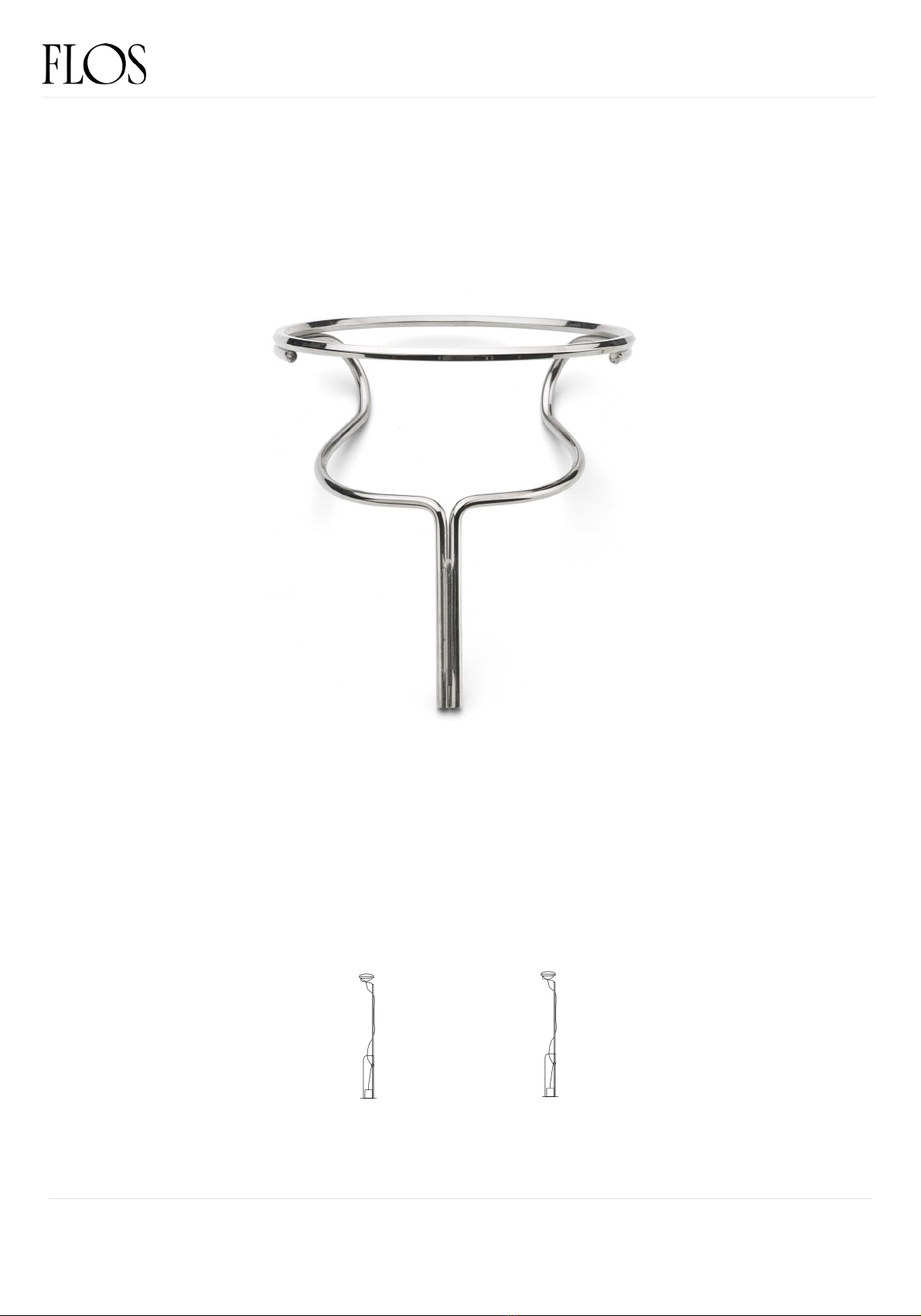

RF02774

NICKEL-PLATED BRASS CAGE

REV. 2

DATE 25/11/2021

TOIO F7600035

Toio

p.03 Toio Led

p.03

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.1

Fig.2

RF02774

NICKEL-PLATED BRASS CAGE

Unfasten the screw (E) and free the damaged

bulb cage (A) from the rod (B).

Assemble now the new spare-part:

Place the lamp bulb cage (A) on the rod (B),

ensuring that the insert (C) present on the

cage (A) hooks inside the opening (D) of the

rod (B).

Lock the cage (A) to the rod (B) by fastening

the screw (E).

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.3

Insert the connector (F) inside the fitting of the lamp-bulb (G).

RF02774

NICKEL-PLATED BRASS CAGE

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

Toio

p.06 Toio Led

p.06

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.1

Insert the connector (D) inside the fitting of the lamp-bulb (C).

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.2

Pass the electrical cable through the cable loops (E).

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.3

Connect the plug (F) to the socket (G) of the transformer.

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.4

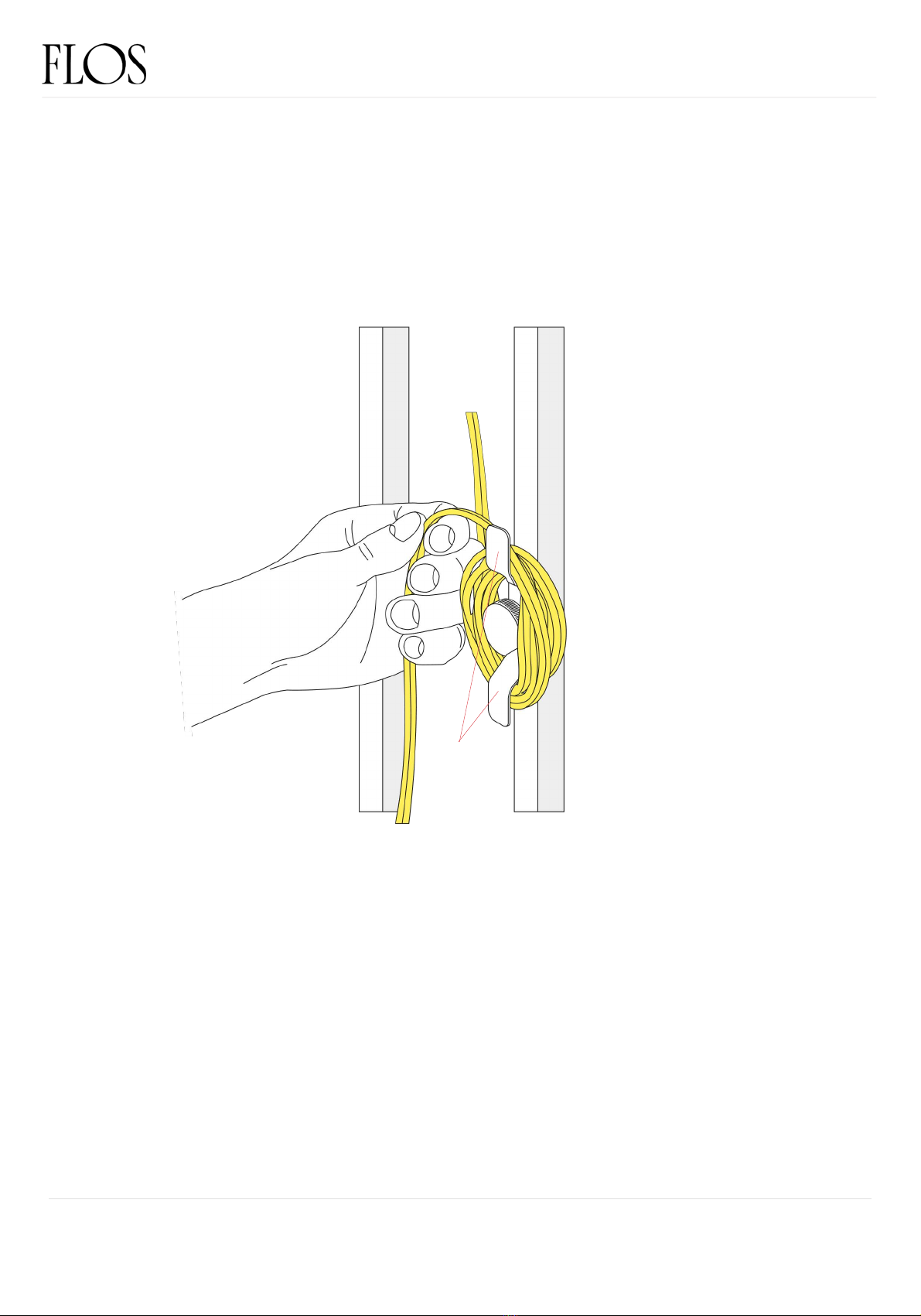

Wrap the excess cable around the cable winding support (H).

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035
