Accurate and Reliable Pressure, Velocity and Flow Meter
with Auto-Zero
The FKS 1DP-PBM and FKS 1DP-PBM-E are feature-rich, state-of-the-art multi-function meters designed for fast and accurate
pressure, velocity and flow measurement. The meters have unmatched ease of use due to their prompt driven user interface
and intuitive operation. They are the perfect companions for Testing and Balancing, HVAC, Process Monitoring, R&D, velocity
traverses, stack velocity measurement, pressure measurements across fans, filters, etc.
Benefits
Both Models
NIST certificate with data.
Measure true differential (+ and -), static and gauge pressure.
Fast electronic zero.
Actual and standard velocity (using a Pitot or S type probe).
Velocity measurements in dirty airstreams using an S probe.
Adaptive damping: Sophisticated damping technology
automatically adjusts the damping level (the running average
constant, or number of averages) to give you the best
measurement for your conditions. Very useful in unsteady flows.
Additional Benefits of the FKS 1DP-PBM
Auto-zero function. Internal valve removes pressure or velocity
offsets. Your reference level never changes, ensuring
unmatched accuracy and reliability. You can even set the auto-
zero time interval!
Data logging: Both manual and automatic logging available.
Store up to 10,000 pressure, velocity and flow readings in up to
520 separate groups. On-screen recall shows average, max and
min. Automatic logging lets you take unattended readings with
log times from seconds to days. Simply tell the meter how long
to acquire data for, and the interval between readings! The auto-
zero feature ensures accuracy, even after hours or days of
logging. Included downloading software transfers your data
directly into Microsoft Excel.
Air flow mode: An inbuilt volumetric flow survey routine prompts
the user to set duct shape, number of readings and duct size
allowing for the calculation of accurate air flows (you don’t have
to use inaccurate single point measurements any longer –
although the PBM will do these too!) incredibly easily and
quickly. The meter guides you through the survey point by point.
Confidence interval estimation: A sophisticated statistical routine
calculates the confidence interval of your pressure, velocity and
flow measurements, giving you unmatched confidence in your
readings.
Overload protection: Pressure overloads cause the meter to
automatically enter the auto-zero cycle, reducing the potential for
transducer damage.
FKS Series
Multi-Function Meters
Feature Summary
FKS 1DP-PBM
FKS 1DP-PBM-E
Real Auto-Zero capability
Electronic zero
Differential, static & gauge pressure
Calculates velocity
Accurate volumetric flow rate
K factor
Density correction
Logging (10,000rdgs) with statistics
Intelligent automatic damping
Metric and Imperial units
Minimum & maximum reading
Data hold (screen freeze)
Turbulence indicator
Overload protection
Standard deviation calculation
PC compatibility
Variable screen contrast
In the interests of product improvement FlowKinetics LLC reserves the right to
make changes without any prior notice
DESIGNED AND
ASSEMBLED IN THE USA
FKS Series
FlowKinetics™ LLC • 4700 Shoal Creek Dr, College Station, TX 77845 USA • www.flowkinetics.com • inform@flowkinetics.com • Tel/Fax: USA-(979) 680-0659
Manufactured with Pride in the USA Copyright 2001-2014 FlowKinetics™ LLC Printed in the USA

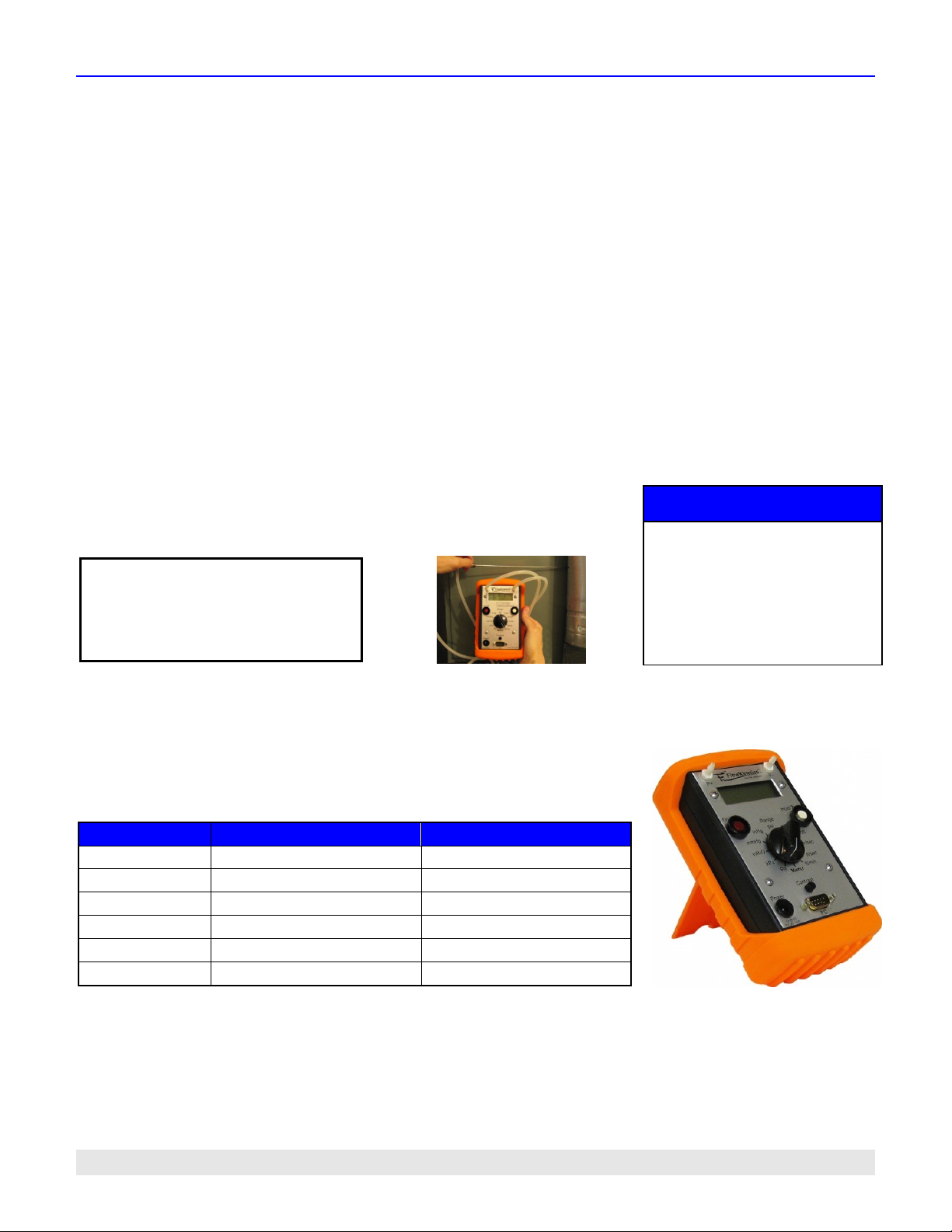

Specifications
FKS 1DP-PBM and FKS 1DP-PBM-E
Power supply: 2 x 9V Alkaline batteries (life: approx. 30hours) or optional wall power supply.
Pressure transducer: Fully temperature compensated. For Ranges, see Ordering information
Measurements: True Differential, Static and Gauge Pressure
Pressure Accuracy at 25C: Typically within 0.1% of Full Scale (0.22% max.)
Velocity Accuracy at 25°C: At full scale speed: ±0.05% typical (±0.11% max) of full scale
At half scale speed: ±0.1% typical (±0.22% max) of full scale
At the low end of the speed range: ±1% typical (±2.3% max) of full scale
Compatible Probes: Pitot, Pitot static, Kiel, S type (dirty air), etc
K factor: Variable, set by user, range: 0 to 9.99
Density correction: Set by user
Damping: Automatic and adaptive. User selectable exponential smoothing or averaging
Display: 2-line variable contrast alphanumeric LCD
Pressure units: Pa, kPa, inH2O, mmHg, inHg, psi, mbar and lb/ft2
Velocity units: m/sec, ft/sec and ft/min
Output: RS232 serial port interface, 9-pin connector. USB to serial adapter available.
Dimensions: 5.7 in x 3.6 in x 1.8 in (14.5 cm x 9.1 cm x 4.5 cm)
FKS 1DP-PBM Only
Manual logging: 255 group IDs. 4,000 reading capacity
Automatic logging: 255 group IDs. 6,000 reading capacity
Over-pressure protection: Built-in solenoid valve to vent ports when overloaded
Auto zero: Built-in solenoid disconnects sensor to zero automatically
Flow units: m3/sec, ft3/sec, ft3/min
Ordering Information
Contact us or visit our site for pricing information.
Part number: FKS 1DP-PBM-X or FKS 1DP-PBM-E-X where X is the sensor number.
Sensor Number (X)
Differential Pressure Range
Velocity Range
0.25
±0.25 inH2O (±60 Pa)
40 to 1,911ft/min (0.5 to 10.2 m/s)
0.5
±0.5 inH2O (±124 Pa)
144 to 2829 fpm (0.7 to 14.4 m/s)
1
±1inH2O (±249 Pa)
200 to 4001 fpm (1 to 20.3 m/s)
5
±5 inH2O (±1.2 kPa)
447 to 8946 fpm (2.3 to 45.4 m/s)
12
±12 inH2O (±3 kPa)
693 to 13859 fpm (3.5 to 70.4 m/s)
20
-4 to +20 inH2O (-995 to 4.98 kPa)
895 to 17892 fpm (4.5 to 90.9 m/s)
Optional Accessories:
WPA Auto-switching power supply (100V-240V AC 50-60Hz)
SwiftScan Real time software for continuous monitoring of pressure and velocity
USBA USB to serial adapter for computers with no serial port
Velocity Probes Pitot static, RAP, Kiel and S-Type probes available. Visit our site for selection and pricing.
Typical Applications
Pressure across fans, filters
Testing and balancing
Process control
HVAC
Stack testing
R & D
Calibration
Clean rooms
Wind tunnels
Compatible Velocity Probes
Pitot-Static for general tests
S-Type for dirty flows
Kiel for high angularity flows
Rapid Averaging Probe (RAP)
