Fluke DSX-CHA-5-IX-S Bedienungsanleitung
DSX-CHA-5-IX-S
ix Industrial™Adapters
for Industrial Ethernet
Users Guide
The DSX-CHA-5-IX-S is a set of two adapters for use with Fluke Networks
DSX CableAnalyzer™testers. The adapters let you test and certify ix
Industrial links and patch cords to the IEEE 802.3 specifications often used
for industrial Ethernet applications.
DSX Firmware Requirements
Your DSX CableAnalyzer will show a message if it needs a firmware update
to operate with these adapters. Firmware updates are available at no
charge on the Fluke Networks website. To install an update, use the latest
version of LinkWare PC or LinkWare Live. For details, see the Versiv Series
Users Manual.
PN 5082049 March 2019
©2019 Fluke Corporation
All product names are trademarks of their respective companies.
2
Symbols
WWarning or Caution: Risk of damage or destruction to equipment or
software. See explanations in the manuals.
XWarning: Risk of fire, electric shock, or personal injury.
»Consult the user documentation.
40 year Environment Friendly Use Period (EFUP) under China
Regulation - Administrative Measure on the Control of Pollution
Caused by Electronic Information Products. This is the period of time
before any of the identified hazardous substances are likely to leak
out, causing possible harm to health and the environment.
~This product complies with the WEEE Directive marking
requirements. The affixed label indicates that you must not discard
this electrical/electronic product in domestic household waste.
Product Category: With reference to the equipment types in
the WEEE Directive Annex I, this product is classed as category 9
“Monitoring and Control Instrumentation” product. Do not dispose
of this product as unsorted municipal waste. To return unwanted
products, contact the manufacturer’s web site shown on the product
or your local sales office or distributor.
Safety Information
WWarningX
To prevent possible re, electric shock, or personal injury, read
the safety information in the documentation supplied with
your Versiv™ and DSX products before you use the tester.
WCaution
To prevent damage to the tester, adapters, and cables under
test, to prevent data loss, and to make sure your test results
are as accurate as possible:
• Do not connect the adapters to telephone lines of any type,
including ISDN lines.
• Set the reference before you use the ix Industrial adapters
for the rst time, and approximately every thirty days after
that.
3
Set the Reference
Before you use the ix Industrial adapters to test and certify links, set the
reference. Repeat the reference procedure every thirty days at minimum.
To set the reference
1 Turn on the tester and the remote a minimum of 1 minute before you
set the reference.
Note
Set the reference only after the testers are at an ambient
temperature between 50 °F and 104 °F (10 °C and 40 °C).
2 Connect the main and remote testers together as shown at the top or
bottom of Figure 1.
3 On the home screen, tap TOOLS, then tap Set Reference.
4 On the SET REFERENCE screen tap TEST.
GPU89.EPS

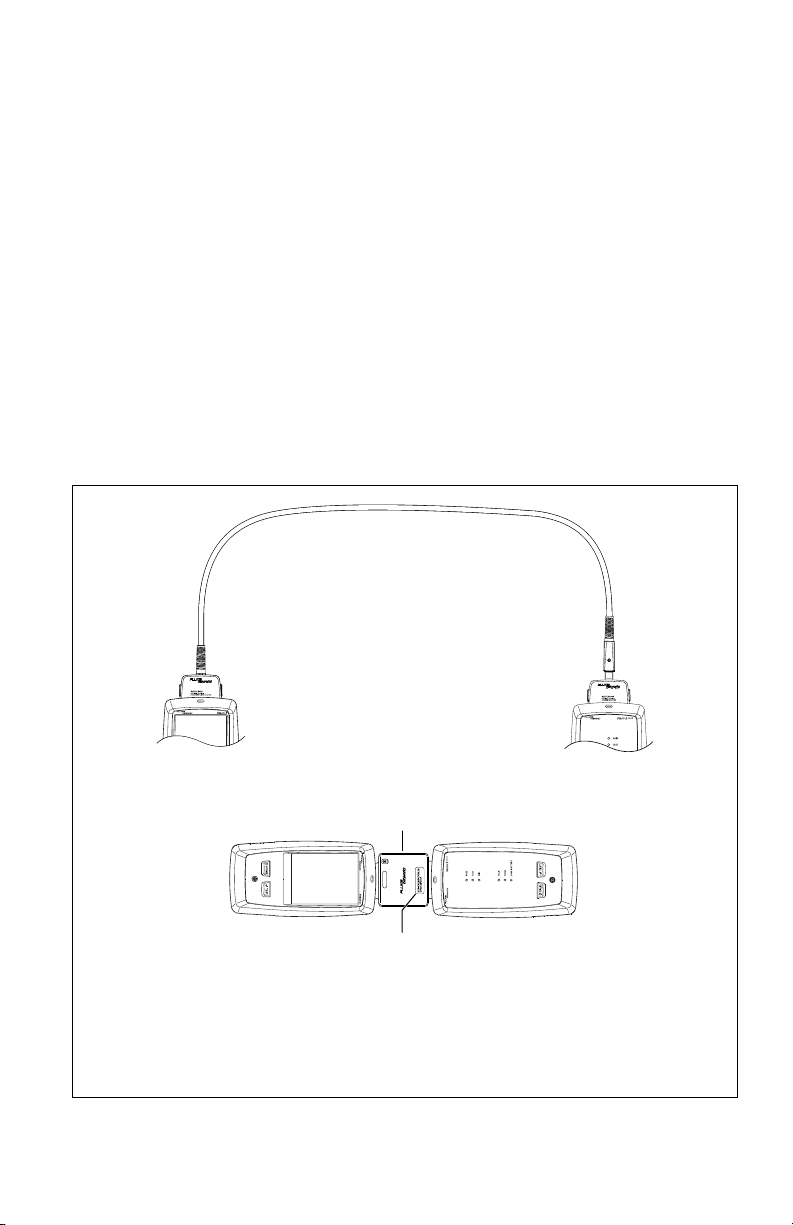

Figure 1. Reference Connections
RJ45 permanent
link adapter*
RJ45 channel
adapter*
Optional reference artifact
DSX-8000: DSX-CALIBRATION 2G
DSX-5000: DSX-CALIBRATION
* Permanent link and channel adapters are
included with the DSX-5000 and DSX-8000 kits.
4
Test and Certify a Channel
1 On the home screen, tap the test setup panel.
2 On the CHANGE TEST screen, tap NEW TEST.
3 On the TEST SETUP screen, tap the panels to select settings:
• Cable Type: If the correct type is not in the LAST USED list, tap
MORE, tap Manufacturers, tap the correct manufacturer, then tap
a cable type.
• Shield Test: Shows only for shielded cable types. To get a FAIL
result if the shield is open, select On. See the Versiv Series Users
Manual for more information.
• Test Limit: If the correct limit is not in the LAST USED list, tap
MORE, then tap a group.
• Outlet Conguration: Select IX Chan.
4 On the TEST SETUP screen, tap SAVE when your test setup is
completed.
5 Connect the testers to the link, as shown in Figure 2 or 3.
6 Tap TEST on the main tester or press Bon the main or remote
tester.
5
CY05.EPS
Figure 2. Connections for Channel Tests with Two ix Industrial Connectors
Switch
Channel
90 m maximum (295 ft)
ix Industrial
connectors
Variable
frequency drive
Main and remote testers
with DSX-CHA-5-IX
adapters
PLC
6
CY04.EPS
Figure 3. Connections for Channel Tests with an RJ45
and an ix Industrial Connector
Channel
90 m maximum (295 ft)
PLC
Switch
Variable
frequency drive
RJ45 cable
from switch ix Industrial
connector
Main tester with
DSX-CHA004
channel adapter*
Remote
tester with
DSX-CHA-5-IX
adapter
* Channel adapters are included with
the DSX-5000 and DSX-8000 kits.
7
Test and Certify an ix Industrial Patch Cord
Patch cord tests include results for the ix Industrial connectors on the ends
of cord. Use this procedure to do tests on ix Industrial cords you make to
connect the components in your system.
1 On the home screen, tap the test setup panel.
2 On the CHANGE TEST screen, tap NEW TEST.
3 On the TEST SETUP screen, tap the panels to select settings:
•Cable Type: If the correct type is not in the LAST USED list, tap
MORE, tap Manufacturers, tap the correct manufacturer, then tap
a cable type.
•Shield Test: Shows only for shielded cable types. To get a FAIL
result if the shield is open, select On. See the Versiv Series Users
Manual
for more information.
•Test Limit: If the correct patch cord limit is not in the LAST USED
list, tap MORE, tap Patch Cords, then select the correct limit.
•Outlet Conguration: Select IX Chan.
4 On the TEST SETUP screen, tap SAVE when your test setup is
completed.
5 Connect the testers to the patch cord (Figure 4), then tap TEST on the
main tester or press Bon the main or remote tester.
CY01.EPS
Figure 4. Connections for Tests on a Patch Cord
Patch cord under test
WCaution
To help ensure accurate test
results, do not bend the patch
cord during the test.
Main tester with
ix Industrial
adapter
Remote tester with
ix Industrial
adapter
8
Maintenance and Service
Clean the adapters with a soft cloth that is moist with water or water and
a mild soap. Do not use abrasives, solvents, or alcohol.
If an adapter does not operate correctly, look for damage to the adapter’s
connectors. Make sure that the adapter is latched tightly to the tester.
The adapters have no serviceable parts. To get a replacement adapter,
contact the place of purchase.
For the most current test limits and features, keep your tester’s firmware
current. The latest version of firmware is available at no charge on the
Fluke Networks website.
Contact Fluke Networks
»www.ukenetworks.com/support
info@ukenetworks.com
1-800-283-5853, +1-425-446-5500
Fluke Networks
6920 Seaway Boulevard, MS 143F
Everett WA 98203 USA
Fluke Networks operates in more than 50 countries worldwide. For more
contact information, visit our website.
Specications
The DSX-CHA-5-IX adapters meet all measurement accuracy specifications
for Level IIe test equipment. For more information, visit the Fluke
Networks website.
Life of adapter contacts (typical): >5,000 cycles
Dimensions: 3.0 in x 2.1 in x 1.2 in (75 mm x 54 mm x 30 mm) (each
adapter)
Weight: 2.3 oz (65 g) (each adapter)
9
LIMITED WARRANTY AND LIMITATION OF LIABILITY
Fluke Networks mainframe products will be free from defects in material and
workmanship for one year from the date of purchase, unless stated otherwise
herein. Parts, accessories, product repairs and services are warranted for 90
days, unless otherwise stated. Ni-Cad, Ni-MH and Li-Ion batteries, cables or
other peripherals are all considered parts or accessories. This warranty does
not cover damage from accident, neglect, misuse, alteration, contamination, or
abnormal conditions of operation or handling. Resellers are not authorized to
extend any other warranty on Fluke Networks’ behalf. To obtain service during
the warranty period, contact your nearest Fluke Networks authorized service
center to obtain return authorization information, then send your defective
product to that Service Center with a description of the problem.
For a list of authorized resellers, visit www.ukenetworks.com/wheretobuy.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH
AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED.
FLUKE NETWORKS IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL
OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR
THEORY. Since some states or countries do not allow the exclusion or limitation
of an implied warranty or of incidental or consequential damages, this
limitation of liability may not apply to you.
4/15
Fluke Networks
PO Box 777
Everett, WA 98206-0777
USA
