Fluke 414D Bedienungsanleitung

June 2012, Rev. 1, 7/16

All product names are trademarks of their respective companies.

414D, 419D, 424D

Laser Distance Meter

Users Manual

Introduction

The Fluke 414D, 419D, 424D Laser Distance Meters

(Meter or Product) are professional-grade laser distance

meters. Use these Meters to quickly and accurately get

the distance to a target, the area, and the volume

measurements.

This Meter is better than an ultrasonic device because it

uses laser light waves and measures their reflection. The

Meter includes:

•Most advanced technology for distance

measurements

•More accurate measurement

•Longer measurement distance – model dependent

This manual identifies when a feature is

model-dependent. If not identified, all models include the

feature.

How to Contact Fluke

To contact Fluke, call one of the following telephone

numbers:

•Technical Support USA: 1-800-44-FLUKE

(1-800-443-5853)

•Calibration/Repair USA: 1-888-99-FLUKE

(1-888-993-5853)

•Canada: 1-800-36-FLUKE (1-800-363-5853)

•Europe: +31 402-675-200

•Japan: +81-3-3434-0181

•Singapore: +65-6799-5566

•Anywhere in the world: +1-425-446-5500

Or, visit Fluke's website at www.fluke.com.

To register your product, visit http://register.fluke.com.

To view, print, or download the latest manual supplement,

visit http://us.fluke.com/usen/support/manuals.

414D, 419D, 424D

Users Manual

Safety Information

A Warning identifies hazardous conditions and

procedures that are dangerous to the user.

W* Warning

To prevent eye damage and personal injury:

•Read all safety information before you use the

Product.

•Carefully read all instructions.

•Use the Product only as specified, or the

protection supplied by the Product can be

compromised.

•Do not use the Product around explosive gas,

vapor, or in damp or wet environments.

•Do not use the Product if it operates incorrectly.

•Do not use the Product if it is damaged.

•Disable the Product if it is damaged.

•Do not look into the laser. Do not point the laser

directly at persons or animals or indirectly off

reflective surfaces.

•Do not look directly into the laser with optical

tools (for example, binoculars, telescopes,

microscopes). Optical tools can focus the laser

and be dangerous to the eye.

•Do not open the Product. The laser beam is

dangerous to eyes. Have the Product repaired

only through an approved technical site.

•Remove the batteries if the Product is not used

for an extended period of time, or if stored in

temperatures above 50 °C. If the batteries are not

removed, battery leakage can damage the

Product.

•Replace the batteries when the low battery

indicator shows to prevent incorrect

measurements.

Laser Distance Meter

Safety Information

Table 1 is a list of symbols used on the Product and in

this manual.

Table 1. Symbols

Symbol Description Symbol Description

Consult user documentation. Battery status.

WWARNING. RISK OF DANGER. Battery or battery compartment.

*WARNING. LASER RADIATION. Risk

of eye damage. Conforms to relevant Australian Safety and

EMC standards.

PConforms to European Union

directives. ÃConforms to relevant South Korean EMC

Standards.

This product complies with the WEEE Directive marking requirements. The affixed label indicates that

you must not discard this electrical/electronic product in domestic household waste. Product Category:

With reference to the equipment types in the WEEE Directive Annex I, this product is classed as

category 9 "Monitoring and Control Instrumentation" product. Do not dispose of this product as unsorted

municipal waste.

Indicates a Class 2 laser. The following text will appear with the symbol on the product label: “IEC/EN

60825-1. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice 50,

dated June 24, 2007.” In addition, the following pattern on the label will indicate wavelength and optical

power: λ= xxxnm, x.xxmW.

414D, 419D, 424D

Users Manual

Features

Table 2 is a list of features for the Meter by model.

Table 2. Model Feature Comparison

Feature 414D 419D 424D Feature 414D 419D 424D

Display Lines 2 3 4 Timer ••

Memory [1] 20 20 Display/Keypad Illumination ••

Add/Subtract •••Keypad Lock ••

Area •••Tripod Measurement ••

Volume •••Compass •

Continuous Measurement ••Triangular Area •

Pythagoras Calculations 1+2 Full Full Smart Horizontal Mode (Tilt) •

Stake Out [2] ••Height Tracking •

Multifunction Endpiece ••Room Corner Angle •

Beeper ••Handstrap •••

[1] 419D and 424D store a maximum of 20 complete display readouts.

[2] 419D uses 1 value. 424D uses 2 values.

Laser Distance Meter

Before You Start

This section has basic information about the batteries and

measurement reference point. It also describes the Meter

keypad and display.

Batteries

Replace the batteries when blinks in the display.

To install or replace the batteries:

1. Remove battery compartment lid. See Figure 1.

2. Attach the handstrap.

3. Install two AAA (LR03) batteries with the correct

polarity.

Note

Do not use zinc-carbon batteries.

4. Close the battery compartment.

gwo01.eps

414D, 419D, 424D

Users Manual

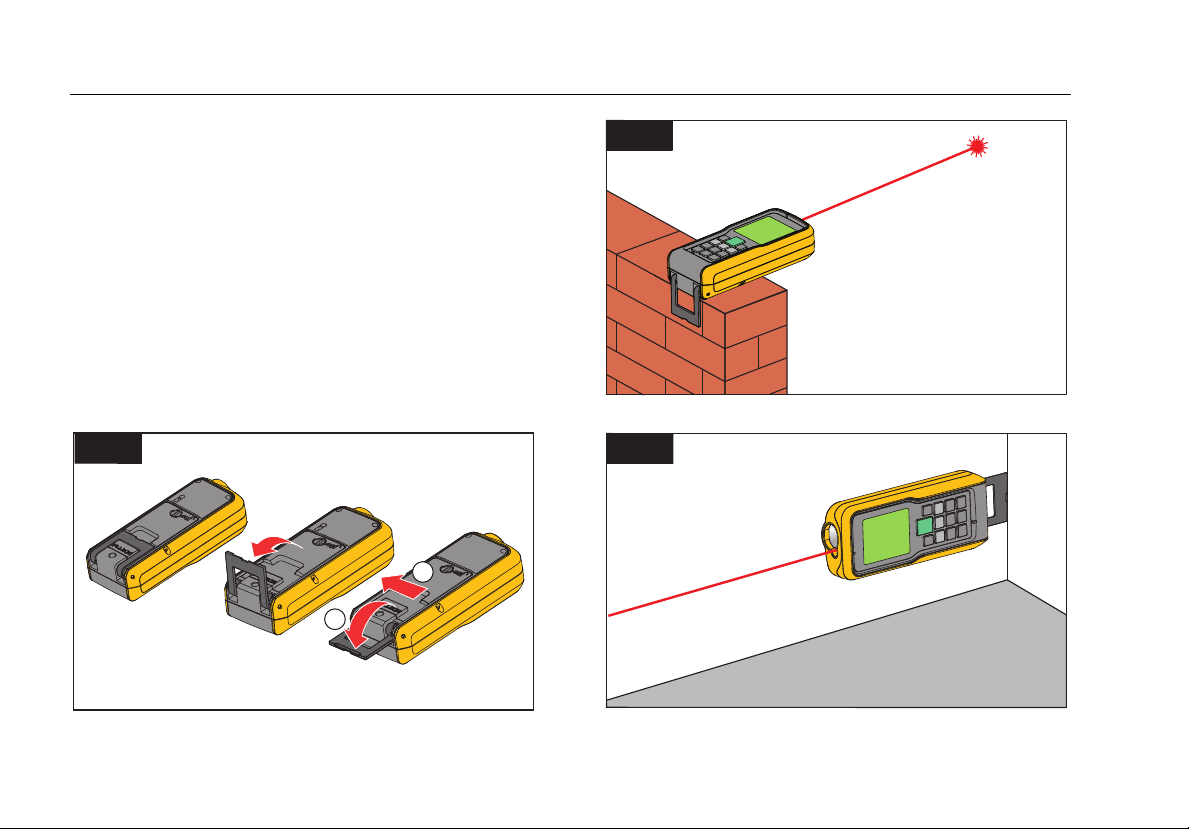

Multifunctional Endpiece

The 419D and 424D Meters adapt to multiple

measurement situations with the multifunctional endpiece.

See Figure 2:

•For measurements from an edge, fold out the

endpiece (90 °) until it locks into place. See Figure 3.

•For measurements from a corner, fold out the

endpiece (90 °) until it locks into place. Push the

endpiece lightly to the right side to fold it out fully. See

Figures 2 and 4.

•A built-in sensor automatically senses the orientation

of the endpiece and adjusts the zero point.

gwo02.eps

gwo03.eps

gwo04.eps

Laser Distance Meter

Before You Start

Keypad

Figure 5 shows the location of each function button on the keypad.

424D419D414D

gwo05.eps

Measure/Power On Clear/Off Area/Volume Triangle

Plus (+)/Minus (-) Reference/Change Units Memory Compass

Plus (+)/Scroll Up Area/Volume/Indirect Measurement (Pythagoras) Timer

Minus (-)/Scroll Down Indirect Measurement (Pythagoras and Stake Out) Tilt

414D, 419D, 424D

Users Manual

Display

Figure 6 shows the readout location on the display for each function.

1 8

2 8

14 20

424D419D414D

gwo06.eps

Battery Status Units of Measurement 2nd Result Available Timer/Compass (424D only)

Info Pythagoras Stake Out Leveling

Area/Volume Memory Tilt Angle Triangle Area

Measurement Reference Circumference Slope Distance

Min/Max Measurement (Tracking Mode) Wall Area Indirect Height

Measurement Readout Addition/Subtraction Ceiling Area

Laser Distance Meter

Button Functions

This section is about how to use the buttons and identifies

when a function is model-dependent. When not identified,

all models include the function.

On/Off

Push to turn on the Meter and laser. The display

shows the battery symbol until you push a different

button.

Push for 2 seconds to turn off the meter.

Note

The Meter turns off automatically if not used in

180 seconds.

Basics

414D

Measure Button

Push :

•1x = Laser on

•2x =Measure

In Pythagoras calculation mode:

•2 seconds = Tracking (min/max measurement)

Function Buttons

Push :

•1x = Area

•2x = Volume

•3x = Pythagoras 1

•4x = Pythagoras 2

419D/424D

Measure Button

When off, push for 2 seconds = Continuous Laser On

Push :

•1x = Laser On

•2x = Measure

•2 seconds = Tracking (min/max measurement)

Function Buttons

Push :

•1x = Pythagoras 1

•2x = Pythagoras 2

•3x = Pythagoras 3

•4x = Stake Out (419D: 1 value / 424D: 2 values)
