Fly Fly Hobby F-4 Phantom-II Bedienungsanleitung

Model No : FF-D007

F-4 Phantom-II

Scale EDF Radio Control model airplane

Wingspan : 1010mm

UNDER SAFETY PRECAUTIONS

This radio control is not a toy!

- Always keep this instruction manual ready on hand for quick reference.

- Assemble this kit only places out of children reach.

- First-time builders of EDF model should seek the advice of experienced modellers before

beginning assembly and if they do not fully understand any parts of the construction.

- Taking out liability insurance is recommended.

- You are responsible for this model’s assembly and safe operation.

2 pcs required

1. Signal cable

(Elevator)

2. Silicone motor cable (No. 14AWG)

1 pc required

You need to purchase the following accessories separately to complete the model.

3 pcs required

800mm

1 pc required

4. 60A Electric Speed Control (ESC) w/BEC

60A

w/ BEC

1 pc required

5. B36 Brushless Motor, 1500-1600kv,

Outruuner or Inrunner, Shaft dia 5mm

3 pcs required

6. Micro servo, torque >1.8kg

3. Li-Po Battery, 5-6 cells, 3600mAh, 20C

500mm

FLYFLY

HOBBY

All manuals and user guides at all-guides.com

all-guides.com

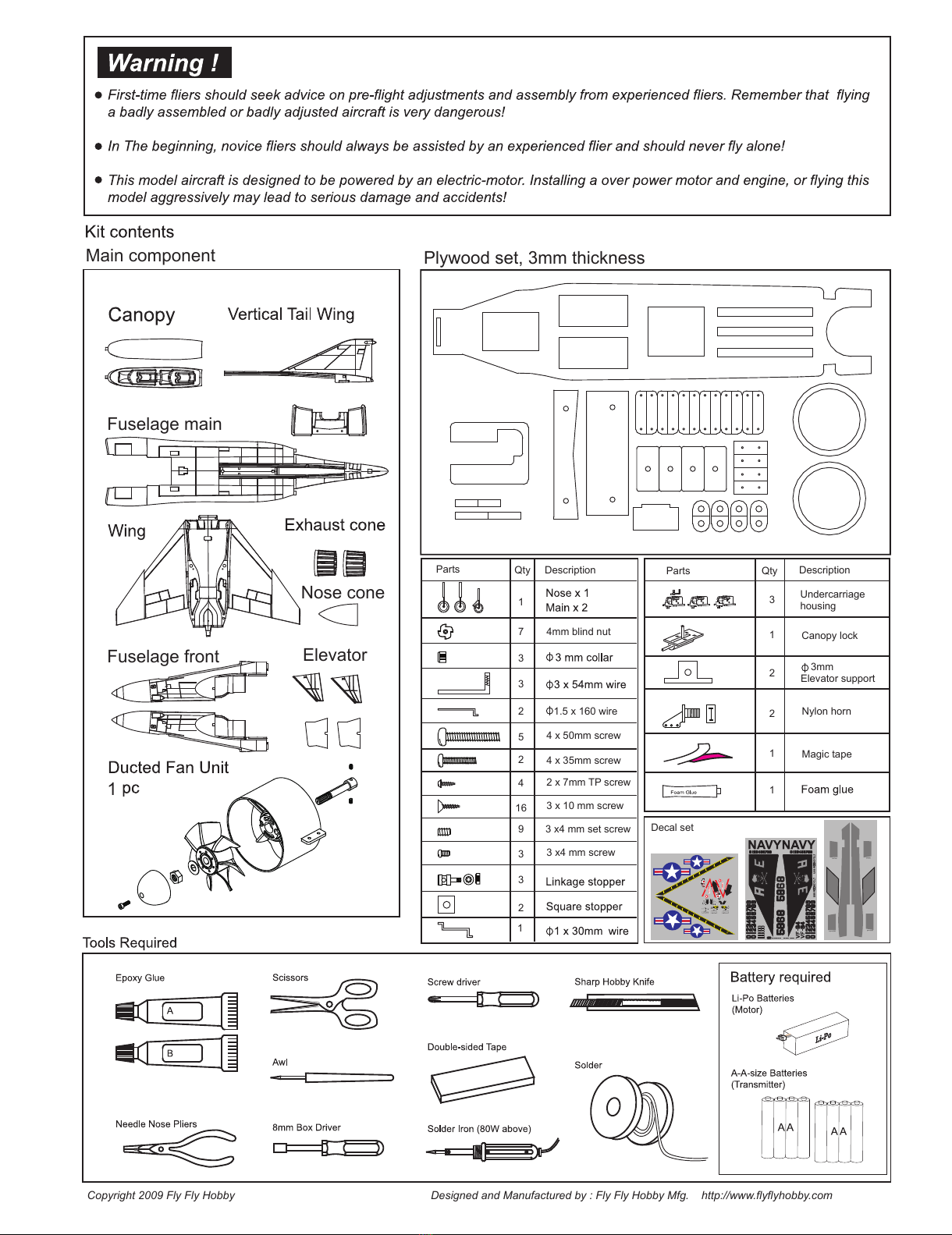

Elevator

Fuselage front

Fuselage main

Plywood set, 3mm thickness

Nylon horn

Magic tape

4 x 50mm screw

Decal set

1.5 x 160 wire

4 x 35mm screw

93 x4 mm set screw

42 x 7mm TP screw

33 x4 mm screw

3 x 10 mm screw

7 4mm blind nut

Qty Description Description

Parts Parts Qty

Undercarriage

housing

Canopy lock

Elevator support

3mm

Main component

Nose cone

All manuals and user guides at all-guides.com

FLYFLY HOBBY

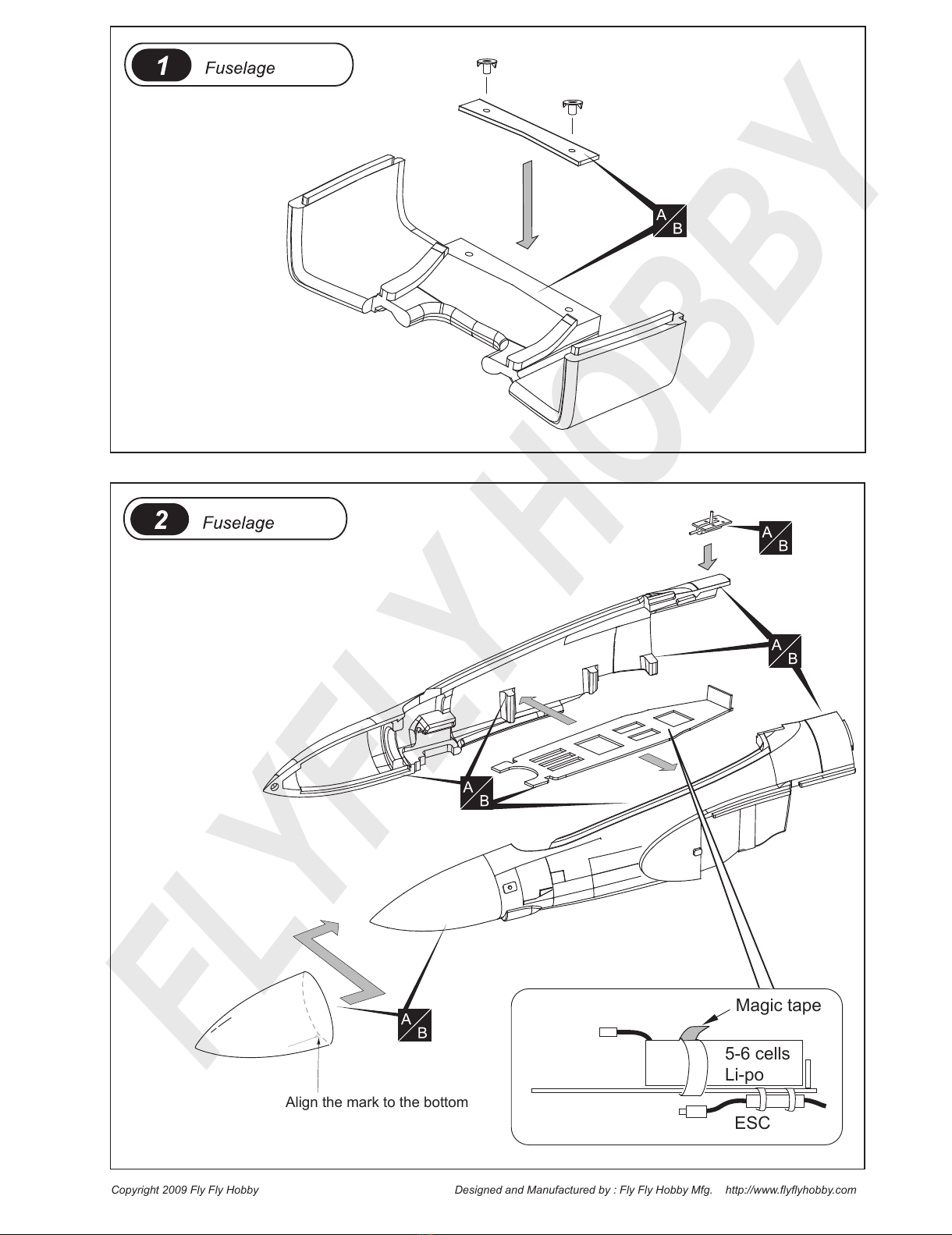

ESC

5-6 cells

Li-po

Magic tape

Align the mark to the bottom

All manuals and user guides at all-guides.com

FLYFLY HOBBY

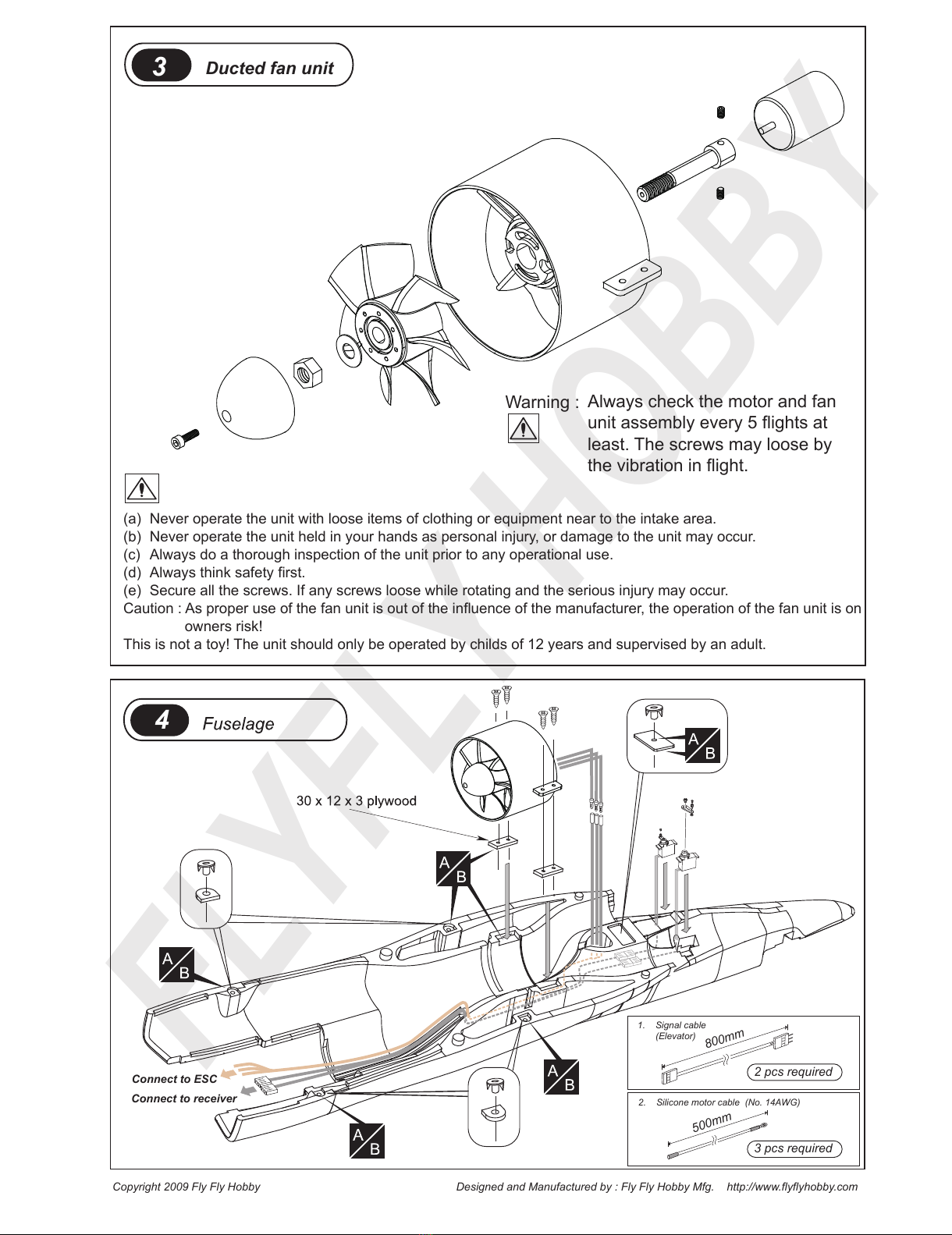

(a) Never operate the unit with loose items of clothing or equipment near to the intake area.

(b) Never operate the unit held in your hands as personal injury, or damage to the unit may occur.

(d) Always think safety first.

(e) Secure all the screws. If any screws loose while rotating and the serious injury may occur.

Caution : As proper use of the fan unit is out of the influence of the manufacturer, the operation of the fan unit is on

owners risk!

This is not a toy! The unit should only be operated by childs of 12 years and supervised by an adult.

Ducted fan unit

Connect to ESC

Connect to receiver

2 pcs required

1. Signal cable

(Elevator)

800mm

2. Silicone motor cable (No. 14AWG)

3 pcs required

500mm

Warning : Always check the motor and fan

unit assembly every 5 flights at

least. The screws may loose by

the vibration in flight.

All manuals and user guides at all-guides.com

FLYFLY HOBBY

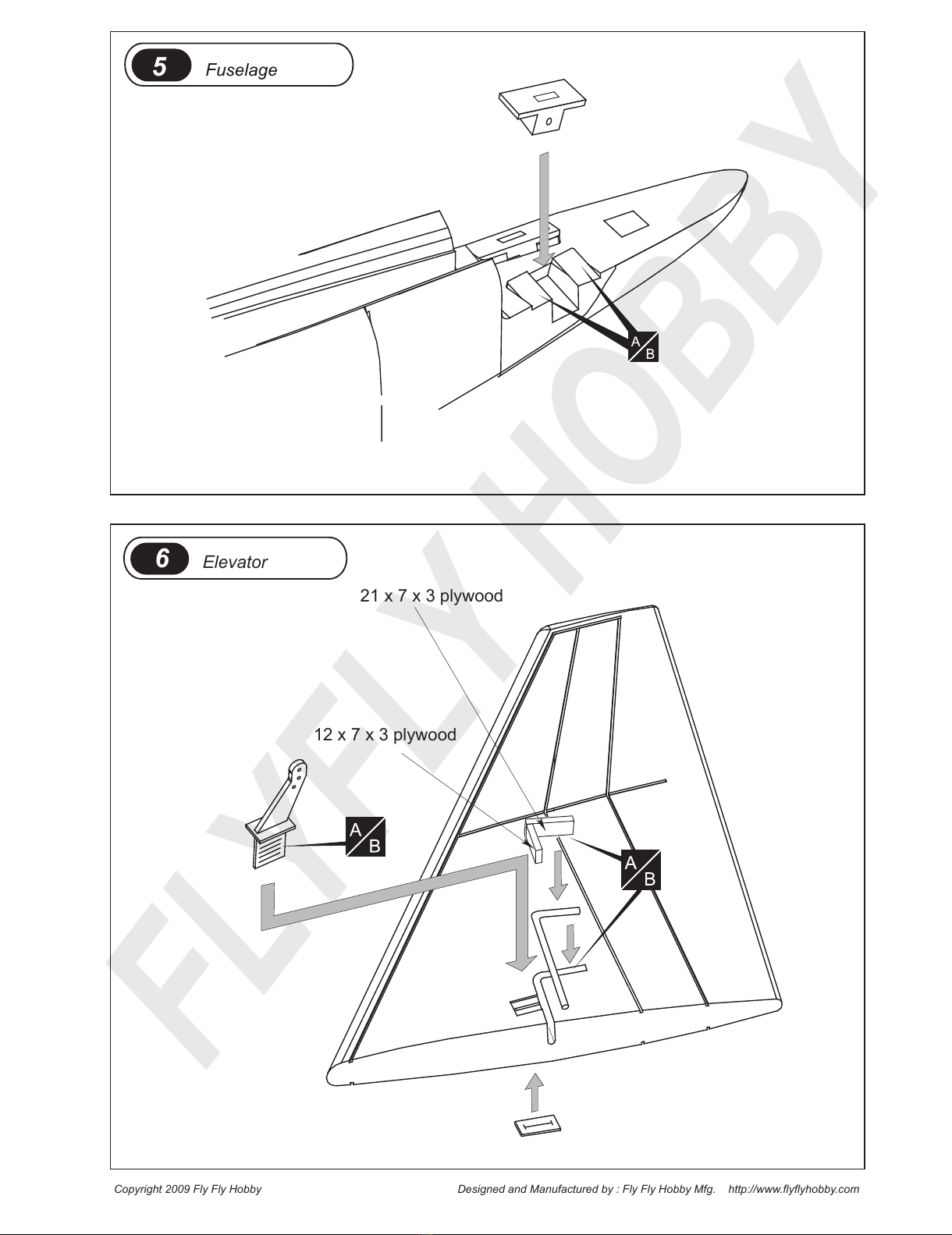

12 x 7 x 3 plywood

21 x 7 x 3 plywood

Elevator

All manuals and user guides at all-guides.com

FLYFLY HOBBY

8Canopy

Double side tape

All manuals and user guides at all-guides.com

all-guides.com

FLYFLY HOBBY

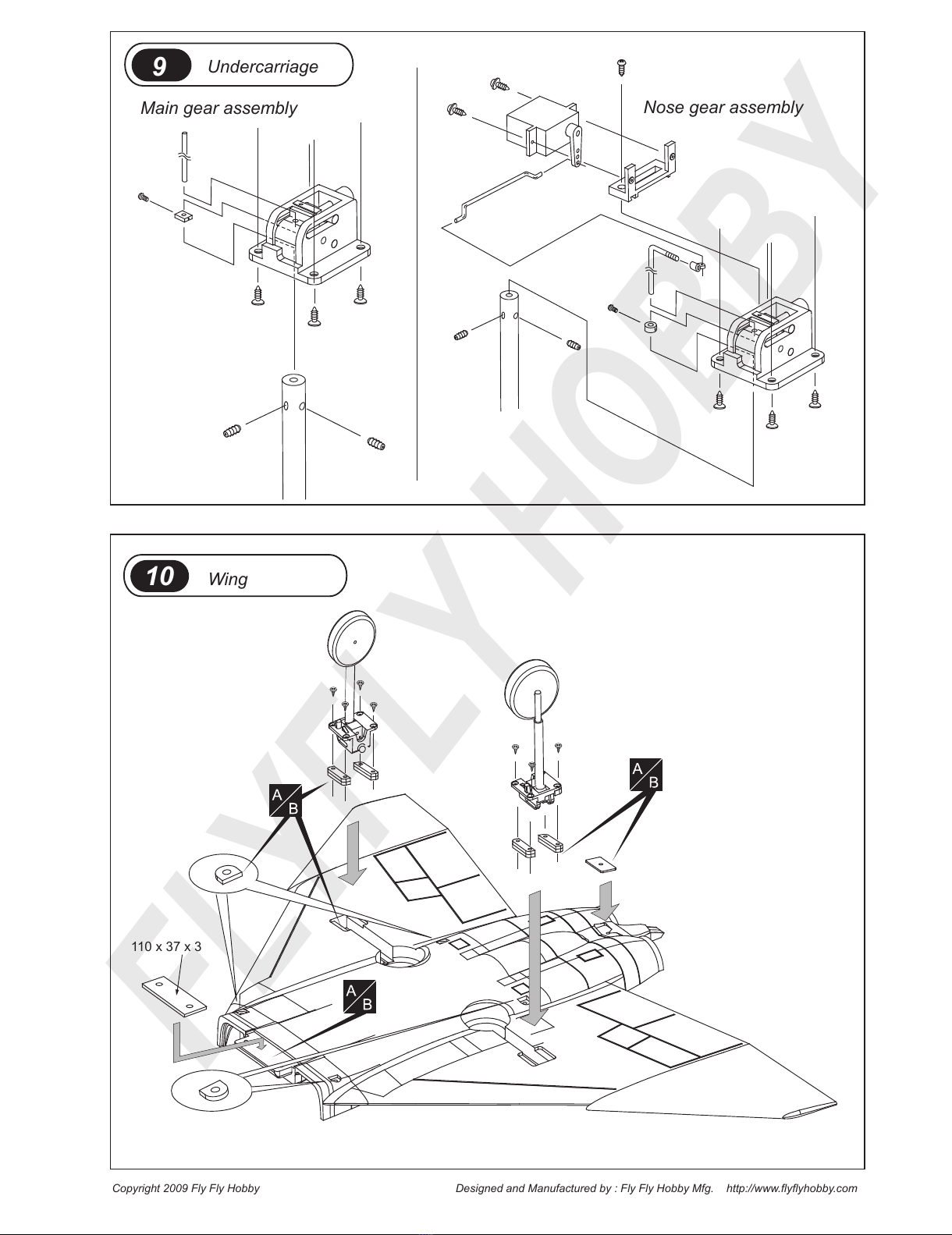

10 Wing

Undercarriage

Main gear assembly Nose gear assembly

110 x 37 x 3

All manuals and user guides at all-guides.com

FLYFLY HOBBY

11 Vertical fin

12 Elevator

3mm collar

3mm set screw

Make 5mm hole

All manuals and user guides at all-guides.com

FLYFLY HOBBY

13 Exhaust cone

Note : Epoxy the shadow portion only.

180mm

2mm Nut

3 x 4 screw

Linkage Stopper

1.5 x160 mm rod

All manuals and user guides at all-guides.com

FLYFLY HOBBY

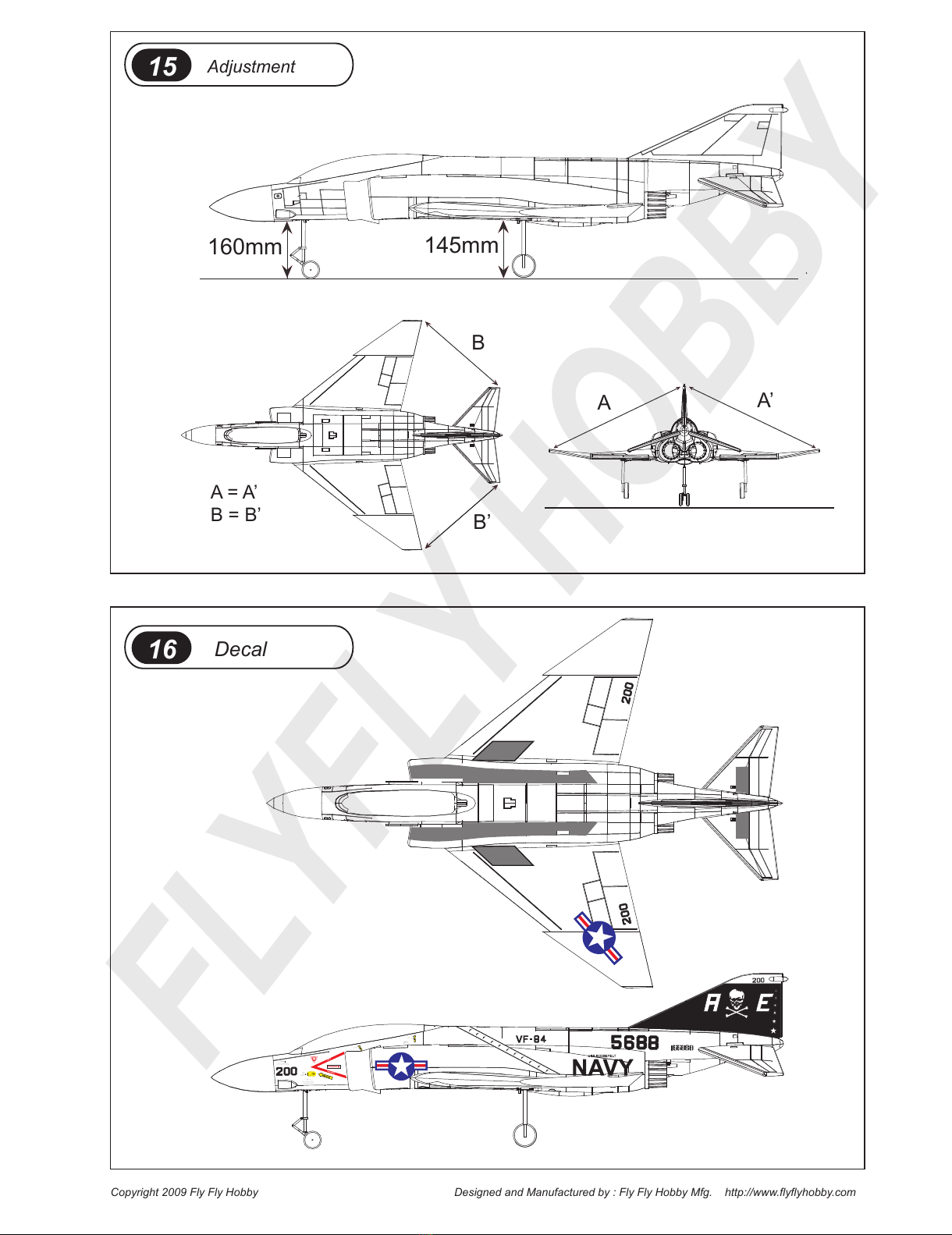

15 Adjustment

160mm 145mm

AA’

B’

A = A’

B = B’

Decal

CAUTION

RELEASE

PUSH

IFCANOPYDOESNOT

CLOSEINSTANTLYPUSH

IOPENBUTTOWBEFORE

ATTEMPTINGTOCLOSE AGAIN

PUSH

TO RELEASE

FWDCANOPY

MANUALRELEASE

AFTCANOPY

MANUALRELEASE

JET

INTAKE

DANGER

JETTISON

CANOPIES

CANOPY

JETTISON

DOOR

HANDLE INSIDE

PUSH

OPEN

PULL

HANDLE

CAUTION

BEFORE OPERATING CONTROLS

REFERTO MINIMIUM STRUCTURAL

ACCESSDOOR REQUIREMENTS

SECT.IMAINTENANCEMANUAL

TOPREVENTDAMAGE TO AIRCRAFT

TOPREVENTEQUTPMENT DAMAGE

REFER TO MAINTENANCE MANUAL

FORRADONEOPENING PROCEDURE

CAUTION
