Flyrace Pluswing Series Bedienungsanleitung

Instruction Manual

Dolphin Covering

Specications

Fuselage length: 932mm(36.7in)

Wingspan: 836mm(32.9in)

Flying Weight: 110-130g(with battery)

Additional Required Equipment

Motor:1804-2204

ESC: 6A

Propeller: 8043

Aileron Servo: 8-9g

rudder servo and elevator servo: 4-5g

Radio:4/more channel

Receiver: 4/more channel

Battery charger

Battery: 7.4V 200 mAh -400mAh Li-po

Advantage Points

•Perfect covering technology with at polyester lm

•Lighter hollow structure with same strength as not hollowed plane

•Genuine 3mm Depron Aero from Europe for best ight performance

•Lightweight carbon ber truss system virtually eliminates ex

•Minimal assembly required ight ready in as little as 2 hours

•Gorgeous and vibrant printed pattern

Introduction

Thank you for purchasing the Dolphin Covering. On the base of Dolphin

Depron-aero we developed an advanced version with more lighter but same

strong structure, it’s covering version. In order to avoid wrinkled lm we use an

electrostatic technology to let the lm cover on the depron’s surface atly and

tightly, so you needn’t worry that the lm will drone or bring resistance during the

ight. You just enjoy it with the light and beautiful plane.

The assembly instruction can help to assemble your new airplane in the shortest

possible time. You can get many basic tips from assembling a new Plane. Please

assemble the model according to the instructions as below.

Required Tools and Adhesives

(not included in the kit)

5 Minute Epoxy Resin

Depron Friendly Glue

Uhu Por

#0 and #1 Phillips Head Screwdrivers

1.5 mm Hex Wrench

Adjustable Wrench

Wire Cutters

Z-Bend Pliers

Needle Nose Pliers

Modeling Knife

Scissors

Electric or Hand Drill

Assorted Drill Bits

Straight Edge Ruler

Pencil

Builder’s Triangle

220 Grit Sandpaper with Sanding Block

Masking Tape

Paper Towels

Rubbing Alcohol

Epoxy Mixing Sticks

Epoxy Mixing Cups

Pluswing Series

Kit Contents

1.Body parts included in

the packing

A.Wing, Aileron, winglet

B.Fuselage

C.Horizontal stabilizer

D.Side fuselage

E.Nose of the fuselage

F.Vertical stabilizer

G.Wheel covers

H.Wing reinforcing strips

I.Round doublers

2. Parts included in the

packing

A. Quadrate and round doublers

B. Control horns

C. Servo arms

D. Wing stay bar reinforcement

E. Motor mount

F.Pull-pull thread adjustor

G.Aileron Z type steel wire

H.Heat tube

I.Landing gear sets

J.Pull-pull thread

3. Carbon ber ttings

Front edge stay bar

1pcs size: 800mm x 3mm x 0.5mm

Fuselage stay bar

4pcs size: 800mm x diameter.1mm

Wing stay bar

4pcs size: 300mm x diameter.1mm

Elevator stay bar and Tail n

1pcs size: 200mm x 3mm x 0.5mm

Undercarriage leg

2pcs size: 200mm x diameter.1.5mm

Instruction Steps

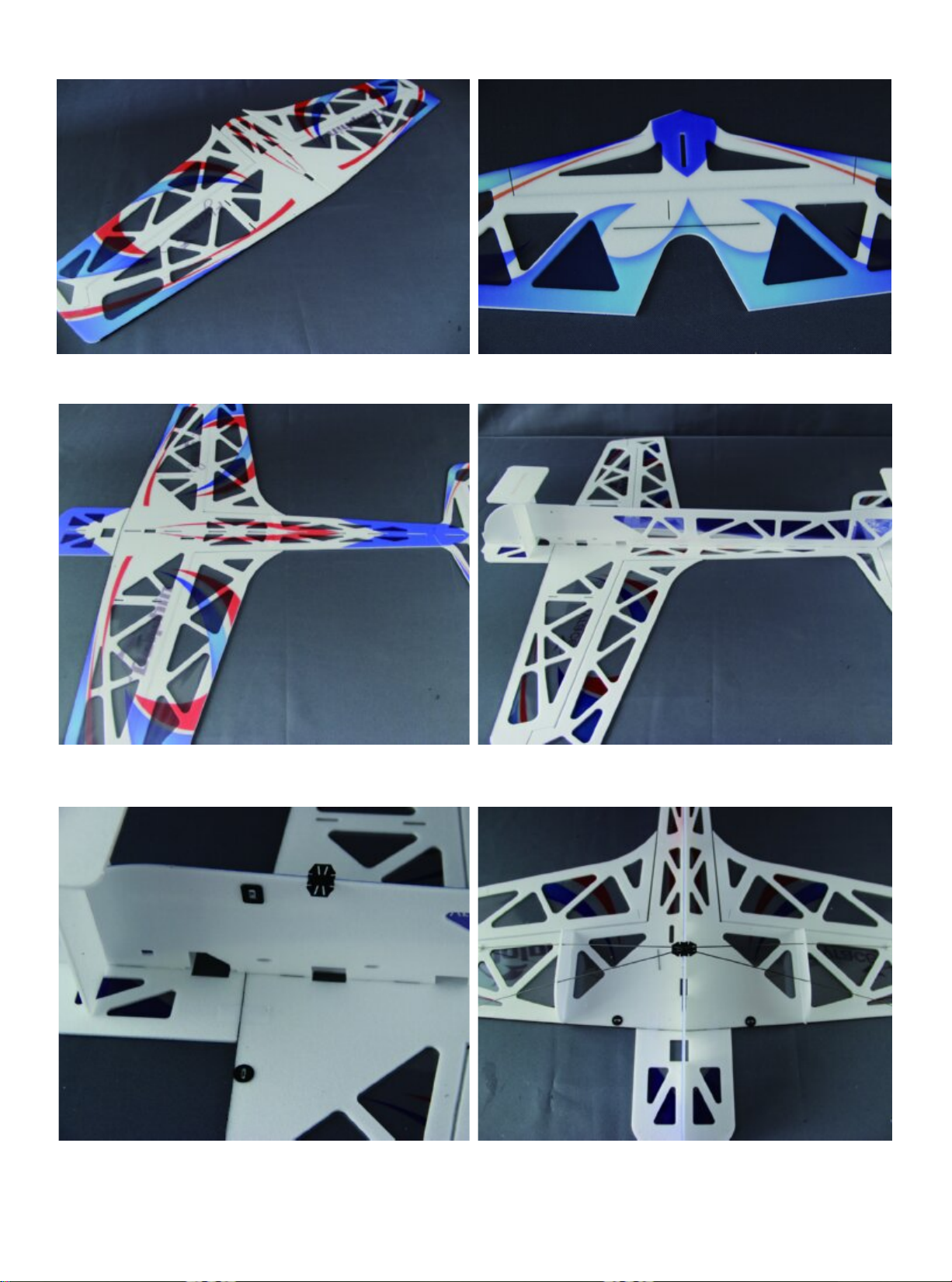

1.Glue the front edge stay bar onto the front edge of the wing. 2.Insert the carbon fiber strip into the pre-cut hole on the horizontal

stabilizer.

3.Fix the side fuselage and nose onto the wing with some foam friendly C/A,

then x the horizontal stabilizer onto the fuselage. Please make sure they

are horizontal, no distortion.

4.Fix the lower vertical fuselage onto the horizontal fuselage with

some foam friendly C/A, Please use the T-Pins to make sure they are

perpendicular before gluing.

5.As shown, fix the quadrate and round doublers on the fuselage, then

glue the base of the fuselage stay bar vertically on the lower vertical

fuselage.

6.Glue the wing reinforcing strips on the wing, then place the wing and fuselage,

press down rmly, then put one side of the wing stay bar through the base, the other

side is xed on the top of the wing. The stay bar should remain straight, not buckled.

7.Fix the stay bars on the nose, and then put the other side of stay bars

through the base.

8.Fix the other stay bars on the fuselage as shown in the picture.

9.Place aileron servo into pre-cut servo hole on fuselage, then use

screwdriver to install aileron servo arm, at last put the aileron onto the

inside of the pre-cut hole and glue it.

10.Fix the control horns into the pre-cut slots on the aileron with some

friendly C/A.

12.Install the landing gear onto the pre-cut holes of the fuselage and wing,

then glue the wheel covers.

11.Connect the Z type steel wire and heat tube to the rod for the aileron,

heat the tube and x one end with glue, then put the rod on the servo arm,

connect the heat tube and Z type steel wire to the other side of rod and

control horn, heat the tube and use glue to x it.

13.Glue the tail n on the end of lower vertical fuselage. 14.Fix the rudder servo with some foam friendly C/A, and then x the arm

on the servo.

16.Glue the upper vertical fuselage onto the horizontal fuselage with

some foam friendly C/A, use the T-Pins to make them perpendicular, no

distortion.

15.Fix the elevator servo with some foam friendly C/A, and then fix the

arm on the servo.

17.Fix the carbon stay bars on end of the upper fuselage as picture

shown.

18.Glue the carbon stay bars on the fuselage and wing.

19.Fix the vertical stabilizer onto the fuselage with glass ber tape. 20.Fix the control horns into the pre-cut slots on the vertical and horizontal

stabilizer with some friendly C/A.

21.Pass the thread through the elevator servo arm, fix it with some glue,

then pass the other side through the control horn, make the thread tight and

attach it on the screw, then screw tightly.

22.If the thread is not tight, you can use the adjustor to adjust.

23.The same operation to install the pull-pull thread on the elevator servo

and control horn.

24.Glue the motor mount onto the nose of the fuselage, and then x them

with glass ber tape.

25.Install the motor with the tapping screw, and then x the propeller with the O-ring.

26.Install the ESC, receiver and battery with Velcro.

27.The nished assembly Dolphin covering as picture shown.

WWW.FLYRACE.COM

Seek Assistance

If you are new to R/C we suggest you nd an experienced pilot to check out your aircraft and help you with the rst

few ights. This will help prevent damage to your model and will speed up the learning process and making your

R/C experience all the more enjoyable. You can contact local R/C clubs or your dealer to obtain the names of the

experienced R/C pilots who would be willing to help you with your rst few ights. Although this is an ARF(Almost-

Ready-to-Fly)kit, it does have some construction features that can be challenging to the less experienced modeler.

If you encounter difculty in any construction sequence, please feel free to contact one of our technicians, we stand

ready to provide any assistance we can. Contact us at:

E-Mail: info@yrace.com
