Follett 400 Series Beilage

ServiceNo.

StockModuleIdentificationPlate

208264

ModuleNo.

Product

VOLTS

EastonPennsylvania

MAX.BRANCHCIRCUITFUSESIZE

MIN.BRANCHCIRCUITAMPACITY

MOTORCOMPRESSORTHERMALLYPROTECTED

DESIGNPRESSUREHIGHSIDE

CHARGE

PARTNO

AMPS

AMPSNSF

PSIG

MADEIN

THEUSA

SINGLE

PHASE

LOWSIDE

MODEL

REFRIGERANT

FULLLOADAMPS

CORPORATION

SERIALNO

00117259R04

801 Church Lane • Easton, PA 18040, USA

Toll free (800) 523-9361 • (610) 252-7301

Fax (610) 250-0696 • www.follettice.com

Following installation, please forward this manual

to the appropriate operations person.

Follett Maestro™Chewblet®400 Series

Icemaker and Top Kit

for Remcor/Cornelius Countertop ice and beverage dispensers

Installation, Operation and Service Manual

Order parts online

www.follettice.com

Welcome to Follett Corporation

Important cautions

Specifications

Installation

Operation

Cleaning

Replacement Parts

Models MTC22SC, MSC22SC

Models MTC24SC, MSC24SC

Models MTC30SC, MSC30SC

Model MSC44SC

Table of contents

Follett Corporation

Equipment Return Policy

Follett equipment may be returned for credit under the following conditions:

1. The equipment is new and unused.

2. A return authorization number has been issued by customer service within 30 days after shipment.

3. Follett receives the equipment at the factory in Easton, PA within 30 days after issuance of the return authorization number.

4. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward, at the customer’s expense,

new packaging.

Note: Return freight charges are the responsibility of the customer. If equipment is returned and is damaged because of improper packaging,

Follett Corporation will not be held responsible.

Credit will be issued when:

The equipment has been inspected by Follett and deemed suitable to be returned to stock.

Note: A 15% restocking charge will be deducted from the credit. If the cost to return the product to stock exceeds 15%, the actual cost will be deducted.

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and

outstanding after-the-sale support. To ensure that this equipment delivers that same degree of service, we

ask that you review the installation portion of this manual before beginning to install the unit. Our installation

instructions are designed to help you achieve a trouble-free installation. Should you have any questions or

require technical help at any point, please call our technical service group at (800) 523-9361 or (610) 252-7301.

Before you begin

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If

damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing

of a claim, if necessary.

Check your paperwork to determine which model you have. Follett model numbers are designed to provide

information about the type and capacity of Follett equipment. Following is an explanation of the different model

numbers in the series.

MSC22SC

Icemaker configuration

SC = self-contained

Dispenser size

22 = 22" wide

24 = 24" wide

30 = 30" wide

44 = 44" wide

Dispenser manufacturer

C = Cornelius

L = Lancer

S = SerVend

Icemaker mounting

MT = Maestro top mount

MS = Maestro Satellite-fill

Important cautions

Dispenser bin area contains mechanical, moving parts. Keep hands and arms clear of this

area at all times. If access to this area is required, power to unit must be disconnected first.

Follett recommends a Follett water filter system (part# 00130229 for the 400 series) be

installed in the icemaker inlet water line.

Ice is slippery. Maintain counters and floors around dispenser in a clean and ice-free condition.

Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

Specifications

Electrical

Model number Full load amps Max. fuse size

MC400 series icemaker 115/60/1 11.0 amps 20 amps

Ambient specifications

Air temperature 100˚F/38˚C max. 50˚F/10˚C min. (best performance below 80˚F/27˚C)

Water temperature 90˚F/32˚C max. 40˚F/4˚C min. (best performance below 70˚F/21˚C)

Water pressure 70 P.S.I. max.(482kPA) 10 P.S.I min. (89kPA)

Plumbing

Your new icemaker is equipped with a drain line to simplify draining the evaporator and float reservoir. The tube

labeled “float/evap drain” is for SERVICE USE ONLY and must NOT be connected to the icemaker drain.

Water line sizes Make up water (inlet to float) 1/4" min.

Condenser (water-cooled only) 3/8" min.

Drain line sizes Icemaker drain 3/4" min.

Condenser (water-cooled only) 3/8" min.

Slope to drain 1/4" per foot (6mm per 30.4cm run) 1/2" min.

• Water shut-off recommended within 10 feet (3m), drain to be hard-piped and insulated

• Separate drains for icemaker and condenser. To prevent back flow, do NOT connect drains.

• Follett recommends installation of a Follett water filter system (part# 00130229) in icemaker inlet water line

Field Wiring: countertop dispensers with Satellite-fill icemakers

Consult enclosed D400A/W, R400A/W, MCD400A/W manual.

20.75" (527mm)

22.75" (578mm)

13.00"

(331mm)

4.875"

(124mm)

2.375"

(61mm)

1.875" (48mm)

7.00" (178mm)

17.00"

(432mm)

Front view — air-cooled

Satellite-fill

Side view — air-cooled and water-cooled

top mount and Satellite-fill

Satellite-fill air-cooled units only

Back view — air-cooled

top mount

Front view — water-cooled

Satellite-fill

Back view — water-cooled

top mount

12.875"

(327mm)

4.75"

(121mm)

8.375"

(213mm)

2.25"

(57mm)

1.875" (48mm)

Front view — air-cooled

top mount

Icemaker plug

configuration

NEMA 5-20

6.875"

(175mm)

(51mm)

Dimensions and clearances

Required clearances – MCD400 series

Entire front of icemaker clear of obstruction/connections to allow removal.

12" (305mm) above icemaker for service

6" (153mm) minimum between louvered (exhaust) side of icemaker and any adjacent equipment.

MCD400AHS – 18" (457mm) minimum, 10 ft (3m) maximum between discharge and air intake grilles.

A– 3/4" MPT drain

B– 3/8" OD push-in water inlet

C– Electrical cord

D– 3/8" FPT condenser inlet

E– 3/8" FPT condenser drain

Installation

1. Install Cornelius ice dispenser according to

manufacturer’s specifications.

Note: We recommend that the dispenser

back be mounted at least 1" (26mm) from wall to

allow water, drain and electric lines from top-mount

icemakers to be concealed behind dispenser.

2. Disconnect power to dispenser.

3. Remove front panel/merchandiser from the dispenser.

4. Adjust the agitation timer located on Cornelius PC

board to 1 second on – 1 hour off (Fig. 1).

Fig. 1

5. Install supplied

nugget ice diverter at

dispenser opening.

a) Disassemble

chute assembly

and discard gate

restrictor (Fig. 2.1).

b) Reassemble with

supplied ice

diverter as shown

(Fig. 2.2).

6. Reinstall front panel.

OFF

agitation

timer

Fig. 2

storage hopper

gate

restrictor

plate

flange extends

into storage

hopper through

gate opening

apply RTV to this

surface to seal to

hopper gate

mounting plate

gasket

flat washer

10-32 nut

ice chute

ice diverter

(supplied)

gate

mounting

plate

8. Install supplied stainless steel top with access opening toward

front of dispenser (Fig. 4).

For dispensers with top mounted icemakers

Proceed with steps 9 through 17.

For dispensers with Satellite-fill icemakers

Go directly to step 18.

Fig. 4

Fig. 3

7. Remove existing plastic top from dispenser and install supplied

gasket around perimeter of dispenser top (Fig. 3).

Note: Sanitize dispenser before proceeding.

gasket

ServiceNo.

StockModuleIdentificationPlate

208264

ModuleNo.

Product

VOLTS

EastonPennsylvania

MAX.BRANCHCIRCUITFUSESIZE

MIN.BRANCHCIRCUITAMPACITY

MOTORCOMPRESSORTHERMALLYPROTECTED

DESIGNPRESSUREHIGHSIDE

CHARGE

PARTNO

AMPS

AMPSNSF

PSIG

MADEIN

THEUSA

SINGLE

PHASE

LOWSIDE

MODEL

REFRIGERANT

FULLLOADAMPS

CORPORATION

SERIALNO

Fig. 5

Top mounted icemaker installation

9. Position Follett MCD400AHT icemaker on perimeter gasket

of stainless steel top. Icemaker should be oriented with A/C

condenser facing front (Fig 5).

Fig. 6

10. Use pliers to compress and remove cage nut at front

of condenser on icemaker base (Fig. 6.1).

11. Install filter and grille. Lock in place using four

mounting screws (Fig. 6.2).

Fig. 7

ModuleNo.

Product

StockModuleIdentificationPlate

208264

ServiceNo.

MIN.BRANCHCIRCUITAMPACITY

DESIGNPRESSUREHIGHSIDE

MAX.BRANCHCIRCUITFUSESIZE

AIROUT

VOLTS

EastonPennsylvania

MOTORCOMPRESSORTHERMALLYPROTECTED

THEUSA

MADEIN

SINGLE

LOWSIDE

CHARGE

PSIG

PHASE

AMPS

PARTNO

AMPS

FULLLOADAMPS

CORPORATION

REFRIGERANT

SERIALNO

MODEL

AIRIN

NSF

filter

grille

Power

115V

Back view– air-cooled

top mount

3/8" OD

water inlet

Drain

3/4" MPT

12. Make water, drain and electric connections

to icemaker (Fig. 7).

Note: Water connection accepts 3/8" OD

copper or plastic tubing. Push tubing in

until it stops. Use supplied 90˚ push-in

water inlet fitting if there is not enough

clearance behind icemaker to install

water tubing without kinking tubing or

putting stress on fitting.

Note: Follett recommends the installation

of a Follett water filter system

(par# 00130229) on supply water

inlet.

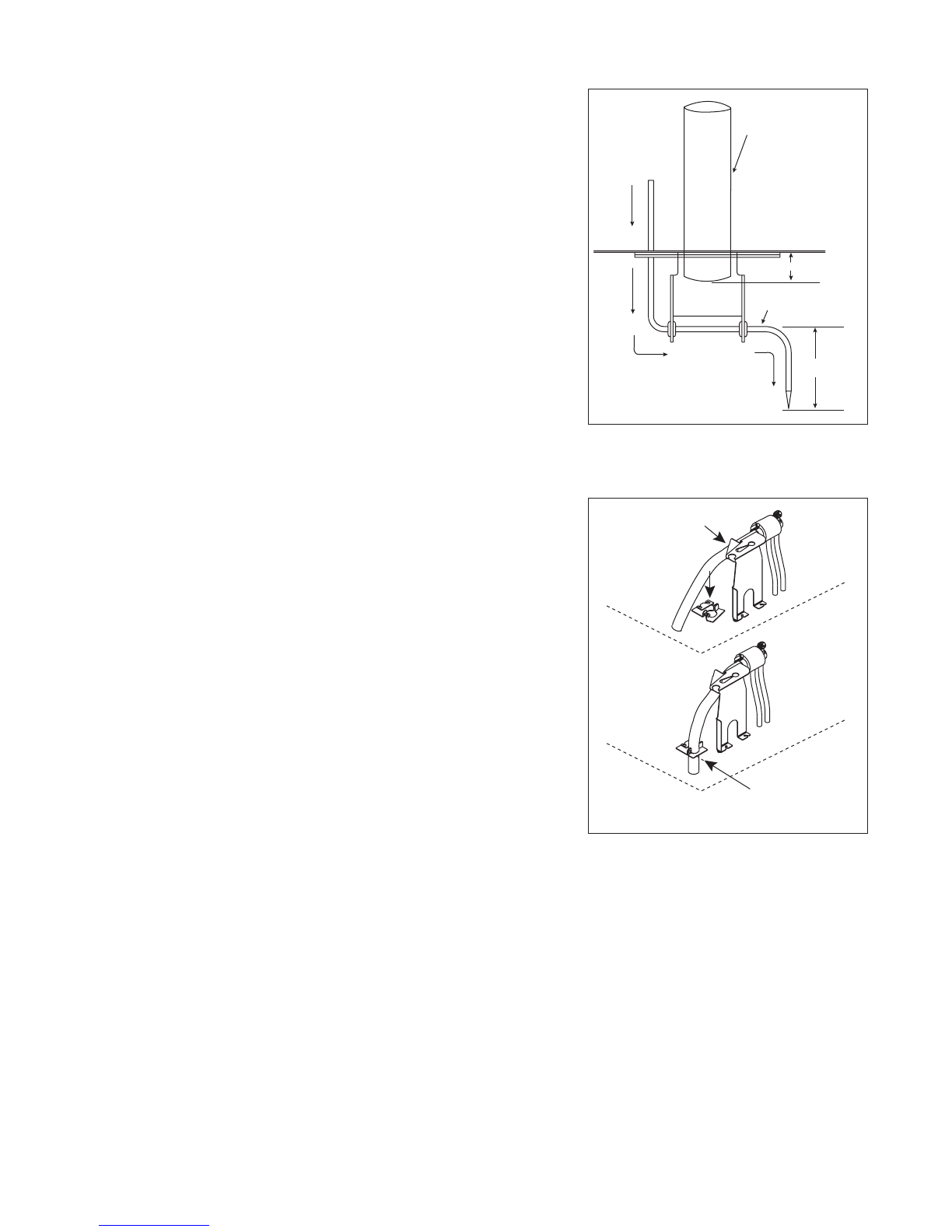

Fig. 8

13. Remove icemaker top panel and

louvered side panel.

14. Insert ice transport tube to a 1/2"

(13mm) depth through mounting

bracket (Fig 8 and 9.1) and secure

transport tube away from condenser

fan under float reservoir bracket

(Fig. 9.2).

15. Tighten clamp screw(s) on icemaker

base securely (Fig. 9.3).

16. Uncoil capillary tube from bin

thermostat and route through hole in

gasket to mounting bracket and secure

as shown (Fig. 8).

17. Reinstall icemaker louvered side panel

and top panel.

GO TO STARTUP – STEP 27.

ice transport tube

bin thermostat

capillary tube

1/2"

Fig. 9

3tighten

clamp

screw

insert ice

transport

tube

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Follett Eiswürfelbereiter Handbücher

Follett

Follett C33985 Bedienungsanleitung

Follett

Follett Horizon Elite Chewblet HCD1010RHS Bedienungsanleitung

Follett

Follett Horizon Elite HMF1010RJS Bedienungsanleitung

Follett

Follett Horizon HCD1000RVS Bedienungsanleitung

Follett

Follett HMD1000N Bedienungsanleitung

Follett

Follett Horizon Elite HCD1010R/N Bedienungsanleitung

Follett

Follett Horizon Elite 1810 Series Bedienungsanleitung

Follett

Follett Horizon Elite HME1410A/W Bedienungsanleitung

Follett

Follett HMD700R Bedienungsanleitung

Follett

Follett Horizon Elite HMF1810RJS Bedienungsanleitung

Follett

Follett Horizon Elite 1410 Series Bedienungsanleitung

Follett

Follett Horizon Elite 1810 Series Bedienungsanleitung

Follett

Follett Horizon Elite HC-1810R/N Bedienungsanleitung

Follett

Follett Maestro Bedienungsanleitung

Follett

Follett Horizon Elite HCD1810RHS Bedienungsanleitung

Follett

Follett HCD710ABS Bedienungsanleitung

Follett

Follett H58642 Bedienungsanleitung

Follett

Follett Horizon Elite HCD1810RBS Bedienungsanleitung

Follett

Follett Horizon Elite HCD1410R Bedienungsanleitung

Follett

Follett Maestro Plus MC 414A Series Einrichtungshandbuch

Follett

Follett Maestro Plus MC 425A Series Bedienungsanleitung

Follett

Follett HCD Bedienungsanleitung

Follett

Follett Horizon Chewblet series Bedienungsanleitung

Follett

Follett Horizon Elite HCD710APS Bedienungsanleitung

Beliebte Eiswürfelbereiter Handbücher anderer Marken

Hoshizaki

Hoshizaki KMD-460MWJ Bedienungsanleitung

Sub-Zero

Sub-Zero 315I Gebrauchsanweisung

Unold

Unold 48945 Bedienungsanleitung

Kenmore

Kenmore 2217402A Bedienungsanleitung

Cornelius

Cornelius WM600 Betriebsanleitung

GE XPIO43SCSS Bedienungsanleitung

Hoshizaki

Hoshizaki KMD-901MAH Bedienungsanleitung

Whynter

Whynter FIM-450HA Bedienungsanleitung

U-Line

U-Line UMCR014-SC01A Installationshandbuch

Andrew James

Andrew James AJ000522 Bedienungsanleitung

Scotsman

Scotsman CME1356 Bedienungsanleitung

Scotsman

Scotsman ACM 25 Bedienungsanleitung

Kärcher

Kärcher IP 120 Bedienungsanleitung

U-Line

U-Line SS1095 Bedienungsanleitung

Maytag

Maytag MIM1554WRS - Ice Maker Bedienungsanleitung

Hoshizaki

Hoshizaki KM-630MAH Bedienungsanleitung

Princess

Princess Yonanas Bedienungsanleitung

Unold

Unold 48946 Bedienungsanleitung
