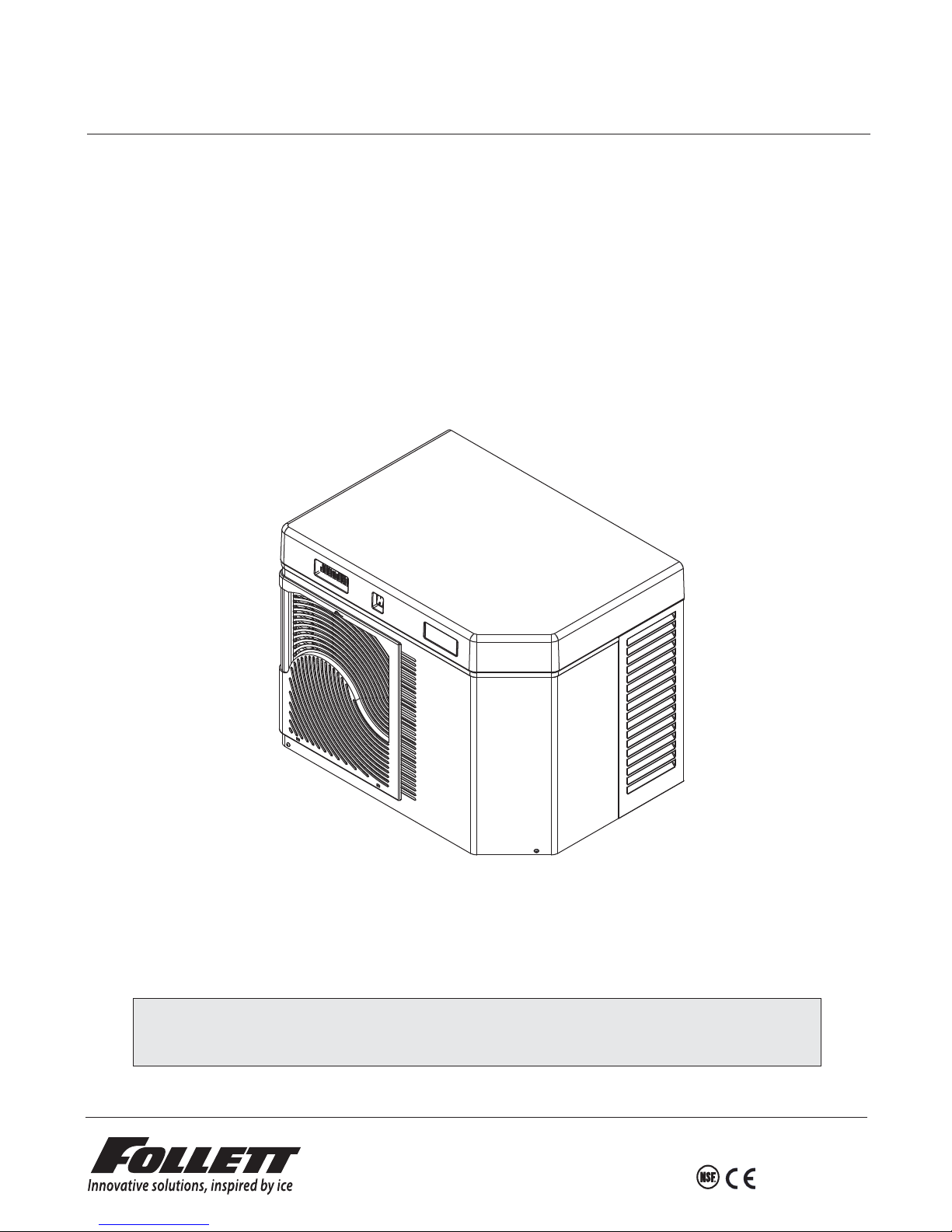

HCE1400A, HCE1400W 50Hz Icemakers

801 Church Lane • Easton, PA 18040, USA

Toll free (800) 523-9361 • (610) 252-7301

Fax (610) 250-0696 • www.follettice.com

Following installation, please forward this manual

to the appropriate operations person.

Operation and Service Manual

After Serial Number C20000

Order parts online

www.follettice.com

00171611R00

Follett Corporation

Equipment Return Policy

Follett equipment may be returned for credit under the following conditions:

1. The equipment is new and unused.

2. A return authorization number has been issued by customer service within 30 days after shipment.

3. Follett receives the equipment at the factory in Easton, PA within 30 days after issuance of the return authorization number.

4. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward,

at the customer’s expense, new packaging.

Note: Return freight charges are the responsibility of the customer. If equipment is returned and is damaged because of

improper packaging, Follett Corporation will not be held responsible.

Credit will be issued when:

The equipment has been inspected by Follett and deemed suitable to be returned to stock.

Note: A 15% restocking charge will be deducted from the credit. If the cost to return the product to stock exceeds 15%, the

actual cost will be deducted.

Welcome to Follett Corporation

Specications

Operation

Cleaning

Weekly exterior care

Monthly condenser cleaning

Semi-annual evaporator cleaning

Service

Icemaker operation

Water system

Electrical system

Normal control board operation

Test points

Time delay and self ushing jumpers

Error faults

Hard error

Soft errors

Relay output indication

Compressor/refrigerant solenoid output

Wiring diagram

Compressor data

Gearmotor data

Resistance of windings

Mechanical system

Evaporator disassembly

Evaporator reassembly

Refrigeration system

Refrigeration pressure data

Refrigeration system diagram

Refrigerant charge size

Refrigerant replacement requirements

Evacuation

Ambients

Ice capacity test

Bin full detection system

Troubleshooting

Replacement parts

Table of contents

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and

outstanding after-the-sale support. To ensure that this equipment delivers the same degree of service, we ask

that you review the installation manual (provided as a separate document) before beginning to install the unit.

Our instructions are designed to help you achieve a trouble-free installation. Should you have any questions or

require technical help at any time, please call our technical service group at (800) 523-9361 or (610) 252-7301.

Before you begin

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage

is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling of a claim,

if necessary.

Check your paperwork to determine which model you have. Follett model numbers are designed to provide information

about the type and capacity of Follett equipment. Following is an explanation of the different model numbers in the

1400 series.

Horizon Series Icemaker Model Number Configurations

A Air-cooled, self-contained

W Water-cooled, self-contained

A B SE 1400HC

HC Horizon

Chewblet®

E 230/50/1

(self-contained only)

Icemaker Voltage Series Condenser

H Harmony™

B Ice storage

bin

1000 up to

1036 lbs

(471kg)

1400 up to

1450 lbs

(658kg)

S Satellite-fill™

T Top-mount

Application Configuration

Chewblet is a registered trademark of Follett Corporation, registered in the US.

CAUTION

• Warranty does not cover exterior or outside installations

• Moving parts. Do not operate with front cover removed.

• Hot parts. Do not operate with cover removed.

• To reduce risk of shock, disconnect power before servicing

• Most ice machine cleaners contain citric or phosphoric acid, which can cause skin irritation. Read caution

label on product and follow instructions carefully.

• Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.

• Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

Specications

Electrical

Each icemaker requires its own separate circuit with electrical disconnect within 10 ft (6m).

Equipment ground required.

Standard electrical – 220-240/50/1

Maximum icemaker fuse – 20 amps

Amperage – 16 amps

Maximum power – 5280 watts

Climatic class – N

6 ft (2m) cord provided on icemaker

CAUTION

• Plug must be provided by the end-user and must conform to standard EN 60 335-2-24:2003 of the end

destination

• If the supply cord is damaged, it must be replaced by the manufacturer or their service agent, or a similarly

qualied technician in order to avoid a hazard

Plumbing

3/8" OD push-in water inlet

3/4" MPT drain

1/4" FPT condenser inlet (water-cooled condenser only)

1/4" FPT condenser drain (water-cooled condenser only)

Notes: 3/4" vented drain line must slope a minimum of 1/4" per foot (6mm per 30.4cm run).

Drain to be hard piped and insulated.

To prevent back ow, do not connect drains.

Separate drains for icemaker and condenser.

Water shut-off recommended within 10 feet (3m).

Follett recommends installation of Follett model 00130286 activated carbon lter

in icemaker inlet water line.

Ambient

Air temperature 100˚F/38˚C max. 50˚F/10˚C min.

Water temperature 90˚F/32˚C max. 45˚F/7˚C min.

Water pressure – potable 70 psi max. (483 kPa) 10 psi min. (69 kPa)

Note: Water-cooled condenser pressure 150 psi max (1034kPa); 10 psi min (69kPa)

Heat rejection

Air-cooled rejects 15,500 BTU/hr to air (3906Kcal/hr) to air

Water-cooled rejects 15,500 BTU/hr to water (3906Kcal/hr) to water

Ice production

1362

618

1290

586

1219

553

1148

521

1077

489

1290

586

1206

548

1136

516

1065

484

993

451

1192

541

1120

509

1050

477

919

417

907

412

1105

502

1033

469

969

440

891

405

820

372

100

989

449

917

416

847

385

776

352

714

324

lbs

Inlet Water Temperature F/C

Ambient Air Temperature F/C

Air-cooled icemaker capacity/24 hrs.

1128

512

1081

491

1035

470

989

449

943

428

1128

512

1081

491

1035

470

989

449

943

428

1128

512

1081

491

1035

470

989

449

943

428

1128

512

1081

491

1035

470

989

449

943

428

1128

512

1081

491

1035

470

989

449

943

428

lbs

Water-cooled icemaker capacity/24 hrs.

Inlet Water Temperature F/C

Ambient Air Temperature F/C

Dimensions and clearances

Entire front of icemaker must be clear of obstructions/connections to allow removal.

1" (26mm) clearance above icemaker for service.

1" (26mm) minimum clearance on sides.

The intake and exhaust air grilles must provide at least 170 sq in (1098 sq cm) of open area.

Air-cooled model HCC1400A icemakers – 18" (458mm) minimum clearance between discharge and air

intake-grilles.

Keep ventilation openings in the appliance enclosure or built-in structure, clear of obstruction.

Front View Side View Back View

Air intake

PSIG

THEUSA

MADEIN

PHASE

SINGLE

LOWSIDE

CHARGE

PARTNO

EastonPennsylvania

208264

AMPS

VOLTS

SERIALNO

CORPORATION

MODEL

ServiceNo.

Product

ModuleNo.

REFRIGERANT

FULLLOADAMPS

StockModule Identification Plate

DESIGNPRESSUREHIGH SIDE

MAX.BRANCHCIRCUITFUSE SIZE

MIN.BRANCHCIRCUITAMPACITY

MOTORCOMPRESSORTHERMALLYPROTECTED

NSF

ULUL

Air exhaust

21.05" (535mm)

23.50"

(597mm)

21.28" (541mm) Air exhaust

both sides

Ice transport hose connection

6.95"

(177mm)

3/4" MPT drain

3/8" OD push-in water inlet

23.77" (604mm)

15.56"

(396mm)

2.53"

(65mm)

2.43" (62mm)

1/4" FPT condensor drain

(water-cooled only)

1/4" FPT condensor inlet

(water-cooled only)

29.63" (753mm)

Cord only

CAUTION

• Keep ventilation openings in the appliance enclosure or built-in structure, clear of obstruction

Operation

Cleaning and preventive maintenance (all models)

Note: Do not use bleach to sanitize or clean the icemaker.

Preventive maintenance

Periodic cleaning of Follett’s icemaker system is required to ensure peak performance and delivery of clean,

sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as

recommended, and more often if environmental conditions dictate.

Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the icemaker system,

in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent.

Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed

according to the schedule below. Service problems resulting from lack of preventive maintenance will not be

covered under the Follett warranty.

Weekly exterior care

The exterior may be cleaned with a stainless cleaner such as 3M Stainless Steel Cleaner & Polish or equivalent.

Monthly condenser cleaning (air-cooled icemaker only)

1. Use a vacuum cleaner or stiff brush to carefully clean condenser coils of air-cooled icemakers to ensure

optimal performance.

2. When reinstalling counter panels in front of remote icemakers, be sure that ventilation louvers line up with

condenser air duct.

Semi-annual evaporator cleaning (every 6 months)

WARNING

• Wear rubber gloves and safety goggles (and/or face shield) when handling ice machine cleaner or sanitizer

CAUTION

• Use only Follett approved SafeCLEAN™ Cleaner (part #00132001) and NU-CALGON IMS-II SANITIZER

• Do not mix Cleaner and Sanitizer solutions together

• DO NOT USE BLEACH

• It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling

• Read and understand all labels printed on packaging before use

Note: Complete procedure for cleaning an sanitizing MUST be followed. Ice must be collected for

10 minutes before putting ice machine back into service.

1. To clean – Remove cover. Press the CLEAN

button. The machine will drain. Wait for the LO

WATER light to come on (Fig. 1).

LO WATER

CLE

Fig. 1

2. Mix 1 gallon (3.8L) 120˚F (49˚C) water and

7 ounces (198g) (one 7 ounce packet of Follett

SafeCLEAN ice machine cleaner, part# 00132001).

Locate cleaning cup. Fill until HI WATER light

comes on (Fig. 2).

Note: Do not use bleach to sanitize or clean the

icemaker.

HI WATER

Fig. 2

Fig. 3

LO WATER

Fig. 4

3. Replace cover on cleaning cup. Wait until machine

restarts. Machine will clean, then ush 3 times in

approximately 12 minutes (Fig. 3).

4. To sanitize – Press CLEAN button. The machine

will drain. Wait for LO WATER light to come on

(Fig. 4).

HI WATER

Fig. 5

Fig. 6

Fig. 7

5. Mix 1 gallon 120˚F (49˚C) water and 1.6 ounces

(48ml) NU-CALGON IMS-II SANITIZER. Fill until

HI WATER light comes on (Fig. 5).

Note: Do not use bleach to sanitize or clean the

icemaker.

6. Replace cover on cleaning cup. Wait until machine

restarts. Machine will sanitize, then ush 3 times in

approximately 12 minutes (Fig. 6).

7. To clean transport tube – Press power switch OFF

(Fig. 7).

Fig. 8

16"

(407mm)

Fig. 9

Fig. 10

8. Disconnect coupling as shown (Fig. 8).

9. Using disposable food service grade gloves,

insert dry Sani-Sponge™(kit part# 00132068).

Next, insert Sani-Sponge soaked in Nu-Calgon

IMS-II sanitizer solution. Push both Sani-Sponges

down ice transport tube with supplied pusher tube

(Fig. 9).

10. Remove and discard 16" (407mm) pusher tube

(Fig. 10).

Andere Handbücher für HCE1400A

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Follett Eiswürfelbereiter Handbücher

Follett

Follett Maestro plus chewblet ride 425 series Bedienungsanleitung

Follett

Follett H_C700AHS Bedienungsanleitung

Follett

Follett Horizon Elite Chewblet 1010 Series Bedienungsanleitung

Follett

Follett Horizon Elite Chewblet HCF1010RMS Bedienungsanleitung

Follett

Follett L77091 Einrichtungshandbuch

Follett

Follett Horizon HCD1000RHT Bedienungsanleitung

Follett

Follett HMF1400R Bedienungsanleitung

Follett

Follett 25CI425A Einrichtungshandbuch

Follett

Follett Horizon HCC1000AJS Bedienungsanleitung

Follett

Follett Horizon HCD700RHT Bedienungsanleitung

Follett

Follett HCD1650RBT Bedienungsanleitung

Follett

Follett HCC1000A Bedienungsanleitung

Follett

Follett Maestro Chewblet 400 Series Beilage

Follett

Follett Symphony Plus Bedienungsanleitung

Follett

Follett Horizon Elite 710 Series Bedienungsanleitung

Follett

Follett Horizon Elite HCE710A Bedienungsanleitung

Follett

Follett Ice Pro DB650 Konfigurationshandbuch

Follett

Follett Horizon HME14000ABT Bedienungsanleitung

Follett

Follett HCC1010A Bedienungsanleitung

Follett

Follett HCD1400R Bedienungsanleitung

Follett

Follett MCD425A/W Bedienungsanleitung

Follett

Follett MCC425A/W S Bedienungsanleitung

Follett

Follett Horizon Elite series Bedienungsanleitung

Follett

Follett Horizon Elite HC Series Bedienungsanleitung

Beliebte Eiswürfelbereiter Handbücher anderer Marken

Hoshizaki

Hoshizaki KMD-460MWJ Bedienungsanleitung

Sub-Zero

Sub-Zero 315I Gebrauchsanweisung

Unold

Unold 48945 Bedienungsanleitung

Kenmore

Kenmore 2217402A Bedienungsanleitung

Cornelius

Cornelius WM600 Betriebsanleitung

GE XPIO43SCSS Bedienungsanleitung

Hoshizaki

Hoshizaki KMD-901MAH Bedienungsanleitung

Whynter

Whynter FIM-450HA Bedienungsanleitung

U-Line

U-Line UMCR014-SC01A Installationshandbuch

Andrew James

Andrew James AJ000522 Bedienungsanleitung

Scotsman

Scotsman CME1356 Bedienungsanleitung

Scotsman

Scotsman ACM 25 Bedienungsanleitung

Kärcher

Kärcher IP 120 Bedienungsanleitung

U-Line

U-Line SS1095 Bedienungsanleitung

Maytag

Maytag MIM1554WRS - Ice Maker Bedienungsanleitung

Hoshizaki

Hoshizaki KM-630MAH Bedienungsanleitung

Princess

Princess Yonanas Bedienungsanleitung

Unold

Unold 48946 Bedienungsanleitung
