Fortec Star Lifetime Bedienungsanleitung

(English)

LifetimeTM

Digital Satellite Receiver

CONTENTS

PREFACE

1 OVERVIEW

1. How to use the REMOTE CONTROL KEY

2. FRONT PANEL

3. REAR PANEL

4. CONNECTION DIAGRAM

5. CONNECTION DIAGRAM (DISH)

2 OPERATION

1. Start Up

2. Main Menu

3. User Setup

4. Installation

5. Channel Edit

6. System Setup

7. Channel List

8. Program Guide

9. Audio Change

10. Recall the Favorite Channel

11. How to download Software via RS-232 Serial Cable

3 SPECIFICATIONS

4 TROUBLE SHOOTING

Fortec Communications Inc.

2780 Skymark Ave. Unit 8

Mississauga, ON

Canada L4W 5A7

www.fortecstar.com

PREFACE

1. General Information

Congratulations on purchasing a new Fortec Star digital satellite receiver. Before using your

new receiver, we suggest that you read this manual carefully for your own safety, and to

learn how to correctly operation the system.

2. Main Features

• EPG (Electronic Program Guide) - 7 days of program information

• Fully compliant with MPEG-2 Digital & DVB broadcasting

• 950~2150 MHz input Frequency (IF loop throughput)

• Variable input Symbol Rate (1.5~45 Msps)

• Multi-language OSD (On-screen Display)

• Automatic PAL/NTSC Conversion

• Fast Channel Change

• 3,000 Channel Memory (TV & Radio)

• Flexible reception of SCPC & MCPA from C/Ku band Satellites

• Timer Function (Automatic On/Off Setting Function)

• 256-Colors (Graphic Use Interface)

• P-I-G (Picture-in-Graphic) On-screen Display

• 5 Favorite Lists

• Powerful Channel Editing Function

-Sorting: Alphabetic, Satellite, FTA/Scramble, Parental Lock, TP Order

-Move, Delete, Edit Favorites

-Parental Lock, Channel Rename, Channel Skip

• Manual PID/Satellite & TP/Network Scan

• Simultaneous Scan of 4 Satellites

• USALS Compatible

• Capable Of Setting the Frequency for SMATV Systems

• Upgrade through RS-232C (STB to STB, PC to STB)

PREFACE

3. FOR YOUR SAFETY

• Do not open the cover. It may cause malfunction or electric shock.

• When not in use for a long period of time, please unplug the receiver from the power

outlet.

Also do not use a damaged power cord that may cause fire or electric shock.

• Do not use the receiver in a humid area.

• Do not cover the receiver or place anything heavy on the receiver. Ensure that the

receiver has sufficient ventilation.

Avoid using spray or liquid materials around the receiver.

• Do not connect or disconnect any cables while the receiver is plugged into the power

outlet.

4. THE FOLLOWING ACCESSORIES ARE ENCLOSED:

• 1 User Manual

• 1 Remote Control Unit

• 2 Batteries (AAA Type)

Note:

If any of the accessories listed above are missing, please contact the sales outlet where

this product was initially purchased.

OVERVIEW 1

1. How to use the REMOTE CONTROL

Key Function

POWER

Turns the receiver on/off.

In the standby mode, it will

automatically changed to the TV

Mode which enables watching

terrestrial TV broadcasting.

MUTE Sound Off/On.

INFO

Shows channel information, such as

channel number, channel name,

Frequency, Polarity, Symbol Rate,

Video PID, Audio PID and PCR PID.

GUIDE Shows program information.

TV/RADIO Toggles between the TV channels

and radio channels.

PAUSE Pauses the picture. Push again to

release.

SIGNAL Shows signal quality.

AUDIO

Selects audio mode (Stereo, left only

and right only). Selects language in

case of Multilingual program.

MENU Enters main menu screen. Or exits

menu screen.

EXIT Moves to upper menu.

CH▲

CH▼

Channel up/down.

Moves the cursor upward/downward

in the menu screen.

OK Shows channel list. Confirms

selection in Menu mode.

VOL◄► Volume down/up.

Changes the value of a selected item

in the Menu mode.

LAST Returns to previous program.

FAV Enters favorite program or Exits from

Favorite program.

0~9 Changes channel directly.

Controls the numerical operation in

the Menu mode.

PG▲Execute page down function in the

menu.

PG▼Execute page up function in the

menu.

SAT Shows the list of satellites.

OVERVIEW 1

Operating Principle

• Select an item by using the up and down keys and change the value of the

highlighted (selected) item by using keys shown on the screen. Press the OK key to

enter the sub-menu if there is no instruction marked on the screen.

• The item is automatically stored and moved to the upper menu by pressing the

‘EXIT’ key.

• You can return to the normal mode at the time by pressing the menu key from the

menu mode.

1 OVERVIEW

2. FRONT PANEL

Figure 2-2 Front Panel

1. POWER

Switches between Stand-by mode and normal mode (On/Off).

2. CH ▲, CH ▼

Changes Channel Up/Down

3. CHANNEL DISPLAY (4 digit / 7 Segment)

After pressing the power button, “ON” is showed on screen .

After the receiver searches the program, the program number is displayed as

“0001~3000”.

1 OVERVIEW

3. REAR PANEL

NO NAME FUNCTION

1 IF INPUT IF INPUT from LNB to receiver

2 IF OUTPUT IF Loop-through output to 2nd receiver

3 ANT IN Input from terrestrial TV antenna or cable

4 TV OUT Output to TV

5 VIDEO Composite video output (RCA jack)

6 L Left audio output (RCA jack)

7 R Right audio output (RCA jack)

8 S/P DIF Dolby Digital output (RCA jack) (Available on

North American receivers.)

9 VCR SCART VCR SCART output (not available on North

American receivers; S-Video substituted)

10 TV SCART TV SCART output (not available on North

American receivers; S-Video substituted)

11 RS232 Serial port used for software upgrade

12 AC SWITCH AC Power ON/OFF

OVERVIEW 1

4. CONNECTION DIAGRAM

1) Receiver to TV with RF output and terrestrial antenna:

Connect the TV antenna to the ANT IN socket of the receiver.

Connect the TV out of the receiver to the RF INPUT of the TV set.

Search on the TV set for UHF Channel 38 (for Europe), or channel VHF channel 3 or

4 for North America.

Channel 38 is set at factory for UHF.

If needed, you can change it in the User Set-up Menu mode.

2) Receiver to VCR and then to TV with RF output:

Connect the TV antenna to the ANT IN socket of the receiver if a Terrestrial antenna

is also needs to be connected.

Connect the TV output Socket of the receiver to the RF IN of the VCR.

Connect the RF output of the VCR to the RF IN of the TV set.

Search on the VCR for UHF channel 38 (for Europe), or channel VHF channel 3 or 4

for North America.

Note:

USE different UHF channels for VCR and receiver.

1 OVERVIEW

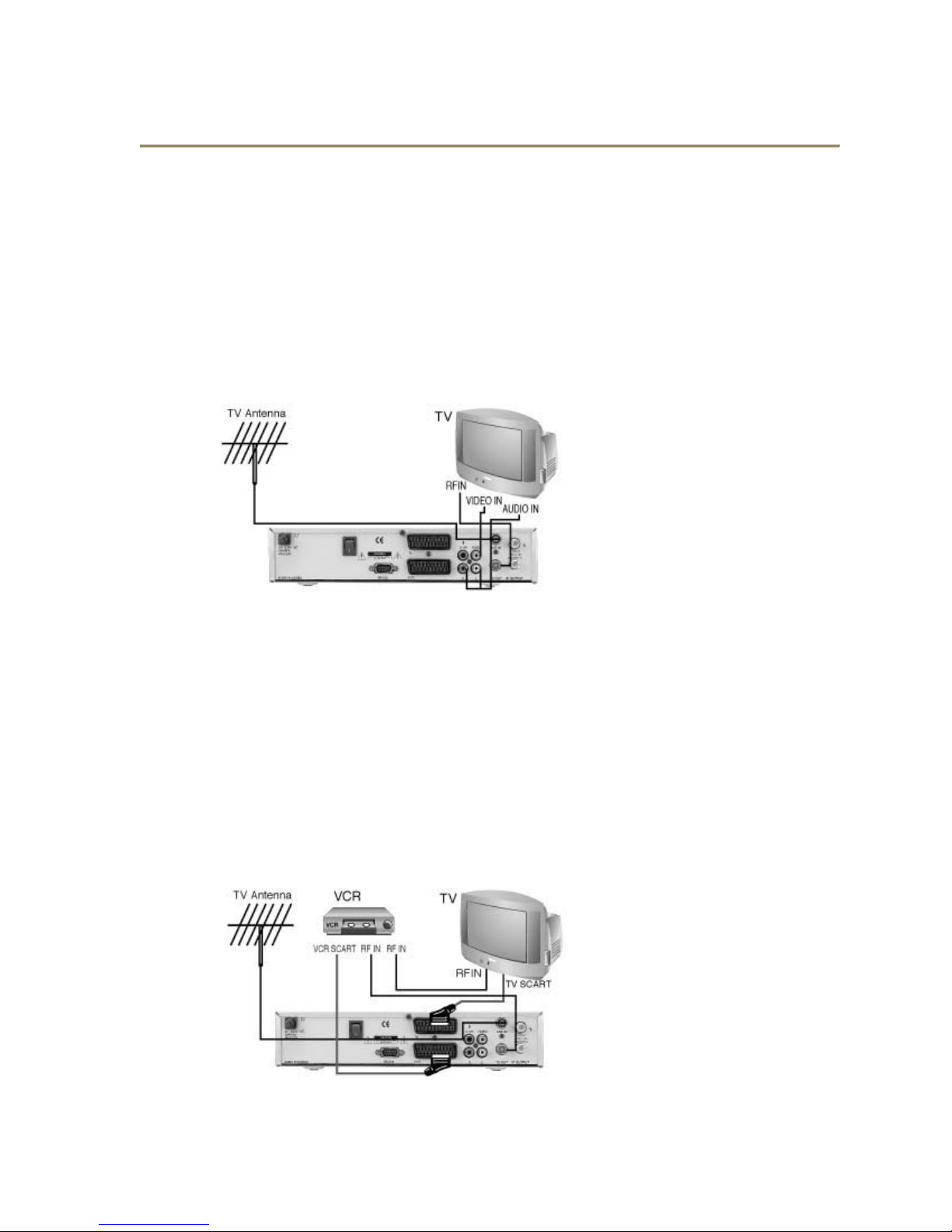

3) Receiver to TV with Audio and Video cables:

Connect the TV antenna to the ANT IN socket of the receiver if a Terrestrial antenna

also needs to be connected.

Connect the TV out socket of the receiver to the RF IN of the TV set. This

connection is not necessary if the Video RCA connection is used in the next step.

Connect the Video and Audio outputs of the receiver to the Video and Audio inputs

of the TV set.

(The Video RCA connection is recommended since it yields a better picture quality

than using the RF IN of the TV set.)

4) Receiver to TV and VCR with SCART cable: (Not available with North American

models.)

Connect the TV antenna to the ANT In socket of the receiver.

Connect the TV out socket of the receiver to the RF IN of the VRC.

Connect the RF out of the VCR to the RF IN of the TV set.

Search on the VCR for UHF channel 38.

Connect the SCART cable form the TV SCART of the receiver to the SCART of the

TV set.

Connect the SCART cable from the VCR SCART of the receiver to the SCART of

the VCR.
