FortiAP 224E

QuickStart Guide

November 29, 2018

FortiCare® and FortiGuard®, and certain other marks are registered

trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and

other Fortinet names herein may also be registered and/or common

law trademarks of Fortinet. All other product or company names may

be trademarks of their respective owners. Performance and other

metrics contained herein were attained in internal lab tests under ideal

conditions, and actual performance and other results may vary. Network

variables, different network environments and other conditions may affect

performance results. Nothing herein represents any binding commitment by

Fortinet, and Fortinet disclaims all warranties, whether express or implied,

except to the extent Fortinet enters a binding written contract, signed by

Fortinet’s General Counsel, with a purchaser that expressly warrants that

the identiﬁed product will perform according to certain expressly-identiﬁed

performance metrics and, in such event, only the speciﬁc performance

metrics expressly identiﬁed in such binding written contract shall be

binding on Fortinet. For absolute clarity, any such warranty will be limited

to performance in the same ideal conditions as in Fortinet’s internal lab

tests. In no event does Fortinet make any commitment related to future

deliverables, features or development, and circumstances may change

such that any forward-looking statements herein are not accurate. Fortinet

disclaims in full any covenants, representations, and guarantees pursuant

hereto, whether express or implied. Fortinet reserves the right to change,

modify, transfer, or otherwise revise this publication without notice, and the

most current version of the publication shall be applicable.

QuickStart Guide

• Technical Support

• New product features

• Protection from new threats

Vous devez enregistrer le produit pour recevoir:

• Support technique

• Nouvelles fonctionnalitées du produit

• Protection contre de nouvelles menaces

La reistrazione ti permette di usufruire di:

• Supporto Tecnico

• Nuove funzionalita

• Proteezione dalle ultime minaccce

Debe registrar el producto para recibir:

• Apoyo técnico

• Nuevas funcionalidades del producto

• Protección contra ataques

登録のお願い

本日、フォーティネット製品の登録をしてください。

登録すると次のメリットがあります。

テクニカルサポート • 新機能の追加 • 新しい脅威への防御

请马上注册

您的飞塔产品

您在注册以后才能得到技术支持、新产品特点信息、最新威胁防护

https://support.fortinet.com

Toll free: 1 866 648 4638

Phone: 1 408 486 7899

Fax: 1 408 235 7737

Email: [email protected]

Box Includes

Pole Mount Straps (x2),

Wall Mount Bracket, and

Grounding Cable 6M

Pole and Wall Mounting Kits:

Machine Pan M4x10L screws (x4),

Machine Pan M5x10L screw,

Self-Tapping Steel Pan P3x20L (x4),

and Plastic Conical wall anchors (x4)

FortiAP 224E

QuickStart Guide

QuickStart GuideFortiAP device

Rotating Mounting Kit (FAP-224E-MNT):

Pole Bracket, Hold Bracket, Wall Bracket,

and Bracket Sheets (x2)

M8x160L Hexagon screw bolts (x4),

M8x32L Hexagon screw bolts (x5),

M8 Hexagon screw bolts (x18),

Spring-washers (x9), and

Flater-washers (x9)

Optional parts

Weatherproof Optical Fiber Cable (FAP-224E-FBR)

QuickStart Guide Video

https://video.fortinet.com/video/177/fortigate-and-fortiap

Before You Begin

Write down details that you may need from your network administrator or ISP.

DSL PPPoE

Username Password

Cable Modem DHCP

It is normal to not require a hostname, but your ISP may require it.

Hostname

Static IP address

IP Address Subnet Mask

Default Gateway Primary/Secondary DNS

Installation

Mount on Wall

Mounting

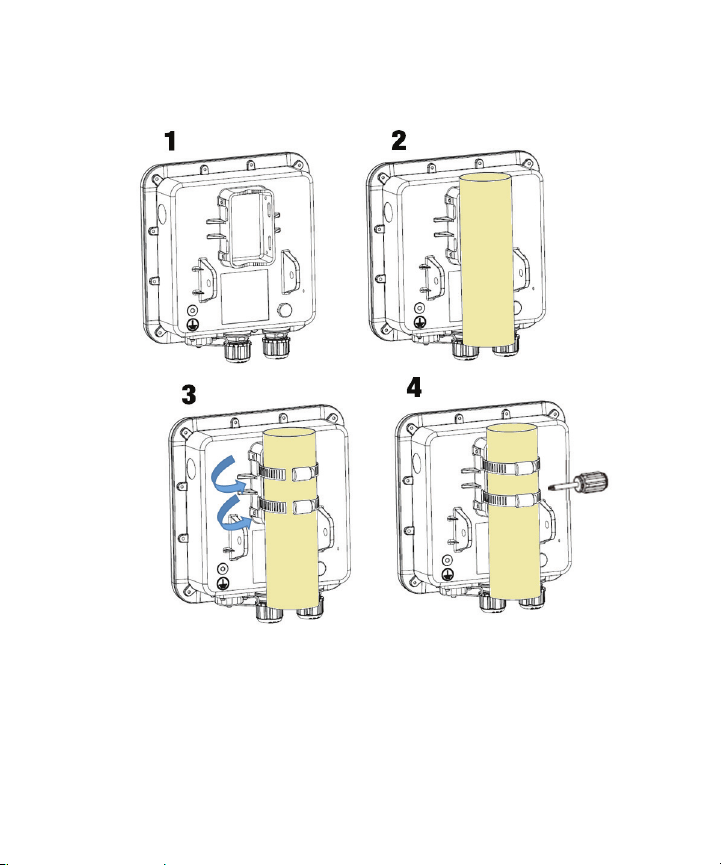

Mount on Pole

(Pole-Mounted Diameter Range: 25–50mm)

Please note that the rotating mount is an optional accessory and should be ordered

separately.

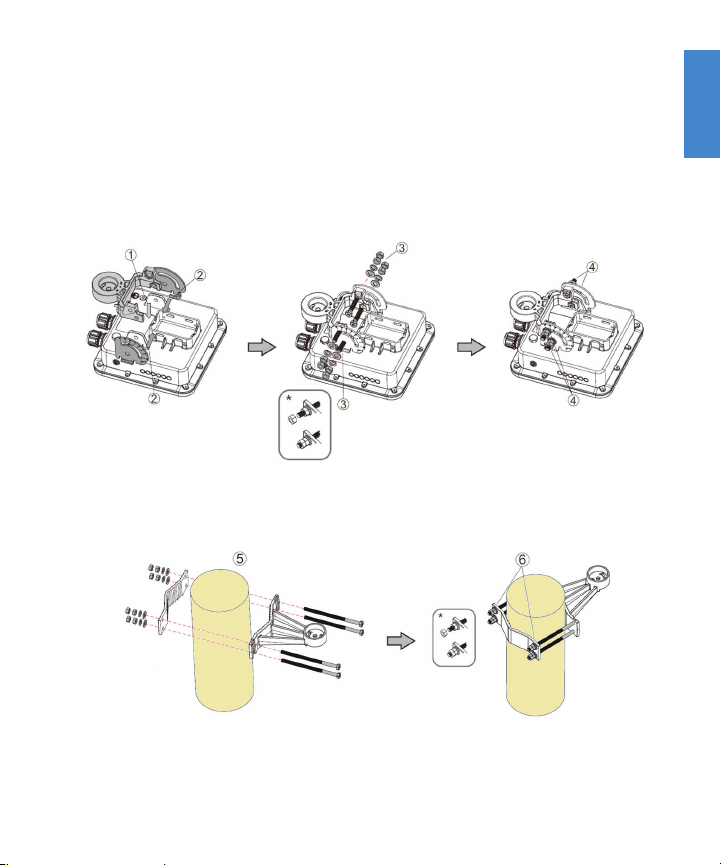

Fasten the Hold Bracket (1) and the Bracket Sheets (2) to the base using the M8x32L

Hexagon screw bolts and washers:

Fasten the Pole Bracket and Wall Bracket to the pole using supplied M8x160L Hexagon

screw bolts (5 and 6):

Rotating Mount

(Pole-Mounted Diameter Range: 60–140mm)

Screw torque: 60 Kgf-cm

Fasten the Pole Bracket to the Wall Bracket by securing the supplied M8x32L Hexagon

screw bolts (7, 8 and 9):

To adjust the unit to tilt up and down:

Screw torque: 90 Kgf-cm
