Fortinet FortiGate 200F Series Bedienungsanleitung

QuickStart Guide

FortiGate 200F Series

QuickStart Guide

Before you begin

firmware upgrades, technical support and warranty coverage.

http://support.fortinet.com

October 8, 2021

trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law

trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics

contained herein were attained in internal lab tests under ideal conditions, and actual performance and other results may vary. Network

variables, different network environments and other conditions may affect performance results. Nothing herein represents any binding

commitment by Fortinet, and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding

written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product will perform

according to certain expressly-identified performance metrics and, in such event, only the specific performance metrics expressly identified

in such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to performance in the same

ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or

development, and circumstances may change such that any forward-looking statements herein are not accurate. Fortinet disclaims in full

any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify,

transfer, or otherwise revise this publication without notice, and the most current version of the publication shall be applicable.

For Product License Agreement / EULA and Warranty Terms, visit https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

This guide covers: FG-200F and FG-201F

This document is prepared in English and French. In case of conflict between them, the English version shall prevail over the French version.

English

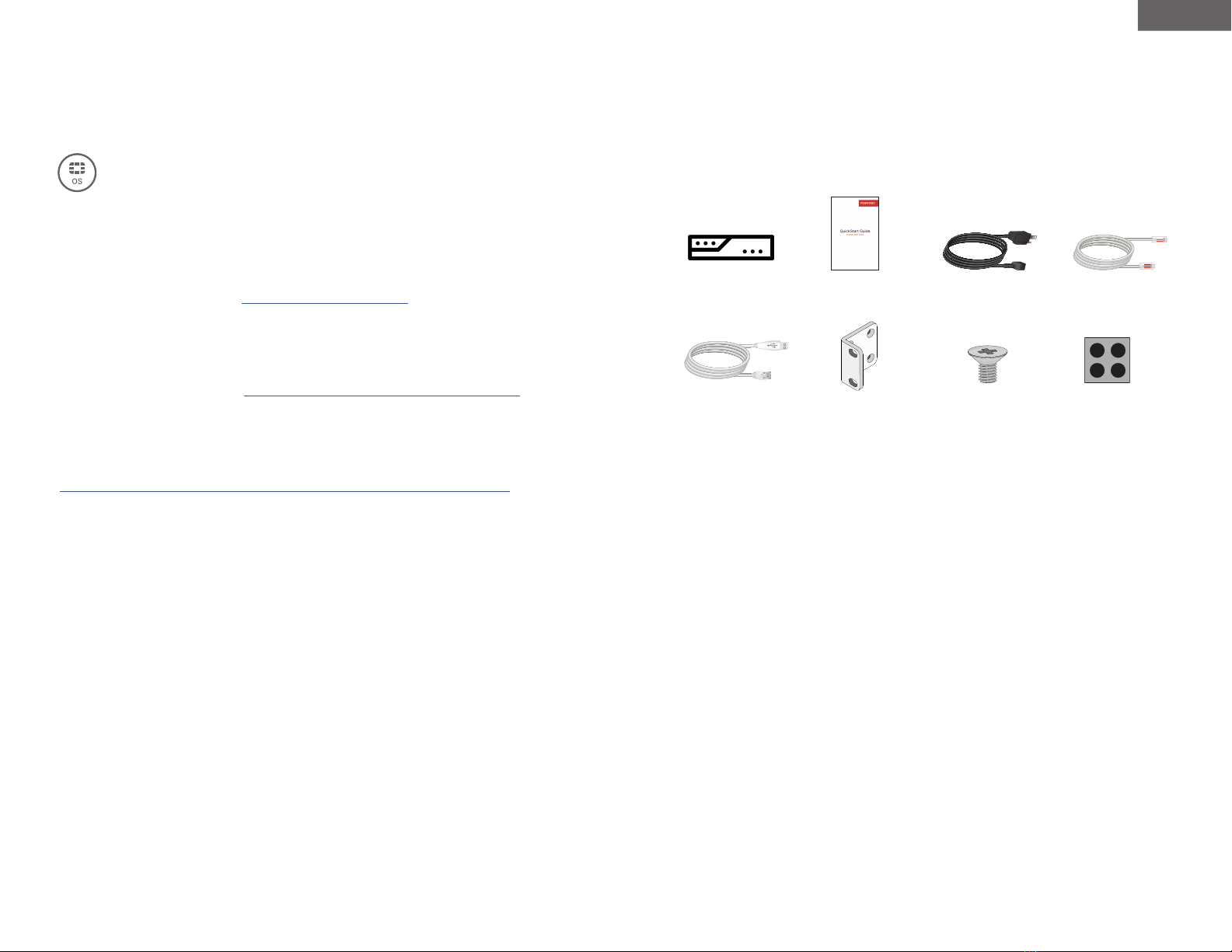

Package Contents

FortiGate 200F Series

FG-200F and FG-201F

FortiGate Device 1x Ethernet CableQuickStart Guide 2x AC Power Cables

2x Rack mount brackets

1x Console Cable 8x Rack mount screws 4x Rubber feet

The Essentials

For a detailed Getting Started guide, setup and configuration information,

refer to the Admin Guide on https://docs.fortinet.com/

For contracts, licensing, product registration and account management,

contact FortiCare Support at https://www.fortinet.com/support/contact

Access our knowledge base, forums, videos and technical experts at

https://www.fortinet.com/support/support-services/forticare-support

Default Logins

https://192.168.1.99

Username: admin

Password: leave blank

Admin Guide

Customer Service

Self-service Resources

Thank you for choosing Fortinet

English

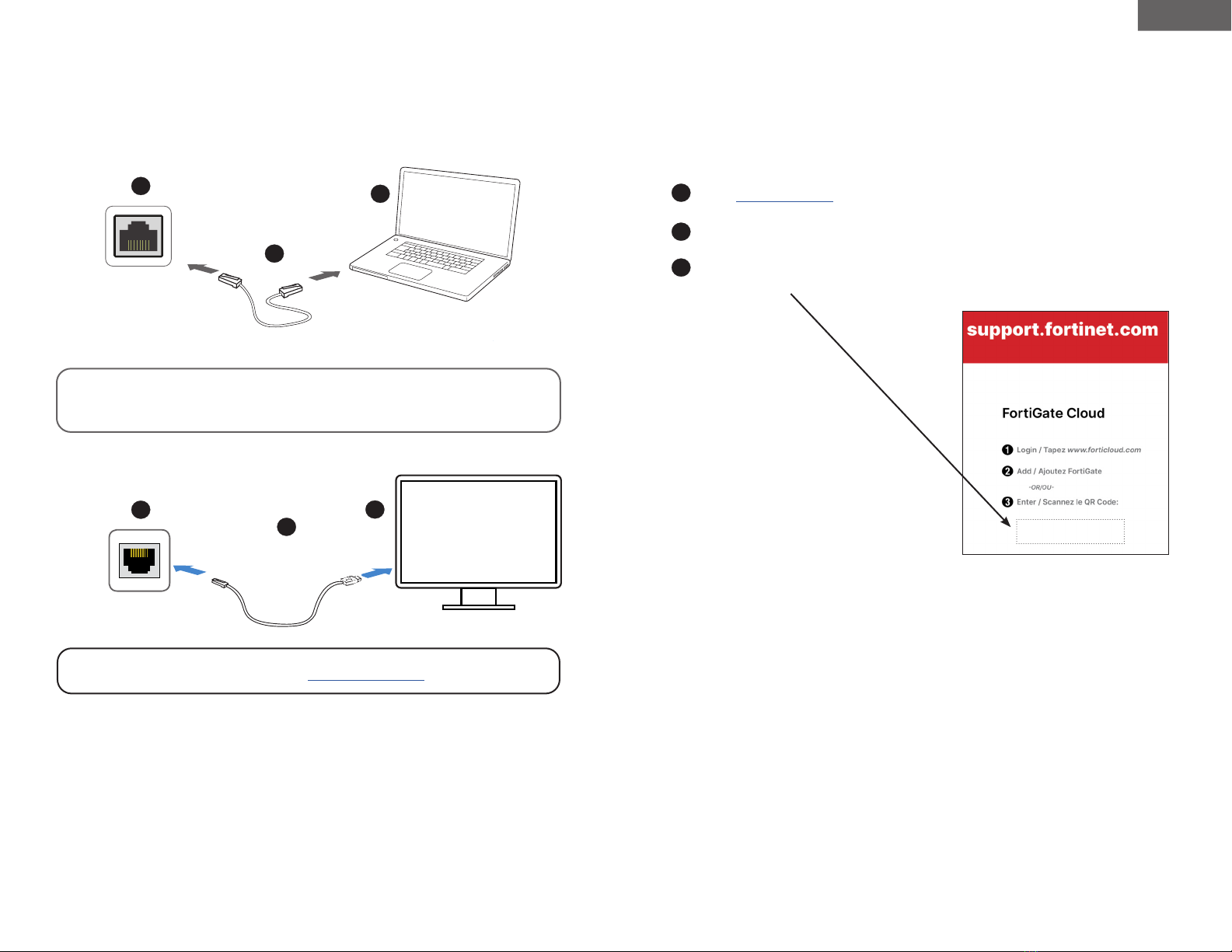

Setup Options

Set up your Fortinet device locally or connect using forticloud.com

GUI

Ethernet Cable

Management Computer

MGMT1

https://192.168.1.99

Username: admin

No Password

Note: For static IP configuration, use 192.168.1.1 with subnet mask

255.255.255.0

Console Port

Management Computer

Note: For a detailed CLI guide, visit docs.fortinet.com

USB Console Cable

(available for purchase)

CLI

Speed (default): 9600

Data bits: 8

Stop bits: 1

Parity: None

Flow Control: None

FortiGate Cloud Key

Go to forticloud.com and login with your FortiCloud Credentials or Register

Follow the on-screen instructions, then click Add FortiGate

Enter the FortiGate Cloud Key located on the sticker of your device

(Connect a WAN port to the Internet)

English

8 9

Note: Place the device on a flat, clean and stable surface.

Desktop Mount Rack Mount

1.5in

Note: The recommended clearance is 1.5 inches above and below the

device.

Caution: To avoid personal injury or damage to the device, it is

recommended that two or more people mount the device on a rack.

English

10 11

English

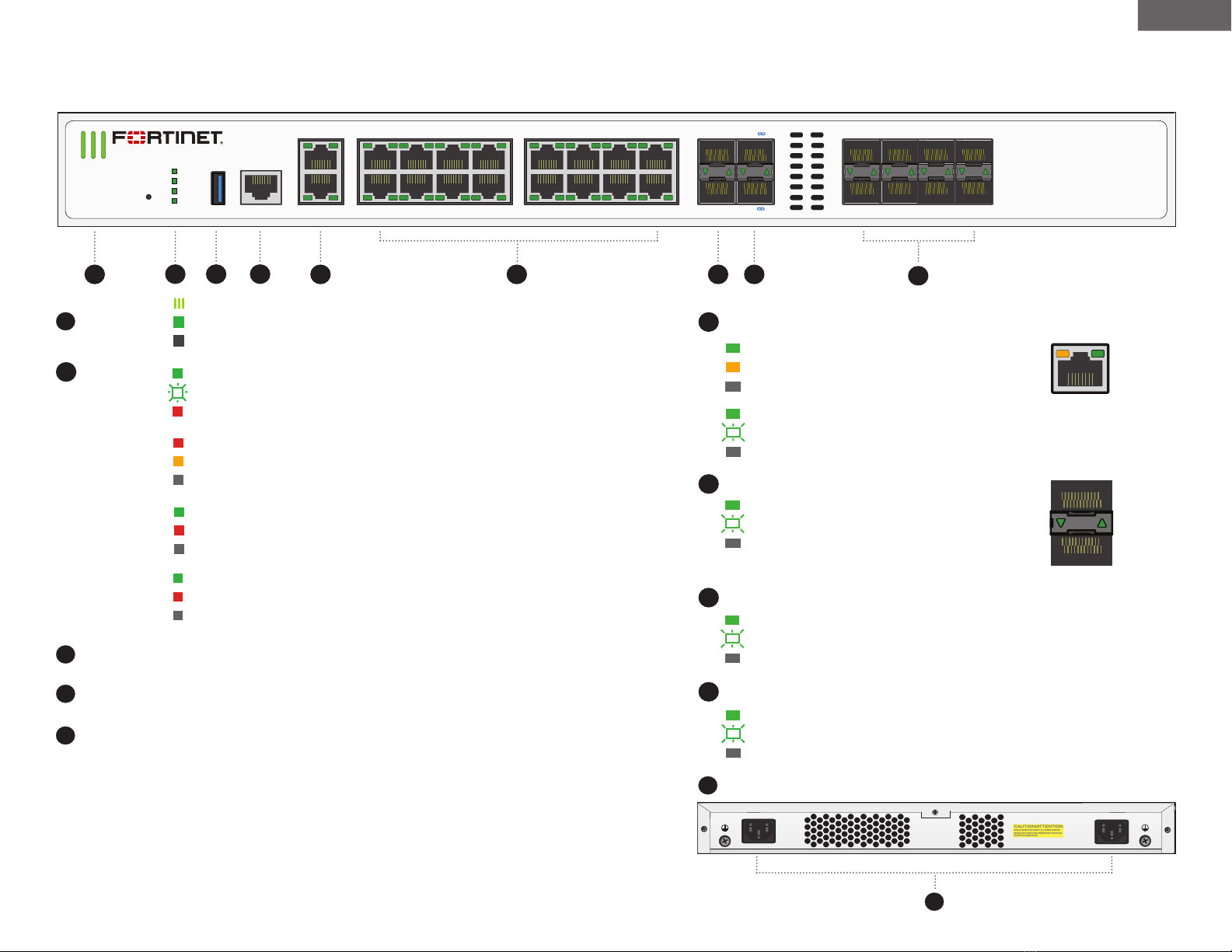

Front/Rear - FG 200F Series

1Green: Device is on

Off: Device is off

LOGO

3 USB 3.0 server port

4 CLI command line interface

5 1GE High availability port

AC LINE

100-240V AC

50-60Hz 2-1.2A

AC LINE

100-240V AC

50-60Hz 2-1.2A

CAUTION/ATTENTION

SHOCKHAZARD. DISCONNECT ALL POWER SOURCES.

RISQUED’ÉLECTROCUTION.DÉBRANCHEZ TOUTES LES

SOURCESD’ALIMENTATION.

Redundant Power Supplies 100 - 240V AC, 2-1.2A, 50/60Hz

13 4 5 6 7 8 9

CONSOLEUSB

MGMT

13 X1 X3

X2 X4

FortiGate 200F

POWER

ALARM

STATUS

Green

Red

Off

Red

Amber

Off

STATUS

ALARM

POWER

Green

Flashing Green

Red

Green

Red

Off

FortiGate

 1GE Management port, IP 192.168.1.99

10GE network connections

 FortiLink 10Gbps auto-discovery ports

 GE network connections

Bottom Port

 GE network connections

Speed

Act/

Link

Act/

Link

Act/

Link

Act/

Link

Green:Connected

Flashing Green

Off

Green

Flashing Green

Off

Green: Connected at 10G or 1Gbps

Flashing Green

Off: No link established

Green

Flashing Green

Off

Green

Amber

Off

RJ45 Port

SFP & SFP+

Top Port

Act/Link

Speed
