Foscam FI8909W Bedienungsanleitung
V48.02
Model: FI8909W
Quick Installation Guide
Indoor Wireless IP Camera
Black White
For Windows OS ------- Page 1
For MAC OS ------- Page 16
KST LTD.
FI8909W Quick Installation Guide
www.foscam-bg.com
- 1 -
Quick Installation Guide - For Windows OS
IP Camera FI8909W.x 1
DC Power Adapter (5V-2.0A) .x 1
Network Cable x 1
Wi-Fi Antenna .x 1
Mounting Bracket .x 1
Quick Installation Guide x 1
CD-ROM with Setup Software .x 1
Warranty Card x 1
Quick Installation Guide Flow Chart
P.12
Quick Installation Diagram
Package Contents
Login the Camera
Wireless Connection Setup
Remote Access Setup
Software Installation
Other Settings
Hardware Installation
FI8909W Quick Installation Guide
www.foscam-bg.com
- 2 -
1) Open the package. Take out the camera out of the box carefully.
2) Mount the antenna. Then take the Wi-Fi antenna, mount it on the SMAconnector on the back
of the camera, screw the antenna to the bottom, and make the antenna stand vertically.
Figure 1.1 Mount the antenna Figure 1.2 Plug the network cable
3) Get the camera connected to the router, and get it powered.
Use the network cable to connect the camera to the router or the switch in the LAN network at your
home or your office. Plug in the power. The green network light will blink and the red power light will
also turn on.
Insert the CD into the CD drive of your computer and go to the folder “FI8909W”,find the folder “For
Windows OS”.
Double click IPCamSetup.exe to install, it pops up a window as below (Fig.1.3). Just click button
“Next” to finish the installation.
1. Hardware Installation
Start Installation
2. Software Installation
FI8909W Quick Installation Guide
www.foscam-bg.com
- 3 -
Figure 1.3 Click Next to continue the installation
Figure 1.4 Click Finish to finish installation
A shortcut icon will appear on your desktop after the IP Camera Tool software installation is
successfully completed.
Figure 1.5 Shortcut icon
FI8909W Quick Installation Guide
www.foscam-bg.com
- 4 -
Double click the IP Camera Tool icon and the following screen should appear.
Figure 1.6 IP Camera Tool Windows
The IP camera tool should find the camera’s IP automatically after you plug in the network cable. If
not, please make sure that DHCP is enabled on your router and that MAC address filtering, firewalls
and anti-virus are disabled temporarily until the camera is set up.

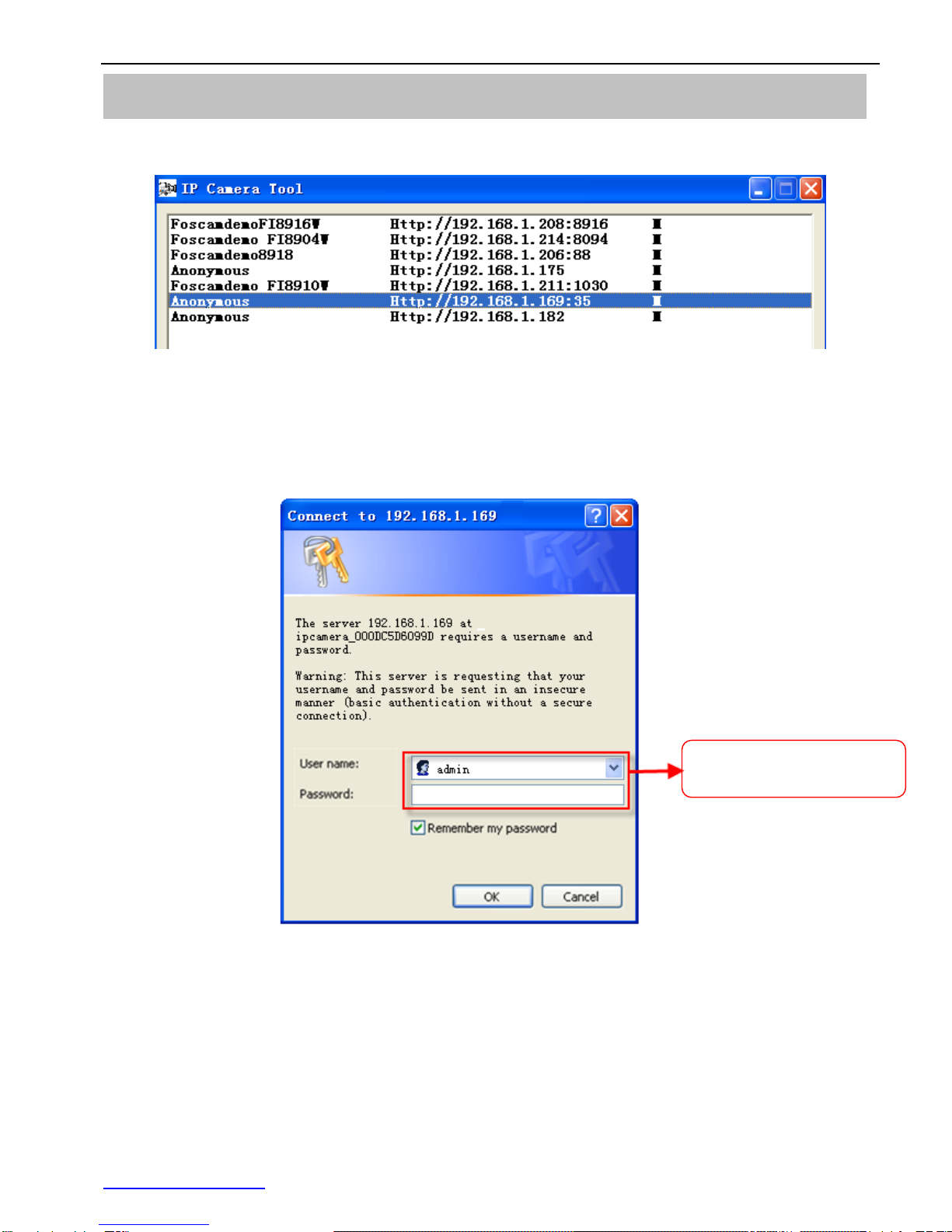

Double click the LAN IP address of the camera, it pops up a password dialog box.
Figure 1.7 Enter the username and password
3. Login the Camera
Default user name is
admin with no password
FI8909W Quick Installation Guide
www.foscam-bg.com
- 5 -
Figure 1.8 Login User Interface
There are three login methods. One is IE ActiveX Mode, the other is Server Push
Mode for Safari, Firefox, Google Chrome, the third mode is Mobile Phone for mobile phone.
Please choose IE ActiveX Mode if you are using IE browser now.
For the first time login the camera, please make sure to allow ActiveX to run when prompted.
Note
If you use IE browser, select this
login mode
If you use Firefox, Google
Chrome, Safari, select this login
mode
If you use Mobile phone, select
this login mode
FI8909W Quick Installation Guide
www.foscam-bg.com
- 6 -
Figure 1.9 Run the ActiveX
Figure 2.0 Run the ActiveX
Click Run button, and re-login the camera again, you can see the following surveillance window:
Select Run Add-On
Select Run
FI8909W Quick Installation Guide
www.foscam-bg.com
- 7 -
Figure 2.1 Surveillance Windows
Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave
all the menus alone before you finish the quick installation.
The default user name is admin with no password.
If you are unable to see a live video, please make sure to allow ActiveX to run when prompted.
If you only see a black screen with a red cross in the center, please try another port number instead
of the default “port 80” .You may want to try port 85, 8005, etc.
If you are still unable to see a live video, try shutting down any firewall or anti-virus software on your
computer.
Wireless Lan Settings support Infra(Do wireless lan settings manually) and WPS (Wi-Fi Protected
Set-up) and Adhoc modes.
If your router does not support WPS function,please go to chapter 4.1 and make wireless
connection settings manually.
If your router supports WPS function, please go to chapter 4.2 and make wireless connection
settings quickly.
Note
4. Wireless Connection Settings
FI8909W Quick Installation Guide
www.foscam-bg.com
- 8 -
If there is no wireless router, please read Wireless Settings in the User Manual about how to
set Adhoc.
4.1 Infrastructure Mode
Step 01) Please choose “Device Management” and goes to the option Wireless LAN Settings ,
click “Wireless LAN Settings”. Then enable “Using Wireless LAN”.
Click the Scan button and the camera will detect all WIFI devices around the area. It should also
display your router in the list. (Figure 2.2)
Figure 2.2 Wireless LAN Settings
Step 02) Click the SSID of your router in the list, the corresponding information (SSID & Encryption)
will be filled in the following boxes automatically.
You will only need to fill in the share key. Make sure that SSID, Encryption and share key you filled in
for the camera are exactly the same for your router.
Figure 2.3 Wireless LAN Settings
Click Scan Button to search WIFI
device
Click the SSID of router and SSID,
Encryption will be filled in the
following box automatically
Enter the same share key
with your router
FI8909W Quick Installation Guide
www.foscam-bg.com
- 9 -
Step 03) Please click on the Submit button after all settings have been entered, the camera will
reboot. After the camera has completed the reboot process, wait 10 seconds and disconnect the
network cable.
The LAN IP address will disappear on the window of IP Camera Tool when the camera gets restarted.
Just wait for around 1 minute, the camera will get wireless connection, and the LAN IP of the camera
will be showed again on the window of the IP Cam Tool. You have done wireless connection of the
camera successfully. If the camera has a dynamic IP, after the wireless settings, the IP will be
changed.
If fail to make WiFi connection, please refer to seller or us for help.
4.2 WPS (Wi-Fi Protected Set-up)
Step 01) Please use a small round stick or like toothpick to press and hold the RESET button for
four seconds.
Step 02) Press the WPS button on your router within 60 seconds. The WPS button is usually on
the back or side of your router. On some routers, you may need to log in to the web interface and
click on an on-screen button to activate the WPS feature. If you are not sure where the WPS buttons
is on your router, please refer to your router’s User Manual.
The camera will automatically create a secure wireless connection to your router. If you have
plugged in the network cable, please plug it out. While connecting, the green network light will blink
quickly and the wireless settings will take effect. The IP Camera Tool will search the camera’s LAN IP.
Make sure the PC and the camera share the same subnet.
1 During the WPS Settings, you must press the Reset button only for four seconds, or else, the
camera may be reset back to factory default settings if you press and hold on the reset button above
10 seconds.
2 The security mode of router cannot be WEP, or else the WPS settings may be failed.

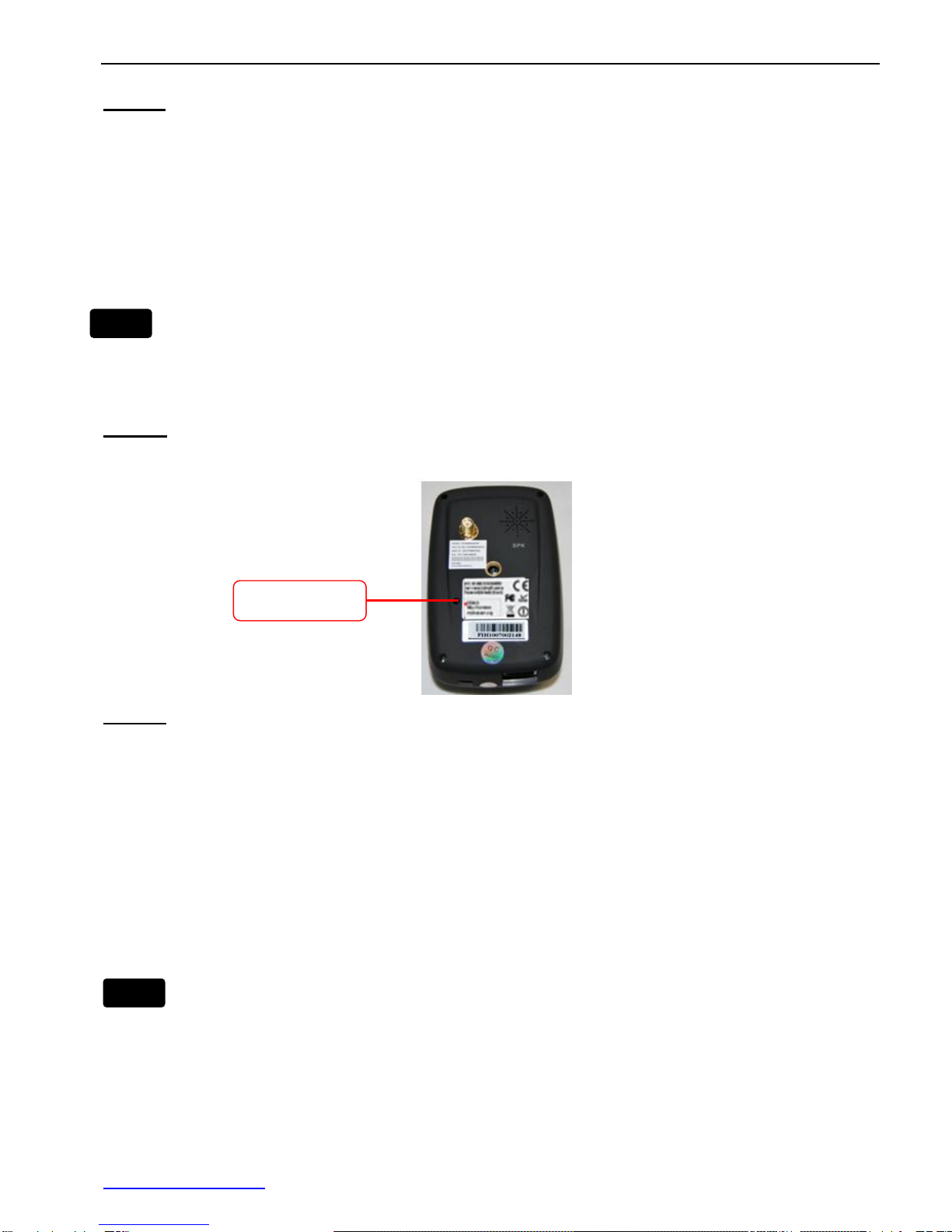

Reset Button
Note
Note
