FREE MOTION S 11.5 Bedienungsanleitung

HOW TO CONTACT CUSTO ER CARE

If you have questions after reading this manual, or if parts are damaged or missing, please contact Customer

Care at the phone numbers or addresses listed below. Please note the model number, serial number, and

name of the product (see the front cover of this manual) before contacting Customer Care. If you are

ordering replacement parts, please also note the key number and description of each part (see the PART

LIST and the EXPLODED DRAWING near the end of this manual).

In the United States and Canada

Call: 1-800-201-2109, Mon.–Fri. 8 a.m.–5 p.m. MT

Write:

FreeMotion Fitness

1500 South 1000 West

ogan, UT 84321-9813

United States

Outside the United States and Canada

Call: 001-435-786-3521

Email: [email protected]

USERʼS ANUAL

Serial Number

Decal

odel No. F EX81010-INT.0

Serial No.

Write the serial number in the

space above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, please

see HOW TO CONTACT

CUSTO ER CARE on the back

cover of this manual.

www.freemotionfitness.com

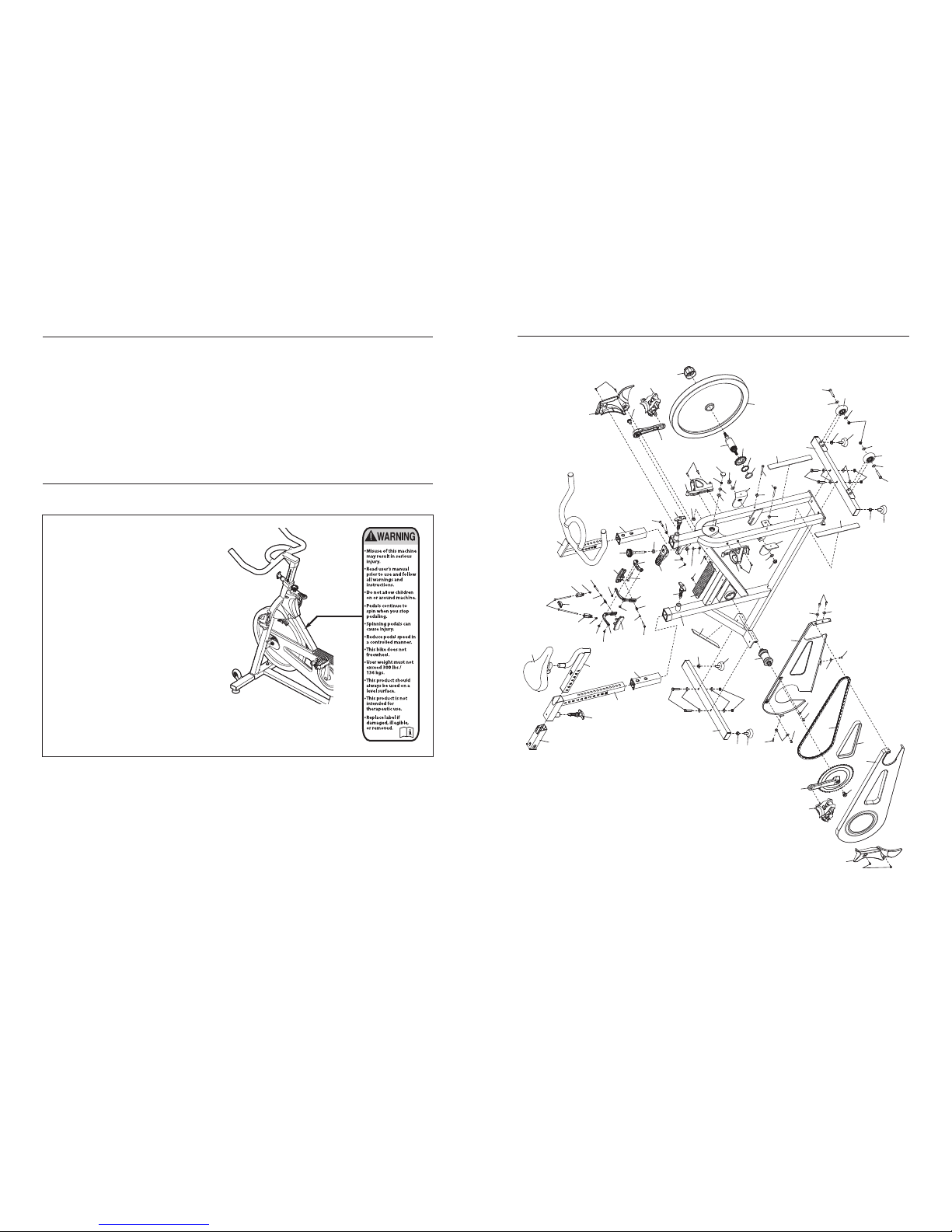

EXPLODED DRAWING Model No. FMEX81010-INT.0 R1210A

19 20

30 31

18 37

55 58

69 70

TABLE OF CONTENTS

WARNINGDECA P ACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMB Y ...............................................................................5

HOWTOUSETHEEXERCISEBIKE .........................................................10

PART IST ..............................................................................14

EXP ODEDDRAWING ....................................................................15

HOWTOCONTACTCUSTOMERCARE ...............................................BackCover

FREEMOTION is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACE ENT

This drawing shows the location(s) of the

warning decal(s). If a decal is missing

or illegible, see the back cover of this

manual and request a free replace-

ment decal. Apply the decal in the

location shown. Warning decals in

other languages are included. Apply the

warning decals on top of the English

warnings in the indicated locations if

desired. Note: The decal(s) may not be

shown at actual size.

11 Frame

21Handlebar Post

31Seat

41Seat Carriage

53T-knob

61Right Pedal

74M5 x 16mm Screw

82Water Bottle Holder

94M8 x 40mm Bolt

10 8 M8 Washer

11 1 Rear Stabilizer

12 1 Front Stabilizer

13 4 M8 ocknut

14 1 Right Crank Arm

15 1 Bottom Bracket

16 2 Resistance Cable

17 2 Plastic Bushing

18 10 M6 Flat Washer

19 2 M6 ocknut

20 1 Plug

21 2 Post Sleeve

22 1 Inner Chain Guard

23 1 Shield Insert

24 1 Outer Chain Guard

25 1 Chain

26 6 M6 x 12mm Screw

27 1 Frame Plate

28 2 M6 x 65mm Screw

29 2 M6 x 15mm Screw

30 2 Flange Nut

31 2 Bracket Washer

32 1 Right Chain Adjustment Bracket

33 1 eft Chain Adjustment Bracket

34 1 Resistance Knob

35 1 Brake Spacer

36 1 Cradle

37 1 Square Nut

38 3 Frame Pad

39 1 eft Brake Cover

40 1 Right Brake Cover

41 1 Brake ever

42 2 Nylon Bushing

43 1 Brake Axle

44 1 E-clip

45 4 M4 x 10mm Screw

46 4 Hex Nut

47 4 eveling Foot

48 2 M8 x 45mm Screw

49 4 M8 Flat Washer

50 2 Wheel Nut

51 2 Wheel

52 1 eft Crank Arm

53 2 Crank Bolt

54 1 Flywheel

55 1 ock Ring

56 1 Sprocket

57 1 Hub

58 1 Spacer

59 1 Hub Cover

60 1 Carriage Sleeve

61 1 Seat Post

62 2 Brake Hanger

63 2 Brake Nut

64 1 Small Brake Arm

65 1 arge Brake Arm

66 1 eft Brake Pad

67 1 Right Brake Pad

68 1 Brake Bracket

69 2 Brake Pad Screw

70 1 Brake Bolt

71 2 Pad Spring

72 2 Pad Washer

73 2 Hanger Screw

74 2 Brake Arm Screw

75 1 eft Pedal

*–Assembly Tool

*–Userʼs Manual

Key No. Qty. Description Key No. Qty. Description

PART LIST Model No. FMEX81010-INT.0 R1210A

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

Free otion Fitness assumes no responsibility for personal injury or property damage sustained by

or through the use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the exercise bike only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

4. The exercise bike is intended for use in a

supervised environment only.

5. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

6. Place the exercise bike on a level surface,

with a mat beneath it to protect the floor or

carpet. ake sure that there is at least 2 ft.

(0.6 m) of clearance around the exercise

bike.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the exercise bike at all times.

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

10. The exercise bike should not be used by

persons weighing more than 300 lbs.

(136 kg).

11. Always keep your back straight while using

the exercise bike; do not arch your back.

12. The exercise bike does not have a freewheel;

the pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

13. To stop the flywheel quickly, press the brake

lever downward.

14. When the exercise bike is not in use, tighten

the resistance knob completely to prevent

the flywheel from moving.

15. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

I PORTANT PRECAUTIONS

NOTES

Thank you for selecting the new FREEMOTION®S

11.5 exercise bike. Cycling is an effective exercise for

increasing cardiovascular fitness, building endurance,

and toning the body. The S 11.5 exercise bike pro-

vides a selection of features designed to make your

workouts more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions

after reading this manual, please see the back cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

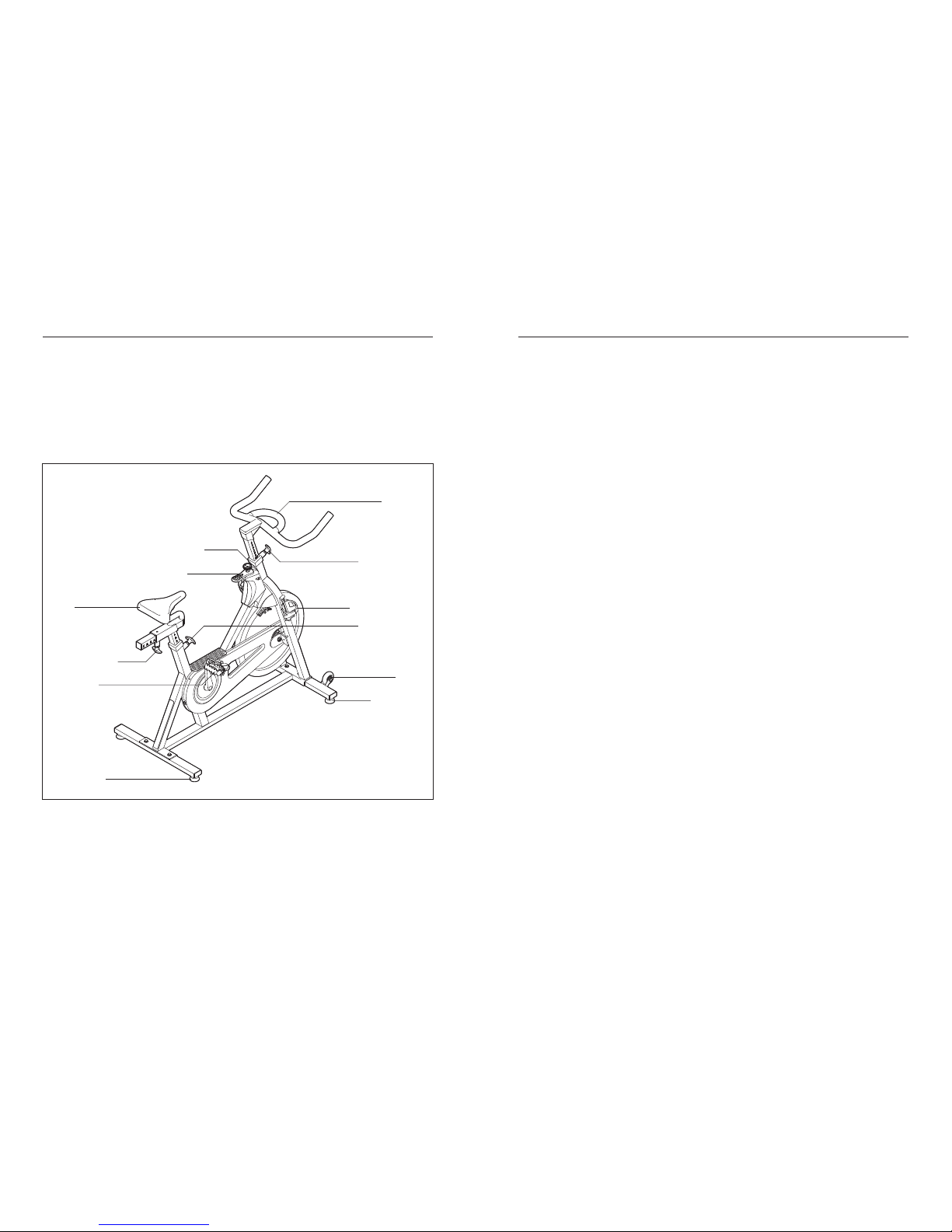

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Resistance Knob

Brake ever

Seat

Adjustment Knob

Pedal/Strap

Water Bottle Holder

eveling Foot

Handlebar

BEFORE YOU BEGIN

Wheel

eveling Foot

NOTES

ASSE BLY

Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires an adjustable wrench .

Note: If a part is not in the hardware kit, check to see if it has been preattached.

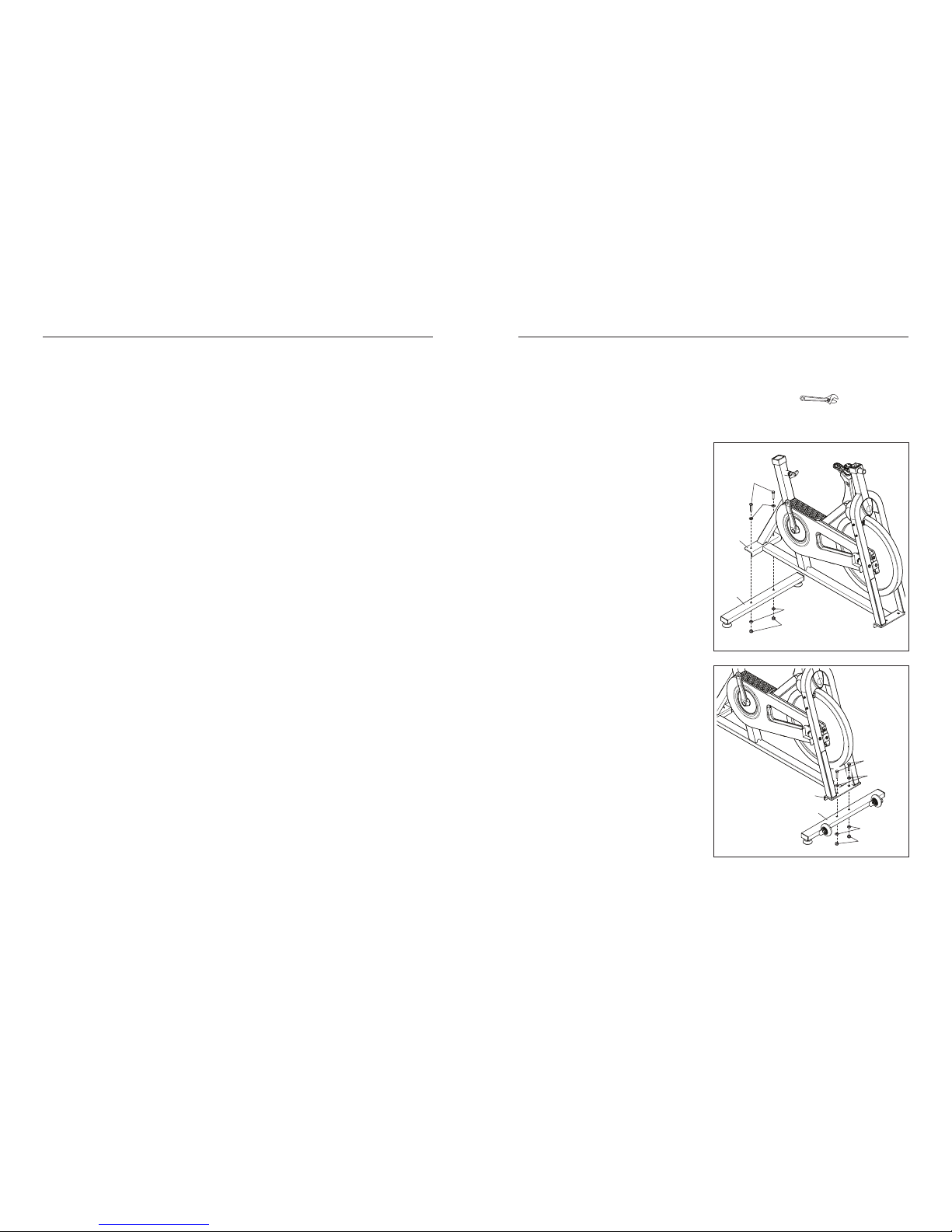

1. Identify the Rear Stabilizer (11), which does not

have wheels.

Attach the Rear Stabilizer (11) to the Frame (1)

with two M8 x 40mm Bolts (9), four M8 Washers

(10), and two M8 ocknuts (13).

2. Attach the Front Stabilizer (12) to the Frame (1)

with two M8 x 40mm Bolts (9), four M8 Washers

(10), and two M8 ocknuts (13).

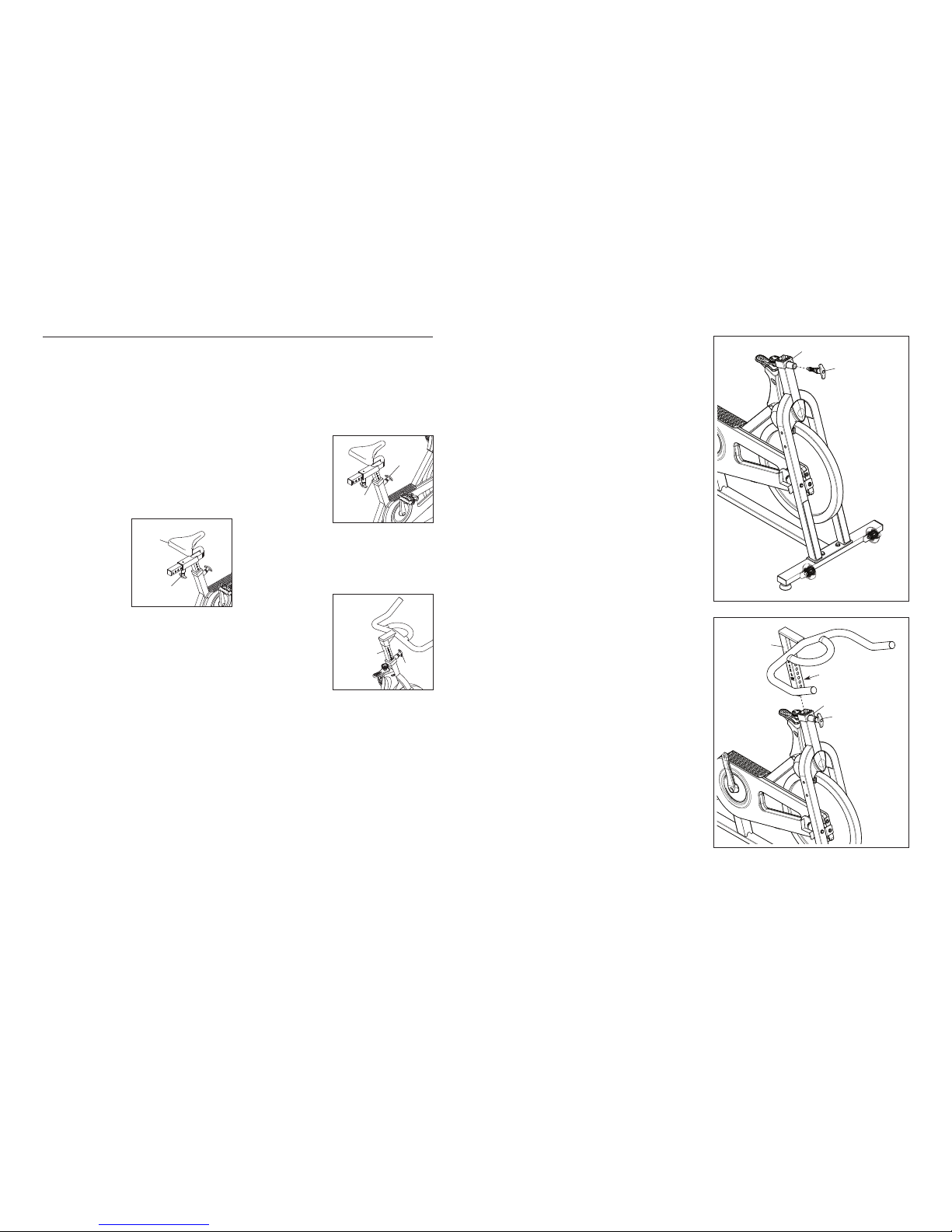

HOW TO ADJUST THE PEDAL STRAPS

To tighten the pedal straps (see the drawing on page

4), simply pull the ends of the pedal straps. To loosen

the pedal straps, press and hold the tabs on the buck-

les, adjust the pedal straps to the desired position,

and then release the tabs.

HOW TO ADJUST THE PEDALING RESISTANCE

To increase the

resistance of the

pedals, turn the

resistance knob

clockwise; to

decrease the resis-

tance, turn the

resistance knob

counterclockwise.

To stop the flywheel, push the brake lever down-

ward. The flywheel should quickly come to a

complete stop.

I PORTANT: When the exercise bike is not in use,

tighten the resistance knob completely.

HOW TO LEVEL THE EXERCISE BIKE

If the exercise bike rocks slightly on your floor during

use, first loosen the hex nuts on the leveling feet on

the front or rear stabilizer (see the drawing on page

4).

Next, turn one or both of the leveling feet on the front

or rear stabilizer until the rocking motion is eliminated.

Then, tighten the hex nuts on the leveling feet against

the front or rear stabilizer to lock the leveling feet into

place.

HOW TO AINTAIN THE EXERCISE BIKE

Inspect and tighten all parts of the exercise bike regu-

larly. Replace any worn parts immediately.

To clean the exercise bike, use a damp cloth and a

small amount of mild detergent.

For maximum performance and safety, replace the

pedals every year. To purchase pedals, see the

back cover of this manual.

I PORTANT: To avoid damage to the exercise bike

and to prevent injury to the user, use only manu-

facturer-supplied pedals. Other pedals may not be

designed for use in fitness clubs or indoor cycling

studios and may be dangerous.

Resistance

Knob

Brake

ever

61 Holes

Holes

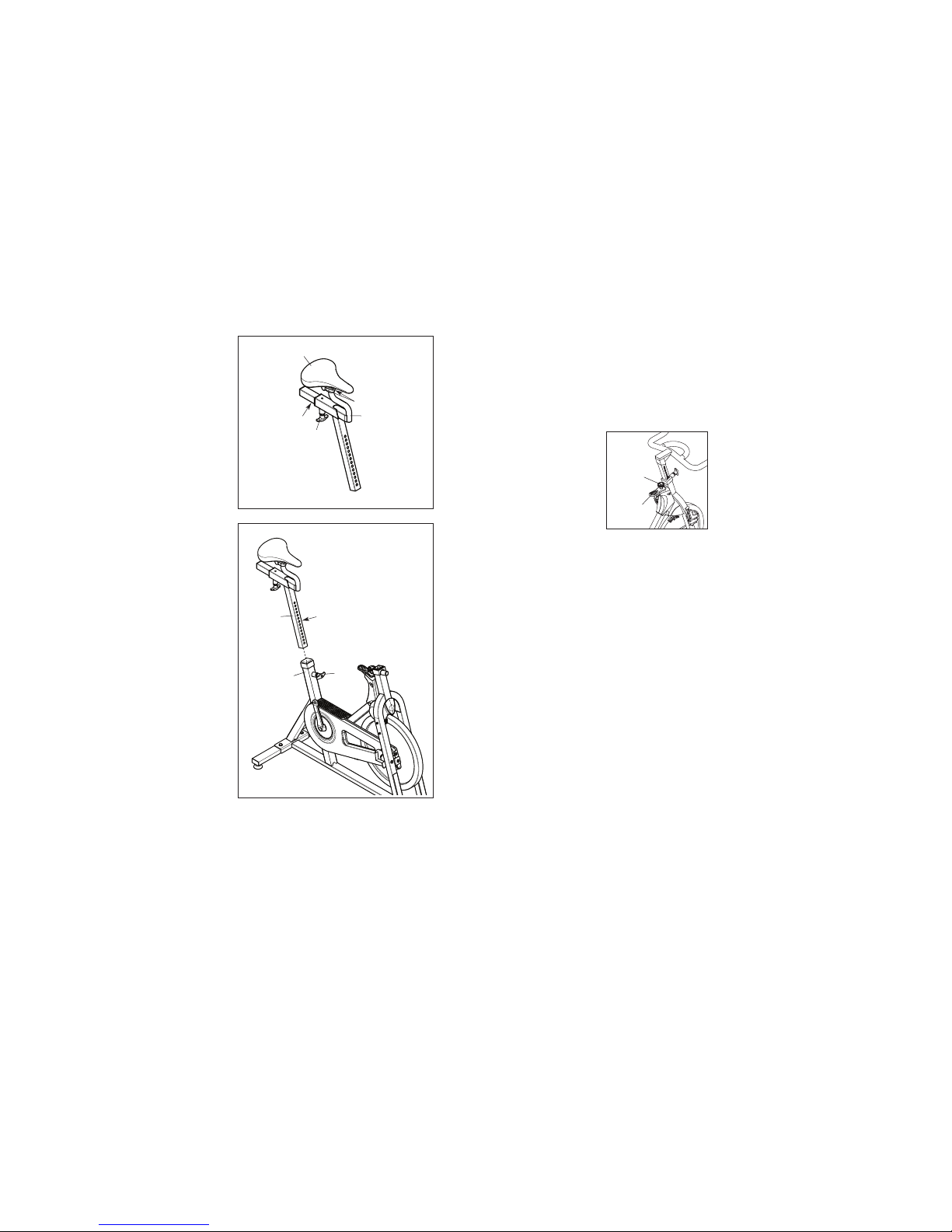

3. Identify the Seat Carriage (4) assembly.

ake sure that the nose of the Seat (3) is

pointing straight ahead and that the Seat is

level. If necessary, loosen the Hex Nuts (A)

beneath the Seat, adjust the position of the

Seat, and then retighten the Hex Nuts.

ake sure that the T-knob (5) is firmly

engaged in an adjustment hole in the Seat

Carriage (4).

4. Orient the Seat Post (61) as shown.

ocate the T-knob (5) on the rear of the Frame

(1). oosen the T-knob and pull it outward.

Then, insert the Seat Post (61) into the Frame.

Move the Seat Post (61) upward or downward

to the desired position, release the T-knob (5)

into an adjustment hole in the Seat Post, and

then tighten the T-knob. ake sure that the T-

knob is firmly engaged in an adjustment

hole.

HOW TO USE THE EXERCISE BIKE

HOW TO ADJUST THE ANGLE OF THE SEAT

You can adjust the angle of the seat to the position

that is most comfortable. You can also slide your seat

forward or backward to increase your comfort or to

adjust the distance to the handlebar.

To adjust the seat, see the drawing in assembly step 3

on page 6. oosen the hex nuts on the seat clamp a

few turns, and then tilt the seat upward or downward

or slide the seat forward or backward to the desired

position. Then, retighten the hex nuts.

HOW TO ADJUST THE HORIZONTAL POSITION OF

THE SEAT

To adjust the position

of the seat, first

loosen the T-knob

and pull it downward.

Then, move the seat

forward or backward,

release the T-knob

into an adjustment

hole in the seat car-

riage, and firmly

tighten the T-knob.

ake sure that the T-knob is engaged in an adjust-

ment hole.

HOW TO ADJUST THE SEAT POST

For effective exercise, the seat should be at the

proper height. As you pedal, there should be a slight

bend in your knees when the pedals are in the lowest

position.

To adjust the height

of the seat post, first

loosen the T-knob

and pull it outward.

Then, move the seat

post upward or

downward, release

the T-knob into an

adjustment hole in

the seat post, and

firmly tighten the T-

knob. ake sure that the T-knob is engaged in an

adjustment hole. I PORTANT: Do not adjust the

seat post beyond the stop mark on the seat post.

HOW TO ADJUST THE HANDLEBAR POST

To adjust the height

of the handlebar

post, first loosen the

T-knob and pull it

outward. Then, move

the handlebar post

upward or downward,

release the T-knob

into an adjustment

hole in the handlebar

post, and firmly

tighten the T-knob.

ake sure that the T-knob is engaged in an adjust-

ment hole. I PORTANT: Do not adjust the

handlebar post beyond the stop mark on the

handlebar post.

Seat

T-knob

Handlebar

Post

Seat

Post

T-knob

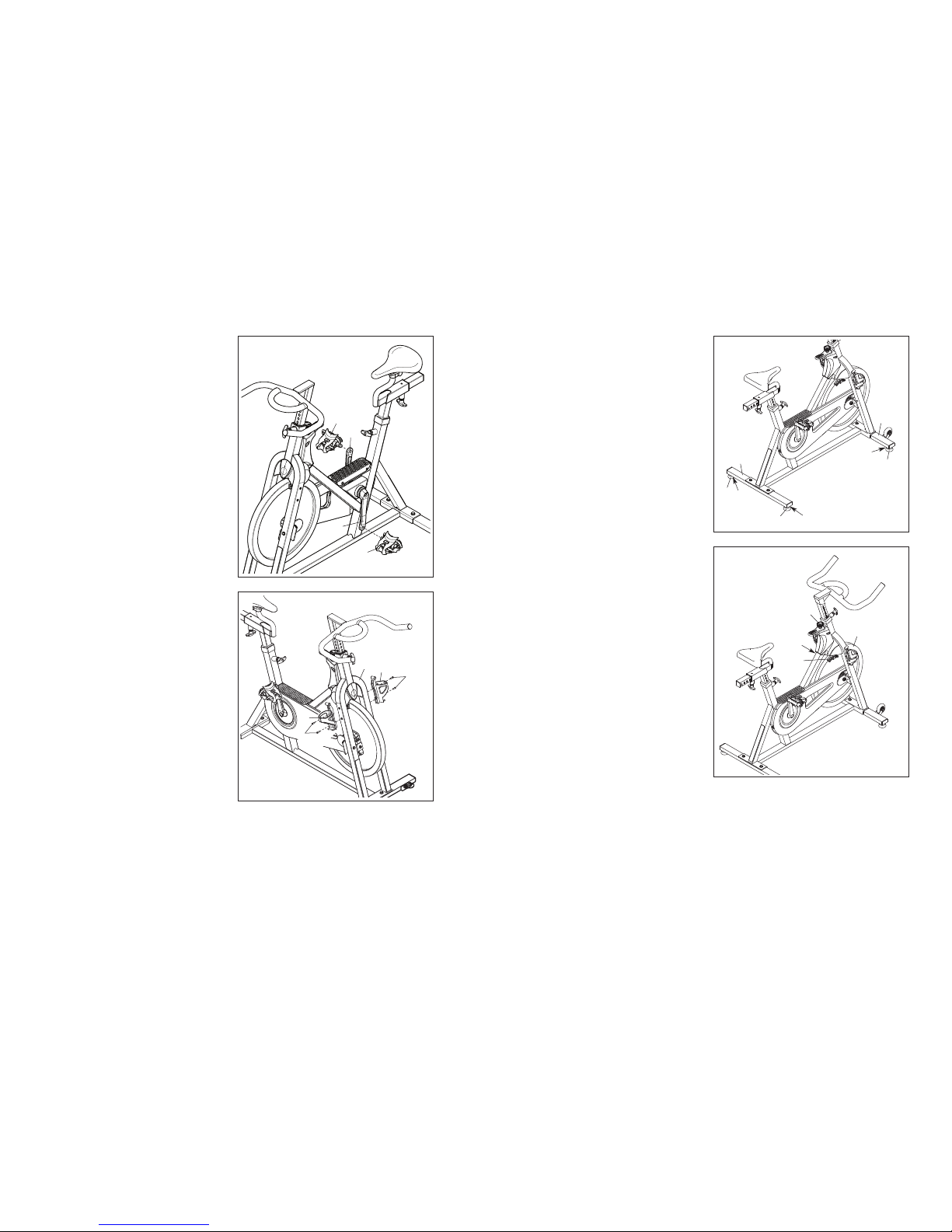

6. Orient the Handlebar Post (2) as shown.

oosen the T-knob (5) on the front of the Frame

(1) and pull it outward. Then, insert the

Handlebar Post (2) into the Frame.

Move the Handlebar Post (2) upward or down-

ward to the desired position, release the T-knob

(5) into an adjustment hole in the Handlebar

Post, and then tighten the T-knob. ake sure

that the T-knob is firmly engaged in an

adjustment hole.

5. Using an adjustable wrench, tighten a T-knob

(5) into the front of the Frame (1). 5

Holes

11. ake sure that all parts are properly tightened before you use the exercise bike. Note: After assembly

is completed, some extra parts may be left over.

9. Place the exercise bike in the location where it

will be used. Tip: Place a mat beneath the

exercise bike to protect the floor.

Make sure that all four eveling Feet (47) are in

contact with the floor.

If a eveling Foot (47) is not in contact with the

floor, loosen the eveling Foot until the eveling

Foot contacts the floor.

Then, tighten the Hex Nut (46) on the eveling

Foot (47) firmly against the Rear or Front

Stabilizer (11, 12). Tip: It may be helpful to

use an adjustable wrench to tighten the Hex

Nut.

10. oosen the Resistance Knob (34) until the

Brake Pads (66, 67) are not in contact with the

Flywheel (54).

Spray the Brake Pads (66, 67) thoroughly with a

clear silicone lubricant (not included).

Note: This action will extend the life of the

Brake Pads (66, 67) and ensure smooth contact

with the Flywheel (54).

Then, tighten the Resistance Knob (34) until the

Brake Pads (66, 67) are in firm contact with the

Flywheel (54). eave the Brake Pads in this

position for one hour or longer.

Note: This action will set the brake parts and

provide the springs with initial compression.

This action will also ensure that the clear sili-

cone lubricant penetrates the entire surface of

the Brake Pads (66, 67).

8. Attach a Water Bottle Holder (8) to one side of

the Frame (1) with two M5 x 16mm Screws (7).

Attach the other Water Bottle Holder (8) to

the other side of the Frame (1) in the same

way.

7. Identify the eft Pedal (75), which is marked

with an “ .”

Using an adjustable wrench, firmly tighten the

eft Pedal (75) counterclockwise into the eft

Crank Arm (52).

Tighten the Right Pedal (6) clockwise into the

Right Crank Arm (14). 6

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere FREE MOTION Heimtrainer Handbücher

FREE MOTION

FREE MOTION FMEX88910.0 Bedienungsanleitung

FREE MOTION

FREE MOTION u 10.9b Bedienungsanleitung

FREE MOTION

FREE MOTION FMEX82910.0 Bedienungsanleitung

FREE MOTION

FREE MOTION SFEX13811.1 Bedienungsanleitung

FREE MOTION

FREE MOTION FMEX3256P.1 Bedienungsanleitung

FREE MOTION

FREE MOTION CoachBike b22.7 Bedienungsanleitung

FREE MOTION

FREE MOTION upright bike c7.7 Bedienungsanleitung

FREE MOTION

FREE MOTION r8.3 Bedienungsanleitung

FREE MOTION

FREE MOTION VMEX81418.0 Bedienungsanleitung

FREE MOTION

FREE MOTION r8.9b Bedienungsanleitung

FREE MOTION

FREE MOTION Le Tour de France FMEX81912.1 Bedienungsanleitung

FREE MOTION

FREE MOTION CARBON S11.8 Bedienungsanleitung

FREE MOTION

FREE MOTION Tour de France FMEX81912.0 Bedienungsanleitung

FREE MOTION

FREE MOTION U8.1 Bedienungsanleitung

FREE MOTION

FREE MOTION upright bike c7.7 Bedienungsanleitung

Beliebte Heimtrainer Handbücher anderer Marken

Weslo

Weslo Vector 302 Kurzanleitung

TOORX

TOORX BRX85 Bedienungsanleitung

Matrix

Matrix KranKcycle Bedienungsanleitung

Matrix

Matrix IC3 Bedienungsanleitung

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Bedienungsanleitung

Monark

Monark 827E Bedienungsanleitung

Stamina

Stamina 1310 Bedienungsanleitung

American Fitness

American Fitness SPR-BK1072A Bedienungsanleitung

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Bedienungsanleitung

BH FITNESS

BH FITNESS H9158H Bedienerhandbuch

Body Sculpture

Body Sculpture BC-7220G Bedienungsanleitung

Cateye

Cateye EC-2300 Bedienungsanleitung

FYTTER

FYTTER RACER RC MSR Bedienungsanleitung

Kikos

Kikos HM-9090M Bedienungsanleitung

Pro-Form

Pro-Form 345 Zlx Bike Benutzerhandbuch

Fuel Fitness

Fuel Fitness SU135-40 Bedienungsanleitung

NordicTrack

NordicTrack Gxr 4.2 Bike Bedienungsanleitung

Vision Fitness

Vision Fitness U70 Bedienungsanleitung
