FREE RANGE CF-0314 Einrichtungshandbuch
Assembly and Installation Manual
Free Range Feeder CF-0314
Version 4 - Issued November 2019 - Original Publication in English
Table of Contents
Product Descri tion..................................................................................................1
Tools Required.........................................................................................................1
Parts Included...........................................................................................................2
Assembly..................................................................................................................3
Installation – Surface Mount....................................................................................8
Installation – Through Wall with Reverse Tray.....................................................10
Designed and Manufactured in Wrightsville, Pennsylvania USA
Page 1
Product Description
The Free Range Feeder design was develo ed to satisfy the needs of the hobbyist and
the homesteader. The convertible design allows for several mounting methods. See
the installation sections of the manual to decide which will work best for you.
This feeder was designed to fit 75 lbs of feed. This makes it easy to fill the feeder
without having to consider storage or artial bags. Made of heavy duty steel, this
feeder is made to last.
S ecs:
Volume: 75 lbs (34 kg)
Material: Heavy duty galvanized steel
Width: 14.5 inches (368 mm)
Height: 28 inches (711 mm)
Tray: Standard reversible
Tools Required
•5/32 hex Allen key
•#2 Philli s head screwdriver
•7/16 socket or wrench
Designed and Manufactured in Wrightsville, Pennsylvania USA
Page 2
Parts Included
Designed and Manufactured in Wrightsville, Pennsylvania USA
Page 3
Assembly
Work on a smooth, non-marring surface to avoid scratching the anels during
assembly. Refer to the arts list for art identity.
1. Lay the left anel (3) on your assembly surface.
2. Slide the back anel (2) and left anel (3) together, as shown.
3. Turn the feeder to where the
back is facing you and use 2
screws to loosely secure the
anels together. Do not
tighten at this time
Designed and Manufactured in Wrightsville, Pennsylvania USA
Watch the video at https://freerangefeeder.com/video/cf-assembly.html
Page 4
4. Turn the feeder to where the front is
facing you and lace the front anel (1)
into osition and attach with 3 screws.
5. Place the right side anel (4) on the
assembly with the to edge slightly
below the other anels as shown.
6. Slide the right anel left and under the
back anel’s to fold.
Designed and Manufactured in Wrightsville, Pennsylvania USA
Page 5
7. Attach the right side anel to the front
anel with 3 screws.
8. Turn the feeder to where the back is
facing you and use 2 screws to
loosely secure the back anel and
the right side together. Do not
tighten at this time.
9. Turn the unit so that the front anel is facing down. Place the lid onto the bin
as shown.
Designed and Manufactured in Wrightsville, Pennsylvania USA
Page 6
10. Insert the two shoulder bolts through both
sides of the lid, ensuring they are securing
all three layers together (the lid, back and
right anels).
11. Install the nuts onto the shoulder bolts
with your Allen key and wrench. The
shoulder bolts are ro erly tightened if 3
threads are ex osed ast the nut.
12. Secure the lid shut with ta e.
13. With the unit face down, rotate the feeder with the back facing you and install
the 4 bin hangers (7) as shown.
Note the orientation of the notch
in the hanger.
Designed and Manufactured in Wrightsville, Pennsylvania USA
Page 7
14. Gently tighten each of the rear anel screws. These will be loosened again
during installation.
15. Orient the feeder on its to .
16. Install the tray facing forward or rearward facing de ending on your
installation requirement. Use the air of holes that will rovide the
a ro riate ga for feed to flow into the tray.
Your feeder is ready for installation.
Designed and Manufactured in Wrightsville, Pennsylvania USA
Page 8
Installation – Surface Mount
For a quality installation, mount the feeder onto studs or other solid surface ca able
of bearing the weight of the feeder when it is full.

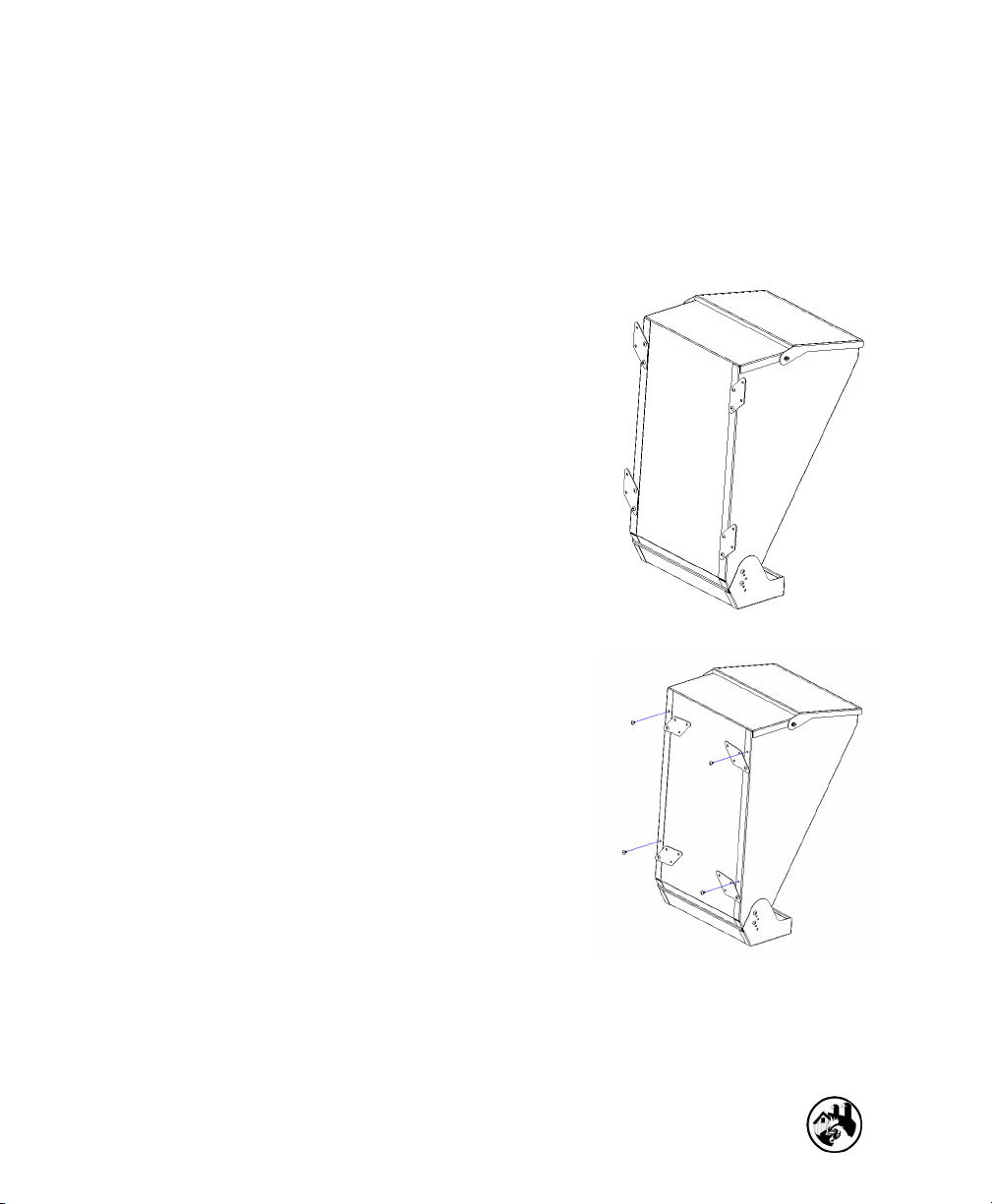

1. Remove the back anel screws that are not
securing the mount lates.
2. Loosen the mounting late screws, rotate the
lates into osition as shown and re-install and
tighten all 8 back anel screws.
Designed and Manufactured in Wrightsville, Pennsylvania USA
