1 About This Book

This document describes the design of MPC5604P

Controller Board, which is targeted for rapid

development of motor control applications.

To locate any published updates for this document, refer

to the world-wide web at: http://www.freescale.com/.

2 Introduction

Freescale MPC5604P Controller Board is a controller

board integrated to Freescale embedded motion-control

series of development tools. It is supplied with universal

interface interconnecting with, among others, one of the

embedded motion-power stages or evaluation boards,

providing a ready-made software-development platform

for a various electrical motors, DC converters.

The MPC5604P Controller Board is an

evaluation-module type of board which includes an

MPC5604P device, a various position sensing interfaces,

1 About This Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2.1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2.2 MPC5604P Controller Board Architecture . . . . . . . . . . . . . . . 3

2.3 Board Jumper Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.4 Board LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 Interface Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1 Power Supply J100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2 UNI3 Interface J300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.3 MC33937A Interface J302 . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.4 Resolver Connector J207 . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.5 Encoder/Hall Connector J500 and J501 . . . . . . . . . . . . . . . 12

3.6 LIN Connector J101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.7 CAN Connector J103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.8 USB Connector J311 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.9 Header J10 and J15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.10 Header J4, J7, and J9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.11 Header J3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4 Design Consideration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1 MPC5604P Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2 Clock Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.3 UNI3 Interfaces and External Fault Management . . . . . . . . 21

4.4 Encoder/Hall Sensor Interface . . . . . . . . . . . . . . . . . . . . . . . 22

4.5 Resolver and SinCos Sensor Interface . . . . . . . . . . . . . . . . 23

4.6 Analog Signal Sensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.7 Power Supplies and Voltage Reference . . . . . . . . . . . . . . . 26

4.8 UNI-3 PFC-PWM Signal (Power Factor Correction) . . . . . . 27

4.9 UNI-3 Brake Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.10 CAN Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.11 FlexRAY Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

6 Board Set-Up Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

7 MPC5604P Controller Board Schematics . . . . . . . . . . . . . . . . . . . 29

8 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

MPC5604P Controller Board

User’s Guide

by: Petr Konvicny

Automotive and Industrial Solutions Group

MPC5604P Controller Board User’s Guide, Rev. 0

Introduction

Freescale2

communications options, digital and analog power supplies, and peripheral expansion connectors. The

expansion connectors are intended for signal monitoring and user expandability. Test pads are provided for

monitoring critical signals and voltage levels.

The MPC5604P Controller Board facilitates the evaluation of various features present in the MPC5604P.

It can be used to develop real-time software and hardware products based on MPC5604P in TQFP144

package. It provides the features necessary for the user to write and debug software, demonstrate the

functionality of that software, and to interface with the customer’s application specific device(s). The

MPC5604P Controller Board is flexible enough to allow the users to fully exploit the MPC5604P features

to optimize the performance of their product, as shown in Figure 1.

2.1 Features

The MPC5604P Controller Board facilitates the evaluation of various features present in the MPC5604P.

Following are the board features:

• MPC5604P microcontroller, TQFP144 package

• JTAG/NEXUS interfaces for MCU code download and debugging

• System-basis chip MCZ33905D

• Motor control interface:

— UNI-3

— MC33937A predriver

— Resolver

— two Encoder/Hall sensors

• Connectivity interface:

—LIN

—CAN

—FlexRay

— USB interface

• LEDs:

— Power-supply indicators

— PWM control signals

— Faults monitoring

— SBC safe mode

— User application

• Two push buttons and switch for application control

• MCU pins accessible via pin headers

• Power plug 2.1mm connector.

Introduction

MPC5604P Controller Board User’s Guide, Rev. 0

Freescale 3

2.2 MPC5604P Controller Board Architecture

The MPC5604P Controller Board is flexible enough to allow the user to fully exploit the MPC5604P

features to optimize a performance of their product. Its basic building blocks are depicted in Figure 1. The

block color differentiates a block function.

• Blue - MCU and application software download and the debug interface

• Green - Motor control related hardware

• Red - Board power supply and connectivity

• Violet - Application control

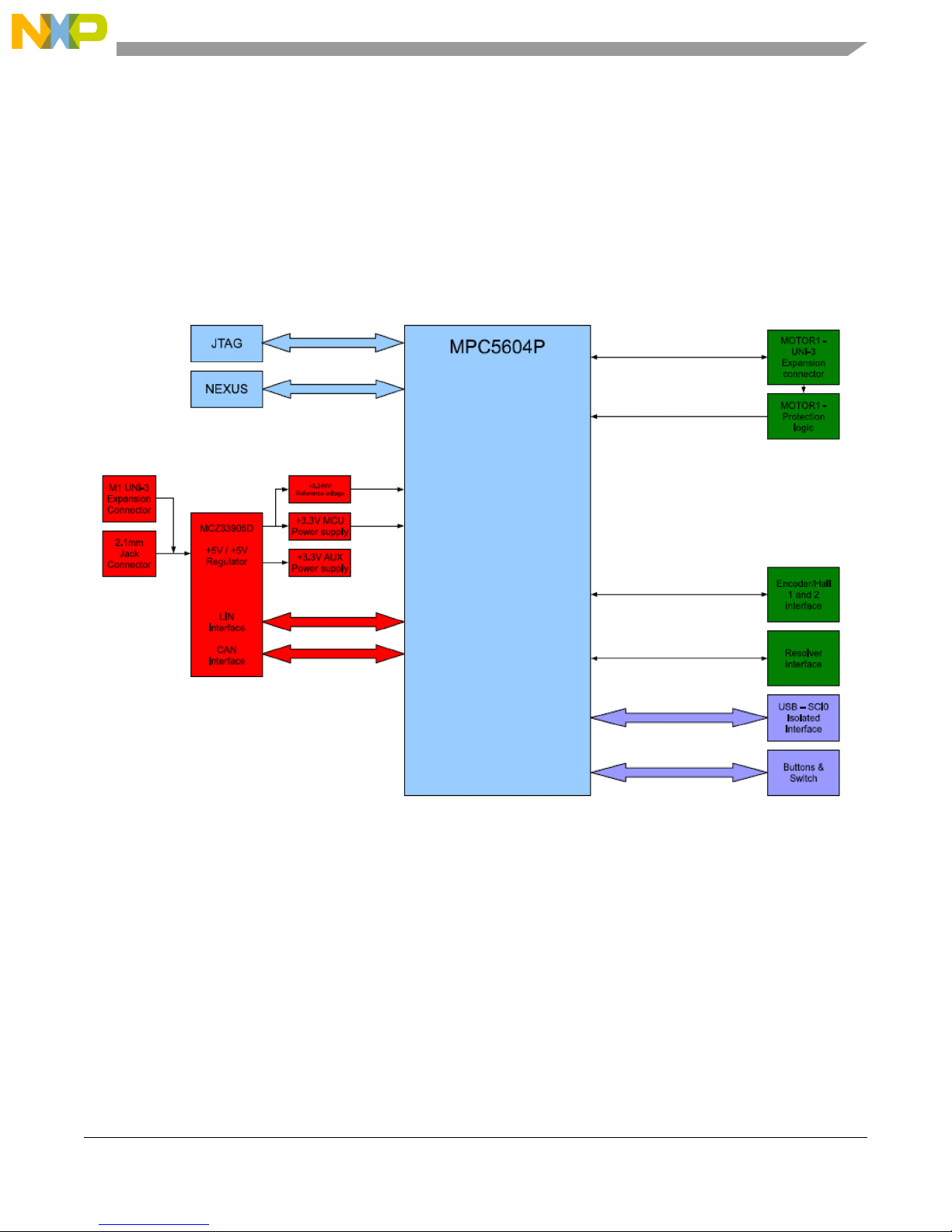

Figure 1. MPC5604P Controller Board Block Diagram

The board can be supplied by VBAT voltage in the range of 8V to 18V. The MC33905 provides two

independent voltage sources, one for supplying MCU and second for auxiliary logic. Both sources

provides either 3.3V or 5V, depending on the assembled SBC version.

The UNI-3 expansion interface enables MCU to direct control of the electrical motor or DC/DC

converters.

The Fault logic triggers several important system faults as described in a particular chapter. The circuitry

behavior depends on the selected configuration. For more info, see Section 3, “Interface Description.

The user can control the application using the rotary switch, USB interface (RS232), CAN and LIN buses.

The JTAG/NEXUS interfaces is present on-board to enable download and debugging of MCU code.

MPC5604P Controller Board User’s Guide, Rev. 0

Introduction

Freescale4

For the on-board block location, see Figure 2.

Figure 2. MPC5604P Controller Board Block Location

2.3 Board Jumper Configuration

See Table 1 and Figure 3 for proper jumper configuration.

Table 1. MPC5604P Controller Board Jumper Options

# Selector Function Connections

JP1, JP2 CAN Terminate CAN bus node. closed

JP104 MC33905

debug mode

Enter SBC driver MC33905

to debug mode.

closed

JP105 MC33905

save mode

Enter SBC driver MC33905

to safe mode.

closed

JP200 Resolver Enable Resolver reference input

signal from MCU disabled.

open

Resolver reference input

signal from MCU enabled

closed

J203 Resolver REFSIN input Positive input for SIN OPAM

is DC offset voltage set up by

trimmer R209.

1-2

Positive input for SIN OPAM

is REFSIN input of resolver.

2-3

Introduction

MPC5604P Controller Board User’s Guide, Rev. 0

Freescale 5

J204 Resolver COS input Positive input for COS

OPAM is DC offset voltage

set up by trimmer R209.

1-2

Positive input for COS

OPAM is REFCOS input of

resolver.

2-3

J205 Phase A

digital signal

Resolver Phase A signal is

connected to GPIO F[13].

1-2

SIN/COS Phase A signal is

connected to GPIO F[13].

2-3

J206 Phase B

digital signal

Resolver Phase A signal is

connected to GPIO A[5].

1-2

SIN/COS Phase A signal is

connected to GPIO A[5].

2-3

J2 Resolver

input signal

Resolver reference signal is

generated by GPIO C[11].

2-3

Resolver reference signal is

generated by GPIO C[12].

1-2

J301 FAULT1 selection UNI-3 Phase A over-current

signal is connected to

FAULT1 input G[9].

1-2

UNI-3 DC-bus over-current

signal is connected to

FAULT1 input G[9].

2-3

J312 BOOT selection MPC5604P boot from

internal Flash.

closed

J500 Encoder 0 Phase A Encoder0 JP500 pin three

PHASE A input signal is

connected to GPIO A[0].

1-2

UNI-3 BEMFZCA input

signal is connected to GPIO

A[0].

2-3

J501 Encoder 0 Phase B Encoder0 JP500 pin four

PHASE B input signal is

connected to GPIO A[1].

1-2

UNI-3 BEMFZCB input

signal is connected to GPIO

A[1].

2-3

J502 Encoder 0 Index Encoder0 JP500 pin five

INDEX input signal is

connected to GPIO A[2].

1-2

UNI-3 BEMFZCC input

signal is connected to GPIO

A[2].

2-3

Table 1. MPC5604P Controller Board Jumper Options

# Selector Function Connections

MPC5604P Controller Board User’s Guide, Rev. 0

Introduction

Freescale6

J503 Encoder 0 Home Encoder0 JP500 pin six

HOME input signal is

connected to GPIO A[3].

closed

DC BUS Voltage DC BSUS Voltage signal

from UNI-3 is connected to

GPIO B[13], ADC 1 input

zero.

R315 populated

DC BUS Current DC BUS Current signal from

UNI-3 is connected to GPIO

B[15], ADC 1 input two.

R316 populated

Analog input 11 UNI-3 Phase A current is

connected to GPIO B[9],

ADC 0/1 input 11.

R318 populated

UNI-3 Phase A Back-EMF

Voltage is connected to

GPIO B[9]m ADC 0/1 input

11.

R320 populated

Analog input 12 UNI-3 Phase B current is

connected to GPIO B[10],

ADC 0/1 input 12

R322 populated

UNI-3 Phase B Back-EMF

Voltage is connected to

GPIO B[10]m ADC 0/1 input

12.

R324 populated

Analog input 13 UNI-3 Phase C current is

connected to GPIO B[11],

ADC 0/1 input 13.

R325 populated

UNI-3 Phase C Back-EMF

Voltage is connected to

GPIO B[11]m ADC 0/1 input

13.

R326 populated

TEMP UNI-3 Temperature signal is

connected to ADC0 input

zero.

R328 populated

SERIAL UNI-3 Serial signal is

connected to GPIO D[5].

R330 populated

Table 1. MPC5604P Controller Board Jumper Options

# Selector Function Connections

Introduction

MPC5604P Controller Board User’s Guide, Rev. 0

Freescale 7

Figure 3. MPC5604P Controller Board Jumper Position

2.4 Board LEDs

The Table 2 displays the on-board LEDs. For on-board LED locations, see Figure 2.

BRAKE UNI-3 Brake output signal is

connected to GPIO C[3].

R333 populated

PFC UNI-3 PFC output signal is

connected to GPIO G[6]

(PWMA3).

R334 populated

PFC_EN UNI-3 PFC Enable signal is

connected to GPIO G[7]

(PWMB3).

R335 populated

PFC_ZC UNI-3 PFC zero current

signal is connected to GPIO

G[5] (PWMX3).

R336 populated

Table 1. MPC5604P Controller Board Jumper Options

# Selector Function Connections

MPC5604P Controller Board User’s Guide, Rev. 0

Interface Description

Freescale8

3 Interface Description

The following chapters summarize the on-board connectors and headers pin-outs, signal meanings and

MCU pins assignments.

3.1 Power Supply J100

The MPC5604P Controller Board can be supplied either by using the 2.1 mm DC power plug J100 or the

UNI-3 connector (J300, pin 19).

Table 2. On-board LEDs

LED Signal Name Description

D114 /SAFE MCZ33905 safe pin state

(ON - SBC in safe mode)

D14 +3.3Vdc + 3.3V AUX power supply

D1 PWM0 A0 Motor 1 Phase A bottom

switch signal

D2 PWM0 B0 Motor 1 Phase B bottom

switch signal

D3 PWM0 A1 Motor 1 Phase C bottom

switch signal

D4 PWM0 B1 Motor 1 Phase C top switch

signal

D5 PWM0 A2 Motor 1 Phase B top switch

signal

D6 PWM0 B2 Motor 1 Phase A top switch

signal

D7 FAULTB0 Motor 1 FAULTB0 signal

D8 FAULTB1 Motor 1 FAULTB1 signal

D9 FAULTB2 Motor 1 FAULTB2 signal

D10 FAULTB3 Motor 1 FAULTB3 signal

D11 A12 User LED 1

D12 PHASEA0 Encoder 1 input A signal

D15 PHASEB0 Encoder 1 input B signal

D17 INDEX0 Encoder 1 input INDEX

signal

D13 PWM0 A3 PWM module 0, A3 output

D16 PWM0 B3 PWM module 0, B3 output

D18 A13 User LED 1

Interface Description

MPC5604P Controller Board User’s Guide, Rev. 0

Freescale 9

The controller board is powered from two independent voltage regulators which provides 5V for a

auxiliary logic and 5V for MCU and debugger logic. Both voltages are generated by the MC33905 SBC

integrated circuit. Proper operation is monitored by LED D114 for the AUX 3.3V line, see Table 2.

The board is designed to operate in the voltage range from 8V to 18V. The board is protected against a

reverse battery.

3.2 UNI3 Interface J300

The UNI-3 interface (connector J300) defines the interface between the MPC5604P Controller Board and

a 3 phase electrical motor power stages.

The list of UNI-3 signals follows:

• Control signals:

— PWM phase A, B, C top and bottom switches control

— Brake signal control

— Power Factor Correction (PFC)

• Monitor signals

— DC-bus voltage

— DC-bus current

— Phase A, B, C current

— Zero-cross signals

— Back-EMF phase A, B, C

— Temperature monitoring

• Power Supply 12V

• Serial line - a bidirectional communication line between the Controller Board and Power Stage

The Table 3 defines the UNI-3 pin-out and pin assignment to the MCU.

Table 3. Motor 1 - UNI-3 Signal Description

Interface Pin Signal Name MCU Signal Description Direction

1 PWM_AT PWM_A0 Phase A top switch

control (H -> Turn OFF)

Digital output

3 PWM_AB PWM_B0 Phase A bottom switch

control (H -> Turn ON)

Digital output

5 PWM_BT PWM_A1 Phase B top switch

control (H -> Turn OFF)

Digital output

7 PWM_BB PWM_B1 Phase B bottom switch

control (H -> Turn ON)

Digital output

9 PWM_CT PWM_A2 Phase C top switch

control (H -> Turn OFF)

Digital output

11 PWM_CB PWM_B2 Phase C bottom switch

control (H -> Turn ON)

Digital output

MPC5604P Controller Board User’s Guide, Rev. 0

Interface Description

Freescale10

2,4,6,8,10 Shield — PWM signals shield

(grounded on the power

stage side only)

—

12,13 GND_D — Digital power supply

ground

—

14,15 +5V DC — +5V digital power supply —

17,18 AGND — Analog power supply

ground

—

19 +12/+15V DC — Analog power supply —

16,20,27,28,37 NC — Not connected —

21 VDCBUS B[13] DC-bus voltage

sensing, 0V – 3.3V,

ADC1 channel 0

Analog input

22 IDCBUS B[15] DC-bus current sensing,

0V – 3.3V, ADC1

channel 2

Analog input

23 IAB[9] Phase A current

sensing, 0V – 3.3V,

ADCx channel 11

Analog input

24 IBB[10] Phase B current

sensing, 0V – 3.3V,

ADCx channel 12

Analog input

25 ICB[11] Phase C current

sensing, 0V – 3.3V,

ADCx channel 13

Analog input

26 TEMP B[7] Analog temperature 0V

– 3.3V, ADC0 channel 0

Analog input

29 BRAKE_CONT EIRQ#22 DC-bus brake control Digital output

30 SERIAL D[5] Serial interface Digital bi-directional

31 PFC PWM_A3 Power factor correction

PWM

Digital output

32 PFCEN PWM_B3 Power factor correction

enable

Digital output

33 PFCZC PWM_X3 Power factor correction

Zero-cross

Digital input

34 ZCA D[9] or A[0] Phase A Back-EMF

zero crossing

Digital input

35 ZCB D[12] or A[1] Phase B Back-EMF

zero crossing

Digital input

Table 3. Motor 1 - UNI-3 Signal Description

Interface Pin Signal Name MCU Signal Description Direction

Inhaltsverzeichnis

Andere Freescale Semiconductor Computerhardware Handbücher

Freescale Semiconductor

Freescale Semiconductor Demonstration Board DEMO9S08AC60E Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-S12GN32 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MCF5480 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC8260 PowerQUICC II Family Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor 56F8013 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC5200B Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC8349EA PowerQUICC II Pro Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MCF52277 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor DSP56366 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC68HC08KH12 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor PowerPC MPC823 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-S12G64 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor e200z3 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor EVBCRTOUCH Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-K60D100M Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDM-K64F Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MSC8144E Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-LS1021A Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MCF5329 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor i.MX27 PDK 1.0 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MCS08QG8 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Windows Embedded CE 6.0/Windows CE 5.0 i.MX31 PDK... Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor NXP CodeWarrior USB TAP Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC9S08PT60 Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
