Hardware Getting Started Guide

This document describes the MSC8156EVM and its related

hardware kit. The MSC8156EVM getting started procedure

explains and verifies the board’s basic operation in a

step-by-step format. Settings for switches, jumpers, LEDs,

and push buttons are shown. There are also instructions for

connecting the EVM to your development/debug platform

with CodeWarrior IDE installed.

The MSC8156EVM functions with an integrated

development environment (IDE), such as Freescale

CodeWarrior IDE. Instructions for working withthe IDE are

beyond the scope of this document.

Contents

1.Definitions,Acronyms, and Abbreviations . . . . . . . . . . . . 2

2.Bitand Byte Conventions . . . . . . . . . . . . . . . . . . . . . . . . . 3

3.RelatedReading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4.HardwareKitContents . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5.DIP Switch Location Default Settings . . . . . . . . . . . . . . . . 5

6.PowerSwitch and Push Buttons . . . . . . . . . . . . . . . . . . . . 6

7.JumperDefaultSettings . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

8.ConnectorDefaultSettings . . . . . . . . . . . . . . . . . . . . . . . . 8

9.LEDIndicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

10.GettingStartedProcedure . . . . . . . . . . . . . . . . . . . . . . . 10

11.NextSteps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

MSC8156EVM

Document Number: MSC8156EVMHGSG

Rev. 0 10/2010

MSC8156-EVM Hardware Getting Started, Rev. 0

2Freescale Semiconductor

Definitions, Acronyms, and Abbreviations

1 Definitions, Acronyms, and Abbreviations

Table 1. Definitions, Acronyms, and Abbreviations

Usage Description

EVM Evaluation Module

BP Boot Patch Bit (in RCW)

BPRT Boot Port Field (in RCW)

CLK SEL Clock Select

CLKIN Clock Input

CLKOUT/CLKO Clock Output

CS Chip Select signal

CTLS Serial RapidIO interface System Mode Bit (in RCW)

DDR Double Data Rate Memory

DEVID Device ID Bit (in RCW)

DIP Dual-in-Line Package (switches)

EEPROM Electrical Erasable Programmable Memory

EN Enable

EP PCI Express End Point

ETH Ethernet

eUTAP Embedded UTAP

EWDT Watchdog Timer Bit (in RCW)

GE Gigabit Ethernet Port Bit (in RCW)

GE/TDM GETH/TDM Port

GETH Gigabit Ethernet

GPIO General Purpose I/O

HDC Hardcoded Option (RCW Source)

HRESET/HRST Hard Reset

I2C Inter-Integrated Circuit Multi-master Serial Computer Bus

IO Input/Output

J/JP Jumper

LD/LED Light-emitting Diode

MAPLE MSC8156 Internal Module

MODCK Clock Mode

NMI Non-Maskable Interrupt

PCB Printed Circuit Board

PCI Peripheral Components Interconnect Bus

PG “Power Good”

PLL Phased Lock Loop

PRDY PCI Express Ready Bit (in RCW)

PRESET Power-on-Reset

RC MSC8156 Internal Module PCI Express Root Complex

RC[x] Reset Configuration Bit x

RCW Reset Configuration Word

RGMII Reduced General Media Independent Interface

RHE RIO Host Bit (in RCW)

RJ45 Ethernet Connectors

SBETH Simple Boot from Ethernet Bit (in RCW)

MSC8156-EVM Hardware Getting Started, Rev. 0

Freescale Semiconductor 3

Bit and Byte Conventions

2 Bit and Byte Conventions

3 Related Reading

The MSC8156EVM includes a setof documentation provided on aCD-ROM. Device specific information

for devices supported by this EVM are available at www.freescale.com. This EVM supports the following

Freescale DSPs:

• MSC8151

• MSC8152

• MSC8154

• MSC8156

• MSC8251

• MSC8252

• MSC8254

• MSC8256

SCLK SerDes Reference Clock Bit (in RCW)

SerDes Serializer/Deserializer. The High Speed Serial Communication PHY that

multiplexes the PCI Express, serial RapidIO interface, and SGMII signals.

SODIMM Mini DIMM Form Factor

SRC Configuration Source

SRESET/SRST Soft Reset

SW/S Switch

UART Universal Asynchronous Receiver/Transmitter

USB Universal Serial Bus

UTAP USB TAP “Wiggler”

Table 2. Bit and Byte Terminology

Bit Byte

Binarydigitwithasinglebinaryvalue,1or 0. Commonly used

for measuring the amount of data transferred in one second

between two telecommunication points.

A unit of data, eight binary units long, that is used as a

measure of computer processor storage and real and virtual

memory.

Kbps = Kbit Kilobit per second (1 Kbps = 103bits) Kbyte = KB = KByte = 1 Kilobyte = 1024 bytes

Mbps = Mbit Megabit per second (1 Mbps = 106bits) Mbyte = MB = MByte = 1 Megabyte = 1,048,576 bytes

Gbps = Gbit Gigabit per second (1 Gbps = 109bits) Gbyte = GB = GByte = 1 Gigabyte = 1,073,741,824 bytes

Table 1. Definitions, Acronyms, and Abbreviations (continued)

Usage Description

MSC8156-EVM Hardware Getting Started, Rev. 0

4Freescale Semiconductor

Hardware Kit Contents

4 Hardware Kit Contents

The kit also includes the following (not shown):

• Packing list that includes a list of printed documents included with the kit. See the list for the

specific documents included with the kit.

• CD-ROM with documentation and code examples.

• Memory stick with ENEA software.

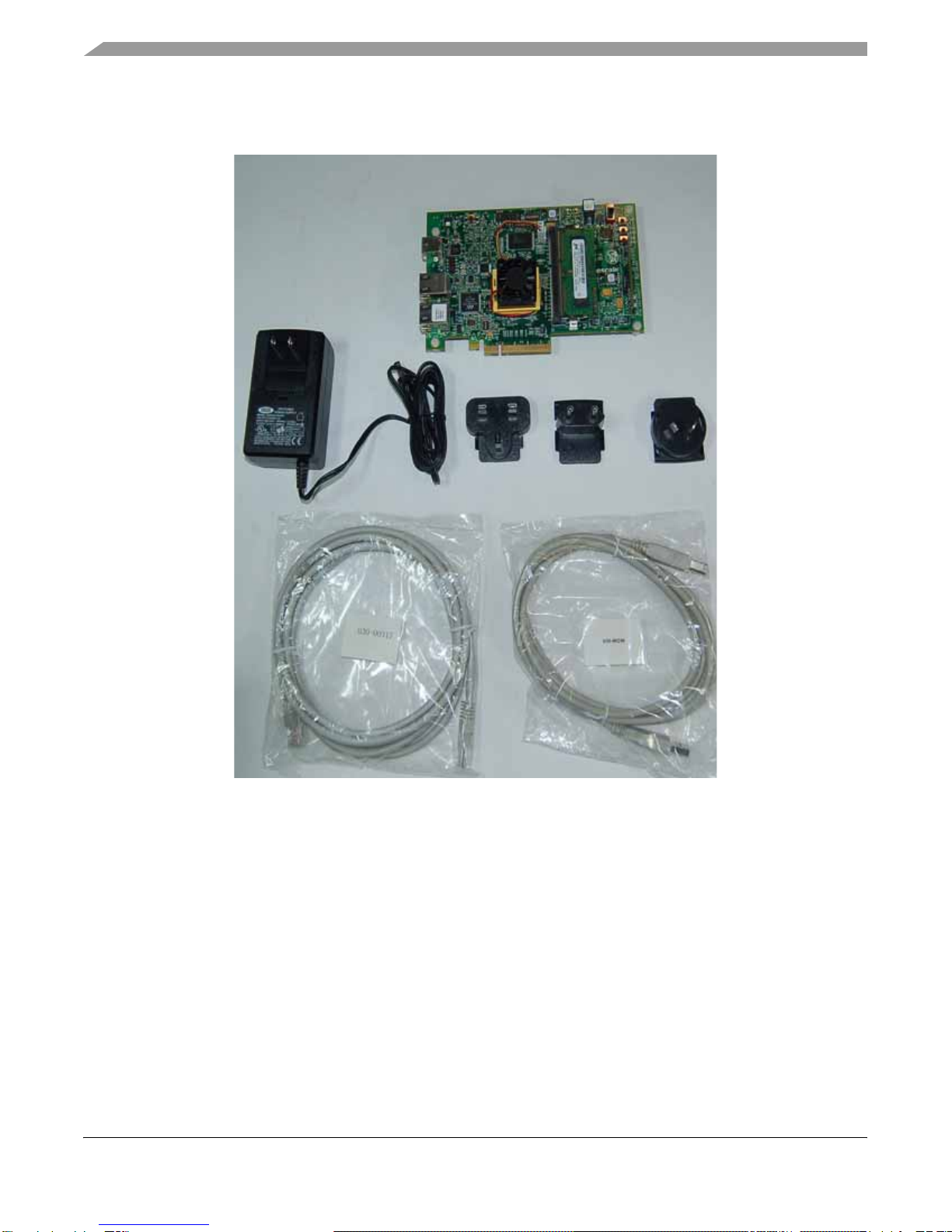

Figure 1. Hardware Contents

MSC8156EVM with attached plastic spacers

and screws

AC/DC 12 V/3.0 A universal power supp

ly k

One Ethernet cable USB cable Type A to Type B

MSC8156-EVM Hardware Getting Started, Rev. 0

Freescale Semiconductor 5

DIP Switch Location Default Settings

5 DIP Switch Location Default Settings

The MSC8156EVM has four push-button switches (SW1, SW3, SW4, and SW5), one slide power switch

(S1), and two dual-in-line package (DIP) switches (SW2 and SW6). See Figure 2 for switch locations and

Table 3 for the default DIP switch settings See Table 5 for push-button and power switch functions.

Figure 2. MSC8156EVM Switch Locations

Table 3. MSC8156EVM DIP-Switch Configurations

SW2 Configuration

SW2.1: EE0

• Default: OFF (disable);

SW2.2: GPIO_19:USER PROGRAMBLE

• Default: OFF (disable)

SW2.3: GPIO_20:USER PROGRAMBLE

• Default: OFF (disable)

SW2.4: Test Point (general purpose)

• Default: OFF (disable)

SW2.5: empty

SW2.6-2.8: Reset Configuration Word bits 7– 9

• Default: ON (“000”)

• Defines the boot port interface configuration.

SW2

SW1 S1

SW6

ON ‘0’

TP5

GPIO_20

GPIO_19

EE0

RC7

RC8

RC9

MSC8156-EVM Hardware Getting Started, Rev. 0

6Freescale Semiconductor

Power Switch and Push Buttons

The default DIP-switch positions define the MSC8156EVM configuration modes listed in Table 4.

6 Power Switch and Push Buttons

Table 5 lists the functioning of the MSC8156EVM power switch and push buttons. Figure 2 on page 5

shows their location.

SW6 Configuration

SW6.1:SS0: SELECT PEX SPREAD SPECTRUM

• Default: ON (= 0 which selects NO SPREAD SPECTRUM)

SW6.2-3: S1,S0” SELECT ICS557-03 OUTPUT FREQUENCY

• Default: OFF, ON (= 10 which selects CLKOUT = 100 MHz)

SW6.4: MULTIPLEXER SELECT

• Default: OFF (= 1 which selects INTERNAL CLK).

Table 4. MSC8156EVM Default Configuration Modes

Mode Value

CLKIN 100 MHz

Core frequency 1000 MHz

DDR2 data rate 800 Mbps

MAPLE clock 450 MHz

QUICC Engine

Subsystem clock 500 MHz

PCI Express interface

output rate 2.5 Gbps

Table 5. Power Switch and Push Button Functionality

Push Button Position Description & Default

S1: ON/OFF Power switch. The ON position activates the external power supply. The OFF

position connectspowerfromthePCIExpressedge-connector,whichsupplies12

V power if the PCI-Express external board is connected and powered.

SW1: NMI Pressing this switch assert an NMI and aborts program execution.

SW3: HRST Press to assert HRESET.

SW4: IRQ0 Press to assert IRQ0 to the board.

Table 3. MSC8156EVM DIP-Switch Configurations (continued)

MUX ELECT

ON ‘0’

SS0

MSC8156-EVM Hardware Getting Started, Rev. 0

Freescale Semiconductor 7

Jumper Default Settings

7 Jumper Default Settings

Table 6 lists MSC8156EVM factory default jumper setting. See Figure 3 for jumper location.

SW5: PRESET Press to assert PRESET to all board components.

Table 6. MSC8156EVM Jumper Default Settings

Jumper Name 1-2 Position 2-3 Position (default)

JP1 RCW_SRC External 22-bits (reduced) Configuration Word I2C EEPROM RCW

Figure 3. MSC8156EVM Jumper (JP) and Connector (J/P) Locations

Table 5. Power Switch and Push Button Functionality

Push Button Position Description & Default

J2002

J2004

J2005

JP1

MSC8156-EVM Hardware Getting Started, Rev. 0

8Freescale Semiconductor

Connector Default Settings

8 Connector Default Settings

Table 7 lists MSC8156EVM factory default connector, header, and socket settings. See Figure 3 on page 7

for connector locations.

The following list provides brief descriptions of how the connectors are used:

• J2. Provides power to the on-socket fan.

• J3. Provides the default connection between the host PCandthe MSC8156EVM for debugging and

configuration purposes. Connects to the onboard UTAP.

• J4. Provides an MPC866 debug port connection.

• J5. Used to connect the DDR3 SODIMM.

• J6. The gigabit Ethernet port 1 connection. This port can be connected to the host PC or other

Ethernet connection to use for boot over Ethernet or other device configuration operations.

• J7. The gigabit Ethernet port 2 connection. This port can be connected to the host PC or other

Ethernet connection to use for boot over Ethernet or other device configuration operations.

• P1. The alternate connection between the host PC and the MSC8156EVM for debugging and

configuration purposes. This interface requires the use of an external device, such as a USB TAP,

to transform the Host interface to JTAG signals that connects through a 14-pin ribbon cable.

• P2. Provides a connection to the external 12 V power supply.

• P3: Provides a connection to a PCI Express board only. The PCI Express edge connector is

designed to connect one of the two SerDes ports (SerDes2) of the MSC8156 device. The four

SerDes2 lanes can be configured to support serial RapidIO (1x/2x/4x), PCI Express (1x/2x/4x), or

SGMII connections. When connected, the PCI Express interface can supply the 12 V power for the

MSC8156EVM, which is enabled when S1 is in the OFF position. The connector is designed to

conform to several QorIQ development platforms from Freescale Semiconductor. Contact your

Freescale sales office for more information. Basic drivers are provided as part of the SmartDSP OS

software shipped with the CodeWarrior IDE and the EVM update software. The software is

delivered as an enablement intended for use by customers to develop applications.

NOTE

The PCI Express edge connector is not PCIMIG certified.

Table 7. MSC8156EVM Connector Default Settings

# Type Description Function

J2 Header (3-pin) 12V FAN • Provides power for on-socket fan.

J3 Socket (Type B) USB2.0 • USB2.0 interface

J4 Header (10-pin) DPI • MPC866 debug port connector

J5 SODIMM Socket (204-pin) DDR3-SODIMM • DDR3 SODIMM socket

J6 Connector (RJ45) GE1 • MSC8156 GETH port1 1000-BaseT

J7 Connector (RJ45) GE2 • MSC8156 GETH port2 1000-BaseT

P1 Header (14-pin) OnCE • OnCE connector for external UTAP

P2 Power Connector 12V • External power supply

P3 Edge Connector PCIe Backplane • SerDes high-speed connector

MSC8156-EVM Hardware Getting Started, Rev. 0

Freescale Semiconductor 9

LED Indicators

9LEDIndicators

Table 8 lists MSC8156EVM LED indicator functions. See Figure 4 for LED locations.

Table 8. MSC8156EVM LEDs

Ref. Name Color LED On LED Blinking LED Off

LD1 PG Green Power Good — Internal power supply

failure

LD2 GPIO17 Orange USER DEFINE. USER DEFINE. USER DEFINE.

LD3 12V Green Indicates external power

or PCIe 1 2V Power is ON — The EVM is powered off

LD4 GPIO18 Green USER DEFINE. USER DEFINE. USER DEFINE.

LD5 EE1 Green MSC8156 in Debug mode — MSC8156 not in Debug

mode

LD6 HOST Multicolor eUTAP mode indication — —

LD7 TARGET Multicolor eUTAP mode indication — —

LEDs

in J6 LINK Green RGMII PHY1 has Link at

1Gbps Activity (not connected,

should never light) No link on Port1

ACT Orange RGMII PHY1 is active

LEDs

in J7 LINK Green RGMII PHY 2 has link at

1Gbps Activity No link on Port2

ACT Orange RGMII PHY 2 is active

Figure 4. MSC8156EVM LED Locations

LD 6& 7

LD 2 & 4 LD 3

LD 1

LEDS in J6

LEDS in J7

MSC8156-EVM Hardware Getting Started, Rev. 0

10 Freescale Semiconductor

Getting Started Procedure

10 Getting Started Procedure

Use the following steps to set up and initial the EVM:

1. Review the kit contents as listed in Section 4 Hardware Kit Contents and make sure you have all the

components.

2. Review the default switch settings as listed in Section 5 DIP Switch Location Default Settings and

verify that all switches on the board are set correctly.

3. Review the jumper settings as listed in Section 7 Jumper Default Settings and verify that all jumpers

are set correctly for your desired configuration.

4. Assemble and connect the 12 V power supply (see Figure 5) using the following steps:

a) Make sure that all power is turned off.

b) Assemble the AC/DC power supply kit, as follows:

— Attach the power cable with the country-specific wall output plug for your area.

— Attach the cable with the plug for the board connection.

c) Connect the AC/DC power supply cable to the 12 V (P5) board jack.

d) Plug the power cable into the wall outlet.

5. Referring to the information listed in Section 6 Power Switch and Push Buttons and Section 9 LED

Indicators, perform the initial power up and check using the following steps:

a) Move the power switch (S1) to the ON position, and check for completion of the PRESET

sequence; LEDs 3 (12V POWER) and LED 1 (POWER GOOD) display a constant green light.

b) Power the system off by moving the power switch (S1) to the OFF position.

Figure 5. Power and Cable Connections

Inhaltsverzeichnis

Andere Freescale Semiconductor Computerhardware Handbücher

Freescale Semiconductor

Freescale Semiconductor EVBCRTOUCH Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC8349EA PowerQUICC II Pro Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor 1322x-USB Dongle Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor NXP CodeWarrior USB TAP Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MCF54455 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor HC05P3 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor PowerQUICC III MPC8555E Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-K20D50M Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC68HC08KH12 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDM-KL25Z Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor SC140 DSP Core Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Motorola MMDS0508 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MSC8144E Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor i.MX53 SABRE Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC8349E PowerQUICC II Pro Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC68HC908MR16 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor M68HC08 series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-K60N512 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor e200z3 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDM-K64F Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC8349EA MDS Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-PXD20 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC850 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Windows Embedded CE 6.0/Windows CE 5.0 i.MX31 PDK... Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
