Babbage 2.5 Ubuntu Startup Guide

Introduction

This document shows the procedure to start up the Babbage 2.5 board. The board arrives

with a pre-flashed SD card that contains all the necessary images to launch Ubuntu. The

first section of the document shows the connection that need to be made and the quick

steps in order to get Ubuntu working.

In case the SD card requires to be flashed again, the second section of the documents

provides the detailed steps and requirement in order to make the Ubuntu launch possible.

The last section shows the known issues recognized so far.

I. Boot verification section

Requirements

-An pre-flashed SD Card (Ultra II SanDisk SD card)

o8GB will be ideal although 4GB SD card will suffice

oTesting at Freescale has been done only with SanDisk SD Cards

-Serial interface (in order to see redboot messages and change the boot script)

such as Hyperterminal in Windows or Minicom in Linux-based Systems.

-Cables and Connectors:

oDVI cable

oDB9 Serial Cable

o5V Power source

oUSB mouse and USB keyboard

oRegular speaker or headphone if audio is desired

oEthernet cable

Steps

-Move the SD card to the Babbage2 board on to the SD slot “P1” on the bottom of

the board.

-Make sure that the dip switch on the Babbage board is set to SW7=SW8=ON,

everything else OFF

-Connect a serial cable to the P5A1 port and on the PC host open a serial console,

(in windows could be Hyperteminal, in Linux could be minicom) set the terminal

to 115200, 8N1, no FlowControl

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

-Connect a DVI cable in the DVI port on Babbage board (P4) and on the other site

plug it to a monitor (that at least supports 800x600)

-Connect an Ethernet cable to the Ethernet connector (P3)

-Connect USB keyboard and mouse to the Dual-USB_A connector

-Connect speaker or headphone if audio is desired. JK1 audio jack (optional)

-Connect the 5V supply

-Press the SW1 push button around ~5 seconds to power up and make sure that

you see the boot message on the UART console (hyperteminal or minicom).

DISP-Card

Connector

Micro_USB

Connector

MIC_IN

Jack

Audio

Jack

Mini_PCI

Connector

LVDS

Connector

DVI Connector UART

Connector

Power

Jack

Ethernet

Connector

Dual-

USB_A

Connector

MMC/SD

Connector

POWER

Button SW1

RESET

Button SW2

ACCESSORY_CA

RD Connector

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

II. Step by step setup and startup guide

General Notes

The procedure described in the following pages shows how to add the Ubuntu System to

the SD card. The SD card is the boot device for Babbage 2.5 board. The procedure shown

is made entirely using an Ubuntu host; this implies that the commands are specific to this

distribution.

The sections in grey indicate the commands that need to be executed in each step using

the Linux host. Most of the commands executed, require a supervisor level, so most of

the cases use the sudo before each command. The sections in blue indicate the commands

needed to be executed in the terminal when Ubuntu is launched in the Babbage board.

Requirements

-Linux Host

oA terminal or linux console to execute the commands shown

oTest at Freescale were only made running Ubuntu 9.04

-An SD Card (Ultra II SanDisk SD card)

o8GB will be ideal although 4GB SD card will suffice

oTesting at Freescale has been done only with SanDisk SD Cards

-An SD card reader (usually interfaced through USB and supporting SDHC due

to the density of the SD card used), it is used in order to make the SD visible to

the system in case that the host computer does not contain an SD card slot. The

testing employed an SanDisk MicroMate for SDHC support

-Serial interface (in order to see redboot messages and change the boot script)

-Make sure that the package “gparted” is present in your Linux host System. If

not present, it is possible to add it by using: $ sudo apt-get install gparted

-Download the packages

oBabbage2.5release15Jul2009.tar.gz: It contains scripts and packages

needed to prepare the SD card and also the bootlader and kernel binaries

for the setup. It can be found in: (compass site/extranet site)

oUbuntu root filesystem:

“9.04_jaunty_armel_offical_release_rootfs_april_21_09.tar.gz” from

http://people.ubuntu.com/~jerone/ubuntu_jaunty_9.04/

-Cables and Connectors:

oDVI cable

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

oDB9 Serial Cable

o5V Power source

oUSB mouse and USB keyboard

oRegular speaker or headphone if audio is desired

oEthernet cable

Detailed Steps

1. Setting the SD card in the proper filesystem

a. Connect the SD card (with the reader if needed) to the Linux Host

b. Format the whole SD card into one partition with EXT3 filesystem

type.

i. The gparted application is able to perform this task. If the SD card

connection to the Linux host was successful a dev node should be

created automatically; some options may be /dev/sdd, /dev/sdc or

/dev/sdb. In order to make sure, run the gparted application and in

the options shown in the right corner look for the device that

matches the size of the SD card used.

$ sudo gparted

ii. Delete current content in the SD if needed. In this example, the

SD card is mounted in /dev/sdb and it was already formatted. So

select it (by clicking in the /dev/sdb1 line) and click the Delete

button. After that hit Apply button and confirm the action. It

should erase the filesystem and the current partition.

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

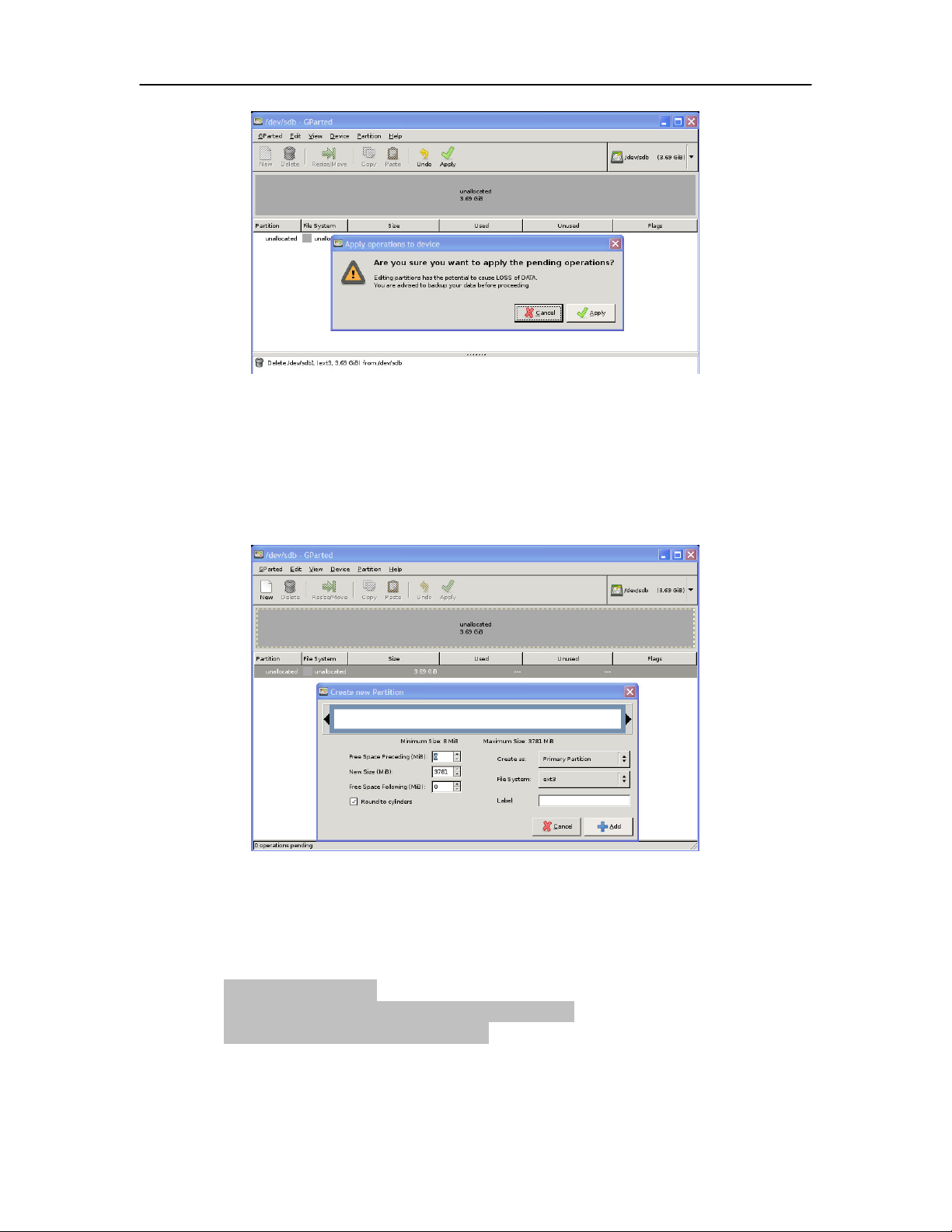

c. Create the new partition with the ext3 filesystem. The SD card should

look like an unallocated space. Click in the Next button and in the “Create

new Partition” window set the File System to ext3. Click Add, then click

the Apply button and finally confirm the action. After this, close the

gparted application.

2. Initialize the SD card and load the bootloader (redboot).

a. Unpack the Babbage2.5release15Jul2009.tar.gz into the Linux Host to the

location best preferred by the user (as example /home/Babbage) and

access to the created new folder (Babbage2.5-releasel15Jul2009)

$ cd /home/Babbage

$ tar zxvf Babbage2.5release15Jul2009.tar.gz .

$ cd Babbage2.5-releasel15Jul2009

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

b. Run the updater.sh script to initialize the SD card (-i) and to load the

redboot.bin to the SD card (-b). The script expects the user to pass the /dev

node where the SD card is associated (-n); this example uses /deb/sdb

$ sudo ./updater.sh –i –n /dev/sdb

$ sudo ./updater.sh –b babbage/redboot.bin –n /dev/sdb

$ sudo sync

NOTE: Please use the 'redboot' source package on the Freescale's extranet site to build

the latest Babbage2 bootloader image. The 'redboot.bin' available with this tar ball was

built off of the 'redboot_200918.zip' release.

3. Create a new partition on the SD Card (for the kernel image)

a. Unplug the SD card and re-insert it to the Linux Host

b. Run the gparted application (it should take the same /dev node that it used

to have, however use dmesg command to look for the mount point). In this

case it is assumed that it stayed in the same /dev node (dev/sdb)

$ sudo gparted /dev/sdb

NOTE: It is possible that when gparted opens the SD card, the card seems like

unallocated or without any file system. This should not be a problem.

c. If needed, umount (for umount, right click when inside the partition area

and select umount) the existing partition and delete it (by clicking in the

Delete button but don’t click Apply yet)

NOTE: It is possible that a previous message appears mentioning that the current device

does not contain any filesystem or partition table, follow the steps that the system shows

with the default values (Button Create, see below)

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

d. Create a new partition with ext3 file system but make sure to set “Free

Space Preceding” to 20 MB (see figure below). Click Add, and then click

Apply (finally confirm the action).

It should look like this (below), after that close the application:

4. Install the kernel on the SD card

a. Unplug the SD card and re-insert it to the Linux Host. This time it should

be mounted not only as a device node but also as an interface in /media. In

order to check us the “df” command and you should see where the

/dev/sdbX is associated with a mount point, in this example the mount

point is /media/disk

NOTE: Please download and build the kernel image from the latest ER drop that's

available on the Freescale BSP extranet site. The prebuilt kernel image available with

Babbage2.5 tar ball was built off of the ER8 drop.

b. Run the updater application to load the kernel to the SD and umount the

SD card (for testing purposes)

$ sudo ./updater.sh –k babbage/zImage –n /dev/sdb

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

$ sudo sync

$ sudo umount /media/disk

5. Validate the steps so far by attempting to boot from the Babbage board

a. Move the SD card to the Babbage2 board on to the SD slot “P1” on the

bottom of the board.

b. Make sure that the dip switch on the Babbage board is set to

SW7=SW8=ON, everything else OFF

c. Connect the 5V supply and make sure that you see the boot message on

the UART.

i. Use 115200, 8N1, no FlowControl

d. Press the SW1 push button of the board (around 5 seconds) until the leds

on the board turn on and you can see something in the serial terminal.

e. You'll see the 'Kernel Panic – not syncing' message. This is normal, since

we have not yet programmed the rootfs.

6. Copy the Ubuntu Rootfilesystem to the SD Card

a. Move the SD card to the Linux Host

b. Change the name of the downloaded Ubuntu package from (go to the

location where it was downloaded)

9.04_jaunty_armel_offical_release_rootfs_april_21_09.tar.tar to

9.04_jaunty_armel_offical_release_rootfs_april_21_09.tar.gz

$ mv 9.04_jaunty_armel_offical_release_rootfs_april_21_09.tar.tar

9.04_jaunty_armel_offical_release_rootfs_april_21_09.tar.gz

c. Extract the content of the package in the SD (it should be mounted in the

same way as the last time, as example in here the place is /media/disk).

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

$ sudo tar --numeric-owner –zxvf

9.04_jaunty_armel_offical_release_rootfs_april_21_09.tar.gz –C /media/disk

$ sudo sync

NOTE: Look for the latest release from Ubuntu as appropriate, the tar step may take a

while.

7. Update the /etc folder on the SD Card

a. Located in the Babbage2.5… package folder, copy the etc_files into the

/etc folder inside the SD card

$ sudo cp –R Ubuntu/etc_files/* /media/disk/etc

$ sudo sync

8. Copy the install files on the SD Card

b. Located in the Babbage2.5… package folder, copy the installs_files into

the /home/ubuntu folder inside the SD card

$ sudo cp –R Ubuntu/install_files/ /media/disk/home/ubuntu

$ sudo sync

9. Power ON the board with the proper connections and login

a. Now make all the connections needed for running Ubuntu into the board

(see the image below). You should already have connected the power (5V)

and the serial cable for the console.

i. Connect a DVI cable in the DVI port on Babbage board (P4) and

on the other site plug it to a monitor (that at least supports

800x600)

ii. Connect an Ethernet cable to the Ethernet connector (P3)

iii. Connect USB keyboard and mouse to the Dual-USB_A connector

iv. Connect speaker or headphone if audio is desired. JK1 audio jack

(optional)

b. Move the SD card to the Babbage board and power ON the board

v. Press the SW1 push button of the board until the leds turn on and

you can see something in the terminal.

c. Configure Redboot properly for setup

vi. When 'redboot' boots up, hit CtrlC to enter the Redboot menu.

1. Run 'fconfig'

2. Set the 'Boot Script' to the following

a. fis load kernel

b. e –c “noinitrd console=tty1

console=ttymxc0,115200 root=/dev/mmcblk0p1 rw

video=mxcfb:800x600-16@60” (it can support

1280x800)

|Babbage 2.5 Ubuntu Startup Guide

Because of an order from the United States International Trade Commission, BGA-packaged

product lines and part numbers indicated here currently are not available from Freescale for

import or sale in the United States prior to September 2010: i.MX51 Product Family

c. Chage to true the value of the option Set FEC

Network Hardware Address [MAC]

d. Save changes (update)

d. Reset the board (by pressing the SW2 reset push button or by holding 5

seconds the SW1 push btton for power down and other 5 seconds for

power up)

Micro_USB

Connector

MIC_IN

Jack

Audio

Jack

DISP-Card

Connector

Mini_PCI

Connector

LVDS

Connector

DVI

Connector

UART

Connector

Power

Jack

Ethernet

Connector

Dual-

USB_A

Connector

MMC/SD

Connector

POWER

Button SW1

RESET

Button SW2

ACCESSORY_CA

RD Connector

Inhaltsverzeichnis

Andere Freescale Semiconductor Hauptplatine Handbücher

Freescale Semiconductor

Freescale Semiconductor TWR-K80F150M Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor 56F8300 Series Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor T4240RDB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor 56F803 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor M5211DEMO Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor IB112 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor M68HC12A4EVB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor eXtreme Switch Gen4 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor PowerPC e500 Core Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor BSC9131RDB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor kinetis TWR-SMPS-LVFB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KITVR500EVM Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KIT34825EPEVME Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Qorivva MPC5746R-176DS Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-K20D72M Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Freedom FRDM-KE15Z Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDMSTBC-A8471 Referenzhandbuch

Freescale Semiconductor

Freescale Semiconductor FRDM-KL27Z Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KIT33730EKEVBE Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MC13853 LNA Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Qorivva MPC5746R-176DS Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KL25Z128VLK Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor T4240 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC8313E PowerQUICC II Pro Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
