Freescale Semiconductor

User’s Guide

Document Number: KT33903UG

Rev. 1.0, 9/2011

KIT33903 Evaluation Boards

Supports KIT33903BD5EVBE (5 Volt)/KIT33903BD3EVBE (3.3 Volt)

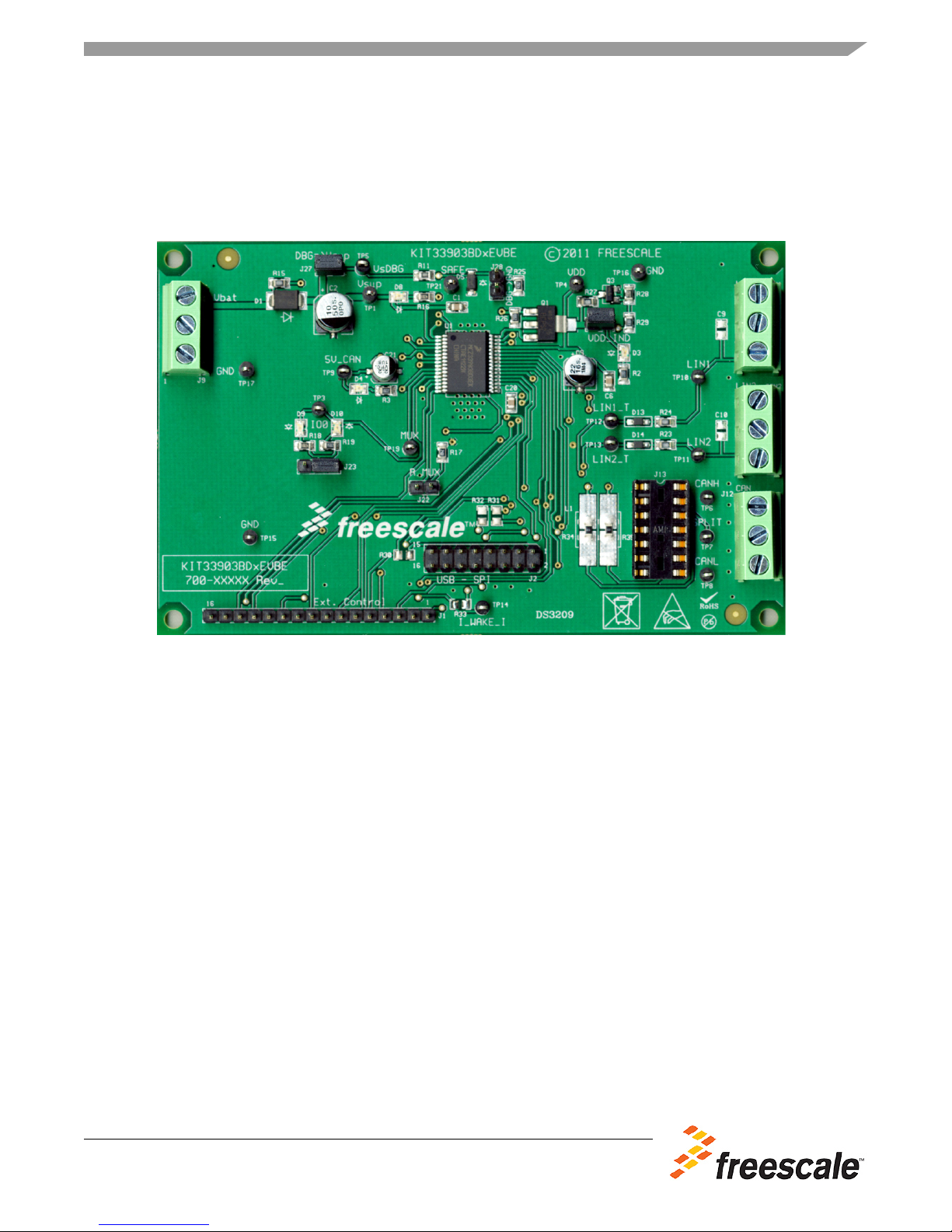

Figure 1. KIT33903BD5EVBE/KIT33903BD3EVBE Evaluation Boards

Table of Contents

1 Kit Contents / Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Important Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4 Required Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5 EVB Setup Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6 Hardware Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

7 Using the EVB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8 Schematic Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

9 Board Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

10 Evaluation Board Bill of Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

11 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

KIT33903 Evaluation Boards, Rev. 1.0

2Freescale Semiconductor

Kit Contents / Packing List

1 Kit Contents / Packing List

• KIT33903BD5EVBE or KIT33903BD3EVBE Hardware

• CD33903 (includes SPIGen Software)

• CABLE, RIBBON FLAT 16 PIN ASSY, 0.100" PITCH, 6" LENGTH

KIT33903 Evaluation Boards, Rev. 1.0

Freescale Semiconductor 3

Important Notice

2 Important Notice

Freescale provides the enclosed product(s) under the following conditions:

This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES

ONLY. It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs,

outputs, and supply terminals. This EVB may be used with any development system or other source of I/O

signals by simply connecting it to the host MCU or computer board via off-the-shelf cables. This EVB is not a

Reference Design and is not intended to represent a final design recommendation for any particular

application. Final device in an application will be heavily dependent on proper printed circuit board layout and

heat sinking design as well as attention to supply filtering, transient suppression, and I/O signal quality.

The goods provided may not be complete in terms of required design, marketing, and or manufacturing related

protective considerations, including product safety measures typically found in the end product incorporating

the goods. Due to the open construction of the product, it is the user's responsibility to take any and all

appropriate precautions with regard to electrostatic discharge. In order to minimize risks associated with the

customers applications, adequate design and operating safeguards must be provided by the customer to

minimize inherent or procedural hazards. For any safety concerns, contact Freescale sales and technical

support services.

Should this evaluation kit not meet the specifications indicated in the kit, it may be returned within 30 days from

the date of delivery and will be replaced by a new kit.

Freescale reserves the right to make changes without further notice to any products herein. Freescale makes

no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor

does Freescale assume any liability arising out of the application or use of any product or circuit, and

specifically disclaims any and all liability, including without limitation consequential or incidental damages.

“Typical” parameters can and do vary in different applications and actual performance may vary over time. All

operating parameters, including “Typical”, must be validated for each customer application by customer’s

technical experts.

Freescale does not convey any license under its patent rights nor the rights of others. Freescale products are

not designed, intended, or authorized for use as components in systems intended for surgical implant into the

body, or other applications intended to support or sustain life, or for any other application in which the failure

of the Freescale product could create a situation where personal injury or death may occur.

Should the Buyer purchase or use Freescale products for any such unintended or unauthorized application,

the Buyer shall indemnify and hold Freescale and its officers, employees, subsidiaries, affiliates, and

distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising

out of, directly or indirectly, any claim of personal injury or death associated with such unintended or

unauthorized use, even if such claim alleges that Freescale was negligent regarding the design or manufacture

of the part.Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other

product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2011

KIT33903 Evaluation Boards, Rev. 1.0

4Freescale Semiconductor

Introduction

3 Introduction

This evaluation board allows the user to implement the functionality of the MC33903 product System

Basis Chip (SBC).

This EVB includes one I/O test point that can be configured to be pulled up to VSUP or pulled down to

GND through a resistor and indicator LED. It is easily configured via jumper settings. The SBC can also

be exercised in debug mode (watchdog re-fresh/monitoring not needed) by simply populating a jumper.

Specified resistor pull-downs can be implemented on the DBG and MUX pins via simple jumper

configurations. The status of I/O0, 5V_CAN, SAFE, and VDD can be visually monitored via on-board

LEDs. The CAN and LIN Bus signals are provided through terminal block connectors.

An isolated terminal block connector is implemented to provide power to the evaluation board with an

external DC power supply.

The evaluation boards are operated through the graphical user interface (GUI) paired up with the SPI

dongle board (KITUSBSPIDGLEVME) through the 2x8 pin ribbon cable. Additionally, for added flexibility,

the user can implement a custom board with a microcontroller to talk to the SBC via the 16 pin header.

3.1 EVB Features

• Nominal operating supply voltage range of 5.5 to 27 V

•5.0V/3.3 V regulator for the MCU with an external PNP ballast transistor to increase current capability

• Multiple CAN Bus termination options supported via socket

• One high/low side I/O (SPI configurable) accessible through a test point

• Status of I/O0 indicated by LED (dependent on jumper configuration)

• Debug mode/watchdog configuration via jumper settings

• MUX output voltage accessible through a test point and external resistor selectable through a jumper

• I_WAKE_I test point to enable a FET and load VDD with current to wake-up the SBC

• LIN1_T and LIN2_T test points to monitor I/O voltages (SPI configurable)

• I/O0, 5V_CAN, SAFE, and VDD status indicated by LED

• 100 mil 2x8 pin standard header connector for SPI communication

• 100 mil 16 pin standard header connector for custom MCU board connection

KIT33903 Evaluation Boards, Rev. 1.0

Freescale Semiconductor 5

Required Equipment

3.2 Device Description/Features

• Protected 5.0 or 3.3 V regulator for the MCU (part number selectable) with optional external PNP

usage to increase current capability for MCU

• Fully-protected embedded 5.0 V regulator for the CAN driver

• Extremely low quiescent current in low power modes

• Multiple under-voltage detections to address various MCU specifications and system operation

modes (i.e. cranking)

• Multiple wake-up sources in low power modes: CAN or LIN bus, I/O transition, automatic timer, SPI

message, and VDD over-current detection

• Voltage, current, and temperature protection with enhanced diagnostics that can be monitored by the

system via a MUX output

• ISO11898-5 high speed CAN interface compatibility for baud rates of 40 kb/s to 1.0 Mb/s. LIN 2.1 and

J2602 LIN interface compatibility

• Pb-free packaging designated by suffix code EK

4 Required Equipment

4.1 Minimum Required Equipment

• Power supply: minimum 5.5 V and 200 mA current

• Any piece of equipment/board that is capable of producing TXD and/or CAN and LIN messages

• KITUSBSPIDGLEVME (USB-to-SPI Kit)

• USB cable

• CABLE, RIBBON FLAT 16 PIN ASSY, 0.100" PITCH, 6" LENGTH

• USB enabled computer with Windows XP or higher

• SPIGen software (Setup.exe)

KIT33903 Evaluation Boards, Rev. 1.0

6Freescale Semiconductor

EVB Setup Configuration

5 EVB Setup Configuration

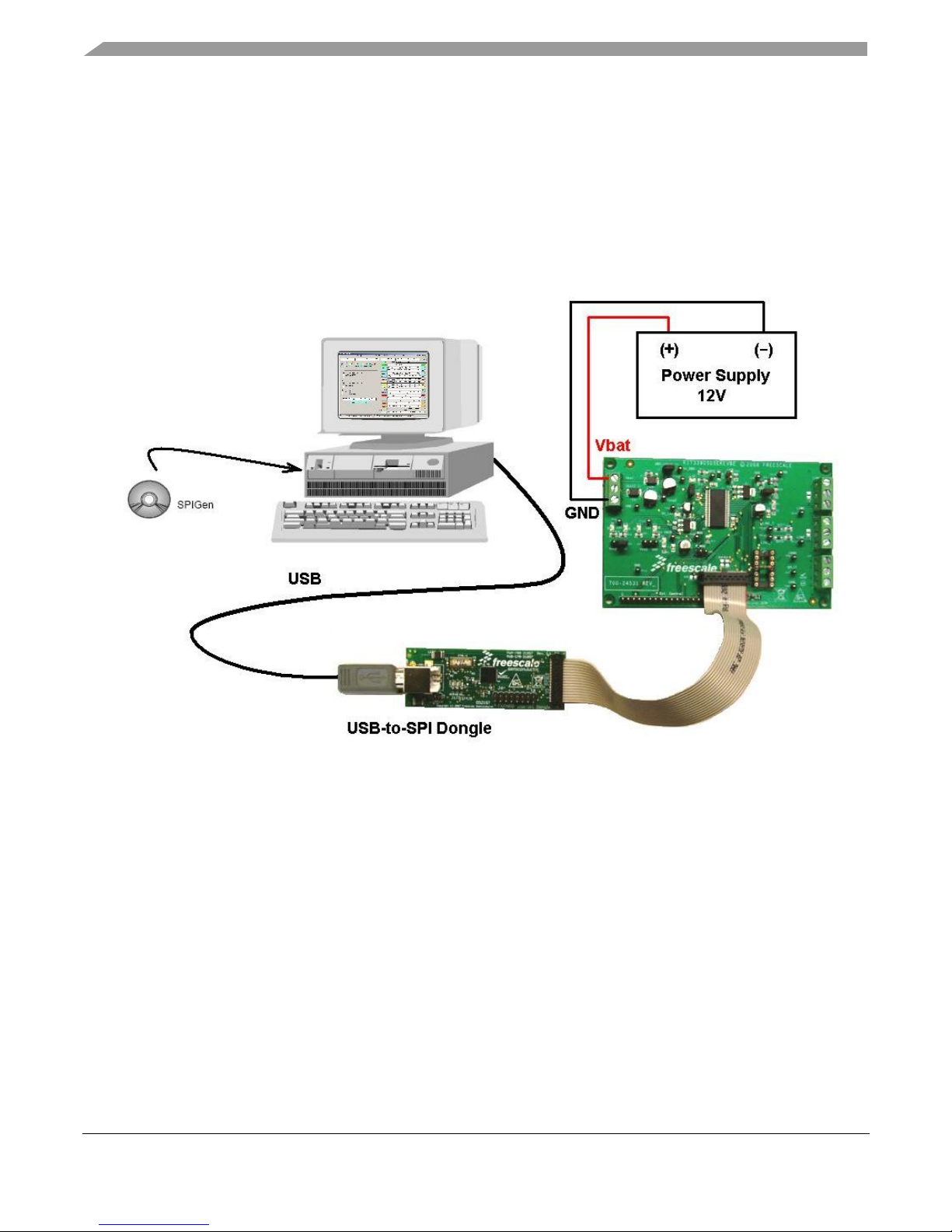

Figure 2. EVB Setup Configuration Diagram

KIT33903 Evaluation Boards, Rev. 1.0

Freescale Semiconductor 7

Hardware Configuration

6 Hardware Configuration

The KIT33903BD5EVBE/KIT33903BD3EVBE operates with a single 5.5 V minimum power supply and

can be driven with the KITUSBSPIDGLEVME along with its GUI. For added flexibility, it is also possible

to develop a custom board to drive this evaluation board via the 16 pin standard header.

6.1 Board Implementation

For Standard EVB configuration, set up the jumpers as shown on Figure 3. If the jumper configuration is

in accordance with Jumper Connections, on page 8, the VDD (D3) and the 5V_CAN (D4) LEDs must be

ON at startup. If CAN communication will be exercised, populate the CAN termination socket (J13) with

the necessary components to implement the chosen CAN Termination as shown on Figure 4.

JUMPER POSITION

J15 1-2

J22 1-2

J23 OPEN

J27 1-2

J28 OPEN

J22

J2 pSPI ControlJ1 External Control

J23

J27

J12

CAN Termination

(Power)

CAN Bus

J28 J15

CON2

LIN2 Bus

CON1

LIN1 Bus

Figure 3. Manual Mode Jumper Settings

KIT33903 Evaluation Boards, Rev. 1.0

8Freescale Semiconductor

Hardware Configuration

6.2 Jumper Connections

6.3 CAN Termination Configurations

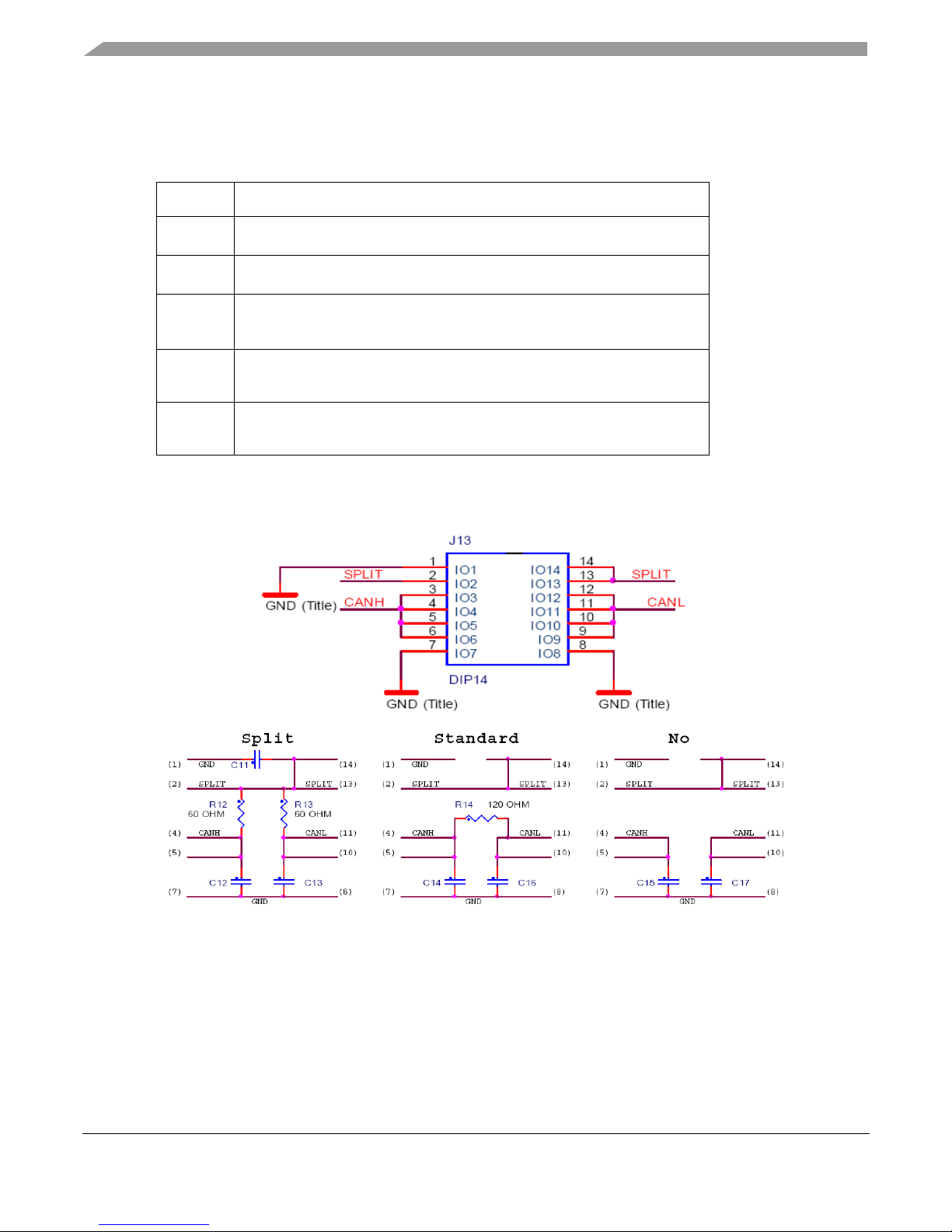

Figure 4. CAN Termination Configurations via J13 Socket

Name Description

J15 VDD Status

Jumper closed -> LED indicator enabled

J22 MUX pin output

Jumper closed -> external 2.4 kohm resistor pull-down to GND implemented

J23 I/O0 configuration

1-2 closed -> 4.7 kohm pull-down resistor to GND and indicator LED implemented

2-3 closed -> 15 kohm pull-up resistor to VSUP and indicator LED implemented

J27 DBG configuration

Jumper closed -> SBC runs in debug mode (no need to refresh/monitor watchdog)

J28 MUST be left open

J28 DBG external pull-down resistor configuration

Jumper closed -> 47 kohm pull-down resistor to GND implemented

J27 MUST be left open

KIT33903 Evaluation Boards, Rev. 1.0

Freescale Semiconductor 9

Hardware Configuration

6.4 Power Supply and Input/Output Connectors

The three pin terminal block (J9) serves as the main power terminal to supply a minimum of 5.5 V to

operate the KIT33903BD5EVBE/KIT33903BD3EVBE.

The CAN, LIN1, and LIN2 bus signals are accessible through the three pin terminal blocks J12, CON1,

and CON2 respectively.

6.5 Connector J1 – External Control

Pin # Pin Name Description

1 MISO SPI data sent to the MCU. When the CS is high, MISO is high-impedance

2 MOSI SPI data received by the device

3 SCLK Clock input for the Serial Peripheral Interface (SPI) of the device

4 CSB Chip select pin for the SPI. When the CS is low, the device is selected. In Low

Power mode with VDD ON, a transition on CS is a wake-up condition

5 TXDC_I CAN bus transmit data input. Internal pull-up to VDD

6 RXDC CAN bus receive data output

7 I_WAKE_I Active high input to enable on-board FET to create a 5.0 mA load on VDD

8 N/C Not Connected

9 VDD 3.3 V/5.0 V output of the main regulators for the Microcontroller supply

10 INTB_I This output is asserted low when an enabled interrupt condition occurs. The output

is a push-pull structure

11 RSTB_I This is the device reset output whose main function is to reset the MCU. It has an

internal pull-up to VDD. The reset input voltage is also monitored in order to detect

external reset and safe conditions

12 TXDL1 LIN1 bus transmit data input. Includes an internal pull-up resistor to VDD

13 RXDL1 LIN1 bus receive data output

14 TXDL2 LIN bus transmit data input. Includes an internal pull-up resistor to VDD

15 RXDL2 LIN2 bus receive data output

16 GND Ground Termination

KIT33903 Evaluation Boards, Rev. 1.0

10 Freescale Semiconductor

Hardware Configuration

6.6 Connector J2 – SPI Control

6.7 EVB – KITUSBSPIDGLEVME Interconnection

Pin # Pin Name Description

1 TXDC CAN bus transmit data input. Internal pull-up to VDD

2 CSB Chip select pin for the SPI. When the CS is low, the device is selected. In Low

Power mode with VDD ON, a transition on CS is a wake-up condition

3 INTB This output is asserted low when an enabled interrupt condition occurs. The out-

put is a push-pull structure.

4 MISO SPI data sent to the MCU. When the CS is high, MISO is high-impedance

5 RSTB This is the device reset output whose main function is to reset the MCU. It has an

internal pull-up to VDD. The reset input voltage is also monitored in order to detect

external reset and safe conditions

6 MOSI SPI data received by the device

7 NC No Connect

8 SCLK Clock input for the Serial Peripheral Interface (SPI) of the device

9 NC No Connect

10 NC No Connect

11 I_WAKE Active high input to enable on-board FET to create a 5.0 mA load on VDD

12 NC No Connect

13 NC No Connect

14 NC No Connect

15 NC No Connect

16 GND Ground termination

KIT33903BD5EVBE/KIT33903BD3EVBE -J2 USB-to-SPI Dongle Board - I/O PORT

Pin # Pin Name Pin Name Pin #

1 TXDC CNTL2 2

2CSB CSB1

3 INTB CNTL1 4

4MISO SO3

5 RSTB CNTL0 6

6MOSI SI5

7NC DATA48

8 SCLK SCLK 7

9NC DATA310

10 NC CNTL3 9

11 I_WAKE DATA2 12

12 NC VDD 11

13 NC DATA1 14

14 NC REG 3.3V 13

15 NC DATA0 16

16 GND GND 15

Inhaltsverzeichnis

Andere Freescale Semiconductor Hauptplatine Handbücher

Freescale Semiconductor

Freescale Semiconductor KIT33882EKEVB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MPC5748G EVB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Freedom FRDM-KE04Z Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor i.MX28 EVK Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor i.MX 6SoloLite Linux Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor S12XF Starter Kit Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor LS1043ARDB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor DEMO908QB8 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor T4240 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KL25Z128VLK Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor T4240RDB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KIT22XS4200EKEVB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor TWR-MPC5125 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KIT34825EPEVME Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor M5211DEMO Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor USB-KW019032 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor PE Micro DEMO9S08QE8 Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor BSC9131RDB Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KIT33810EKEVME Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor FRDM-KL46Z Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor KIT912F634EVME Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor MQX RTOS Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor Qorivva MPC5746R-176DS Bedienungsanleitung

Freescale Semiconductor

Freescale Semiconductor kinetis TWR-SMPS-LVFB Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
