Frico ICSR Series Bedienungsanleitung
ICSR
.... 6
SE ....38
FR
.... 22
NO .... 30
DE
.... 14
GB
.... 54
ES .... 70
PL
.... 62
IT
.... 46
NL

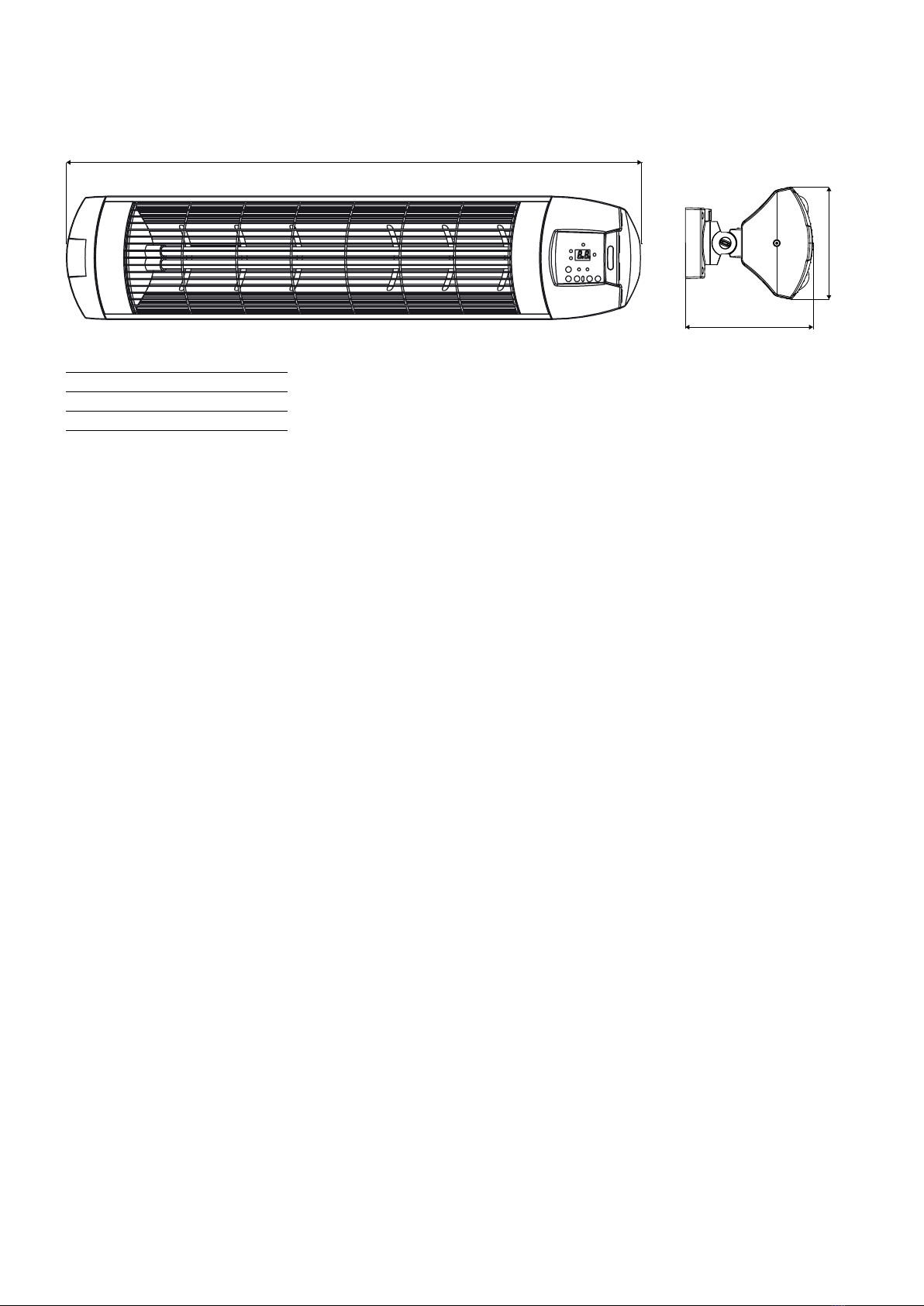

ICSR
2
A
209
238
ICSR
Type A
ICSR20 854
ICSR30 1070
ICSR
3
Type E-nr [SE] EL-nr [NO]
ICPP20 L: 2 m
ICPB
ICAP15 85 701 55 L: 1,5 m
ICAP20 85 701 56 L: 2 m
ICUB 85 701 57
ICAB 85 701 58
Accessories
ICPP20
ICAP
ICUB
ICPB
ICAB
ICSR
4
Wiring diagrams
ICSR
Relay
Relay
ICSR
5
Technical specifications | Carboninfra ICSR with directed heat distribution, remote, installation height 1,8 – 3,5 m 3
Type E-nr (SE) EL-nr (NO) Heat
output
[W]
Voltage
[V]
Amperage
[A]
Max. filament
temperature
[°C]
Weight
[kg]
ICSR20 85 701 59 2000 230V~ 8,7 1200 +/-100 6,2
ICSR30 85 701 60 3000 230V~ 13 1200 +/-100 7, 1
Protection class IC, horizontal position: (IP44), splash-proof design.
CE compliant.
ICSR
14
GB
General Instructions
Read these instructions carefully before
installation and use. Keep this manual for
future reference.
The product may only be used as set out in
the assembly and operating instructions. The
guarantee is only valid if the product is used
in the manner intended and in accordance
with the instructions.
Application
Carboninfra IC provides a smooth and direct
heat that fits well on terraces and balconies.
IC is also ideal for spot heating, both indoors
and in more protected areas outdoors. The
heat lamps in the IC have a very long service
life, the operating time is up to 10 000 h.
ICSR has a focused heat spread and is
intended for higher installation height. ICSR
can be controlled using a remote control or
the control panel on the heater.
All models can be installed vertically as well
as horizontally and have an integrated output
selector and thermostat.
Protection class, horizontal position: IP44
Assembly and operating instructions
ICSR
15
GB
Control
Remote control
LED Red
L1
Red
L2 Red
L3
Yellow
L4
Yellow
L5
Display Green
L6
Battery (AAA) 1,5V x 2
Open lid
LED Description
Red L1 Standby
Red L2 Lower heating element ON
Red L3 Upper heating element ON
Red L2 + red L3 Both elements ON
Yellow L4 Timer active
Red L5 Temperature in °C
Green L6 Indication Automatic mode
Blinking Manual mode
Remote control Description
1 Decrease temperature and time
2 Increase temperature and time
3 Choose timer mode
4 Choose manual or automatic mode
5 On/off
ICSR
16
GB
Constituent parts
ICSR
Bracket
Reflector
Spot angle
50°
Universal
holder
Double
IR-carbon-
element
Medium wave
Horizontal
or vertical
mounting
Ventilating
body
Radiant angle
30° – 0° – 30°
Front grid
metal
Connection
box
Start up
1. Connect the plug (standby mode).
The heater can be controlled using the remote
control or the control panel on the heater.
2. Push the O/I- to activate the heater.
The prevailing temperature is shown in the
display (room temperature).
To switch on the heater the elements must be
activated by the output selector or a setpoint
must be registered.
SET
Activate manual or automatic mode.
When LED L6 is lit the heater is in automatic
mode. To switch to manual mode, push SET
repeatedly until L6 starts to blink. To choose
the heating power, push SET repeatedly in
manual mode (upper element element ON,
lower element ON, both elements ON).
To choose automatic mode push the SET-
button when both elements are ON in manual
mode.
Automatic mode
When the heater is on and in automatic
mode, press the + or - to set the desired set
point.
When the room temperature (actual value)
is less than 1 °C below the set point both
elements are on. When the actual value is
1 °C below the set point one element switches
off, when the actual value is equal to the set
point both elements switch off.
When the actual value falls below 1 °C the set
point two elements switch on.
Example:
• Set point: 22 °C, Room temperature
(actual value): 15 °C => Both elements
ON.
• The room temperature increases to 21 °C
=> one element OFF.
• The room temperature increases to 22 °C
=> both elements OFF.
• The room temperature decreases to below
21 °C => both elements ON.
Temperature setting: +10 – +40 °C (+/- 1 °C).
Manual mode
In manual mode the electronic thermostat is
not used. Select manually if upper element,
lower element or both elements should be
switched on.
Timer
The timer allows the desired operating time
0-20 hours to be set.
1. Push TIMER.
2. Select desired time with + and –.
LED L4 is lit when the timer is active.
ICSR
17
GB
Rip for
horizontal
position Rip for
vertical
position
Bracket
Rotating to horizontal or vertical position on wall or stand
Rotating from
horizontal to vertical
position, 90°.
Note: Only clockwise.
The heater must
be off and the plug
pulled from the
socket. When rotating
the heater, the metal
body should be
carefully touched by
hand.
Rotating from
vertical to horizontal
position, 90°.
Note: Only
anticlockwise.
ICSR
18
GB
Screw DIN 7505 D 5 x 60
Plug D 8 PE 8 x 40
Screw DIN 7505 D 5 x 60
Plug max 250 mm D 8 PE 8 x 40
After assembly and after the
radiation angle is set, tighten
the screws.
After assembly and after the
radiation angle is set, tighten
the screws.
Mounting
Wall or ceiling mounting with the bracket
Wall or ceiling mounting with the bracket and aluminium profile ICAP
Mounting of bracket on post ICPP with stand foot ICPB
Max
250 mm
74 mm
102 mm
ø8 mm
Note: Please observe minimum mounting distance
in the manual.
