Room Air Conditioner

Installation and Operation

Manual

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

CP Line

920-151-00 (7-05)

CP08 ZQ08 ZQ10115 Volts

Registering Your Room Air Conditioner

Model information can be found on the name plate located on the

side of the unit near the control panel. Please complete and mail

the owner registration card furnished with this product or register

on-line at www.friedrich.com (USA only). For your future

convenience, record the model information here.

ENGLISH

Table of Contents

Introduction ..................................................................................2

Safety Precautions.......................................................................3

How to operate your Friedrich ...................................................5

Adjusting the Air Flow Direction.................................................7

Care and Maintenance.................................................................8

Hardware Location.......................................................................9

Installation Instructions

........................................................

Troubleshooting Tips.................................................................17

Warranty......................................................................................18

How to operate your Friedrich ZStar ......................................6

Congratulations!

You have purchased a Friedrich

room air conditioner. The Friedrich

units are designed to give maximum

comfort and quietness.

Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that

the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in figure 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power to the unit; an extension cord will not.

Make sure that the receptacle is compatible with the wall plug provided.

This insures proper grounding. If you have a two-prong receptacle you will need to have the circuit replaced

by a certified electrician with a grounded circuit that meets all national and local codes and ordinances. You

must use the three-prong plug furnished with the air conditioner.

Figure 1

For the Best Cooling Performance and Energy Efficiency

Keep the filter clean

Make sure that your air conditioner is always in top performing condition by cleaning the filter regularly.

Instructions for removing and cleaning the filter can be found on page 8.

Provide good airflow

Make sure that the airflow to and from the unit is clear. Your air conditioner puts the air out at the top of

the unit, and takes in air at the bottom. Airflow is critical for good operation. It is just as important on the

outside of the building that the airflow around the unit exterior is not blocked.

Unit Placement

If your air conditioner can be placed in a window or a wall that is shaded by a tree or another building, the

unit will operate even more efficiently. Using drapes or blinds on the sunny side of the dwelling will also

add to your unit's efficiency.

Insulation

Good insulation will be a big help in maintaining desirable comfort levels. Doors should have weather

stripping. Be sure to caulk around doors and windows.

Introduction

MODEL

AMP VOLT NEMA NO.

15 125 5-15P

CIRCUIT

RATING OR

TIME DELAY

FUSE

PLUG FACE

CP08 ZQ08 ZQ10

ENGLISH

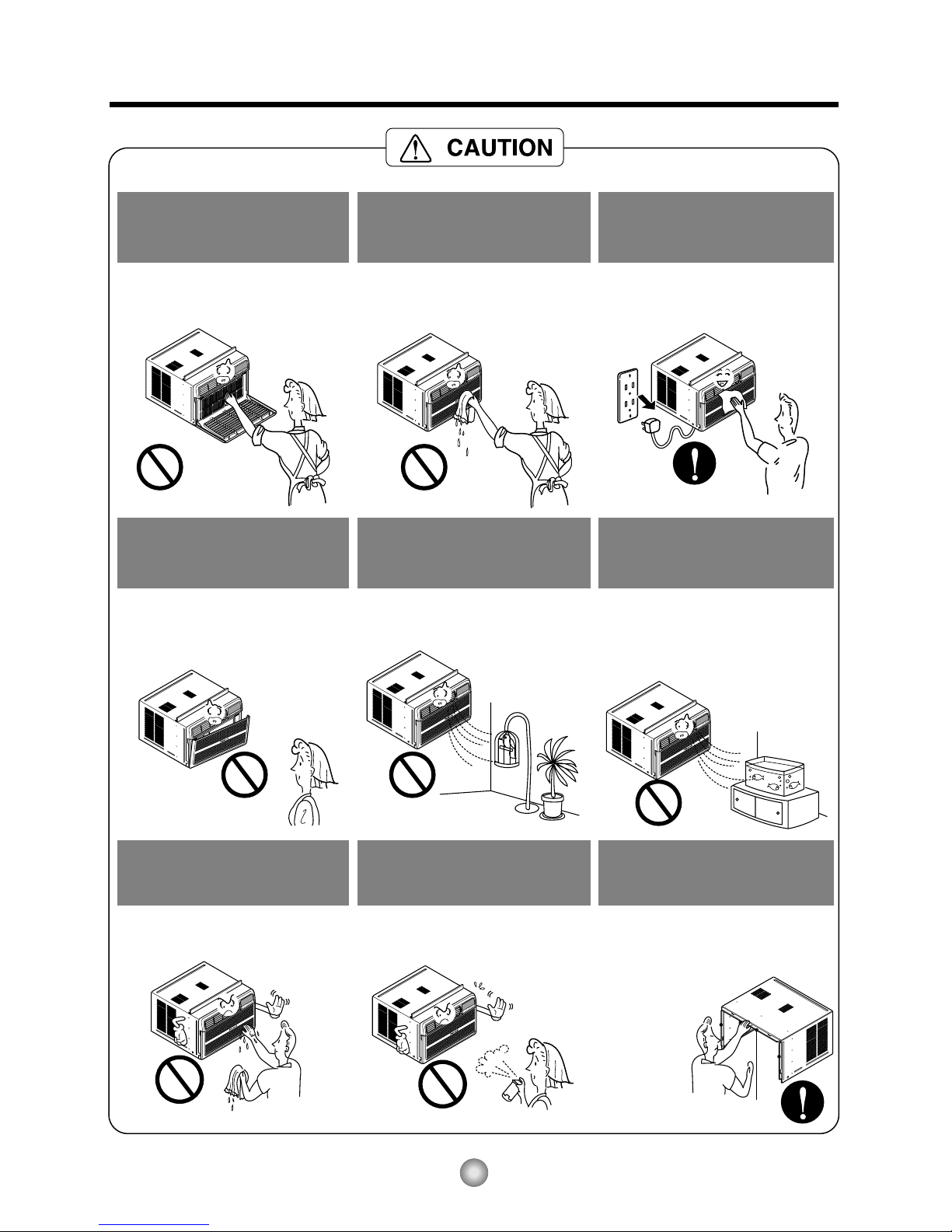

Safety Precautions

To prevent injury and property damage, follow these instructions.

■Incorrect operation due to ignoring of instruction can cause harm or damage. The seriousness is classified

by the following indications.

WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicates the possibility of injury or damage to

properties only.

■Meanings of symbols used in this manual are as shown below.

Never Do This

Always Do This

WARNING

Plug in the power plug

properly.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire.

•

If the power cord is damaged, it must

be replaced by the manufacturer or a

Friedrich-certified service agent.

Do not modify power cord

length.

• It will cause electric shock or fire

due to heat generation.

Do not operate with wet

hands or in damp

environment.

• It will cause electric shock.

Do not direct air flow directly

at room occupants.

•

This could lead to health problems

TIMEMODETEMPPOWER

FAN

SPEED

TIMEMODETEMPPOWER

FAN

SPEED

Sharp

edges

When the air filter is to be

removed, do not touch the

metal parts of the unit.

•They are sharp and may cause

an injury.

Do not clean the air

conditioner with water.

•Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

When the unit is to be

cleaned, switch the unit off,

and unplug it.

•Since the fan rotates at high

speed during operation, it may

cause an injury.

Do not operate the unit

without the air filter or when

the front intake grille has

been removed.

•It could cause dust to

accumulate on the heat

exchanger.

Do not put a pet or house

plant where it will be

exposed to direct air flow.

•This could injure the pets

or plants.

Do not use for special

purposes.

•Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

Do not operate switches

with wet hands

•It may cause an electric shock.

Do not apply an insecticide

or flammable spray.

•It may cause a fire or

deformation of the cabinet.

SHARP EDGES!

The edges of the case can

be SHARP!

•Use caution when handling the

case. Grip it firmly and do not allow

it to slip while holding it.

•

Use heavy gloves to handle

the case if necessary.

•

DO NOT

allow the

case to slide

against

your skin!

ENGLISH

How to operate your Friedrich

Power

Temp

Fan Speed

Timer Mode

453

Control and Remote Control Operations

1. POWER

Operation begins when this button is pressed

and stops when you press the button again.

2. TEMPERATURE CONTROL

The thermostat monitors room temperature

to maintain the desired temperature.

The thermostat can be set between

60°F~86°F (16°C~30°C).

The unit takes an average of 30 minutes to

adjust the room temperature by 1°F.

3. OPERATION MODE SELECTOR

Select cooling mode to cool the room.

Select Money Saver®mode for energy

saving operation.

Select fan mode for basic ventilating fan

operation.

Select dry mode for dry operation.

4. FAN SPEED SELECTOR

For increased power while cooling, select a

higher fan speed.

3 steps: High; Low; Med

5. ON/OFF TIMER

The timer can be set to start and stop the

unit in hourly increments (up to 12 hours).

6. REMOTE CONTROL SENSOR

Inserting the Remote Control Batteries

1. Push out the cover on the back

of the remote control with your

thumb

2. Pay attention to polarity and

insert two new AAA 1.5V

batteries.

3. Reattach the cover.

NOTE:

Do not use rechargeable batteries. Make sure that

both batteries are new.

•In order to prevent discharge, remove the batteries from

the remote control if the air conditioner is not going to be

used for an extended period of time

Keep the remote control away from extremely hot or

humid places.

To maintain optimal operation of the remote control, the

remote sensor should not be exposed to direct sunlight.

•The remote control can be mounted on a wall using the

mountable holder.(Friedrich does not provide this.)

How to operate your Friedrich ZStar®

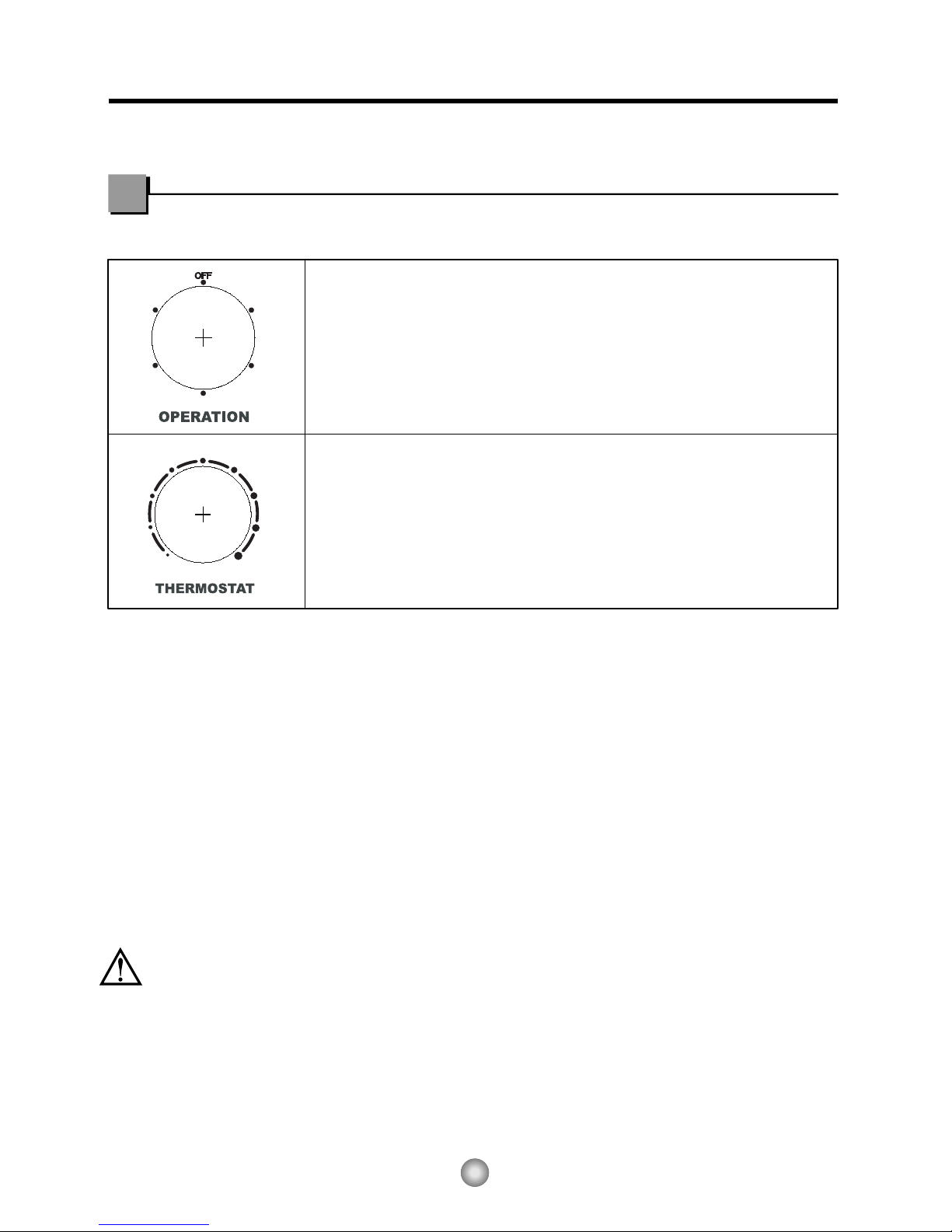

Function Controls

When the air conditioner has finished cooling the room and is turned off or set to the fan

position, wait at least 3 minutes before resetting to the cooling operation again.

CAUTION

HIGH

COOL

HIGH

COOL

MED

FAN

MED

FAN

LOW

FAN

LOW

FAN

LOW COOLLOW COOL

MED

COOL

MED

COOL

1199

4455

Off - Turns air conditioner off.

Med Fan - Med speed fan operation without cooling.

Low Fan - Low speed fan operation without cooling.

High Cool - Cooling with high speed fan operation.

Med Cool - Cooling with med speed fan operation.

Low Cool - Cooling with low speed fan operation.

This automatically controls the temperature of the indoor air.

Turn the knob so that arrow points to the higher number for greater cooling.

Point the arrow to the lower number for more moderate cooling.

(i.e. the higher the number, the greater the cooling)

• FOR NORMAL COOLING

1. Turn the operation switch to the High Cool or the Low Cool setting.

2. Set the Thermostat control to the desired temperature mark 5(the mid-point is a good starting position).

If the room temperature is not satisfactory after a reasonable time, adjust the control to a cooler or warmer

setting, as appropriate.

• FOR MAXIMUM COOLING

1. Turn the Operation Knob to the High Cool setting.

2. Set the Thermostat control to the largest (9) temperature mark.

• FOR QUIETER OPERATION

1. Turn the Operation Knob to the Low Cool setting.

2. Set the Thermostat control as needed.

VENTCLOSE OPEN Part

Adjusting the Air Flow Direction

Vent Control

For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.

OPEN the vent to discharge stale air.

NOTE : Before using the ventilation feature, position

the vent lever by pulling Part A out straight

and snapping it into place.

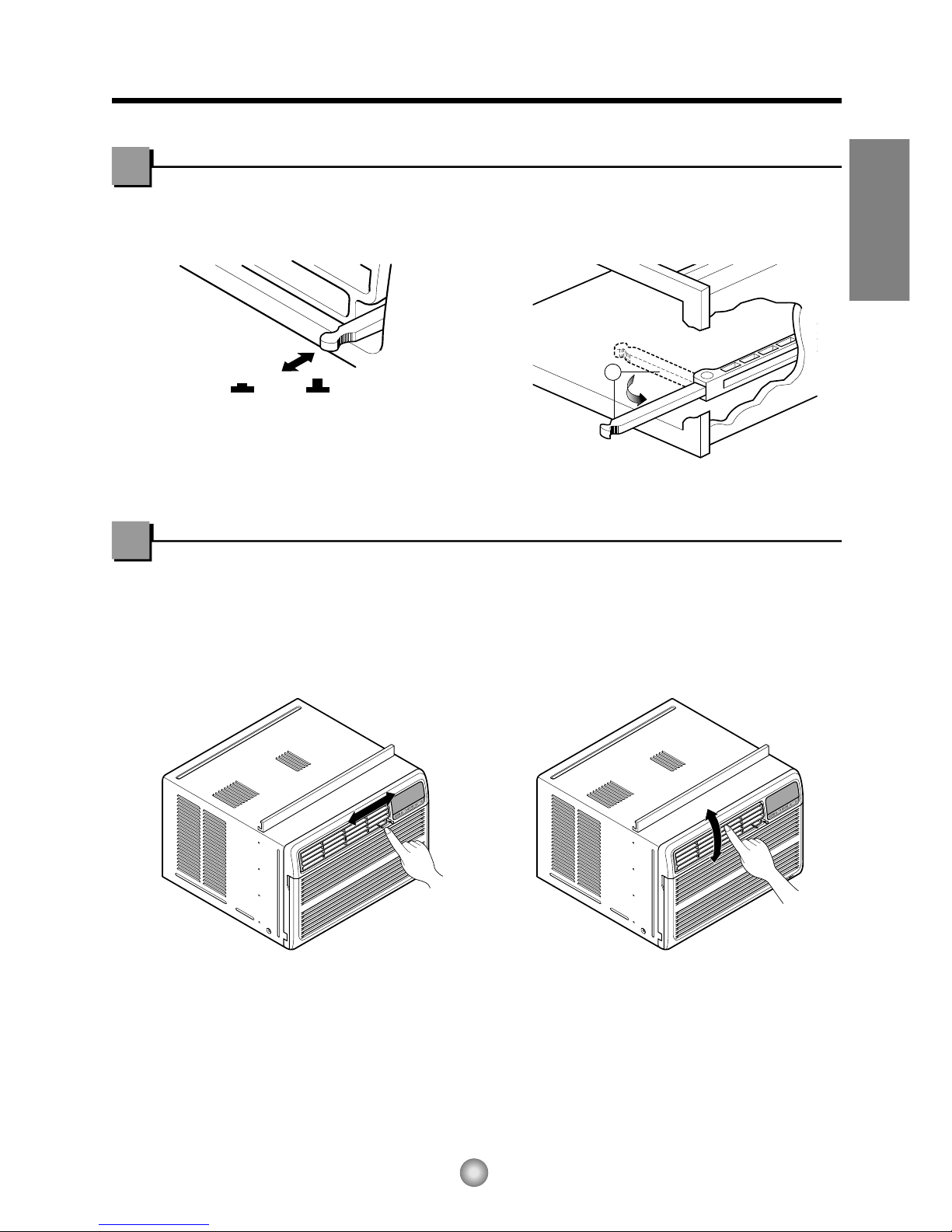

Adjusting the Air Flow Direction

Airflow can be adjusted by changing the direction of the air conditioner's louvers.

• Adjusting Horizontal Air Flow Direction

Adjusting the vertical louvers left and right will

change horizontal airflow.

• Adjusting Vertical Air Flow Direction

Adjusting the horizontal louver up and down will

change vertical airflow. The louver can be

adjusted by pressing in at the top or button of the

horizontal louver.

Adjusting horizontal air flow Adjusting vertical air flow

• Recommended orientation of louvers

Adjust louvers to face upwards when cooling to maximize cooling efficiency.

ENGLISH

Drain pipe

Drain cap

Care and Maintenance

Turn the power off and unplug the power plug before cleaning the air conditioner.

Air Filter

The air filter behind the inlet grille should be checked and cleaned at least once every 2 weeks (or as

necessary) to maintain optimal performance of the air conditioner.

How to remove the air filter

1. The grille may be opened from the top for easy

maintenance after installation.

2. Open the inlet grille by pulling out on the exposed

door on the top of the unit (based on installation).

3. Pull the tab slightly to release the filter. Pull the

filter in the same direction as the opening.

4. Clean the filter with warm, soapy water.

5. Rinse off and gently shake off excess water from

the filter. Make sure filter is completely dry before

replacing it.

Drainage

The base pan may overflow due to high humidity. To drain

the excess water, remove the drain cap from the back of

the unit and secure the drainpipe.

When pressing the drainpipe into place, apply force in the

direction away from the fins to avoid injuring yourself.

Andere Handbücher für CP Line CP08

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Friedrich Klimaanlage Handbücher

Friedrich

Friedrich KP08A10 Bauanleitung

Friedrich

Friedrich MR09Y3H Bedienungsanleitung

Friedrich

Friedrich HazardGard SH14J30B-A Leitfaden

Friedrich

Friedrich VERT-I-PAK Series Bedienungsanleitung

Friedrich

Friedrich Twintemp YS09 Bedienungsanleitung

Friedrich

Friedrich Vert-I-Pak VEA24 Series Original Betriebsanleitung

Friedrich

Friedrich CP06E10 Bauanleitung

Friedrich

Friedrich OHS Series Bedienungsanleitung

Friedrich

Friedrich CP Line CP05 Bedienungsanleitung

Friedrich

Friedrich KP05A10 KP06A10 Bauanleitung

Friedrich

Friedrich Hazardgard SH14 Installationsanleitung

Friedrich

Friedrich MR36UY3J Bedienungsanleitung

Friedrich

Friedrich CP05N10 Bauanleitung

Friedrich

Friedrich MR24C3G Bedienungsanleitung

Friedrich

Friedrich C24YJ Bedienungsanleitung

Friedrich

Friedrich 9315342973 Bedienungsanleitung

Friedrich

Friedrich Uni-Fit UE10C33 Thru-the-Wall Series Bauanleitung

Friedrich

Friedrich ZoneAire P09B Bedienungsanleitung

Friedrich

Friedrich CP10E10 Series Bedienungsanleitung

Friedrich

Friedrich PDH07K3SF Bedienungsanleitung

Friedrich

Friedrich H)A09K25L Bedienungsanleitung

Friedrich

Friedrich CP08G10 Bedienungsanleitung

Friedrich

Friedrich Chill+ EP18 Bedienungsanleitung

Friedrich

Friedrich MRM36Y3J Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
