Frigidaire FAC052K7A9 Bedienungsanleitung

ROOM AIR CONDITIONER

Model No.

FAC052K7A9

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107301

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309367412

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES VOLTS

FAC052K7A9 FAC052K7A 5000 BTU 115

MARKET

North America

Publication No.

5995369138

020327

-EN/SERVICE /BLT

345

03/02 2

Publication No. FAC052K7A9

5995369138

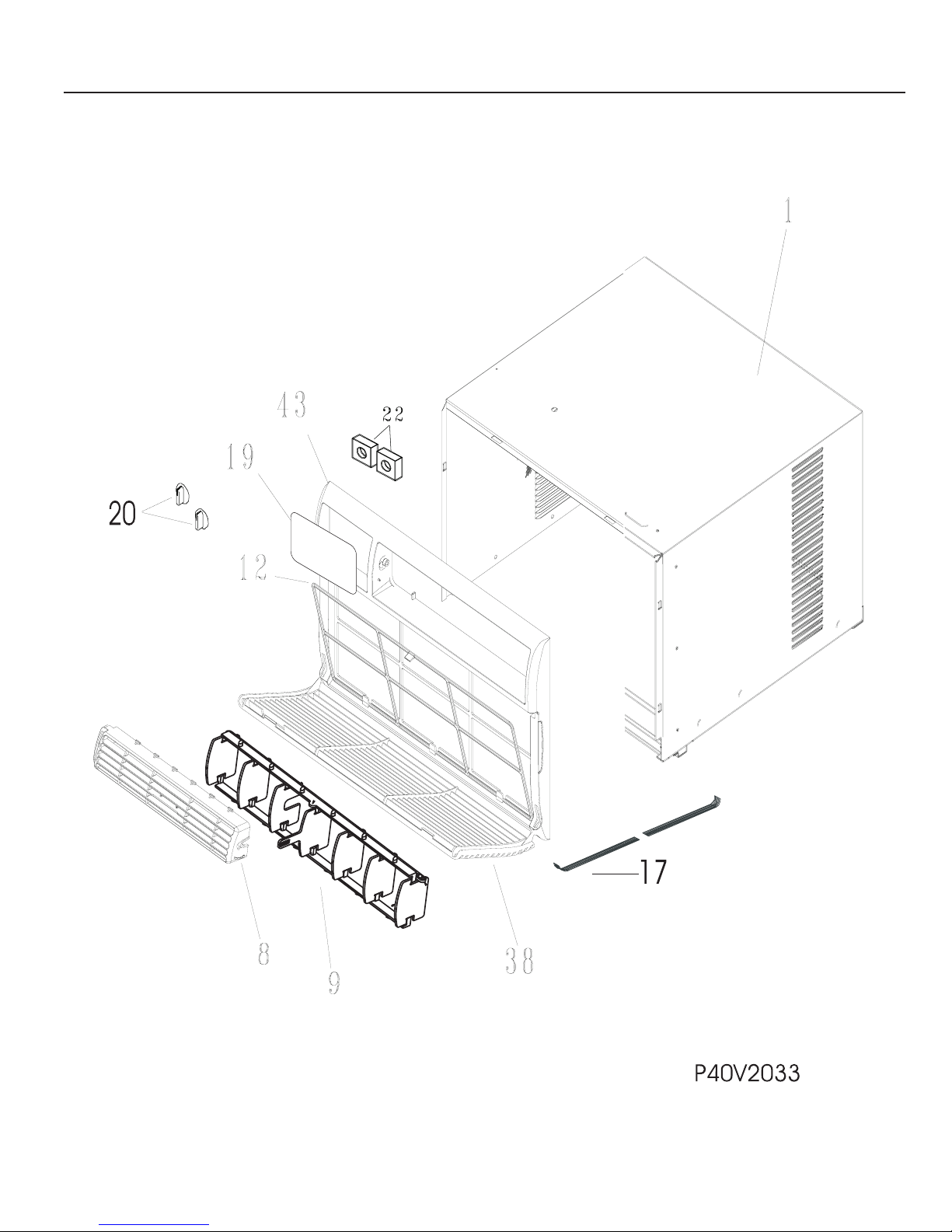

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 03/02

* = Non-Illustrated Parts

FAC052K7A9 Publication No.

5995369138

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

8 309639302 Louver,horizontal

8 309640204 Louver Assy,Includes8&9

9 309647201 Louver,vertical ,with link

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640104 Front-cabinet,4 way ,complete assy

19 309342902 Dial Plate

20 309364102 Knob-control

22 5303001775 Spacer,dial plate

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

* 309367412 Energy Guide

03/02 4

Publication No. FAC052K7A9

5995369138

CONTROLS

# = Fast-moving Parts 5 03/02

* = Non-Illustrated Parts

FAC052K7A9 Publication No.

5995369138

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Control Box

8 # 5304410837 Switch,selector ,5 position,2 sp

9 # 5304402838 Control,temperature

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 309101202 Clip,retainer ,temp sensor ,(2)

13 # 5304426655 Capacitor,250 V ,35+4 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 309351901 Strap,capacitor mtg.

17 # 309343101 Cord-electric power,18 AWG ,115 V

18 5303007754 Screw,6-32 x 0.188

20 5304417582 Sleeve,temp sensor ,6 in.

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

03/02 6

Publication No. FAC052K7A9

5995369138

AIR HANDLING PARTS

# = Fast-moving Parts 7 03/02

* = Non-Illustrated Parts

FAC052K7A9 Publication No.

5995369138

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309646202 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5303303759 Seal,bottom

5 5304421913 Seal,top

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309645002 Motor,fan

10 309643702 Bulkhead

11 # 309643302 Blower Wheel,8mm hub

12 327161302 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643003 Plate,scroll cover

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

03/02 8

Publication No. FAC052K7A9

5995369138

COMPRESSOR PARTS

03/02 9

FAC052K7A9 Publication No.

5995369138

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 5304426656 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover,elec terminal ,compressor

8 # 5304417320 Overload Protector

9 5303294292 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309637403 Evaporator

12 # 309637605 Condenser

13 # 309642801 Tray,evap drip

14 309644001 Base,compressor mt. ,with studs

16 # 5304423363 Capillary Tube,43 inch long ,cut-to-length

17 # 5300265301 Drier-filter,service kit

17* 5303290357 Strainer

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

21 5303293809 Washer,terminal cover

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

03/02 10

Publication No. FAC052K7A9

5995369138

WINDOW MOUNTING PARTS
