Front Runner GBHO012 Bedienungsanleitung

GBHO012_REV_A01

Gas / Propane

Bottle Holder

front runner

GBHO012

ENG

Thank you for purchasing a Front Runner Gas / Propane Bottle Holder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

GBHO012_REV_A01

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

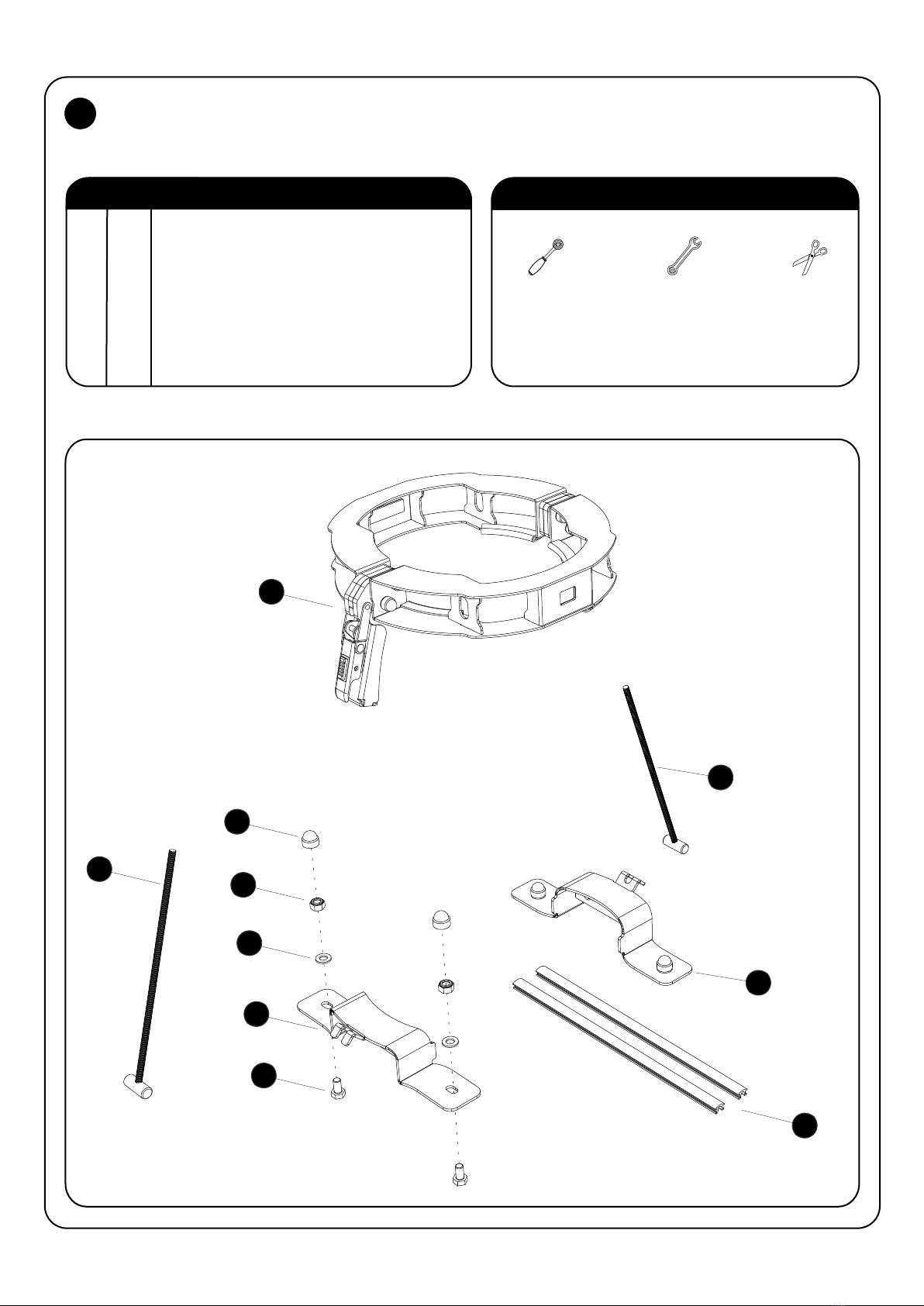

IN THE BOX

1 1 X Top Collar

2 2 X Base Clamp Bracket

3 2 X Tensioner Bar

4 2 X T - Slot Rubber

5 4 X M8 Nut Cap

6 4 X M8 Nyloc Nut

7 4 X M8 x 16 x 1.6 SS Flat Washer

8 4 X M8 x 16 Hex Bolt

13mm 13mm

GBHO012_REV_A01

FIT AND SECURE - MOUNTING BRACKETS ON TOP OF SLATS2

2.1

2.2

2.3

13mm

Find a suitable place between two slats to

mount your Gas Bottle Holder.

Slide two M8 x 16 Hex Bolts (Item 8) into the

machined slots of the slats you have chosen,

followed by the Base Clamp Bracket (Item 2).

Loosely ﬁt using M8 x 16 x 1,6SS Flat

Washers and M8 Nyloc Nuts (Items 6 & 7).

The position of the Base Clamp Brackets will

depend on the size of your gas bottle.

Place your gas bottle between the two Base

Clamp Brackets. Slide the Clamps together

until they are touching up against the gas

bottle and tighten the four M8 Nyloc.

Place M8 Nut Caps (Item 5) on the Nyloc

Nuts.

Insert the T-Slot Rubber (Item 4) between

the two Base Clamp Brackets as shown.

You may need to trim the T-Slot Rubber

depending on the width between the

brackets.

Place the Top Collar (Item 1) over the gas

bottle so that you can adjust the length of

the two Tensioner Bars (Item 3) according

to the height of the gas bottle.

To adjust, screw the Tensioner Bars in or out

of the Top Collar until the required height is

obtained.

Insert the Tensioner Bars between the slots

in the Base Clamp Brackets. Secure the

bottle in position by closing the latches.

GBHO012_REV_A01

FIT AND SECURE - MOUNTING BRACKETS AT THE BOTTOM OF THE SLATS3

3.1

3.2

3.3

Find a suitable place between two slats to

mount your Gas Bottle Holder.

Slide two M8 x 16 Hex Bolts (Item 8) into the

machined slots underneath the slats you

have chosen, followed by the Base Clamp

Brackets (Item 2).

Loosely ﬁt using M8 x 16 x 1,6SS Flat

Washers and M8 Nyloc Nuts (Items 6 & 7).

The position of the Base Clamp Brackets will

depend on the size of your gas bottle.

Place your gas bottle between the two Base

Clamp Brackets. Slide the Clamps together

until they are touching up against the gas

bottle and tighten the four M8 Nyloc Nuts.

Place M8 Nut Caps (Item 5) on the Nyloc

Nuts.

Insert the T-Slot Rubber (Item 4) between

the two Base Clamp Brackets as shown.

Place the Top Collar (Item 1) over the gas

bottle so that you can adjust the length of

the two Tensioner Bars (Item 3) according

to the height of the gas bottle.

To adjust, screw the Tensioner Bars in or out

of the Top Collar until the required height is

obtained.

Insert the Tensioner Bars between the slots

in the Base Clamp Brackets. Secure the

bottle in position by closing the latches.

13mm

GBHO012_REV_A01

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
