FujiFilm ApeosPro C810 Bedienungsanleitung

March 2022 GM1035E-3 Edition1

FUJIFILM Business Innovation Corp.

Reference Guide

Optional Units

ApeosPro C810

ApeosPro C750

ApeosPro C650

Optional Units

Contents

1 High Capacity Feeder B1 4

LoadingPaper;PaperJams

2 High Capacity Feeder B1-S/C3-DS 9

LoadingPaper;PaperJams;CleaningMachine

3 Interface Decurler Module 25

CurlCorrection;PaperJams

4 Inserter 29

LoadingPaper;PaperJams

5 High Capacity Stacker 34

OutputtingPaper;PaperJams

6 Crease / Two-Sided Trimmer 42

WasteContainer;PaperJams

7 Folder Unit 52

PaperJams

8 Finisher C 55

StapleCartridge;PaperJams

9 Finisher D 66

OutputtingPaper;StapleCartridge;PaperJams

10 Square Back Fold Trimmer 84

WasteContainer;PaperJams

Preface 3

Preface

A guide describing the operations for optional units, such as the Finisher.

Refer

• Descriptions for the following optional products are provided in different guides.

-Offset catch tray, Simple catch tray: “Reference Guide- Main Unit”

-Wireless kit, Print / scan / FAX function-related products: “Reference Guide - Operations”

-Print server and related products: Manual included in the product

-Face authentication system, finger vein authentication system,

• This manual may not be edited, modified or copied in whole or part without the written con-

sent of the publisher.

• Some parts of this manual are subject to change without prior notice.

• The screen shots and the illustrations in this manual are used as examples. They may differ

from yours depending on the model, the software, or the OS.

In this manual, safety instructions are preceded by the symbol . Always read and follow the

instructions before performing the required procedures.

Regarding the notations and trademarks in this document, see the “Reference Guide- Main Unit”.

Description in this manual such as feed capacity assumes J paper (82 g/m2).

Optional Units

1 High Capacity Feeder B1

Device Components

23 1

No. Component Function

1 Remaining Volume Display You can check the remaining paper volume.

2 High Capacity Tray (Paper Tray 6) Load paper here.

3 Top Cover Open this cover to clear paper jams.

Main Specifications

Item Specification

Paper size A4 , Letter (8.5 x 11") , JIS B5 , 7.25 x 10.5" (184 x 267 mm)

Paper weight (g/m2) 52 to 220

Tray capacity (sheets) 2,100

Dimensions (mm) Width 389 x Depth 610 x Height 377

Weight (kg) 29

High Capacity Feeder B1 5

Loading Paper

After loading paper, configure the Paper Tray settings on the Home screen.

Refer

For details, refer to “Setup” in “Reference Guide - Operations”.

Images are printed on the face side of the loaded paper.

1. Pull out the Paper Tray toward you until it stops.

2. Remove any paper remaining in the Paper Tray.

3. If changing the Paper Size, adjust the guide position.

(1) Open the end guide (

), remove the screw for the guide

in the back (

), and remove the guide from the Paper

Tray.

(2) Insert the protrusions under the guide into the Paper Size

holes.

(3) Insert the Paper Tray protrusions into the Paper Size

holes on top of the guide and tighten the screw.

(4) Remove the screw for the guide in front and remove the

guide from the Paper Tray.

Optional Units

(5) Insert the protrusions under the guide into the Paper Size

holes.

(6) Insert the Paper Tray protrusions into the Paper Size

holes on top of the guide and tighten the screw.

(7) Pull the handle for the end guide up (

), align with the

Paper Size while moving the handle along the groove

(

), and lower the handle (

Note

The groove on the left side of the end guide 8.5" is not used.

4. Fan the paper well and load sheets with the printed

side facing up, and the paper edges aligned in the di-

rection of the arrow.

5. Close the end guide completely.

6. Push in the Paper Tray.

Special Media Setting

■Hole Punched Paper

Orientation: Place the holes of paper on the right side when you face the front side of machine.

High Capacity Feeder B1 7

Paper Jams

If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on

the screen to remove the jammed paper.

Gently remove the paper being careful not to tear it. If paper is torn while it is being removed

from the machine, remove all the torn pieces making sure that none remain inside the machine.

When you have finished clearing the paper jam, printing is resumed from the state before the

paper jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed

from the state before the paper jam occurred.

Note

Clear the paper jams while the machine is on.

Paper Tray

1. Pull out the Paper Tray toward you until it stops.

2. Remove the jammed paper.

3. Push in the Paper Tray.

Exit

1. Hold the handle and move the unit all the way to the

left.

2. Remove the jammed paper.

3. Move the unit to the right and connect it with the

main unit.

Optional Units

Inside of the Upper Cover

1. Hold the handle and move the unit all the way to the

left.

2. Pull the handle (

) and open the cover (

3. Remove the jammed paper.

4. Close the cover.

5. Move the unit to the right and connect it with the

main unit.

High Capacity Feeder B1-S/C3-DS 9

2 High Capacity Feeder B1-S/C3-DS

Device Components / Caution Labels

B1-S

654 3

C3-DS

6 5 4 3

Optional Units

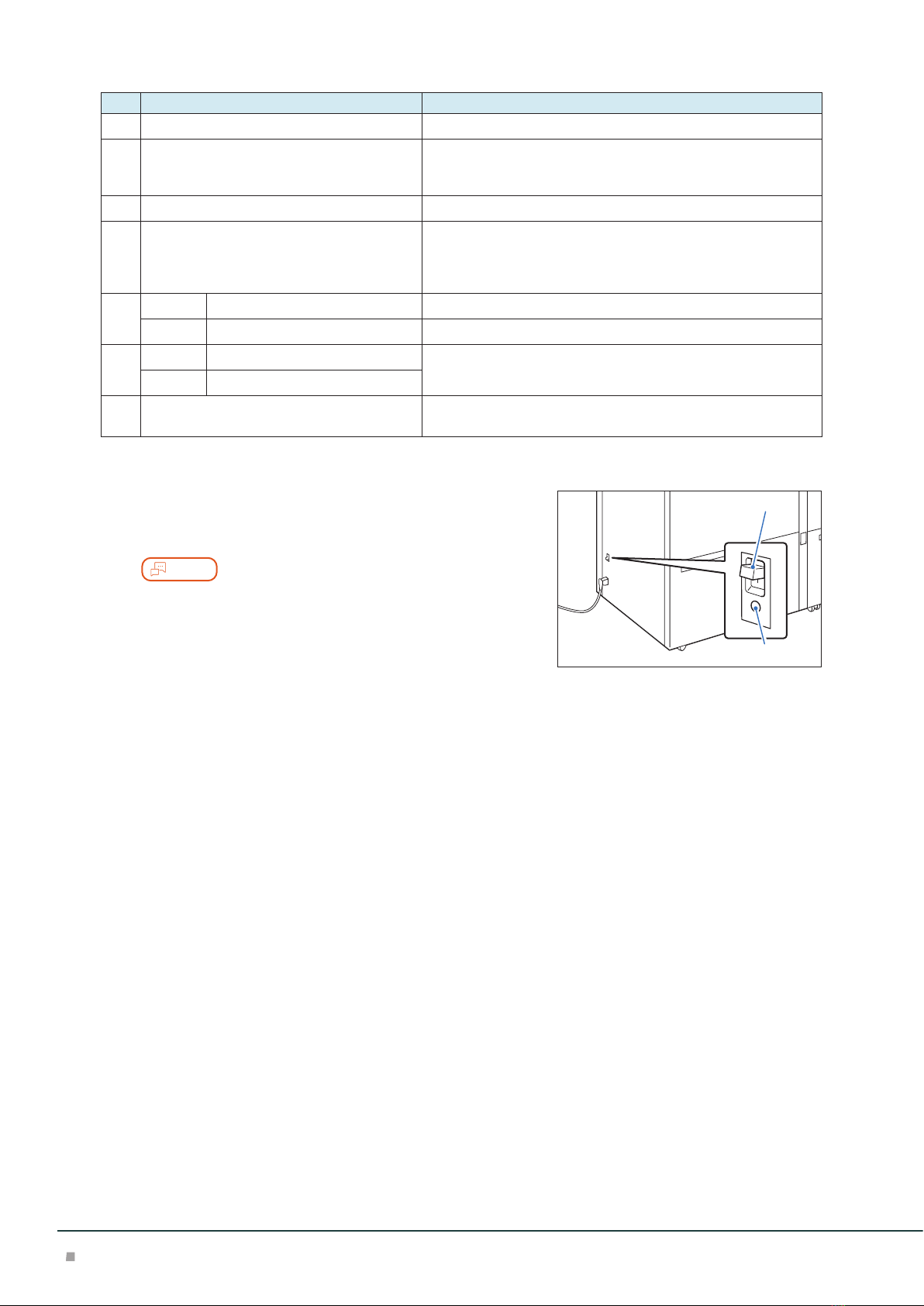

No. Component Function

1 Bypass Tray (Paper Tray 5) Load paper here.

Error Indicator When paper jam occurs, the indicator is turned on.

When the priority device indicator (top lamp) blinks, first of all

perform the paper jam operation.

3 Right Cover Open this cover to clear paper jams.

Remaining Volume Indicator When the Paper Tray is in operation, the top lamp is turned on.

You can check the remaining volume of paper with the 4 lamps

(each lamp indicates 25%) at the center.

When Paper Replenish Indicator is turned on, paper is empty.

5B1-S Consumables Storage Unit Stores papers and consumables.

C3-DS High Capacity Tray (Paper Tray 6) Load paper here.

6B1-S High Capacity Tray (Paper Tray 6) Load paper here.

C3-DS High Capacity Tray (Paper Tray 7)

7Ground Fault Interrupter A switch to automatically switch the machine off when a current

leakage is detected.

Ground Fault Interrupter

When not using for an extended period or when moving

the unit, set the switch to the lower position to turn the

machine power off.

Note

Do not operate the switch under normal circumstances because it

is turned off when a current leakage is detected.

For the current leakage, refer to “User's Manual”.

Switch

TEST button
