Fujitsu SCANPARTNER 600C Bedienungsanleitung

ScanPartner 600C

Image Scanner

User's Manual

Version 1.0

Fujitsu Computer Products of America, Inc.

Notice

FCC Class B Computing Devices

(Federal Communications Commission Radio Frequency

Interference statement)

This equipment has been tested and found to comply with the

limits for class B digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communication. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference

to radio or television reception, which is determined by turning

the equipment off and on, the user is encouraged to attempt to

correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment to an outlet on a separate or

dedicated circuit.

• Consult the dealer or an experienced radio/TV

technician for help.

CAUTION: Any changes or modifications not expressly

approved by the manufacture of this device could void the

user's authority to operate the equipment.

iii

Table of Contents

1. SCANNER INSTALLATION ............................................................1-1

1.1 PRECAUTIONS ....................................................................................1-1

1.2 ASSEMBLING THE SCANNER...............................................................1-1

1.3 CONNECTING THE SCANNER ..............................................................1-6

2. SCANNER OPERATION.................................................................2-12

2.1 USING THE FLATBED........................................................................ 2-12

2.2 USING THE ADF ..............................................................................2-13

3. MAINTENANCE...............................................................................3-15

3.1 CLEANING THE ADF........................................................................ 3-15

3.2 CLEANING THE GLASS .....................................................................3-17

4. TROUBLESHOOTING......................................................................4-1

4.1 QUESTIONS AND ANSWERS................................................................4-1

4.2 TECHNICAL SERVICE..........................................................................4-3

5. SPECIFICATIONS .............................................................................5-1

Table of Figures

FIGURE 1-1 SCANNER PACKING ..................................................................1-2

FIGURE 2-1 REMOVING THE SHIPPING RETAINER ........................................1-2

FIGURE 2-2 STORING THE SHIPPING RETAINER............................................ 1-2

FIGURE 2-3 INSTALLING THE ADF PAPER CHUTE .......................................1-4

FIGURE 2-4 INSTALLING THE STACKER.......................................................1-5

FIGURE 2-5 TYPICAL SCSI CHAIN.............................................................. 1-7

FIGURE 2-6 SELECTING THE SCSI ID......................................................... 1-8

FIGURE 2-7 CONNECTING THE SCANNER.....................................................1-9

FIGURE 2-8 SCSI TERMINATION SWITCH.................................................1-10

FIGURE 3-1 USING THE FLATBED..............................................................2-12

FIGURE 3-2 USING THE ADF .................................................................... 2-14

FIGURE 4-1 CLEANING THE ADF..............................................................3-16

FIGURE 4-2 CLEANING THE GLASS............................................................3-17

1-2

Introduction

Congratulations on your purchase of the Fujitsu ScanPartner

600C scanner.

Before you install and operate the new scanner, please take

a few minutes to read through this manual. It provides you

with the proper instructions on how to unpack, install,

operate and maintain the scanner.

Figure 1-1 shows how the scanner is packed. You can check

all items against your checklist.

Figure 1-1 Scanner packing

1-1

1. Scanner Installation

1.1 Precautions

• Keep the scanner out of direct sunlight. Direct exposure to

the sun or excessive heat may cause damage to the unit

• Do not install the scanner in a humid or dusty place

• Be sure to use the proper AC power source

• Place the scanner securely on an even, flat surface. Tilted

or uneven surfaces may cause mechanical or paper-feeding

problems

• Retain the scanner box and packing materials for shipping

purposes

1.2 Assembling the Scanner

Please unpack the scanner carefully, and check the contents

against the checklist provided. If any items are missing or

damaged, please contact your authorized local dealer

immediately.

Removing the Shipping Retainer

Your ScanPartner 600C comes with a factory installed

shipping retainer designed to protect the scanner during

shipment. Before your scanner can be used, the shipping

retainer must be removed. Follow these instructions to remove

the shipping retainer:

1. Lay the scanner on its side as shown in Figure 1-1

2. Unscrew the retainer screw and remove the shipping retainer

3. Place the shipping retainer in the “use position” slot and

secure it with the retainer screw (see Figure 1-2)

4. Place scanner back in its normal position

1-2

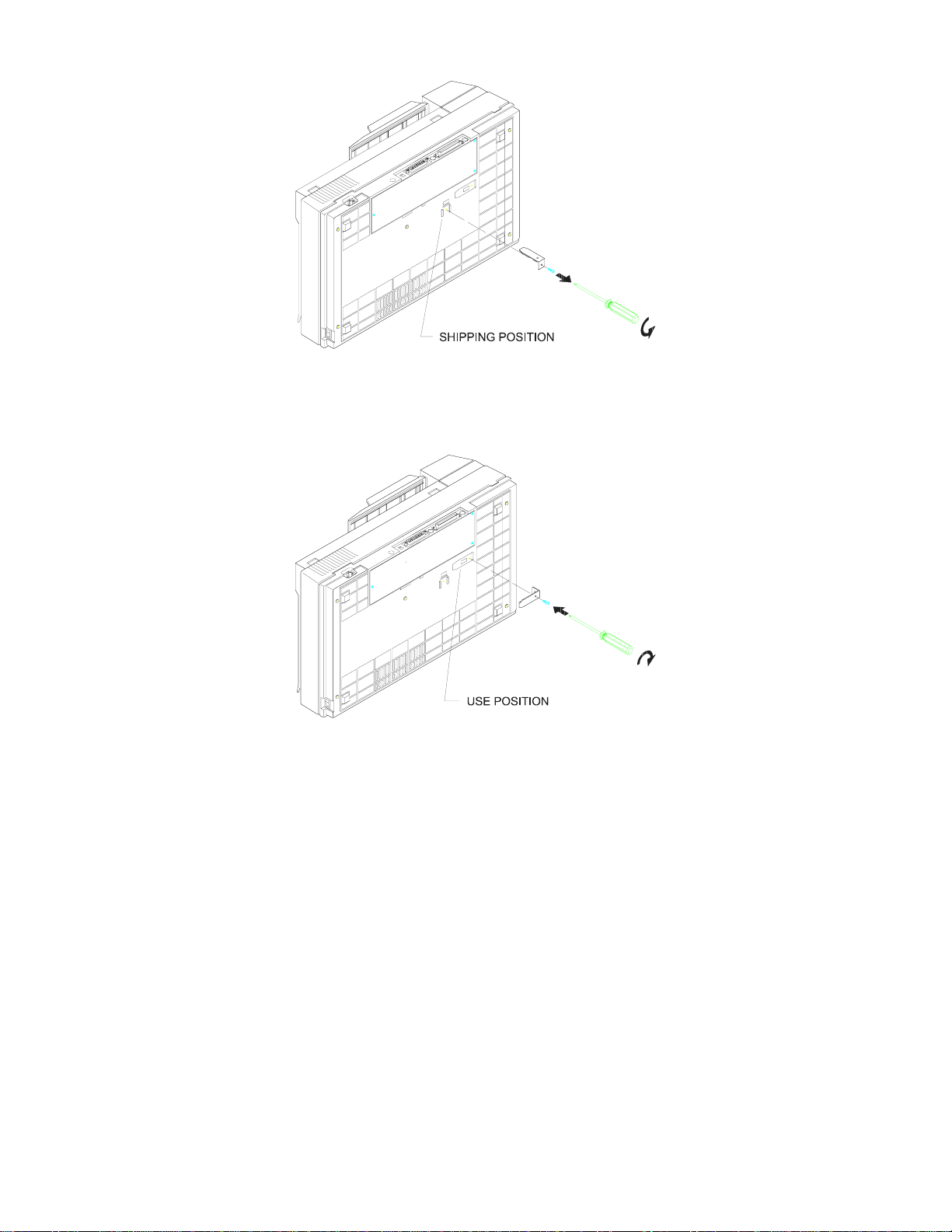

Figure 1-1 Removing the shipping retainer

Figure 1-2 Storing the shipping retainer

1-3

Installing the Shipping Retainer

Before moving or transporting the scanner, the shipping

retainer must be installed to prevent damage in shipment.

Follow these instruction to install the retainer:

1. Turn off the scanner.

2. Lift the document cover so that the carrier unit can be seen

3. Turn on the scanner. The carrier unit will move forward

and stop for a few seconds. Turn off the scanner during

this pause.

4. Lay the scanner on its side as shown in Figure 1-2

5. Remove the retainer from the “use position” slot and install

it in the “ship position” slot

Your scanner can now be safely transported.

1-4

Installing the ADF paper chute

1. Raise the right side of the paper chute to about 45 degrees

(see Figure 1-3)

2. Pull down the wire leg from under the paper chute.

3. Insert the wire leg into the grips on the document cover.

4. To extend the length of the paper chute, gently slide out the

paper chute extension

Figure 1-3 Installing the ADF paper chute

1-5

Stacker Installation

1. Hold the stacker at an approximate 30 degree angle as

shown in Figure 1-4

2. Insert the stackers three clasp-joints into holes located on

the ADF.

3. Release the stacker gently. Make sure the stacker is firmly

attached to the ADF.

4. To extend the length of the stacker, gently pull out the

stacker extension wire

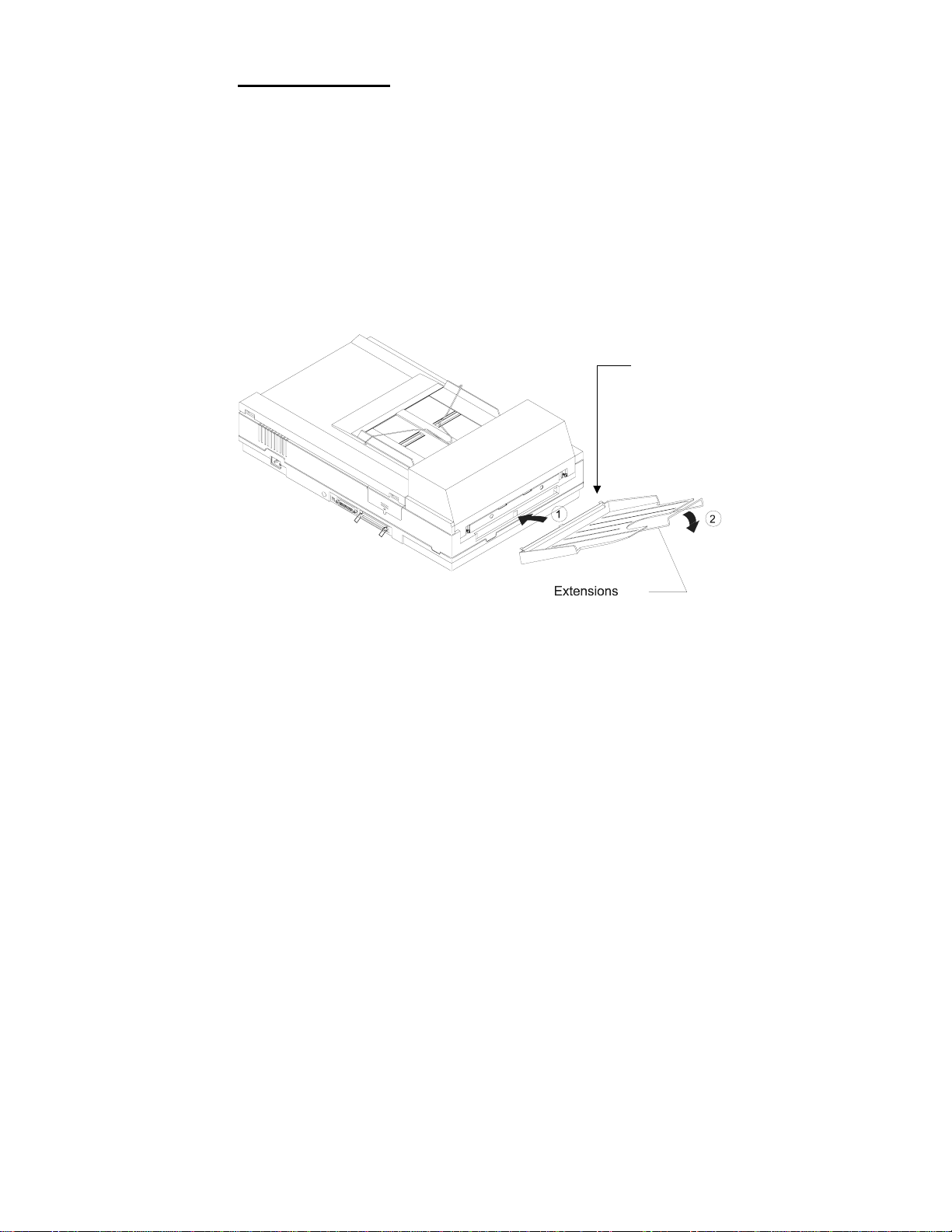

Figure 1-4 Installing the stacker

Clasp

oint

1-6

1.3 Connecting the Scanner

CAUTION: Before connecting the scanner, make sure the

power to the computer is OFF

This section describes how to connect your new ScanPartner

600C. Also provided is a brief overview on daisy chaining and

terminating SCSI devices. If you are an advanced user and are

already familiar with the use of SCSI devices, you can skip the

overview.

SCSI Overview

One of the biggest advantages to using SCSI as an interface is

the ability to connect several devices to one SCSI controller or

“SCSI port.”

Each SCSI controller can have up to 7 devices connected to it.

This is referred to as daisy chaining or chaining. A SCSI chain

can consist of internal devices, such as hard disks and CD

ROM drives, and external devices, such as the ScanPartner

600C. Not all SCSI controllers are capable of handling a

combination of internal and external devices but most are.

The key factor when chaining SCSI devices is the device ID.

Each device must have a unique ID. The SCSI controller itself

must have an ID and, in most cases, is 7. This leaves 0-6

available for use as device ID’s. Although it is not reserved,

device ID 0 is generally used for SCSI hard disks. It is not

recommended that you use ID 0 for an external device.

Most SCSI devices provide a method for the user to set the

device ID. This can be done via software or with a switch. In

some case the operating system may decide which ID to apply

to a device.

One other key factor to a SCSI daisy chain is that each end of

the chain must be terminated. Termination can be done many

ways but the most common method is to apply a SCSI
