4
surface, and a plumb upward laser and a down point, it has a vertical
surface and horizontal beam.
2. It can speed adjusting, stop rotating, move left or right step
by step, or directional scanning and slope setting.

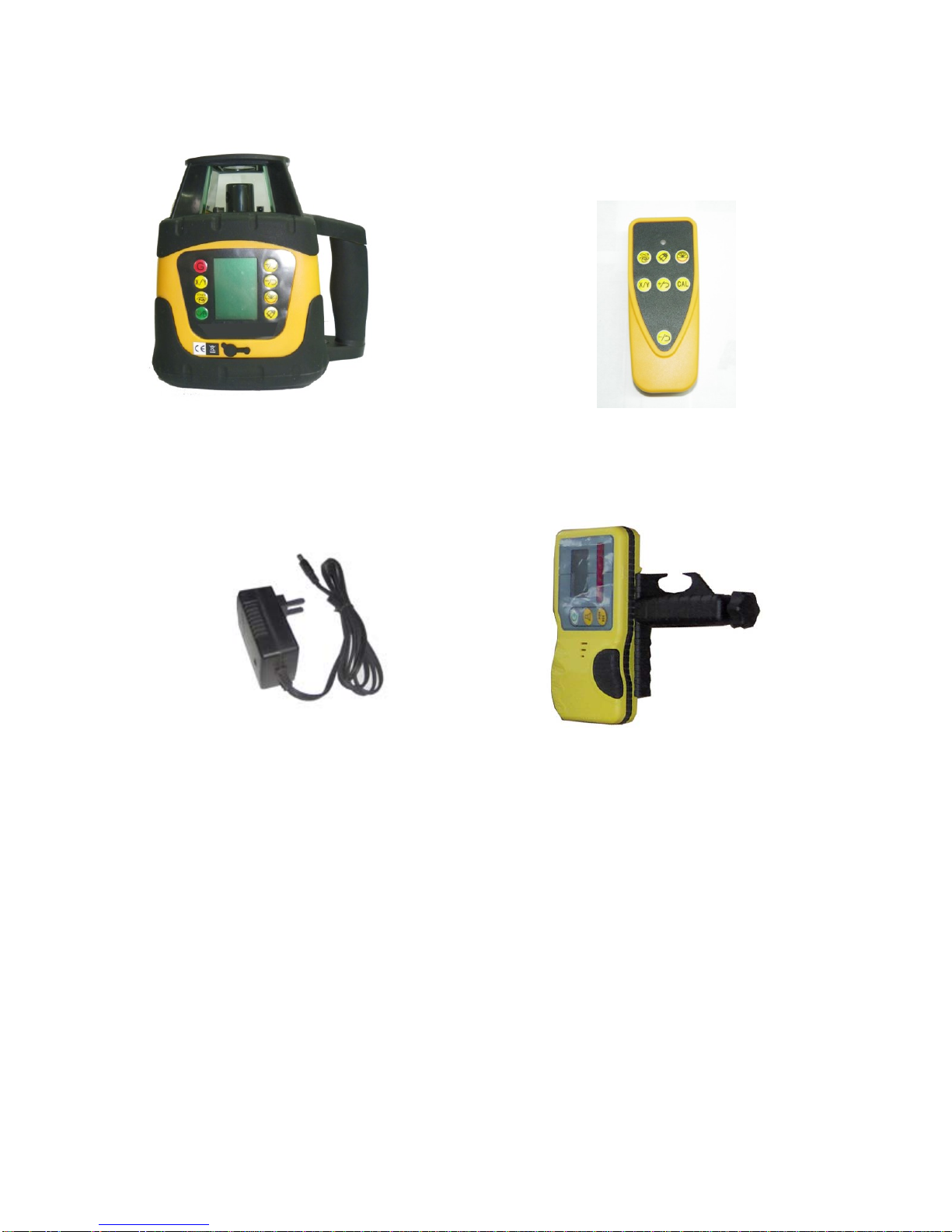

3. It can match with detector FRD100, and get the position of laser
beam from the indict line of the detector.
1.2 Panel function and utility
(1)ON/OFF/Manual: Control the state of ON/OFF, it will have display on
LCD about leveling and the power, press 3 seconds enter onto Manual
function; there will be a hand icon.
(2)Speed up: recyclable, it will display the on LED. It has 5 steps: 0
－60－120－300－600 r.p.m
(3)Direction scanning: recyclable, the angle will be display on LED,5
steps from 0－10°－45°－90°－180°
(4)Slope setting: Can switch the laser unit between manual mode and
self-leveling mode. There is a triangle icon on LED.
(5)+/left spining: It adjusts the slope when in slope setting mode and
it will be display on the LED. It can control the laser head move
anti-clockwise step by step when laser head is stopping or direction
scanning in self-leveling mode.
(6)-/right spinning: It adjust the slope when in slope setting mode, and
also display on the LED. It can control the laser head move clockwise
step by step when laser head is stopping or direction scanning in
self-leveling mode.
