Dscription
No sensory room? Transform a corner of your school or clinic into a relaxing and interactive sensory
space. Spending a few minutes in the Custom Corner Bubble Tube Area can help kids chill out and
reset their mood. It's filled with sensory room equipment like a color column and sensory lighting. Step
through the curtain of glowing LED fiber optic lights into the semi-enclosed structure with mirrored
sides and ceiling. Sit on the soft, cushioned platform and use the kid-friendly wireless remote to change
the colors and effects of the Waterless LED Color Column. Shatterproof mirrors create an optical
illusion, enhancing the visual effects of the changing lights. Helps enhance relaxation, encourage visual
tracking and improve visual development.
Includes
Custom Corner Bubble Tube Area
Waterless Color Column
Fibre Optic Strands
Come pre-installed in the top
You may not the drill depending on the wall construction. The crosspoint screwdriver will be required to use on all the
*All our equipment is designed for users with special needs. We suggest supervision at all
times when using this equipment.
*For indoor use only. The panel uses a mains power supply. Do not use any other power
cord than the one supplied.
*The platform is designed to support no more than 275 lbs. It is designed for one person
at a time.
*Do Not use free standing. The panel should be installed securely to the wall.
*Never use abrasive cleaning pads to clean this item.
Warnings
8 Way Wireless Rechargeable Remote
2 x power adapters for
column and remote
3
Carefully check you have all the parts listed. Inform us immediately if anything is missing.
Additional Tools (not included)
You will need the following tools to complete the installation:
Drill
Phillips Head Screwdriver

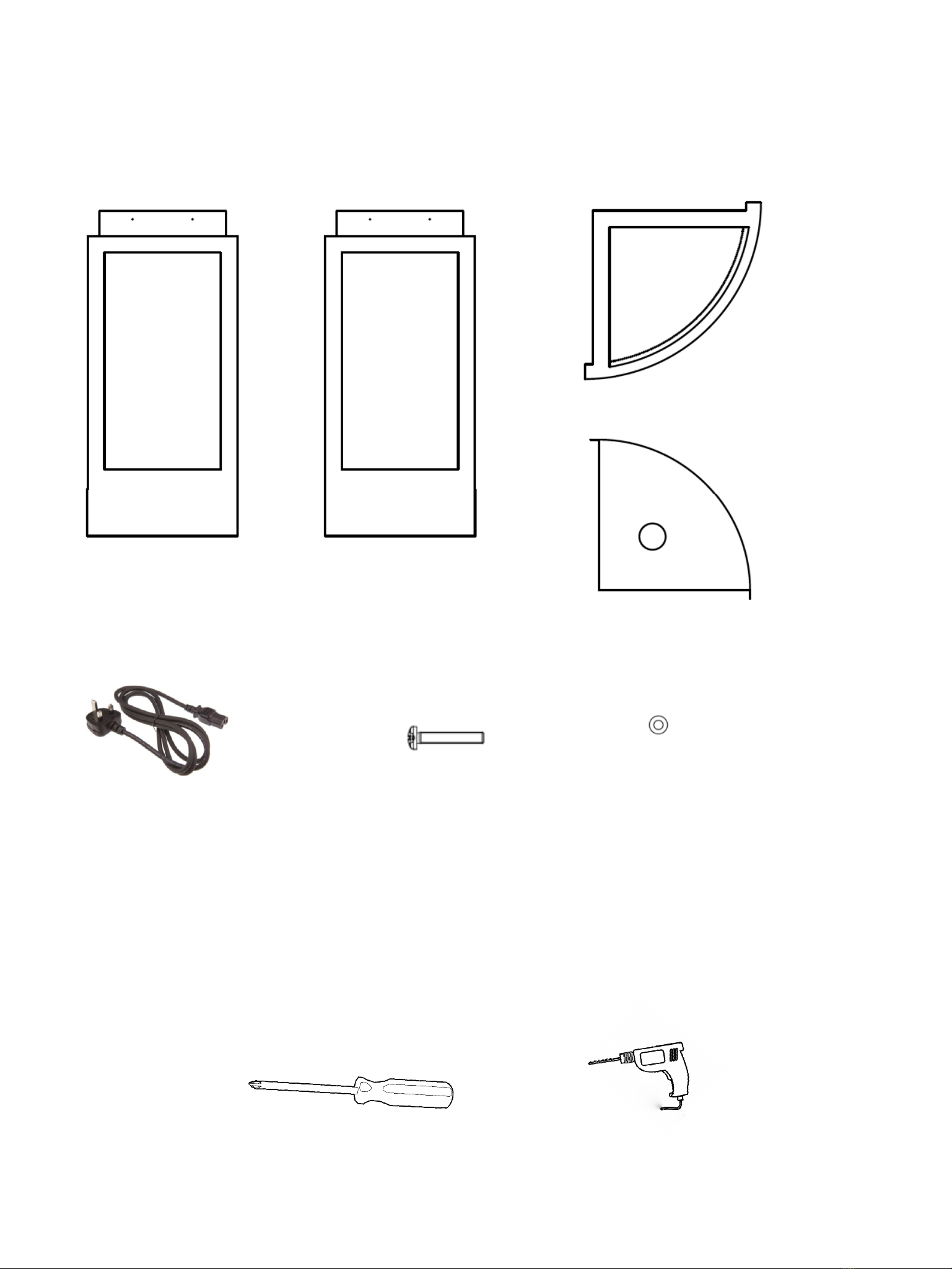

Pieces and Hardware
1 x LH Wall panel
Part Number 1
1 x RH Wall panel
Part Number 2
1 x Platform
1 x Top
Part Number 3
12 x 6 mm Screws 12 x 6 mm Washers
Front Front
Power Cord
Panels are Identified viewing from front edge
Note: 8 x 6 mm screws and washers are required for this installation. Twelve are provided .
Carefully check you have all the parts listed. Inform us immediately if anything is missing.
4
!4
Installation
The sensory equipment connects to a power supply. All the connecting cables are pre-installed in the top
section and the platform. Connect the power cord to the equipment and install all the cables before the
corner is pushed into the final corner position and attached to the wall.
Corner Placement
DO NOT use as standalone equipment. Select the corner where the equipment will be positioned and
complete the installation in this area. This equipment will not fit through doors and it is extremely
heavy once it has been assembled.
We recommend two people to lift the panel onto the wall panel. Do not remove the
protective mirror film until the very end of the installation process.
•Take the RH Wall Panel (Part 2) and stand on its end with edge packer on the left side while looking
at the back.
•Attach 1 x Corner Bracket.
Step 1
RH Wall Panel
Edge packer
Corner Bracket
Part 2
5
Note: The corner bracket may be already installed depending on the model.
!5
• Screw 2 x corner brackets to the top (A) and bottom (B) of the panel using 4 x 6mm washers
and 4 x 6 mm screws. Some models will already have these brackets fitted to them.
Part 2
Step 2
6
!6
1 x LH Wall Panel
Part 1
Part 2
•Take the LH Wall Panel (Part 1) and stand on its end with edge packer on the right side while
looking at the back.
•Attach 1 x corner bracket and use 2 x 6mm washers and 2 x 6mm screws.
The bracket has a black mark to let you know which holes in the bracket to use.
Step 3
7
!7
Place Top (Part 3) and align
holes. Screw 4 x 6mm washers
and 4 x 6mm screws into holes
identified with arrows.
Part 3
Part 2 Part 1
Holes are
identified
with arrows.
Holes are
identified
with arrows.
LH Wall panelRH Wall panel
Step 4
Holes on top
Holes on top
8
Remove cover from top by detaching the Velcro closures .
Fiber Optic Lightsource is secured in place with a
Velcro strip (not shown). The Fiber Optic harness
is pre-installed (not shown).
Step 5

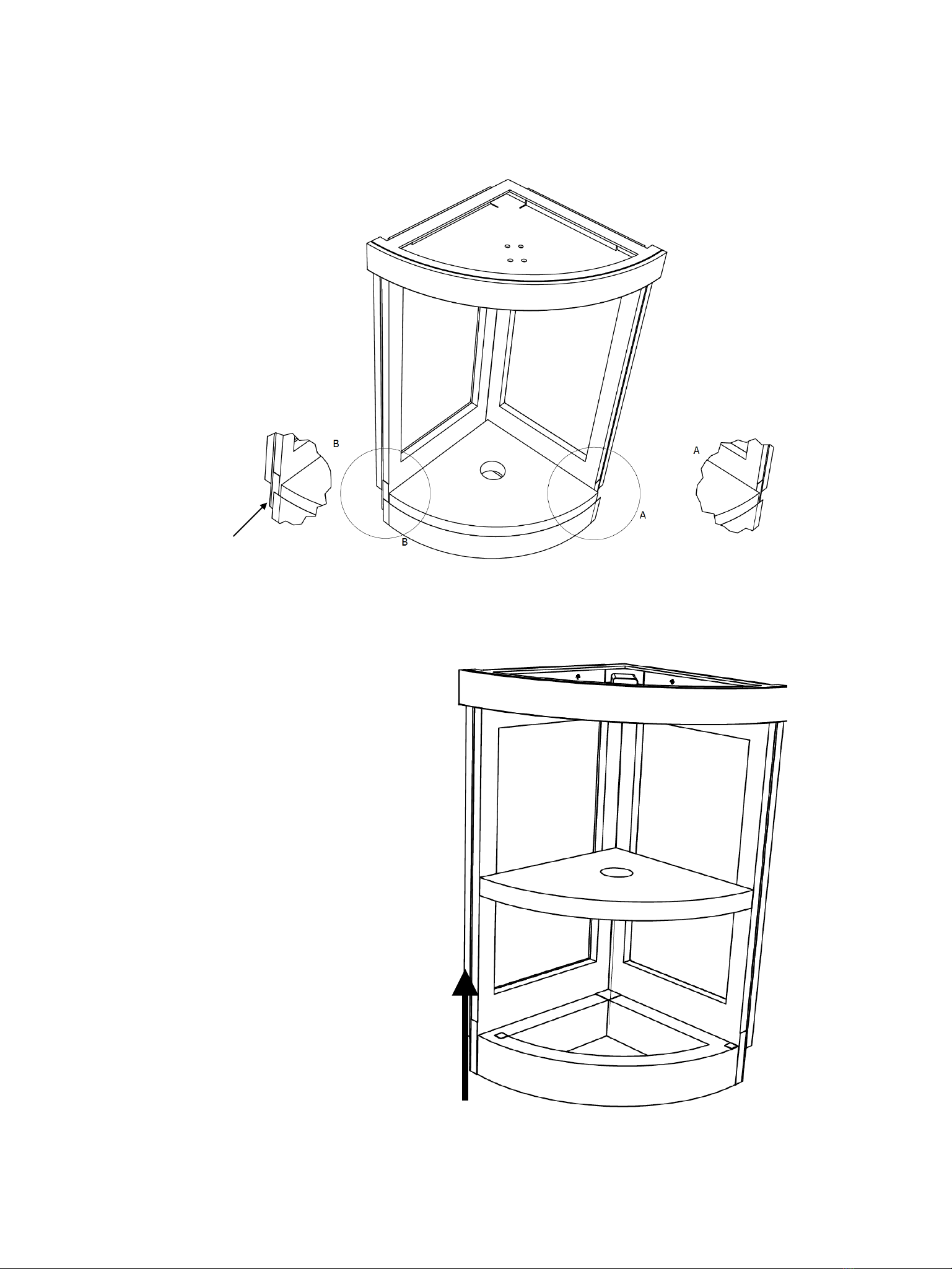

Move the entire corner piece near the final location and rotate so the plinth can be installed.
Velcro Tabs
Step 6
Velcro
Tabs
9
Velcro Tabs
Step 7 • Push the Platform into the corner created by part 1 and part 2 wall panels.
•Attach the velcro tabs to the wall panels
Step 8 Remove seating area of the platform by lifting up on it. The Velcro closures will need to be
gently but firmly pulled apart.
10
