Gama Sonic 14B50063 Bedienungsanleitung

TRIPLE HEAD SOLAR LAMP AND POST

SET WITH ROUND PLANTER

Part #: 14B50063

Version 1.1

Instruction Manual

US Patent #9458970

page 2

Thank you for your purchase! GAMA SONIC®solar charged lights are brighter and last

all night with a typical solar charge. Unique design, superior light output and numerous

installation options conﬁrm the outstanding value of our product. GAMA SONIC®has

been recognized as a worldwide leader in the lighting industry for over 20 years.

Technical Assistance/Warranty Claims/Replacement Parts

Toll Free Number: +1-800-835-4113 (only within the US) or www.gamasonic.com

Visit our website or download the latest version of your instruction manual:

www.gamasonic.com or www.gamasonic.com/user-guides

Please read the instruction manual carefully to obtain the best results from your purchase.

For best results, the solar light must

be charged in the “ON” (High or

Low) position for at least 2 days of

full direct sunlight. NOTE: For added

solar lamp post stability, place rocks

in bottom of the planter.

Gama Sonic’s patented Bulb technology

gives your solar lamp the look and feel

of a traditional incandescent lamp. This

paired with our patented cone reﬂector

helps to distribute light further than

traditional solar lamps.

A=Lower Planter

B=Upper Planter

C=Base Pole

D=Middle Pole

Section

E=Arm

F=Arm Bracket

G=Middle Light

Mount

H=Fixture

I= Top

For optimum light duration throughout

the night, it is very important to mount

your solar lamp in a spot where it will

receive the maximum amount of direct

sunlight throughout the day.

GAMA SONIC’S BULB TECHNOLOGY 2. What's in the Box

1. Solar Lamp Location

3. Assembly Instructions 4. Operation Instructions

(follow these instructions for each lamp head)

5. Replacement Parts

page 3

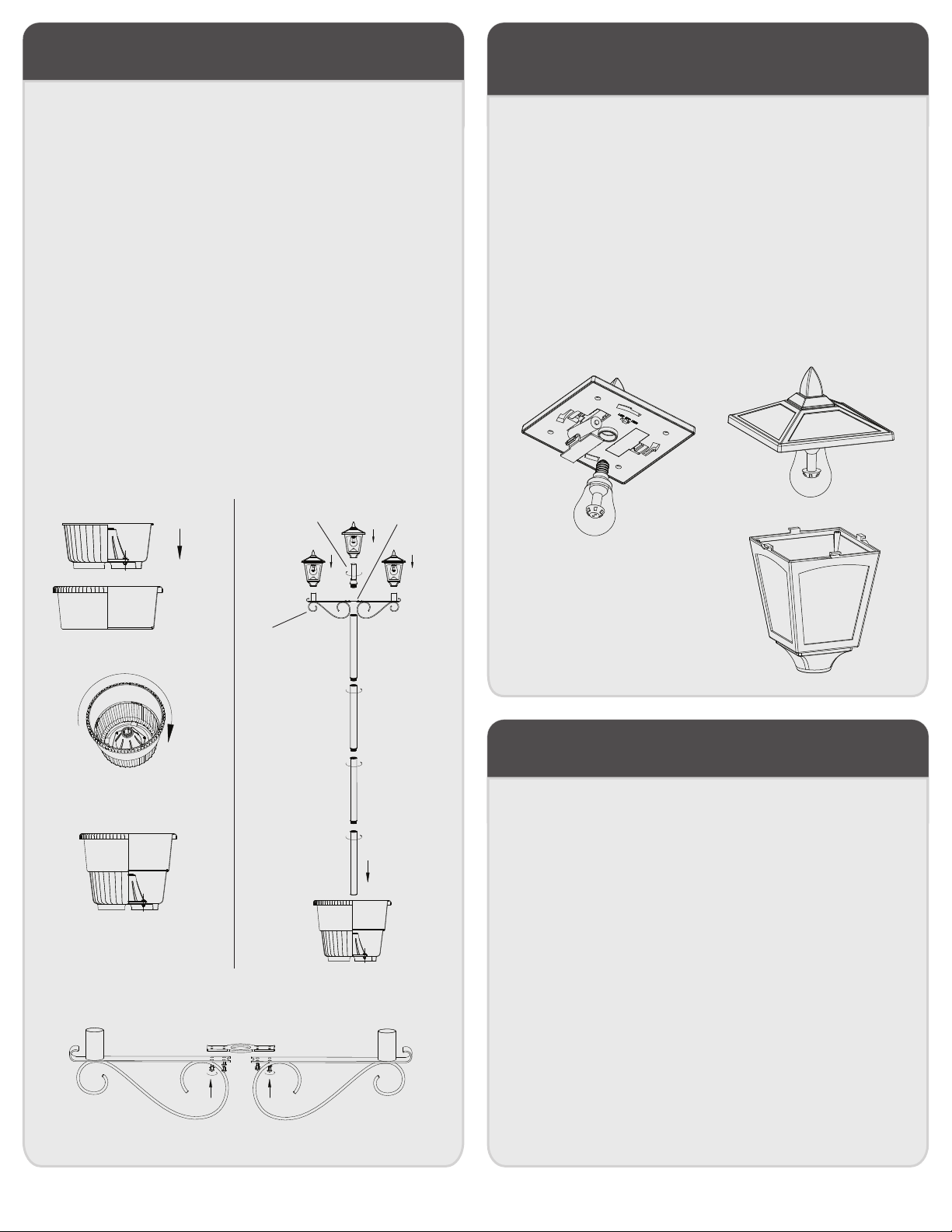

• Place Part (A) into Part (B)

• Secure Part (B) to Part (A) by aligning the four tabs and

turning Part (B) so it locks into Part (A)

• Insert Part (C) into Part (A) by pressing down ﬁrmly.

• Attach the three pole sections (Part D) to each other by

twisting them clockwise. Attach the completed pole section

to Part (C) by twisting clockwise.

• Attach both parts (E) to part (F) using the 8 supplied screws.

• Attach the assembly of Parts (E) and (F) to the top of part

(D) and secure by twisting in part (G) clockwise through the

center of part (H).

• Install Part (H) on Parts (E) and (G) by sliding them onto the

tubes.

• After installing the GS Solar LED Bulb into Part (I) and turning

the unit on, secure part (I) to Part (H) by twisting clockwise.

• Insert the GS Solar LED Bulb into the Top (Part I)

• Locate the operation switch on the underside of the lamp

head (I).

• Switch the lamp to either the Low or High setting according

to your preference:

- Low = Softer light output and longer duration

- High = Brighter light output

• The lamp will operate automatically at dusk.

Replacement Batteries and Bulbs are available at

www.gamasonic.com

or via our Toll Free number: +1-800-835-4113.

Your Lamp can use the following bulbs:

D46WW05W – included bulb with Warm White LEDs (2700K)

F30WW05W – Flame bulb with simulated ﬂame LEDs

Your Lamp uses the following battery:

SB32V05

Replacing the Batteries (each lamp head has its own set of batteries)

After several years of use, the battery may need replacing, or you have the option to add a second battery for added duration

(Recommended for lamps that receive more than 4 hours of direct sunlight per day)

Remove part (I) from part (H) by twisting counterclockwise.

Move the switch to the off position.

Open the battery compartment cover by pressing in the lip on the side.

Remove the old battery and replace with a matching 3.2V/500mAh Li-Ion battery (Item# SB32V05).

Reinstall the battery cover, switch the lamp on, and attach part (I) back on part (H) by twisting clockwise.

Maintenance

Clean the solar panels regularly with a damp towel to guarantee optimum performance. Do not

use any type of solvent for cleaning and be careful not to put too much pressure on the solar

panels while cleaning.

Troubleshooting

If your solar light does not come on as expected despite observance of all the instructions,

please try the following steps:

1. Make sure that the solar lamp is not being affected by any other light source.

2. Ensure the solar lamp is not positioned in the shade during the day.

3. Check that the batteries are installed correctly.

NOTE: The performance of the solar lamp will vary with the time of year. It will last longer

when it has had a full day in the sun rather than a day in overcast weather.

WINTERTIME TIPS: For optimal performance, be sure to remove any snow or debris

accumulation from solar panel(s). A solar panel free of debris will charge the batteries much

more efﬁciently.

WARNING: Please keep out of reach of children. Do not dispose of the Li-Ion battery in the regular trash,

municipal waste stream or by ﬁre as batteries may leak or explode. Do not open, short circuit, or mutilate

batteries as injury may occur. Preserve our environment by recycling Li-Ion batteries or disposing of them in

accordance with local, State and federal regulations. Do not mix old and new batteries.

page 4

Batteries are available for purchase at www.gamasonic.com
