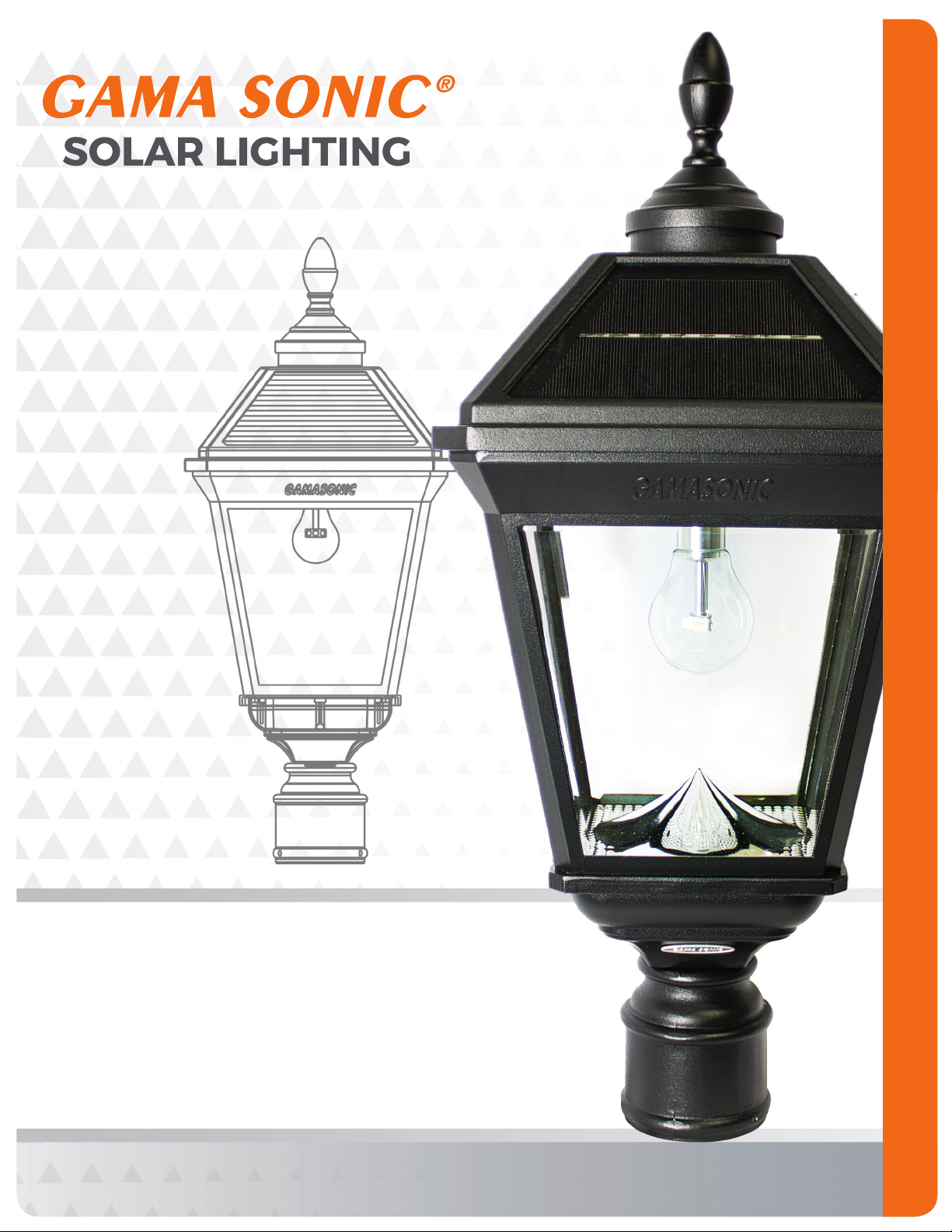

Gama Sonic 37B50012 Bedienungsanleitung

IMPERIAL BULB

SOLAR POST LIGHT WITH

TRAPEZOIDAL SOLAR PANELS

W/ 3" FITTER MOUNT

US Patent # 7172307 # 9458970 Design Patent # 629,950

Model: 37B50012 Version 1.1

Instruction Manual

page 2

Solar Lamp Location:

For optimum light duration

throughout the night, it is very

important to place your solar lamp

in a spot where it will receive the

maximum amount of direct sunlight

throughout the day.

NOTE: The solar light must be charged

for two sunny days in the “ON” position

for best results.

Thank you for your purchase. GAMA SONIC® solar charged lights are brighter and last all

night with a full day solar charge. Unique designs, superior light output, and numerous

installation options conﬁrm the outstanding value of our product.

For technical assistance and more information call our Toll-Free number:

800-835-4113 (only within the US)

visit our website or download the latest version of your instruction manual:

www.gamasonic.com Or www.gamasonic.com/user-guides

Please read the instruction manual carefully to obtain the best results from your purchase.

WARNING: GAMA SONIC® Light bulbs

are not to be used in other electrical

sockets these are low-voltage light

bulbs that are built and designed for our

products only!

NOTE: If you are replacing an

existing gas/electric post light, you

must consult a certiﬁed technician

to cancel them before installation.

page 3

1. Detach the upper part of the lamp

as shown in Fig. 1 by turning it

counterclockwise.

2. Turn ON the operation switch (see Fig. 2.)

by choosing your desired brightness level:

LOW - last longer using dimmer light.

HIGH- Brighter light output.

3. Reassemble the upper part of the lamp by

placing it on top of the 4 hinges, and then

turn it clockwise.

4. Install the lamp onto your existing 3” post,

using the screws provided (Fig. 3.).

5. Screw in the acorn ﬁnial on top of the

lamp (Fig. 4.).

The Solar LED Bulb is designed to last up to

10 years, however if it is not working, or if you

want to use a different color temperature

bulb, you can replace it with a new GAMA

SONIC Solar LED Bulb.

1. Detach the upper part of the lamp

as shown in Fig. 1 by turning it

counterclockwise.

2. Make sure the operation switch is in the

OFF position.

3. Remove the existing bulb by turning it

counterclockwise Fig 5.

4. Install the new GS Solar LED Bulb by

turning into the bulb socket clockwise.

5. Reassemble the unit by reversing the

above procedure

Operation Instructions Replacing the Solar LED Bulb

Charging & Duration Chart

Fig. 1 Fig. 2 Fig. 3 Fig. 4

Fig. 5

Operation

Switch

Charging Time Duration High Mode Duration Low Mode

3 Hours Approx. 10 hours Approx. 20 hours

6 Hours Approx. 20 hours Approx. 40 hours

page 4

Replacing the Batteries

1. Detach the upper part of the lamp as shown in Fig. 6 by turning it

counterclockwise.

2. Make sure the operation switch is in the OFF position.

3. Release the battery compartment’s screw located on the silver reﬂector

and remove the old battery pack. Make sure the new batteries are high

quality – 2 x Li-Ion Battery Pack (3.2 Volt / 3,000mA) (Fig. 2).

4. Install the new batteries into the battery compartment.

5. Reassemble the unit by reversing the above procedure.

WARNING: Do not dispose of Li-Ion battery in the regular trash,

municipal waste stream or by ﬁre as batteries may leak or

explode. Do not open, short circuit, or mutilate batteries as injury

may occur. Preserve our environment by recycling Li-Ion batteries

or disposing of them in accordance with local, state and federal

regulations. Do not mix old and new batteries.

Maintenance

Clean the solar module regularly with a damp towel to guarantee

optimum performance of the solar panel. Do not use any type of

solvent for cleaning and be careful not to put too much pressure

on the module while cleaning.

Trouble Shooting

If your solar charged light does not come on at dusk despite

observance of all the instructions, please try the following steps:

1. Make sure that the solar light is not being affected by

any other light source (i.e street lights).

2. Ensure the solar light is not positioned in the shade during the day.

3. Make sure the switch in the lamp head is in the” ON” position.

4. Check that the batteries are installed correctly.

5. Check that the GS Solar LED Light Bulb is installed correctly.

NOTE: The performance of the solar light will vary with the time of year. It will deliver longer

duration when it has had a full day in the sun rather than a day in overcast weather.

WINTERTIME TIPS: Keep snow and debris cleaned off the solar panels so the batteries can

recharge. If the lights are covered with snow for an extended period of time, after the snow

melts, allow all the batteries to charge in full, direct sunlight for at least 6 hours to their

maximum capacity.

WARNING: Please keep out of reach of children.

Fig. 6

Replacement batteries are available at www.gamasonic.com or via

our Toll free number: +1-800-835-4113
