Garmin GRC 10 Remote Control Bedienungsanleitung

User’s Guide

GRC 10

Part Number: 190-00355-11 Rev. A Printed in U.S.A.

XM is a registered trademark of XM Satellite Radio.

Notes and Cautions

CAUTION: Stow the GRC 10 in a secure location (i.e.,

glove box, seat back pocket, etc.) when it is not in use

to prevent damage to the aircraft interior or injury to

occupants caused by aircraft maneuvers.

NOTE: This device complies with part 15 of the FCC

Rules. Operation is subject to the following conditions: (1)

This device may not cause harmful interference, and (2)

this device must accept any interference received, including

interference that may cause undesired operation.

NOTE: This device does not contain any user-serviceable

parts. Repairs should only be made by an authorized

Garmin service center. Unauthorized repairs or

modiﬁcations could result in permanent damage to the

equipment, and void your warranty and your authority to

operate this device under Part 15 regulations.

Other transmitting systems which may exist in the aircraft:

CAUTION: Bluetooth and other non-aviation transmitters

require separate authorization for use in an aircraft. If they

are present, note that interference from such devices may

degrade the performance of the GRT10/GRC 10 wireless

remote system.

herein, no part of this manual may be reproduced, copied, transmitted, disseminated,

downloaded or stored in any storage medium, for any purpose without the express

written permission of Garmin. Garmin hereby grants permission to download a single

copy of this manual and of any revision to this manual onto a hard drive or other

electronic storage medium to be viewed for personal use, provided that such electronic or

printed copy of this manual or revision must contain the complete text of this copyright

notice and provided further that any unauthorized commercial distribution of this manual

or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Garmin reserves the

right to change or improve their products and to make changes in the content of this

material without obligation to notify any person or organization (other than the FAA or

other certiﬁcation organization) of such changes or improvements.

January 2008 190-00355-11 Rev. A

NOTE: Operators may use STC SA01487SE qualiﬁcation

of the GRC/GRT 10 as a basis for showing compliance

with 14 CFR Part 91.21.

NOTE: This device has been approved for use in the USA

and Canada only.

NOTE: The USB port is for factory use only.

Introduction

The GRC 10 is a remote control for the XM radio function of the

GDL 69A. The GRC 10 uses a radio link and does not need to be

pointed at the receiver. The GRC 10 range is approximately 10 m

(30 feet) and should work anywhere in the cabin.

System Info

System information about the GRC 10 is available from the Menu

page. Information includes: GRC 10 Software Versions, GRT 10

Software Versions, and the RF Pairing ID. The GRC 10 serial number is

located under the batteries.

To view System Info

1. Press the MENU key.

2. Press the por qkey to highlight the System info menu

selection.

3. Press the

key to show the System info.

4. Press MENU, XM, or one of the arrow keys to return to the

Menu.

Caring for the GRC 10

The GRC 10 is constructed of high quality materials and does not

require user maintenance other than cleaning. Clean the unit using

a cloth dampened with mild detergent solution and then wipe dry.

Avoid chemical cleaners and solvents that may damage plastic

components.

Battery Installation

The GRC 10 requires two AA batteries

(included). Remove the battery lid, located in

the back of the unit, by pressing down and

pulling out the tab. Alkaline batteries are

recommended, but NiCd or NiMH batteries

may be used. Stored data is not lost when

batteries are removed. Install the batteries,

observing the polarity diagram printed on

the label inside the battery compartment. If

the unit does not turn on, or the battery level

show no bars, replace the batteries.

CAUTION:

When replacing batteries, use only new or

fully charged batteries. Do not mix new and old batteries

as this can cause battery leakage and damage to the unit.

Do not mix battery types.

CAUTION: Remove batteries if the unit will not be in

use for several months. Storing batteries in the unit for

prolonged periods may result in leakage and damage to

the battery compartment.

WARNING: Follow the manufacturer’s instructions for

proper care and disposal of batteries. Do not incinerate

used batteries, as internal materials may ignite with

explosive violence.

WARNING: Do not use lithium batteries in the GRC 10.

Battery Cover

XM (Enter)

Press to conﬁrm

selection.

Photosensor

Controls auto-backlight.

PSET

Displays the Preset

channels.

Select the previous

channel.

Displays the

menu.

MUTE

Toggles the audio

on/off.

Increases audio

volume.

–

Decreases

audio volume.

Scroll up

/Preceding

channel.

Scroll down/next

channel.

Page or select

right.

Page or select

left.

Power On

1. Turn on the GRC 10 by pressing and releasing any key.

2. A Power Up Page brieﬂy appears followed by a display of the

active channel information. The station list is loaded in the

background and will be available when the XM radio has the

complete list.

Power Off

The unit will automatically turn off after a period of inactivity. The

auto-off time is adjustable on the Menu page.

To turn the unit off manually

1. Press the MENU key.

2. Press the por qkey to highlight the Power down menu

selection and press the XM (Enter) key.

Page Navigation

Press the

key to move through the pages: Channels, Active

Channel, and Categories.

Press the

key to move up and down through the list of the

current function to highlight the desired item.

Active Channel Page

Press the

key to display the Active channel information.

Page name

Active channel number

Artist/Feature name

Song title

Category name

Signal strength

Battery level

Volume level

Channel name

The large text in the middle of the display does not always ﬁt. The

text will automatically scroll once to make it readable. Press the XM

(Enter) key to continue scrolling.

NOTE:

The battery level indicator will not be accurate

with rechargeable batteries.

Font Size

The Artist/Feature name may have a large or small font. The Artist/

Feature name will not scroll when the Large font is off. Large font off

increases battery life.

1. Press the MENU key.

2. Press the por qkey to highlight the Large Font menu

selection.

3. Press the

keys to toggle between Large Font On or

Off.

4. Press MENU, XM, or one of the arrow keys to return to the

Menu.

Category Page

Categories of channels, such as Jazz, Rock, Sports, or News, can be

selected to list the available channels for a type of music or other

contents.

Category List

To select a Category

1. Press the

key to display the Category list.

2. Use the

key to highlight the desired Category.

3. Press the XM (Enter) key to display the channels in the

highlighted Category.

Channel Page

The Channel page allows you to select a channel from the full

channel list or the selected category channel list.

Full Channel List

To select a Channel

1. Press the

key to display the Channel list.

2. Use the

key to highlight the desired Channel.

3. Press the XM (Enter) key to select the highlighted Channel.

Adjusting the LCD Contrast

If the display is difﬁcult to read, you may adjust the LCD Contrast.

To adjust the LCD Contrast

1. Press the MENU key.

2. Press the por qkey to highlight the Contrast menu

selection.

3. Press the

key to increase or decrease the LCD

Contrast level. Press and release quickly for small increments

or press and hold to scroll rapidly.

Backlight

Both the display and keypad are backlit. The GRC 10 uses a

photosensor that is located in the round window above the PSET key.

The photosensor measures the ambient light conditions to determine

the need for backlighting. You can force the backlight on by covering

the photosensor window, however this will reduce battery life.

Extensive use of backlighting will signiﬁcantly reduce battery life.

When the batteries are low, the keypad backlight will not turn on.

Setting the Auto-Off Time

The Auto-Off Time setting allows you to set values of 10, 30, or 60

minutes to help save power.

To adjust the Auto-Off Time

1. Press the MENU key.

2. Press the por qkey to highlight the Auto-Off menu

selection.

3. Press the

key to increase or decrease the Auto-Off

period.

Previous Channel

Pressing the PREV key will toggle between the current channel and

the previously selected channel.

Preset Channels

The PSET (Preset) key allows you to store up to 15 favorite channels

to a selected Preset number. The presets are stored in the GDL 69A so

they can be accessed from the cockpit display.

Preset number

Preset channel number

Preset channel name

To store a Preset Channel

1. Press the PSET key.

2. Press the

key to highlight the desired Preset

(1 - 15) number.

3. Press and hold the XM (Enter) key until the message

“Storing Preset” is displayed.

To select a Preset Channel

1. Press the PSET key.

2. Press the

key to highlight the desired Preset

(1 - 15) number.

3. Press the XM (Enter) key brieﬂy to select the highlighted

channel.

Setting Volume

The + and - keys at the bottom of the unit allow you to set the

volume for the system. The volume +, volume –, and mute keys may

not function in all installations since the volume may be conﬁgured to

be adjusted individually at each headset. A message will be displayed

if the volume control is disabled and a lock icon will appear in the

volume location .

To adjust the Volume settings

1. Press +key to increase the volume level.

2. Press the –key to decrease the volume level.

To Mute the audio

1. Press the MUTE key to turn the audio off or to a very low

level.

2. Press the MUTE key again to return the audio to the

previous level.

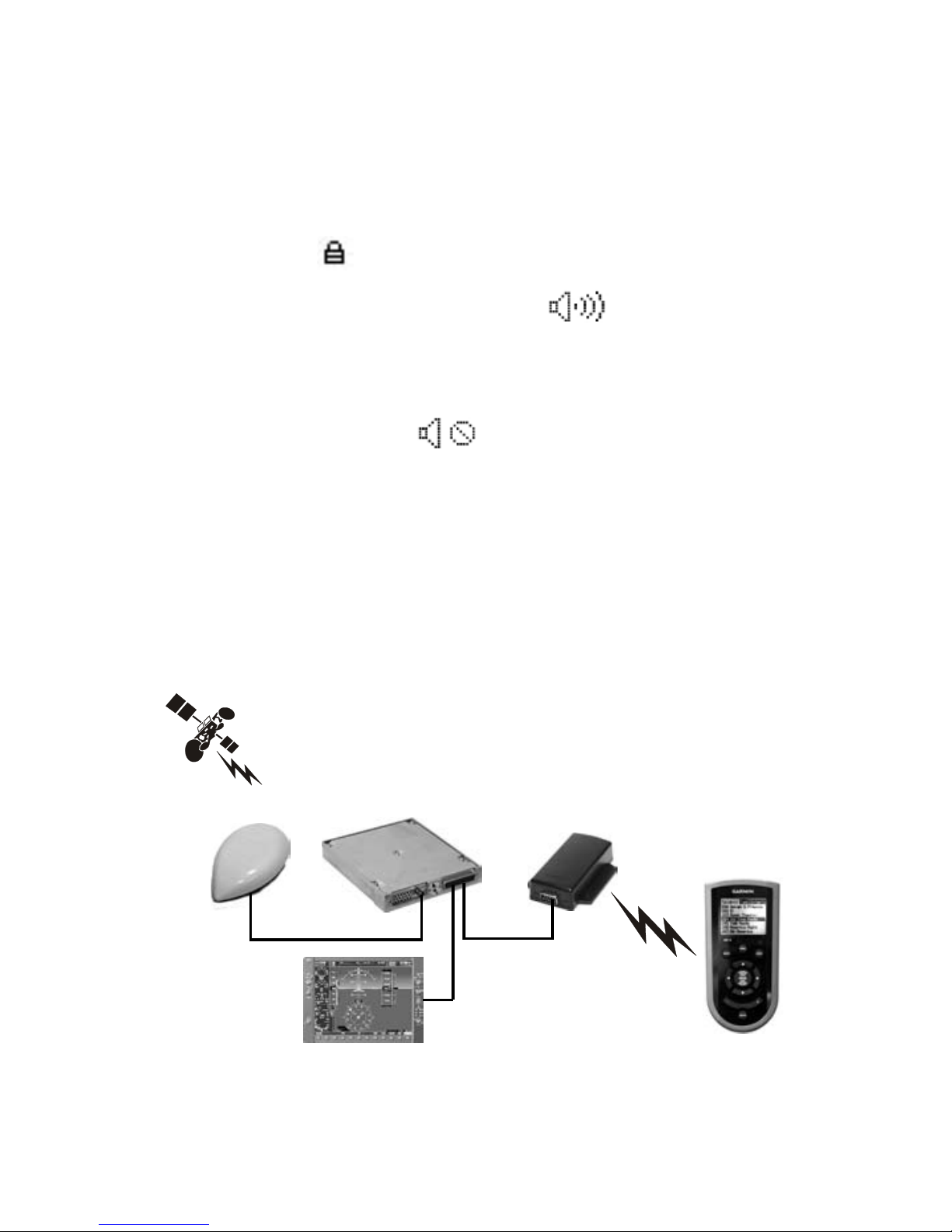

XM Entertainment System

GRC 10

GDL 69A

Antenna GRT 10

XM Satellite

Primary

Display

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Garmin Fernbedienung Handbücher

Garmin

Garmin Meteor Bedienungsanleitung

Garmin

Garmin Meteor Bedienungsanleitung

Garmin

Garmin FUSION MS-ARX70 Bedienungsanleitung

Garmin

Garmin VIRB Bedienungsanleitung

Garmin

Garmin RV-BBT602 Bedienungsanleitung

Garmin

Garmin MS-NRX300 Bedienungsanleitung

Garmin

Garmin 010-11146-00 - GPS Receiver Remote Control Bedienungsanleitung

Garmin

Garmin Fusion Apollo MS-ERX400 Bedienungsanleitung

Garmin

Garmin GHC 10 Bedienungsanleitung

Garmin

Garmin GPSMAP 5000 Series Bedienungsanleitung

Garmin

Garmin DELTA CANINE REMOTE Bedienungsanleitung

Garmin

Garmin Edge Bedienungsanleitung

Garmin

Garmin Fusion Wireless RGB LED Remote Control Bedienungsanleitung

Garmin

Garmin RF Remote Bedienungsanleitung

Garmin

Garmin GHC Bedienungsanleitung

Garmin

Garmin REACTOR Bedienungsanleitung

Garmin

Garmin 010-11146-00 - GPS Receiver Remote Control Referenzhandbuch

Garmin

Garmin GRID Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
