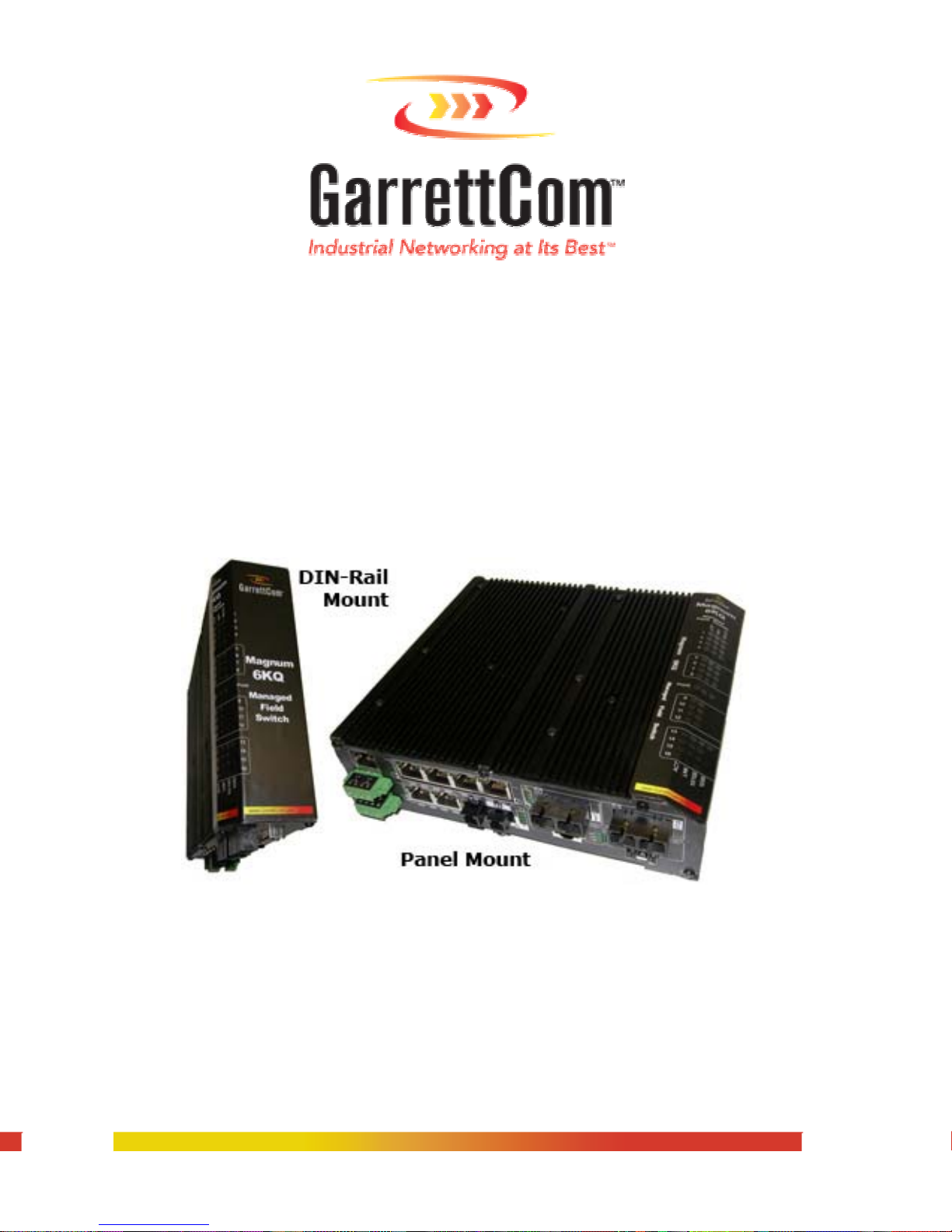

GarrettCom Magnum 6KQ Bedienungsanleitung

www GarrettCom com

Corporate Headquarters

GarrettCom, Inc.

47823 Westinghouse Dr.

Fremont, CA 94539-7437

Phone (510) 438-9071

Fax (510) 438-9072

Website: http://www.GarrettCom.com

email support@garrettcom.com

Magnum 6KQ

Managed Field Switch

Hardware

Installation and User Guide

Magnum 6KQ Managed Field Switch Installation & User Guide 04/07)

www GarrettCom com

Magnum



6KQ

Managed Field Switch

Hardware

Installation and User Guide

Part #: 84-00180Z (Rev. A)

Trademarks

Ethernet is a trademark of Xerox Corporation

NEBS is a trademark of Telcordia Technologies

UL is a registered trademark of Underwriters Laboratories

GarrettCom, Magnum and Personal Switch are trademarks and Personal Hub is a

registered trademark of GarrettCom, Inc.

Important: The Magnum 6KQ Managed Field Switch contains no user

serviceable parts. Attempted service by unauthorized personnel shall render all

warranties null and void. If problems are experienced with Magnum 6KQ

Switch products, consult Section 6, Troubleshooting, of this User Guide.

of this publication may be reproduced without prior written permission from

GarrettCom, Inc.

Printed in the United States of America.

Magnum 6KQ Managed Field Switch Installation & User Guide 04/07)

www GarrettCom com

Contacting GarrettCom, Inc

Please use the mailing address, phone and fax numbers and email address listed below:

GarrettCom, Inc.

47823 Westinghouse Dr.

Fremont, CA 94539-7437

Phone (510) 438-9071

Fax (510) 438-9072

Website: http://www.GarrettCom.com

email [email protected]

Federal Communications Commission

Radio Frequency Interference Statement

This equipment generates, uses and can radiate frequency energy and if not

installed and used properly, that is in strict accordance with the manufacturer's

instructions, may cause interference to radio communication. It has been tested and

found to comply with the limits for a Class A computing device in accordance with the

specifications in Subpart J of Part 15 of FCC rules, which are designed to provide

reasonable protection against such interference when operated in a commercial

environment. Operation of this equipment in a residential area is likely to cause

interference, in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Canadian Emission

This Class A digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil respecte toutes les exigences du Réglement sur le matériel du

Canada. Cet appareil est Classe A..

Magnum 6KQ Managed Field Switch Installation & User Guide 04/07)

iii

www GarrettCom com

Table of Contents.............................................................................. Page

1.0

SPECIFICATIONS ............................................................................... 1

1.1

Technical Specifications...................................................................... 1

1.2

Ordering Information........................................................................... 4

2.0

Introduction............................................................................................ 6

2.1

Inspecting the Package and Product .................................................... 6

2.2

Product Description - Magnum 6KQ Field Switch.............................. 7

2.2.2

Four-Port Copper Module, 6KQ4-RJ45 .................................... 10

2.2.3 PoE (power pass-through), model P6KQ4-RJ45 10/100Mb 4-port

...... 10

2.2.4 Two-Port Fiber Modules, 2@ 100Mb fiber................................ 11

2.2.5

Two -Port 10 Mb mm Fiber ST Modules................................... 12

2.2.6

SFP Gigabit (1000Mbps) port modules..................................... 12

2.2.7

Packet Prioritization, 802.1p QOS............................................. 13

2.2.8

Frame Buffering and Flow Control............................................ 13

2.2.9

Managed Network Software (MNS-6K ) for 6KQ-Series......... 14

2.3

Features and Benefits......................................................................... 15

2.4

Applications....................................................................................... 16

3.0

Installation........................................................................................... 19

3.1

Locating Magnum 6KQ Switches...................................................... 19

3.2

Connecting Ethernet Media ............................................................... 20

3.2.1

Connecting Fiber Optic ST-type, “twist-lock”........................... 20

3.2.2

Connecting Fiber Optic SC-type, "Snap-In".............................. 21

3.2.3

Connecting Single-Mode Fiber Optic........................................ 21

3.2.4

Connecting Twisted Pair (CAT3, CAT5) .................................. 21

3.2.5 Connecting Twisted Pair (CAT5e or better).............................. 22

3.2.6

Gigabit SFP (Small Form-factor Pluggable) ............................. 23

3.3

DIN-Rail Mounting the Magnum 6KQ.............................................. 25

3.3.1

Mounting Dimensions for 6KQ with metal brackets................. 26

3.4

Powering the Magnum 6KQ Managed Field Switch......................... 27

3.5 Alarm Contacts for monitoring internal power, and Software Traps.... 28

3.6

6KQ Port Module (6KPM) Installation ............................................. 29

3.7 Connecting a Management Console Terminal to 6KQ ........................ 29

4.0

OPERATION....................................................................................... 30

4.1

Switching Functionality..................................................................... 30

4.2

Status LEDs ....................................................................................... 31

4.3

Auto-Cross(MDIX) and Auto-negotiation, for RJ-45 ports............... 31

4.4

Flow-control, IEEE 802.3x standard ................................................. 33

4.5

Power Budget Calculations for 6KQ PM’s with Fiber Media........... 33

5.0

Introduction - Magnum 6KQ Managed Field Switch Port Modules35

5.1

Inspecting the Package and Product .................................................. 35

5.2

6KPM Module Description................................................................ 35

5.2.1

6KQF-2MST Combo Module.................................................... 36

5.2.1a

6KQ2-10ST, 2@10Mb multi-mode FX-ST “twist lock” Module36

Magnum 6KQ Managed Field Switch Installation & User Guide 04/07)

www GarrettCom com

5.2.2. 6KQF-2MSC Fiber connector .................................................... 37

5.2.3

6KQF-2SSCL FX-SC-type, Sgl.M ........................................... 37

5.2.4

6KQ3-RJMSC “COMBO” connector....................................... 38

5.2.5 6KQ4-MT MTRJ Small-Form-factor......................................... 38

5.2.6

6KQ4-RJMT, “COMBO” multi-mode FX , MTRJ Small-FF ... 39

5.2.7

6KQ4-MLC LC connector SFF ................................................. 39

5.2.8

6KQ4-RJMLC LC small-form factor and ................................. 40

5.2.9

6KQ4-RJ45 (Twisted Pair), 10/100Mb, 4-Port.......................... 40

5.2.10 PoE power-pass-through, Base unit Model 6KQP-48VDC

................ 41

5.2.11

SFPs, Gigabit (1000Mbps) port modules................................... 42

5.2.12

6KQ-BLNK ............................................................................... 43

6.0

TROUBLESHOOTING...................................................................... 43

6.1

Before Calling for Assistance............................................................ 43

6.2

When Calling for Assistance ............................................................. 44

6.3

Return Material Authorization (RMA) Procedure............................. 44

6.4

Shipping and Packaging Information................................................. 44

APPENDIX A: WARRANTY INFORMATION......................................... 45

APPENDIX B : DC Power Input.................................................................... 46

APPENDIX C: Internal DC Dual-Source Power Input Option.................. 48

Revisions

04/07: Release as Rev A, first printing

Magnum 6KQ Managed Field Switch Installation and User Guide (04/07)

www GarrettCom com

THE MAGNUM LINE

Industrial networking products

"Designed and Manufactured in the USA"

Overview

GARRETTCOM, INC. OFFERS THE PREMIUM-QUALITY MAGNUMLINE

OF INDUSTRIAL CONECTIVITY PRODUCTS WITH INDUSTRY-STANDARD

FUNCTIONALITY AND BUILT-IN FIBER CONFIGURABILITY. MAGNUM

PRODUCTS ARE DESIGNED FOR USE IN DEMANDING INDUSTRIAL GRADE,

CARRIER CLASS, POWER UTILITY AND OEM APPLICATIONS WHERE

RELIABILITY IS A PRIMARY CONSIDERATION.

6K-SERIES MANAGED FIELD SWITCHES, GIGABIT, 100 AND 10 MBPS, FIBER AND COPPER

PORTS, MIX-AND MATCH. FEATURES SFF FIBER AND DC POWER IN 1U UNITS.

DX-SERIES SERIAL DEVICE ROUTERS, ETHERNET AND SERIAL

4K-SERIES SWITCHES, 100 AND 10 MBPS, COPPER PORTS WITH OPTIONAL FIBER PORT, WITH

AUTO-NEGOTIATING FULL SWITCHING PERFORMANCE.

QUAD-SERIES FIBER SWITCHES, 100 & 10MBPS, FIBER AND COPPER PORTS, MIXED-SPEED AND

MIXED-MEDIA TYPES, FULL SWITCHING PERFORMANCE.

MP62 AND P62F “OUTDOOR” ETHERNET SWITCHES, FOR TEMPERATURE UNCONTROLLED

LOCATIONS, 6 10/100 AND 2 100MB FIBER PORTS, CAN BE CONNECTED IN STRINGS

MIXED-MEDIA FIBER HUB, 16-PORT, 10/100 AUTO-SENSING

DUAL SPEED 8-PORT AND 16-PORT, 10/100 AUTO-SENSING HUBS

PERSONAL SWITCHES, 10/100MB

8 PORT DUAL-SPEED, AUTO-NEGOTIABLE WITH FIBER OPTION

PERSONAL HUBS, 100MB OR 10/100MB 8-PORT, WITH 2 SWITCHED PORTS (1 FIBER BUILT IN)

PERSONAL HUBS, 10MB SERIES 8-PORT + AUI, STACKABLE TO 5 HIGH, + OPTIONAL BNC OF

FIBER PORT 8 OR 9-PORT AND 4 OR 5-PORT PERSONAL HUBS, W/ MAN. UP-LINK SW.

MEDIA CONVERTERS, 10MB AND 100MB SERIES, ALL MEDIA COMBINATIONS, INCL. FIBER ST,

SC, MM., SINGLE MODE

THE “X-LINE” OF CONFIGURABLE MIXED MEDIA PRODUCTS:

STACKABLE CONCENTRATORS, SNMP OPTIONAL, 13-PORTS

MINI-CONCENTRATORS, 7 PORTS, REPEATERS, 2-PORTS

REPEATER PORT MODULES (RPMS),6 TYPES FOR ETHERNET MEDIA

COAX TRANSCEIVERS, 10MB SERIES

APR, 07

Magnum 6KQ Managed Field Switch Installation and User Guide (04/07)

www GarrettCom com

1.0 SPECIFICATIONS

1.1 Technical Specifications

Performance

Filtering / Forwarding Rate:

Ethernet(10Mb):14,880 pps

Fast Ethernet(100Mb): 148,800 pps

Gigabit Ethernet (1000Mb): 1, 488,000 pps

Switching Processing Type: Store and Forward with IEEE 802.3x full-

duplex flow -control, non-blocking

Data Rate: 10Mbps,100Mbps and 1000Mbps

Address Table Capacity: 4K node, self-learning with address aging

Packet buffer size : 240KB for 10/100 and 120KB for 1000Mb

Latency: 5 s + packet time (100 to 100Mbps)

15 s + packet time (10 to 10 Mbps, and 10 to 100Mbps)

Throughput with 12 10/100 and 2Glink max.- 4.76M pps (Transmit)

Back plane- 2.66Gb/s per slot

Network Standards and Compliance, hardware

Ethernet V1.0/V2.0 IEEE 802.3: 10BASE-T,

IEEE 802.3u: 100Base-TX, 100BASE-FX

IEEE 802.3z: 1000BASE-X Ethernet (Auto-negotiation)

IEEE 802.3ab: 1000BASE-X Ethernet

IEEE 802.1p: Priority protocol

IEEE 802.1d: Spanning tree protocol

IEEE 802.1w: Rapid Spanning tree protocol

IEEE 802.1q: VLAN Tagging

IEEE 802.3x: Flow Control

IEEE 802.3ad: Link Aggregation (Trunking)

IEEE 802.1x: Port based Network access control

IEEE802.3af: Power over Ethernet

Maximum 10 Mbps Ethernet Segment Lengths

Unshielded twisted pair - 100 m (328 ft)

Shielded twisted pair - 150 m (492 ft)

10BASE-FL multi-mode fiber optic - 2 km (6,562 ft)

10BASE-FL single-mode fiber optic - 10 km (32,810 ft)

Maximum Standard Fast Ethernet Segment Lengths:

10BASE-T (CAT 3, 4, 5 UTP) - 100 m (328 ft)

100BASE-TX (CAT 5 UTP) - 100 m (328 ft)

Shielded twisted pair - 150 m (492 ft)

100BASE-FX, half-duplex, multi-mode - 412 m (1350 ft)

100BASE-FX, full-duplex, multi-mode - 2.0 km (6,562 ft)

100BASE-FX, half-duplex, single-mode - 412 m (1350 ft)

100BASE-FX, full-duplex, single-mode - 20.0 km (66KQ ft)

100BASE-FX, full-duplex, Long Reach - 40.0 km (122K ft)

Maximum Standard Gigabit Ethernet Segment Lengths:

1000BASE-T (CAT5e or higher is recommended) - 100 m (328 ft)

1000BASE-SX, full-duplex, multi-mode(62.5m cable) - 220m

Magnum 6KQ Managed Field Switch Installation and User Guide (04/07)

www GarrettCom com

1000BASE-SX, full-duplex, multi-mode(50m cable) - 550m

1000BASE-LX, full-duplex, single-mode(62.5m cable) -5Km

Fiber Multi-mode connector types supported:

Fiber Port, ST-type (twist-lock):Fiber multi-mode, 10Mb 10BASE-FL

Fiber Port, MTRJ-type (plug-in):SFF Fiber multi-mode100BASE-FX

Fiber Port, SC-type (snap-in):Fiber optic multi-mode, 100BASE-FX

Fiber Port, ST-type (twist-lock): Fiber optic m.-mode, 100BASE-FX

Fiber Port, 1000BASE-FX, SFP modules

Fiber Single-mode connector types:

Fiber Port, SC-type: Fiber optic single-mode, 100BASE-FX

Fiber Port, LC-type Fiber SFF single-mode, 100BASE-FX

Fiber Port, 1000BASE-FX, SFP modules

LEDs: Per Port (one set at the port, one set on swivel top on right side)

LK: Steady ON when media link is operational

ACT: ON with receiver port activity

FDX/HDX: ON = Full-Duplex Mode

OFF = Half-Duplex Mode

100/10: ON = 100Mbps speed

OFF = 10 Mbps

Operating Environment

Ambient Temperature:

-40to 140F (-40to 60C) for UL60950 and Component Parts rating

-60to 195F (-50to 85C) for IEC 60068 Type Test short term rating

Storage Temperature: -60to 210F (-50to 100C)

Ambient Relative Humidity: 5% to 95% (non-condensing)

Altitude: -200 to 13,000 ft. (-60 to 4000m)

Conformal Coating (humidity protection) option: Request quote

Alarm Relay Contacts

One NC indicating internal power, one NC software controllable

Packaging

Enclosure: High strength extruded aluminum

Dimensions: 6.85 in. H x 7.5 in. W x 2.0 in. D

17.4 cm H x 19.1 cm W x 5.08 cm D

Cooling method: Convection, fully-enclosed ribbed-surface aluminum case

used as a sink, designed for vertical mounting, no fans

Weight: 3 lbs. (1.3 kg)

Management Console connector

Serial RJ-45, see details at sec. 3.7

DC Power Supply (Internal, floating ground design)

24VDC Power Input nominal (18 to 36VDC range)

-48VDC Power Input nominal (36 to 60 VDC range)

125VDC Power Input nominal (88 to 150VDC range)

Std. Terminal Block : “ -, GND, + ”

Power Consumption:

35 watts typical (for a fully loaded fiber model)

Magnum 6KQ Managed Field Switch Installation and User Guide (04/07)

www GarrettCom com

12 watts typical (for a small 4 port copper-only model)

DC-DUAL POWER SOURCE (OPTIONAL)

For DC internal power supplies at –48VDC, 24VDC and 125VDC, with

the Dual-Source option (

for continuity of operation when either of the DC input

sources are interrupted)

, see Appendices B and C.

Dual-Source Terminal Block : “ –A, -B, +A, +B ”

6KQ Mounting:

Vertical mounting normal. Suitable for wall or DIN-Rail mounting (6KQ)

Agency Approvals and Standards Compliance:

UL listed (UL60950), cUL, CE, Emissions meet FCC Part 15 Class A

NEBS Level 3 and ETSI Compliant

IEEE 1613 Class 2 Environmental Standard for Electric Power Substations

See also Note for Power Substations in Section 3.2.4, 3.7, and 5.2.9

IEC 61850 EMC and Operating Conditions Class C for Power Substations

NEMA TS-2 and TEES for DC-powered and PoE-powered traffic control

equipment

Class1 Division 2 and ATEX for hazardous locations, pending

Warranty: Three years, per UL 60950 temperature rating

Made in USA

See the Configuration Guide on the GCI web site at

http://www.garrettcom.com/techsupport/insertion_guides/6kqcg.pdf

for configurations and options..

[email protected]

for additional information.

Magnum 6KQ Managed Field Switch Installation and User Guide (04/07)

www GarrettCom com

1.2 Ordering Information

Magnum Managed Field Switch (16 ports max)

MODEL DESCRIPTION

Magnum 6KQ- 24VDC Magnum 6KQ Managed Field Switch, base unit with 24VDC

power supply and four 10/100 copper ports. May be configured with a selection of

10/100/1000 fiber and copper port connector types from a family of 6KQ port modules per

the 6KQ configuration guide, 16 total ports max. Heavy duty and environmentally

hardened, no fans. Dual LEDs for all-around status viewing. Wire speed filtering and

forwarding across all ports, 802.3x flow control, 802.1p priority packet processing, self-

learning 4K-node address table, large 240KB packet buffers for 10/100 and 120KB for

1000Mb.

For licensed managed networks software (MNS-6K, RS-Ring and S-Ring) including

GUIs for ease-of-use and industry-leading security features, see separate data sheets.

Magnum 6KQ -48VDC: Same as 6KQ-24VDC except the power input is -48VDC

Magnum 6KQP-48VDC: Same as 6KQ-48VDC except the four 10/100 RJ-45 are PoE

Magnum 6KQ-125VDC: Same as 6KQ-24VDC except the power input is 125VDC

PSAC-24V60 : External Hardened Power Supply for AC to 24VDC, 60 watts, panel or

DIN-RAIL mount.

PSAC-48V150 : External Hardened Power Supply for AC to 48VDC for PoE, 150 watts,

panel or DIN-RAIL mount.

Please use this URL: for the complete Configuration Guide for the Magnum 6KQ.

http://www.garrettcom.com/techsupport/insertion_guides/6kqcg.pdf

Configuration Options:

Each Magnum 6KQ base unit may be configured with a choice of 3 modular slots.

Following modules can be configured in Slot B and D (Slot C is 100Mb Fiber only)

Magnum 6KQ Port Modules

6KQ4-RJ45 TP Module, w/four 10/100Mbps copper ports,

P6KQ4-RJ45 PoE 6KQ module, four 10/100 copper ports with PoE on data pairs,

may be configured in slot B only

6KQ4-RJMLC “2+2” module, w/two RJ-45 ports and two 2km mm LC connectors

6KQ4-RJSLC “2+2” module, w/two RJ-45 ports and two 15km Sgl-m LC connectors

6KQ4-RJMT “2+2” module, w/two RJ-45 ports and two 2km mm MTRJ connectors

6KQ2-10ST Two 10Mb mm Fiber 2km FL ST’s

6KP4-MLC SFF mm Fiber module, w/ four 100Mb mm FX LC connectors

6KP4-MT SFF mm Fiber module, w/ four 100Mb mm FX MT-RJ connectors

6KQ2-MST Two 100Mb Fiber module, w/ four 100Mb 2km FX ST connectors

6KQ3-RJMSC “2+1” module, w/two RJ-45 ports and one 2km mm FX SC’s

6KQ2-MSC Two 100Mb Fiber module, w/ four 100Mb 2km FX SC connectors

6KQ2-SSC Two 100Mb Fiber module, SM w/ 100Mb 20km FX SC connectors

6KQ2-SSCL Two 100Mb Fiber module, SM w/ 100Mb 20km FX SC connectors

Fiber-only Slot C configuration choices

Andere Handbücher für Magnum 6KQ

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GarrettCom Schalten Handbücher

GarrettCom

GarrettCom Magnum ES42 Series Bedienungsanleitung

GarrettCom

GarrettCom DS80C Bedienungsanleitung

GarrettCom

GarrettCom Magnum 6K32T Bedienungsanleitung

GarrettCom

GarrettCom DS60s Bedienungsanleitung

GarrettCom

GarrettCom Magnum ST80 Stackable Bedienungsanleitung

GarrettCom

GarrettCom Magnum 4K220 Bedienungsanleitung

GarrettCom

GarrettCom Hubs Bedienungsanleitung

GarrettCom

GarrettCom MAGNUM H80B Bedienungsanleitung

GarrettCom

GarrettCom Magnum 6KQE Bedienungsanleitung

GarrettCom

GarrettCom 500-Series Bedienungsanleitung

GarrettCom

GarrettCom Magnum 4K24F Bedienungsanleitung

GarrettCom

GarrettCom Magnum 1016 Bedienungsanleitung

GarrettCom

GarrettCom Magnum 6K32 Bedienungsanleitung

GarrettCom

GarrettCom Magnum 4K16 Bedienungsanleitung

GarrettCom

GarrettCom Magnum 6K32F Bedienungsanleitung

GarrettCom

GarrettCom 4K-Series Bedienungsanleitung

GarrettCom

GarrettCom Magnum DS 880 Bedienungsanleitung

GarrettCom

GarrettCom Magnum CS14 Series Bedienungsanleitung

GarrettCom

GarrettCom Magnum ITS Blade Bedienungsanleitung

GarrettCom

GarrettCom Magnum 8000X Bedienungsanleitung

GarrettCom

GarrettCom Magnum 6KQ Bedienungsanleitung

GarrettCom

GarrettCom Magnum PS14P Bedienungsanleitung

GarrettCom

GarrettCom PS14H-48VDC Bedienungsanleitung

GarrettCom

GarrettCom Magnum 10KG Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
