GarrettCom Magnum 6K32T Bedienungsanleitung

www GarrettCom com

Corporate Headquarters

GarrettCom, Inc.

47823 Westinghouse Dr.

Fremont, CA 94539-7437

Phone (510) 438-9071

Fax (510) 438-9072

Website: http://www.GarrettCom.com

email support@garrettcom.com

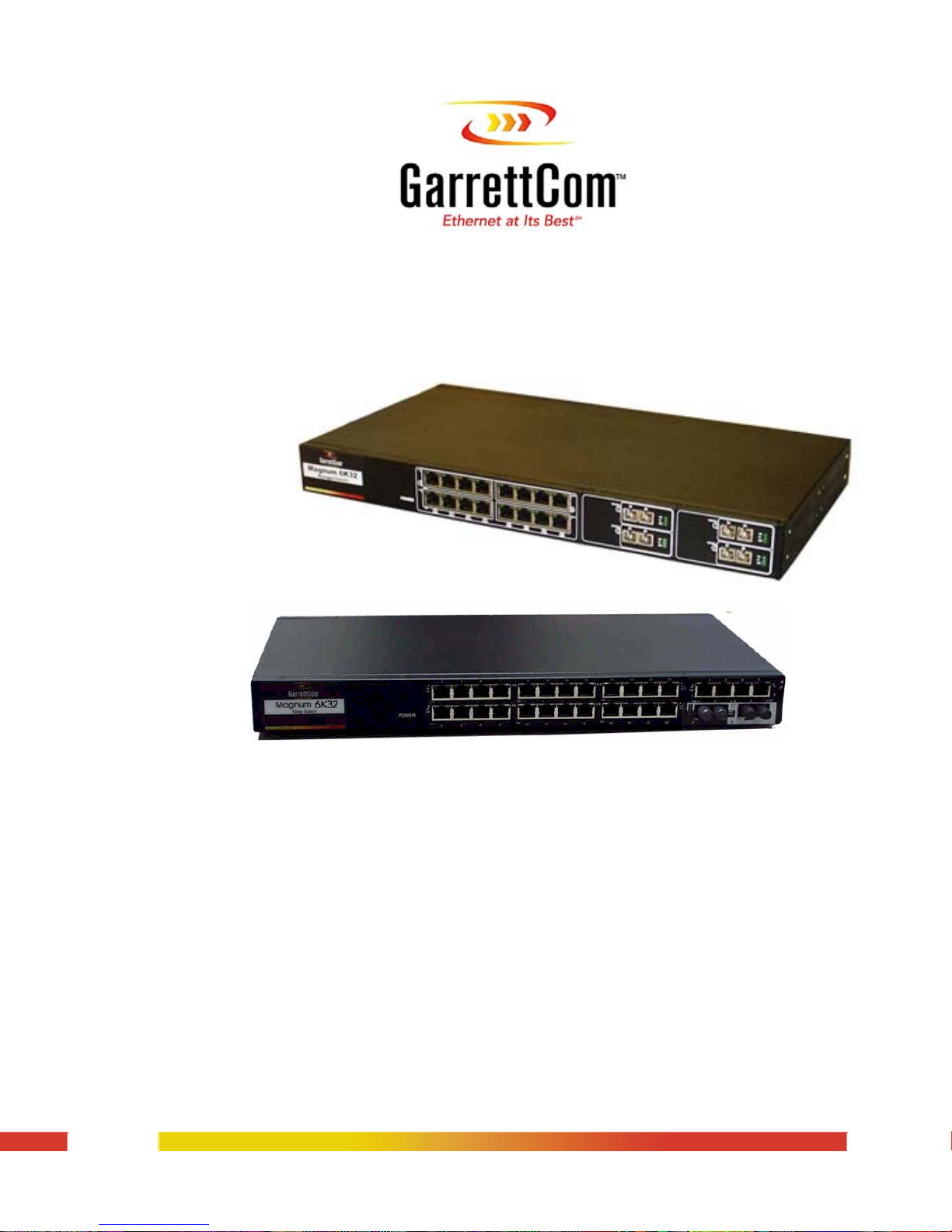

Magnum 6K32T

Managed Switch

Installation and User Guide

Hardware User Manual

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

Magnum6K32T

Managed Switch Hardware

Installation and User Guide

Part #: 84-00138 (Rev. B)

Trademarks

Ethernet is a trademark of Xerox Corporation

NEBS is a trademark of Telcordia Technologies

UL is a registered trademark of Underwriters Laboratories

GarrettCom, Magnum, Personal Switch, S-Ring, Link-Loss-Learn, Converter

Switch and Convenient Switch are trademarks and Personal Hub is a registered

trademark of GarrettCom, Inc.

GarrettCom, Inc. reserves the right to change specifications, performance

characteristics and/or model offerings without notice.

Important: The Magnum 6K32T Managed Switch contains no user

serviceable parts. Attempted service by unauthorized personnel shall

render all warranties null and void. If problems are experienced with

Magnum 6K32T Switch products, consult Section 6, Troubleshooting, of

this User Guide.

publication may be reproduced without prior written permission from

GarrettCom, Inc.

Printed in the United States of America.

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

Contacting GarrettCom, Inc

Please use the mailing address, phone and fax numbers and email address listed

below: GarrettCom, Inc.

47823Westinghouse Dr.

Fremont, CA 94539-7437

Phone (510) 438-9071

Fax (510) 438-9072

Website: http://www.GarrettCom.com

email [email protected]

Federal Communications Commission

Radio Frequency Interference Statement

This equipment generates, uses and can radiate frequency energy and if

not installed and used properly, that is in strict accordance with the manufacturer's

instructions, may cause interference to radio communication. It has been tested

and found to comply with the limits for a Class A computing device in accordance

with the specifications in Subpart J of Part 15 of FCC rules, which are designed to

provide reasonable protection against such interference when operated in a

commercial environment. Operation of this equipment in a residential area is

likely to cause interference, in which case the user at his own expense will be

required to take whatever measures may be required to correct the interference.

Canadian Emission

This Class A digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil respecte toutes les exigences du Réglement sur le matériel du

Canada. Cet appareil est Classe A.

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

iii

www GarrettCom com

TABLE OF CONTENTS.......................................................................... Page

1.0 SPECIFICATIONS................................................................................1

1.1 Technical Specifications.......................................................................1

1.2 Ordering Information ...........................................................................4

2.0 INTRODUCTION..................................................................................5

2.1 Inspecting the Package and Product.....................................................5

2.2 Product Description - Magnum 6K32T Managed Switch....................7

2.2.1 Magnum 6K32T chassis...............................................................8

2.2.2 Eight-port SFF fiber modules 100Mb fiber..................................9

2.2.3 Eight-Port Copper Module, 6K8-RJ45Error! Bookmark not define

2.2.4 Six-Port “4 + 2” Combo Modules, Error! Bookmark not defined.

2.2.5 Four-Port 10 Mb mm Fiber ST Modules.................................12

2.2.6 Gigabit (1000Mbps) port modulesError! Bookmark not defined.

2.2.7 Packet Prioritization, 802.1p QOS .............................................14

2.2.8 Frame Buffering and Flow Control............................................14

2.2.9 Managed Network Software (MNS-6K) for Magnum

6K32T & 6K32 .........................................................................................15

2.3 Features and Benefits .........................................................................15

2.4 Applications .......................................................................................17

3.0 INSTALLATION................................................................................22

3.1 Locating Magnum 6K32T Switches...................................................22

3.2 Connecting Ethernet Media................................................................23

3.2.1 Connecting Fiber Optic ST-type, “twist-lock”..........................23

3.2.2 Connecting Fiber Optic SC-type, "Snap-In" ..............................24

3.2.3 Connecting Single-Mode Fiber Optic ........................................24

3.2.4 Connecting Twisted Pair ............................................................24

3.2.5 Connecting Twisted Pair ............................................................25

3.3 Table-Top or Shelf Mounting....................................................25

3.3.1 Rack-mounting regular Magnum 6K32T & 6K32s ...................27

3.3.2 Rack-mounting, Reverse version of the Magnum 6K32 ............28

3.4 Powering the Magnum 6K32T Managed Switch........................29

3.4.1 Alarm Contacts for monitoring internal power...........................29

3.5 6K32T Port Module (6KPM) Installation...................................30

3.5.1 Preparation for Installing and Removing 6KPMs.......................30

3.5.2 Installing 6KPM Cards in the Magnum 6K32T & 6K32 ..........32

3.5.3 Removing 6KPM Cards .............................................................35

3.6 Connecting the Console Terminal to Magnum 6K32T & 6K32 .......36

3.6.1 RS-232 (DB-9) Console Com port.............................................37

4.0 OPERATION........................................................................................37

4.1 Switching Functionality .....................................................................37

4.2 Status LEDs........................................................................................38

4.3 Up-link Cross-over Switch on RJ-45 port modules ...........................39

4.4 Auto-cross (MDIX), Auto-negotiation, for RJ-45 ports..............39

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

4.5 Flow-control, IEEE 802.3x standard..................................................41

4.6 Power Budget Calculations for Magnum 6K32T PM’sError! Bookmark

5.0 MAGNUM 6K32T MANAGED SWITCH PORT MODULES.......41

5.1 Inspecting the Package and Product...................................................41

5.2 6KPM Module Description................................................................42

5.2.1 6KP6-RJMST “twist lock” Combo Module...............................42

5.2.1a 6KP6-RJ10ST, “twist lock” Combo Module .............................43

5.2.1b 6KP4-F10ST, “twist lock” Module...........................................43

5.2.1c 6KP4-FLSTFX, “twist lock” Module........................................44

5.2.2. 6KP6-RJMSC “snap-in” Fiber connector .................................45

5.2.3 6KP6-RJSSC “snap-in” connector............................................45

5.2.4 6KP6-RJSSCL single-mode “snap-in” connector.....................46

5.2.4a 6KP6-RJ10ST FL-ST-type, “twist-lock” connector...................46

5.2.5 6KP8-MTRJ, MTRJ Small-Form-factor....................................47

5.2.5a 6KP6-MT10ST, Multi-mode ST-Fiber port...............................47

5.2.6 6KP8-45MT, MTRJ Small-Form-Factor....................................48

5.2.7 6KP8-MLC, Small Form Factor.................................................48

5.2.8 6KP8-45LC, Combo factor and RJ-45 Connector .....................49

5.2.9 6KP8-RJ45 (Twisted Pair), 10/100Mb 8-PortError! Bookmark not

5.2.10 6KP8-45-2MT, multi-mode FX , MTRJ Small-Form-Factor.....50

5.2.10a 6KP8-45-2LC, LC Small-Form-Factor......................................50

5.2.11 GBIC-SXSC Gigabit fiber(1000Mb), mm SC Connector..........51

5.2.11a GBIC-LXSC Gigabit fiber (1000Mb), mm SC Connector........51

5.2.11b GBPM-2OTX Gigabit fiber (1000Mb), mm SC Connector....51

5.2.12 6KM-BLNK ...............................................................................52

6.0 TROUBLESHOOTING.......................................................................53

6.1 Before Calling for Assistance.............................................................53

6.2 When Calling for Assistance..............................................................54

6.3 Return Material Authorization (RMA) Procedure..............................54

6.4 Shipping and Packaging Information.................................................55

APPENDIX A: WARRANTY INFORMATION .........................................55

APPENDIX B : INTERNAL DC POWER SUPPLY OPTIONS.................56

APPENDIX C: INTERNAL DC DUAL-SOURCE POWER OPTION......58

Revisions

Rev B 12/05 : Updated Gigabit options

Rev A 05/05 : Minor updates, Auto-Cross(MDIX)

Rev A 02/05 : Minor updates and tweak on LC connector diagram

Rev A 08/04 : This revision is the initial release of the 6K32T manual.

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

The Magnum Line

ETHERNET CONNECTIVITY PRODUCTS

"DESIGNED AND MANUFACTURED IN THE USA"

OVERVIEW

GarrettCom, Inc. offers the premium-quality Magnumline of Ethernet LAN

connectivity products with industry-standard functionality and built-in fiber

configurability. Magnum products are designed for use in demanding Carrier

Class, Industrial Grade and OEM applications where reliability is a primary

consideration.

6K Managed Switches, Gigabit, 100 and 10 Mbps, fiber and copper ports,

mix-and match. Features a family of modules for user configurability.

Magnum MNS software. Versions for 6K Switches and for mP62’s.

4K-Series Switches, 100 and 10 Mbps, copper ports with optional fiber port,

with auto-negotiating full switching performance.

Quad-Series Fiber Switches, 100 and 10Mbps, fiber and copper ports, mixed-

speed and mixed-media types, full switching performance.

“Outdoor” Ethernet Switches, for temperature uncontrolled locations

6 10/100 and 2 100Mb fiber ports, can be connected in strings and rings

Mixed-Media Fiber Hub, 16-port Stackable,10/100 auto-sensing

Dual Speed 8-port and 16-port Stackable, 10/100 auto-sensing

Stackable Hubs, SNMP Optional

10Mb series and 100Mb series, both w/ optional port modules

Personal Switches, 10/100Mb

8 port dual speed, Auto-negotiable with fiber option

Personal Hubs, 100Mb or 10/100Mb

8-port, with two switched ports (1 fiber built in)

Personal Hubs, 10Mb series

8-port + AUI, stackable to 5 high, + optional BNC of fiber port

8 or 9-port and 4 or 5-Port Personal Hubs, w/ man. up-link sw.

Converter Switches and Media Converters, 10Mb and 100Mb series

All media combinations, incl. fiber ST, SC, mm., single mode

The “X-line” of configurable MiXed Media products:

Stackable Concentrators, SNMP optional, 13-Ports

Repeaters, 2-Ports

Repeater Port Modules (RPMs),6 types for Ethernet media

Transceivers, 10Mb series Mini-Transceivers and Coax Models Dec, 05

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

1.0 SPECIFICATIONS

1.1 Technical Specifications

Performance

Filtering / Forwarding Rate:

Ethernet:14,880 pps

Fast Ethernet: 148,800 pps

Gigabit Ethernet: 1,488,000 pps

Switching Processing Type: Store and Forward with IEEE 802.3x full-

duplex flow -control, non-blocking

Data Rate: 10Mbps,100Mbps and 1000Mbps

Address Table Capacity: 4K node, self-learning with address aging

Packet buffer size : 240KB for 10/100 and 120KB for 1000Mb

Latency: 5 s + packet time (100 to 100Mbps)

15 s + packet time (10 to 10 Mbps, and 10 to 100Mbps)

Network Standards and Compliance

Ethernet V1.0/V2.0 IEEE 802.3: 10BASE-T,

IEEE 802.3u: 100Base-TX, 100BASE-FX

IEEE 802.3z: 1000BASE-X Ethernet(Auto-negotiation)

IEEE 802.3ab: 1000BASE-X Ethernet

IEEE 802.1p: Priority protocol

IEEE 802.1d: Spanning tree protocol

IEEE 802.1w: Rapid Spanning tree protocol

IEEE 802.1q: VLAN Tagging

IEEE 802.3x: Flow Control

IEEE 802.3ad: Link Aggregation (Trunking)

Maximum 10 Mbps Ethernet Segment Lengths

Unshielded twisted pair - 100 m (328 ft)

Shielded twisted pair - 150 m (492 ft)

10BASE-FL multi-mode fiber optic - 2 km (6,562 ft)

10BASE-FL single-mode fiber optic - 10 km (32,810 ft)

Maximum Standard Fast Ethernet Segment Lengths:

10BASE-T (CAT 3, 4, 5 UTP) - 100 m (328 ft)

100BASE-TX (CAT 5 UTP) - 100 m (328 ft)

Shielded twisted pair - 150 m (492 ft)

100BASE-FX, half-duplex, multi-mode - 412 m (1350 ft)

100BASE-FX, full-duplex, multi-mode - 2.0 km (6,562 ft)

100BASE-FX, half-duplex, single-mode - 412 m (1350 ft)

100BASE-FX, full-duplex, single-mode - 20.0 km (6K32T ft)

100BASE-FX, full-duplex, Long Reach - 40.0 km (122K ft)

Maximum Standard Gigabit Ethernet Segment Lengths:

1000BASE-T (CAT5E or higher is recommended) - 100 m

1000BASE-SX, full-duplex, multi-mode(62.5m cable) - 220m

1000BASE-SX, full-duplex, multi-mode(50m cable) - 550m

1000BASE-LX, full-duplex, single-mode(62.5m cable) -5Km

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

Fiber connector types supported:

ST-type (twist-lock)

SC-type (snap-in)

MTRJ-type Small Form Factor (SFF)

LC-type Small Form Factor (SFF)

GBIC modules

LEDs: Per Port

LK: Steady ON when media link is operational

ACT: ON with receiver port activity

FDX/HDX: ON = Full-Duplex Mode

OFF = Half-Duplex Mode

100/10: ON = 100Mbps speed

OFF = 10 Mbps

Operating Environment

UL 60950 “Component Parts” temp. ratings: 130F (55C)

IEC 60068 “Type Test” ratings:- -40to 185F (-40to 85C)

Ambient Relative Humidity: 5% to 95% (non-condensing)

Altitude: -200 to 13,000 ft. (-60 to 4000m)

Conformal Coating (Humidity Protection) option: Request quote

Packaging

Enclosure: Rugged High strength metal. Suitable for stand-alone

or rack-mounting

Dimensions: 1.70in. H x 17.0in. W x 9.0in. D

4.32cm H x 43.2cm W x 22.9cm D

Cooling method: Fan cooled, @ 3@ 7 cfm ea.

Management Console connector

DB-9 for RS-232 “ null-modem “ cable (sometimes called an X-modem cable)

Power Supply (Internal)

AC Power Connector: IEC-type, male recessed at rear of chassis,

with adjacent manual ON-OFF switch (optional if no Alarms Cont.)

Input Voltage: 100 to 240 VAC (auto-ranging)

Input Frequency: 47 to 63 Hz (auto-ranging)

Power Consumption: 45 watts max (with fiber module)

30 watts for a fully-loaded copper only model

Fuse required for replacement- 1 Amps

DC Power Supply (Options)

-48VDC Power Input Voltage : -36 to -70 VDC

Fuse Required – 2Amps

24VDC Power Input Voltage : 20 to 40VDC

Fuse Required – 3Amps

125VDC Power and 100VDC Input Voltage : 88 to 300VDC

Fuse Required – 1Amps

Std. Terminal Block : “ -, GND, + ”

Power Consumption: same as for AC models, see above

Warning- All the fuse replacment must be replaced with same value.

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

For (Optional) DC internal power supplies at –48VDC, 24VDC and 125VDC,

including Dual Source options (for continuity of operation when either of the DC

input sources are interrupted), see Appendices B and C.

Relay Alarm Contact (Optional)

The Alarm Contact option is offered as a configuration option. The alarms can be

initiated through two normally closed Form-C contacts, one loss of power alarm

and one software alarm through user selectable software traps.

Per-port MDI or MDIX on RJ-45

The copper daughter board has MDI-MDIX Auto-crossover on all the RJ-45

ports., and eliminate the use of cross-over cable between the devices. Also

port-specific user settings (such as FDX or HDX, copper 10/100 speed) can

be fixed using software commands.

Agency Approvals

UL listed (UL60950), cUL, CE, Emissions meet FCC Part 15 Class A

NEBS L3 and ETSI Compliant for Carrier Central Offices

IEEE P1613 Environmental Standard for Electric Power Substations.

IEC61850 EMC and Operating Conditions Class C for Power Substations

Warranty: Three years, return to factory Made in USA

For a Configuration Guide, see the GarrettCom web site at

http://www.garrettcom.com/techsupport/insertion_guides/6K32Tcg.pdf

Email [email protected] for additional details.

Magnum 6K32 & 6K32T Managed Switch Installation and User Guide (12/05)

www GarrettCom com

1.2 Ordering Information

Magnum Managed Switch

MODEL DESCRIPTION

Magnum 6K32T 24 10/100 RJ-45 ports and either two optional port modules (6K32T) or

one optional port module slot (6K32), which may be configured with a selection of

10/100/1000Mb fiber and copper connector types, 8 ports max.

Magnum 6K32T-48VDC:Same as 6K32T except power input is –48VDC

Magnum 6K32T-24VDC:Same as 6K32T except power input is 24VDC

Magnum 6K32T-125VDC:Same as 6K32T except power input is 125VDC

Configuration Options:

Each Magnum 6K32T base unit has one port module slot to be configured with

one of the port modules listed below:

Magnum 6K32T Port Modules

6KP8-RJ45 TP Module, w/eight 10/100Mbps auto-negotiating RJ-45 ports

6KP4-F10ST “2+2” 10Mb Fiber module, w/ four 10Mb 2km FL ST connectors

6KP4-FXSC “2+2” 100Mb Fiber module, w/ four 100Mb 2km FX SC connectors

6KP4-FXST “2+2” ST Fiber module, w/ s, four 100Mb 2km FX ST connectors

6KP4-FLSTFX “2+2” ST Fiber module, w/ two 100Mb and two 10Mb ports, 2km

6KP6-RJMST “4+2” module, w/four RJ-45 ports and two 2km mm FX SC’s

6KP6-RJMSC “4+2” module, w/four RJ-45 ports and two 2km mm FX ST‘s

6KP6-RJSSC “4+2” module, w/four RJ-45 ports and two 20km Sgl.m FX SC’s

6KP6-RJSSCL “4+2” module, w/four RJ-45 ports and two 40km Sgl.m FX SC’s

6KP8-MTRJ SFF Fiber module, w/eight 100Mb mm FX MT-RJ connectors

6KP8-MLC SFF Fiber module, w/eight 100Mbps mm FX LC connectors

6KP8-SLC SFF Fiber module, w/eight 100Mbps sgl-m FX LC connectors

6KP8-45MT “4+4” module, w/four RJ-45 ports and four 2km mm FX MT-RJ’s

6KP8-45LC “4+4” module, w/four RJ-45 ports and four 2km mm LC connectors

6KP6-MT10ST “4+2” module, w/four MTRJ ports and two 10Mb 2km FL ST’s

6KP6-RJ10ST “4+2” module, w/four RJ-45 ports and two 10Mb 2km FL ST ‘s

6KP8-45-2MT “6+2” module, w/six RJ-45 ports and two 2km mm MTRJ connectors

6KP8-45-2SLC “6+2” module, w/six RJ-45 ports and two 100Mb 15km sgl. mode FX

LC connectors

Gigabit Transceiver options

6KP2-2GSX two-port in one slot Gigabit 6K module, uses one 6K slot and provides two

Gb Fiber SXSC (1000BASE-SX Multi-mode) ports. (includes front–panel metal sheet).

6KP2-G2SC two-port in one slot Gigabit 6K module, uses one 6K slot and provides two

Gb Copper (1000BASE-RJ45 Auto-negotiating) ports. (includes front–panel metal sheet).

GBPM-2OTX Two port Gigabit module provides two GBIC open transceiver ports for

a user-selectable GBIC transceiver module

GBPM-COTX One slot Gigabit 6K module provides one GBIC open transceiver port

for a user-selectable GBIC transceiver module
