GAUI X3 Bedienungsanleitung

我們建議您從 GAUI 官方網站的下載區下載，

並使用最新的手冊。

本產品是無線遙控的直升機，不當的操作，保養或是組裝

有可能導致遙控直升機對於人身或是物品造成危險。包括，

但是不局限於對於人體產生嚴重傷害甚至死亡的可能性。

INSTRUCTION MANUAL

We recommend downloading and using the latest manual

from Official GAUI website’s download area.

This product is for a radio controlled (RC) helicopter.

Improper operation, maintenance or assembly can

potentially cause a RC helicopter to pose a danger

to persons or objects including but not limited to

the possibility of causing serious physical injury and

even death.

Tail Rotor Belt 544 MXL x1pcs

Content:

544 MXL 皮帶 x1 pcs

內容物:

Tail Boom (belt version)(425mm) x 1pcs X3 皮帶版尾管(425mm) x1 pcs

X3 Tail prod (403mm) x 1pcs X3 尾拉桿(403mm) x1 pcs

71T Front Pulley Gear Set x 1pcs 71T 主皮帶齒輪 x1 pcs

15T Tail Pulley Gear Set x 1pcs 15T 尾皮帶齒輪 x1 pcs

X3 Tail Output Shaft x1pcs X3 尾軸 x1 pcs

Guide Wheel x2pcs 導輪 x2 pcs

4.8Ball Links Pack x2pcs 4.8mm 拉桿頭 x2 pcs

Bearing(B2x5x2.5)x4pcs

Washer (W2x3.5x0.5)x2pcs

軸承B2x5x2.5 x4 pcs

華司W2x3.5x0.5 x2 pcs

Pin (P1.5x10.5)x1pcs 插銷 P1.5x10.8 x1 pcs

Socket Set Screw (M2x2)x1pcs M2X2 六角止付螺絲 x1 pcs

Socket Head Button Screw (M2x4)x4pcs M2x4 水滴六角螺絲 x4 pcs

Socket Head Cap Screw (M2x8)x1pcs M2x10 六角螺絲 x2 pcs

請先將傳動尾管組卸下。

Please disassemble the tail boom

from the helicopter frame

Disassemble

Please disassemble the bearing and

gears from tail transmission

請將尾殼傳動組的軸承及齒輪等卸下。

卸下

Disassemble

卸下

P.1 Belt Conversion - Assembly #1

皮帶版組裝1

P.5 Belt Conversion - Assembly #5

皮帶版組裝5

將組裝好的皮帶齒盤組裝至機體內。

鎖付固定螺絲時請確認皮帶至合適的緊度。

Install the whole belt and gear assembly into the

helicopter frame body.

Make sure the belt has the proper tension

before fastening the mounting screws.

M2x4

導輪

B2x5x2.5

Belt guide

wheel.

B2x5x2.5

W2x3.5x0.5

M2x10

P.3 Belt Conversion - Assembly #3

皮帶版組裝3

將傘齒盤卸下後配合右圖將皮帶齒盤組裝完成。

1.組裝皮帶導輪，注意附圖導輪

鎖附位置。

2.將腳架組組裝回機體上。

Disassemble the bevel gear and replace with the

belt gear as the illustration in next page.

1.Assemble the belt guide wheel,

but please pay attention on

how guide wheels needed to

be installed as illustration shows.

2.Reverse the landing gear parts

into the body.

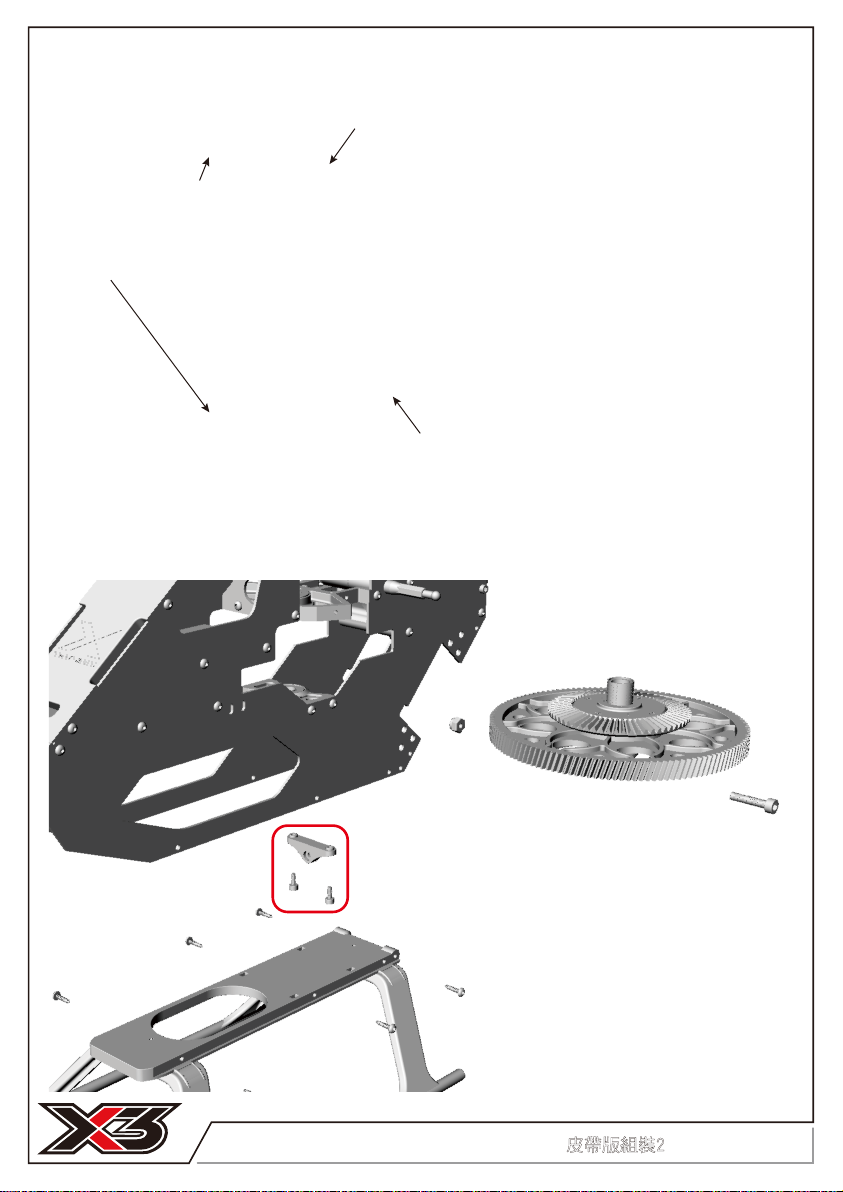

請配合圖示組裝並確認尾管及拉桿換成皮帶版專用的。

1.將主齒盤卸下配合下頁換裝皮帶齒盤。

2.卸下腳架組然後將前齒輪固定座卸下。

皮帶版專用

間隙調整W6.2x8x0.2

皮帶版組裝2

Belt Conversion - Assembly #2 P.2

卸下

Please assemble the tail boom and linkage parts according

to the illustration to convert to Belt Drive Version.

Tail Boom (for Belt version)(425mm)

Belt version

Washer for gap adjustment

W6.2x8x0.2

for belt version

Disassemble

1.Disassemble the main gear and change

belt and pulley as the illustration located

in next page.

2.Disassemble landing gear parts and

then disassemble the front bevel gear

mounting block.

將組裝好的尾皮帶總成置入機身並配合下圖注意皮帶方向。

注意皮帶旋轉方向。

P.4

皮帶版組裝4

Belt Conversion - Assembly #4

*** Important ***

Install the whole tail belt boom assembly in to the helicopter frame and

pay attention on the direction of the belt as the illustration below.

Please notice the travel direction of the belt needs to be same as the illustration.

GAUI

www.gaui.com.tw

E-mail: [email protected]

TEL: +886-2-86305567

FAX: +886-2-26105567

No.118, Ren’ai Rd., Bali Dist.,

New Taipei City 249, Taiwan MADE IN TAIWAN
