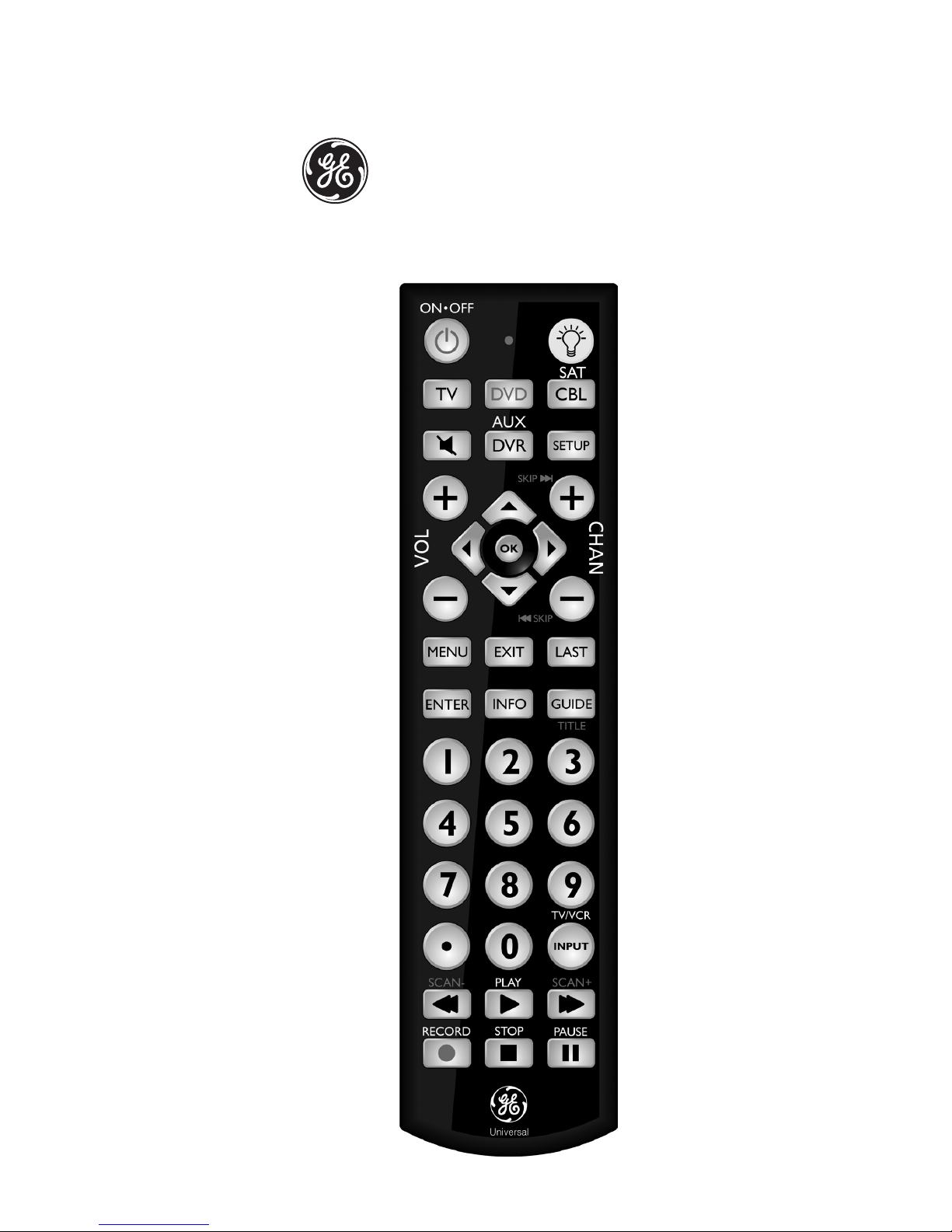

Universal Remote

Instruction Manual

24116

Table of Contents

Introduction.................................................................. 3

Button Functions ....................................................... 4

Initial Setup................................................................... 6

Battery Installation ............................................. 6

Battery Saver......................................................... 6

Code Saver ............................................................. 6

Power-On default ................................................ 6

Code Setup ............................................................. 6

Direct Code Entry....................................................... 7

Code Search................................................................. 8

Code Identiﬁcation Feature.................................. 9

Setup .............................................................................10

Programming Combo Device Codes........10

Controlling Combo Devices ..........................10

Controlling Devices with Separate Power

On and Off.............................................................10

DVD/DVR Punch-Through Feature............11

Volume/Mute Control Feature.....................11

Setting All Volume/Mute Control, Punch-

through...................................................................12

Setting any Mode to use its own

Volume/Mute.......................................................12

Troubleshooting.......................................................13

Introduction

Congratulations on your purchase of the

24116 Universal Remote Control. It is one

of the most unique looking, and easy to use

remote controls available today. With the

24116 Universal Remote, juggling multiple

remote controls is a thing of the past.

Your 24116 Universal Remote controls up

to 4 devices, including the most popular

brands of TV, DVR, DVD, SAT, CBL, and audio

equipment.

Note: Some functions from your original

remote may not be controlled by the 24116

Universal Remote. Use the original remote,

if available, to control such functions.

Sometimes buttons other than described

in these instructions may actually perform

the function. For example, the CHAN and

VOL buttons might be used to navigate

through menu choices. We recommend you

experiment with the remote to identify if

such situations pertain to your equipment.

The 24116 Universal Remote is easy to

use, easy to program, and it gives you total

control—at the touch of your ﬁngertips!

Button Functions

10.

20.

19.

18.

17.

16.

15.

14.

13.

12.

11.

Note: The Record button must be pressed TWICE to record.

For some brands of VCRs, you might need to press the

Record button once, then press it again for three seconds.

Some buttons on the remote might have functions that

are referred to by different names on the device you are

controlling. E.g., LAST may be called RECALL, or ENTER

may be called DISPLAY. These differences depend on the

brand and model of your product. Also, this remote can

only operate features that exist on your product. E.g., your

product must have LAST ability for the LAST button to

operate this feature.

1. ON-OFF: Turns device On or Off.

2. Red Indicator: Lights when any button is pressed.

3. TV, DVD, CBL/SAT, DVR/AUX: Selects product to

be operated.

4. MUTE: Turns off the TV sound while the picture

remains.

5. VOLUME UP/DOWN: Changes the volume level of

the product, normally the TV.

6. UP, DOWN, LEFT & RIGHT: Navigation buttons.

7. MENU: brings up the DVD disc Menu screen. Use

with the UP, DOWN, LEFT & RIGHT navigation

buttons.

8. ENTER: Used after direct channel number entry to

immediately change to the selected channel.

9. NUMBERS: Enter numbers for direct channel

selection. Some products require Enter to be

pressed after channel selection.

10. ( ) Used for digital channels, e.g., 2.3.

11. RECORD, PLAY, STOP, REW, FF, PAUSE: Control

buttons that operate your DVR even when the

remote is set to operate the TV. Also operates

DVD Scan -/+.

12. INPUT/TV/VCR: Selects the video inputs of your

TV if equipped with that feature. Operates the

same as the TV/VCR button on your original re-

mote.

13. INFO: Displays on-screen channel information,

etc.

14. GUIDE: Displays satellite or cable on-screen pro-

gram guide.

15. EXIT: Exits On-Screen Menus and/or Returns to

previous On-Screen selection.

16. LAST: Returns to the previously selected channel,

or DVD repeat toggle.

17. OK: Selects menu items for the device you are

controlling.

18. CHANNEL UP/DOWN: Changes the channels. Also

controls DVD/CD CHAPTER +/- track selection,

i.e., DVD/CD Track Skip Up/Down. Note the DVR

buttons also control the DVD when in DVD Mode.

19. SETUP: Used for setting up your remote.

20. BACKLIGHT: Backlighting On/Off.

Button Functions, cont.

•

Battery Installation

1. On the back of the remote, push down on the tab

and lift the cover off.

2. Match the batteries to the + and - marks inside the

battery case, then insert 2 AAA alkaline batteries.

3. Press the battery cover back into place.

Battery Saver

Your remote automatically turns off if the buttons

are depressed more than 30 seconds. This will save

your batteries should your remote get stuck in a place

where the buttons remain depressed (e.g., between

the sofa cushions).

Code Saver

You have up to 10 minutes to change the batteries

in your remote without losing codes you have

programmed. However, do not press any buttons until

batteries are installed in the remote. If buttons are

pressed without batteries in the remote, all the codes

will be lost.

Power-On Default

The remote powers on in TV mode.

Code Setup

The SETUP button is used to setup the remote. You

can either setup the remote using the code for your

brand of product, from the code tables (on separate

sheet), or you can search through the library of codes

until you ﬁnd a code that works for your product.

Please refer to “Code Search” on page 8 for more

information on using the code search feature to learn

how to search through the library of codes for your

products.

NOTE: You can store any kind of code under any

mode (except TV). I.e., you can store a DVR code under

the CBL button, or a SAT code under the DVD button,

etc. However, you can only store TV codes under the

TV button.

Initial Setup

Direct Code Entry

1. Press and hold the SETUP button until the red

indicator stays on, then release the SETUP button.

2. Press and release the desired mode button (TV,

DVD, etc.). The red indicator blinks, then stays lit.

3. Enter the 4-digit code from the code tables (on

separate sheet). Note: After a valid code entry, the

red indicator turns off. For an invalid code, the red

indicator ﬂashes.

4. With your device on, press CHAN UP. If the device

responds, no further programming is required.

Note: If some buttons do not operate your

equipment, try one of the other codes for your

brand.

Write your codes down here for easy reference later.

Device Device stored Code

TV TV

DVD

CBL/SAT

DVR/AUX

Code Search

If your product does not respond after you have tried

all the codes for your brand, or if your brand is not

listed, try searching for your code by following these

steps.

1. Manually turn on the device (TV, DVD, etc.) to be

controlled.

2. Press and hold the SETUP button until the red

indicator stays on, then release the SETUP button.

3. Press and quickly release the desired mode button

(TV, DVD, etc.). The red indicator blinks off once.

4. Press the CHAN UP button repeatedly (up to 300

times) until the device to be controlled changes

channel. The red indicator blinks off with each

button press. If you accidentally overshoot the

code required, press the CHAN DOWN button

to backtrack through the library until the device

changes channel. Pressing CHAN UP changes

direction to forward again.

5. Press and release ENTER to install the code.

Most users store DVD codes under the DVD button,

Cable codes under CABLE, etc. If (for example) you

want to store a DVD code under CABLE, ﬁrst follow

the procedure for Direct Code Entry (previous page)

and press CABLE in step 2 of Direct Code Entry, then

enter ANY DVD code in step 3 of Direct Code Entry.

Then follow the steps for Code Search on the previ-

ous page. Note: If the device does not have a CHAN

UP button, use PLAY (DVD only) or ON-OFF instead.

Code Search starts from the currently stored 4-digit

number under that mode.

Code Identiﬁcation Feature

The Code Identiﬁcation Feature allows you to identify

the four digit library code stored under your device

key. For example, if you want to ﬁnd out what 4-digit

code is stored under your TV device key, follow the six

steps below:

1. Press and hold the SETUP button until the red

indicator stays on. Release the SETUP button.

2. Press and release the desired mode button (TV,

DVD, etc.). The red indicator blinks, then stays lit.

3. Press and release the SETUP button. The red

indicator blinks off.

4. To ﬁnd the ﬁrst digit for the code stored under the

mode key pressed in step 2, press each numeric

key from 0-9 in turn. When the red indicator blinks

off the number you pressed is the ﬁrst digit for the

code you are searching for.

5. To ﬁnd the second digit, repeat step 4, this time

when the red indicator blinks off this is the second

digit.

6. Repeat step 4 again to ﬁnd the third and fourth

digits. This time the red indicator turns off and

stays off.

Programming Combo Device Codes

Some Combo devices (e.g., TV/VCR, TV/DVD, DVD/

DVR, etc.) will require you to set up two different Mode

buttons to control both parts of the Combo device.

For example, if you have a TV/DVD Combo, you might

need to set up one code under the TV button to

control the TV part AND a separate code (under any

other Mode button) to control the DVD part.

Controlling Combo Devices

Some Combo devices (e.g., TV/VCR, TV/DVD, DVD/

DVR, etc.) have separate buttons on the original

remote to select the part of the Combo device to

be controlled. For example, if your Combo device

is a DVD/DVR then its original remote might have

separate DVD and DVR buttons for selection of the

Combo part you would control. The equivalent button

functions can be found on your new remote by using

the device Mode and SETUP buttons.

Referring to “Code Search” on page 8, setup a device

Mode (e.g., DVD) with the correct code for your

Combo device. Assuming the DVD/DVR Combo device

is the example and its code is programmed under

DVD Mode, press and hold the DVD Mode button

for more than one second to send the DVD button

command. To send the DVR button command, quickly

press and release the SETUP button followed by

pressing and releasing the DVD Mode button. This

method can be applied similarly to all Combo devices

(e.g., TV/VCR, TV/DVD, DVD/DVR, etc.) and is available

for all Modes. Note this feature is not supported by all

codes.

Controlling Devices Requiring Separate Power On

and Off Buttons

Some devices (e.g., certain RCA TVs) require separate

Power On and Power Off buttons to turn the device

on and off. The equivalent button functions can be

found on your new remote by using the device Mode

and ON-OFF buttons. Referring to “Code Search” on

page 8, setup a device Mode (e.g., TV) with the correct

code for your device.

Assuming a TV device is the example and its code

is programmed under TV Mode, to turn your TV on,

press and hold the TV Mode button for more than one

second to transmit the Power On button command.

Setup

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung

Invacare

Invacare G91S Bedienungsanleitung
