Gefen CAT5-5000HD Bedienungsanleitung

CAT5 • 5000HD

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

CAT5•5000HD is a trademark of Gefen Inc.

Macintosh is a trademark of Apple Computer Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

How It Works

CAT5•5000HDS Back Panel Layout

CAT5•5000HDS Back Panel Function Descriptions

CAT5•5000HDR Back Panel Layout

CAT5•5000HDR Back Panel Functions Descriptions

Link Cable Wiring Diagrams

CAT5•5000HD - Wiring Diagram

Service Switch Usage Guide

Frequently Asked Questions

Terminology

System Speciﬁcations

Warranty

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE CAT5•5000HD SYSTEM

* The CAT5•5000HD units are housed in a metal box for better RF shielding.

* In order to extend the full 50 meters you need a high quality CAT5e cable.

* CAT6 cable is suitable for high resolutions at 50 meters.

* If using a ADC-DVI Adapter, the "5V to cable" jumper by the input connector on the

sender unit needs to be enabled.

OPERATION NOTES

INTRODUCTION

Thank you for purchasing the new ex•tend•it CAT5•5000HD series by Gefen, Inc.

The ex•tend•it CAT5•5000HD by Gefen allows users the beneﬁts of extending dual DVI

displays and USB beyond the desktop. In a growing number of applications, broadcast

stations and production facilities need to locate a computer remotely from the keyboard,

mouse, and video monitor. A CPU may need to be shared between several users, for ex-

ample, or moved to another room because of annoying fan noise.

The CAT5•5000HD series can be used to extend computers with noisy fans, printers, hard

drives, scanners, cameras, keyboards, mouse, and any other USB. With the potential to

cover the distance of 150 feet, industry standard Category 5 (CAT-5) cables are used for

the extension of all the devices.

CONTENTS

The CAT5•5000HD system consists of:

--- (1) CAT5•5000HDS sender unit

--- (1) CAT5•5000HDR receiver unit

--- (2) 5 VDC power supplies

--- (2) DVI to HDMI cable M-M (6FT)

--- (1) USB cable (06FT)

--- (1) User Manual

HOW IT WORKS

The CAT5•5000HD sender unit sits next to your computer. The cables supplied with the

CAT5•5000HDconnectsyourDVI source(s)and USBto thesend unit.TheCAT5•5000HD

receiver unit sits next to your DVI displays - up to 150 feet away. The displays and USB

plug into the back of the CAT5•5000HD receiver unit. Four CAT-5 cables connect the

CAT5•5000HD-S and the CAT5•5000HD-R units to each other.

HOW IT WORKS

CAT5•5000HDS BACK PANEL LAYOUT

1234567 8

CAT5•5000HDS BACK PANEL FUNCTIONS

POWER - 5 VDC external power supply

HDMI IN 1 - HDMI Input connects to your computer with the supplied DVI to HDMI cable

CAT5 Video 1 - RJ-45 input extends HDMI input 1 with CAT-5 cable

CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable

HDMI IN 2 - HDMI Input connects to your computer with the supplied DVI to HDMI cable

CAT5 Video 2 - RJ-45 input extends HDMI input 2 with CAT-5 cable

CAT5 USB/DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5 cable

USB IN - USB Input from computer

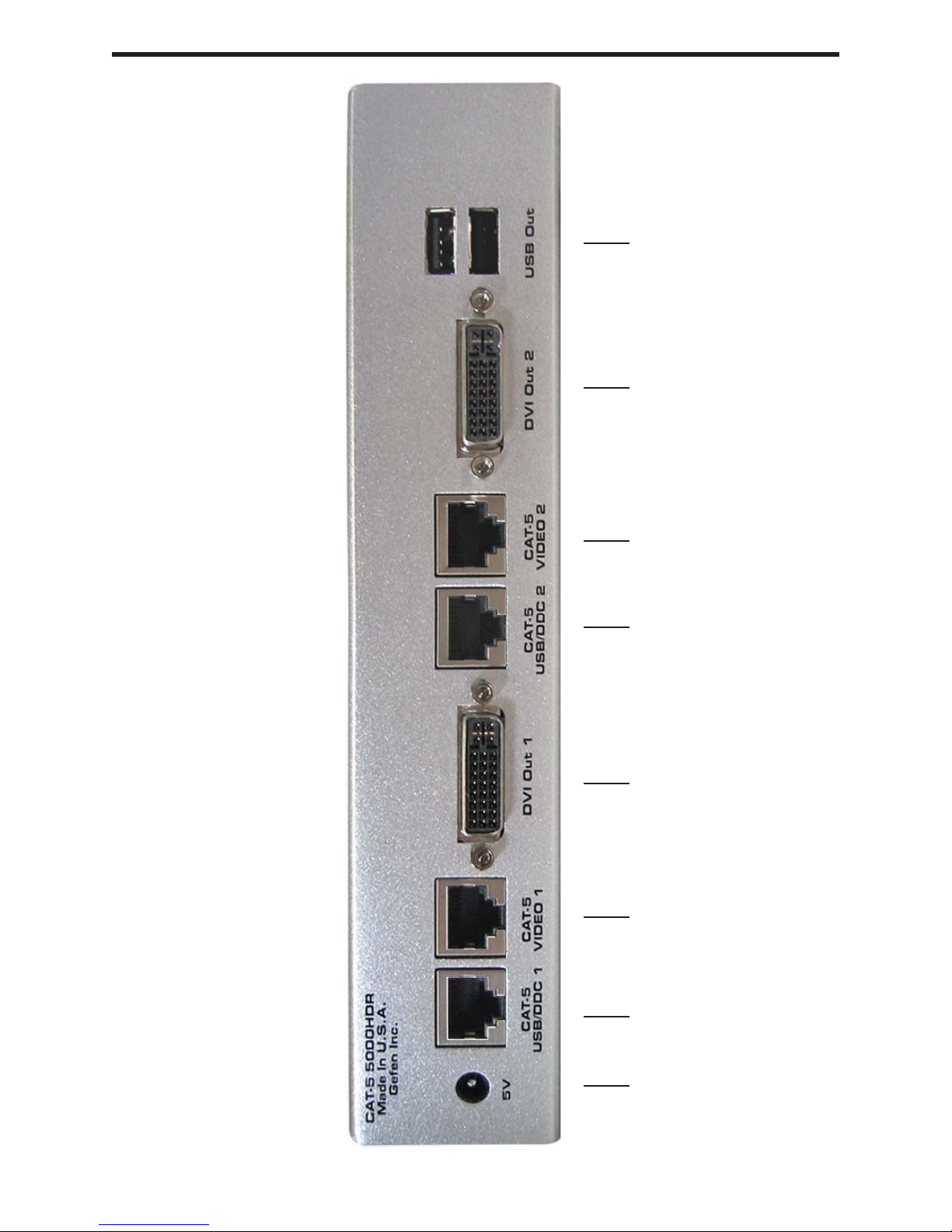

CAT5•5000HDR BACK PANEL LAYOUT

12 3 4 5 6 7 8

CAT5•5000HDR BACK PANEL FUNCTIONS

POWER - 5 VDC external power supply

CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable

CAT5 Video 1 - RJ-45 input extends video input 1 with CAT-5 cable

DVI OUT 1 - DVI output connects to the monitor 1 for local video

CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable

CAT5 Video 2 - RJ-45 input extends video input 2 with CAT-5 cable

DVI OUT 2 - DVI output connects to the monitor 2 for local video

USB OUT - USB Output to devices
