INTRODUCTION

CongratulationsonyourpurchaseoftheVGAAudiotoHDMIScaler.Your

completesatisfactionisveryimportanttous.

Gefen

Gefendeliversinnovative,progressivecomputerandelectronicsadd-onsolutions

thatenhanceintegration,extension,distributionandconversiontechnologies.

Gefen’sreliable,plug-and-playproductssupplementcross-platformcomputer

systems,professionalaudio/videoenvironmentsandHDTVsystemsofallsizes

withhard-workingsolutionsthatareeasytoimplementandsimpletooperate.

The Gefen VGA Audio to HDMI Scaler

ConvertPCaudio/videotofull-screenHDMIwithsimultaneousanalog&digital

audiooutput.

UpscaleananalogvideosignalfromacomputerorVGAsourcetoahighquality

digitalHDdisplay.TheGefenVGAAudiotoHDMIScalersupportsarangeof

videoresolutionsupto1080p.Also,itwilltakedigitalTOSLINKoranalog3.5mm

mini-Stereoaudioasinput,andsimultaneouslyoutputtheaudiosignalinthe

sameformat.Acomprehensiveon-screendisplay(OSD)menuallowsintuitive

controloverarangeofA/Voperations.

How It Works

ConnectaVGAsourcetotheScalerinputwithaVGAcable.Next,connect

theanalogordigitalaudioinput/outputportsusing3.5mmmini-Stereocable.

ConnectTOSLINKoutputfromadigitalaudiosourcetoTOSLINKinputonthe

ScalerusingTOSLINKcable.Finally,connectanHDMI-compliantdisplaytothe

theHDMIoutputport.AudiosignalspasstotheamplierfromtheScalerthrough

theaudiocables,takingeitheranalogordigitalaudioandembeddingitintothe

HDMIoutput.

PoweruptheScalerbyplugginginthe5VDClinefromthepowersupply.Aclear

picturewillbedisplayedonthedisplay.

FEATURES

Features

• ScalesanyPCresolution(VGA~WUXGA)toSD/HDHDMI(480i~1080p)

• Automaticallydetectsandmatchesthenativeresolutionoftheconnected

display

• Providesoutputpictureadjustmentofmanyparametersincludingcontrast,

brightness,hue,saturation,sharpness,RGB(colortone)levelandaspect

ratio.

• Supportsanalogstereoandmulti-channelaudioupto6channels(digital

only)

Package Includes

(1)VGAAudiotoHDMIScaler

(1)6ftMiniStereoAudioCable

(1)6ftSVGAtoSVGACable(M-F)

(1)5VDCPowerSupplyAdaptor

(1)User’sManual

NOTE:ThenumberofaudiochannelsthatareoutputbytheVGAAudioto

HDMIwithScalerdependsontheaudiothatisinput.Inthecaseofananalog

signal,stereoinputpassesthroughunmodiedtothe3.5mmmini-stereooutput,

convertedto2-channelLPCMdigitalaudioontheHDMIandTOSLINKoutput

connectors.InthecaseofdigitalMulti-channelaudioinputformats,suchas

DolbyDigital5.1/AC3andBitstreamAudiothesearepassedunmodiedtothe

TOSLINKandHDMIoutputs,andnottothe3.5mmanalogoutput.

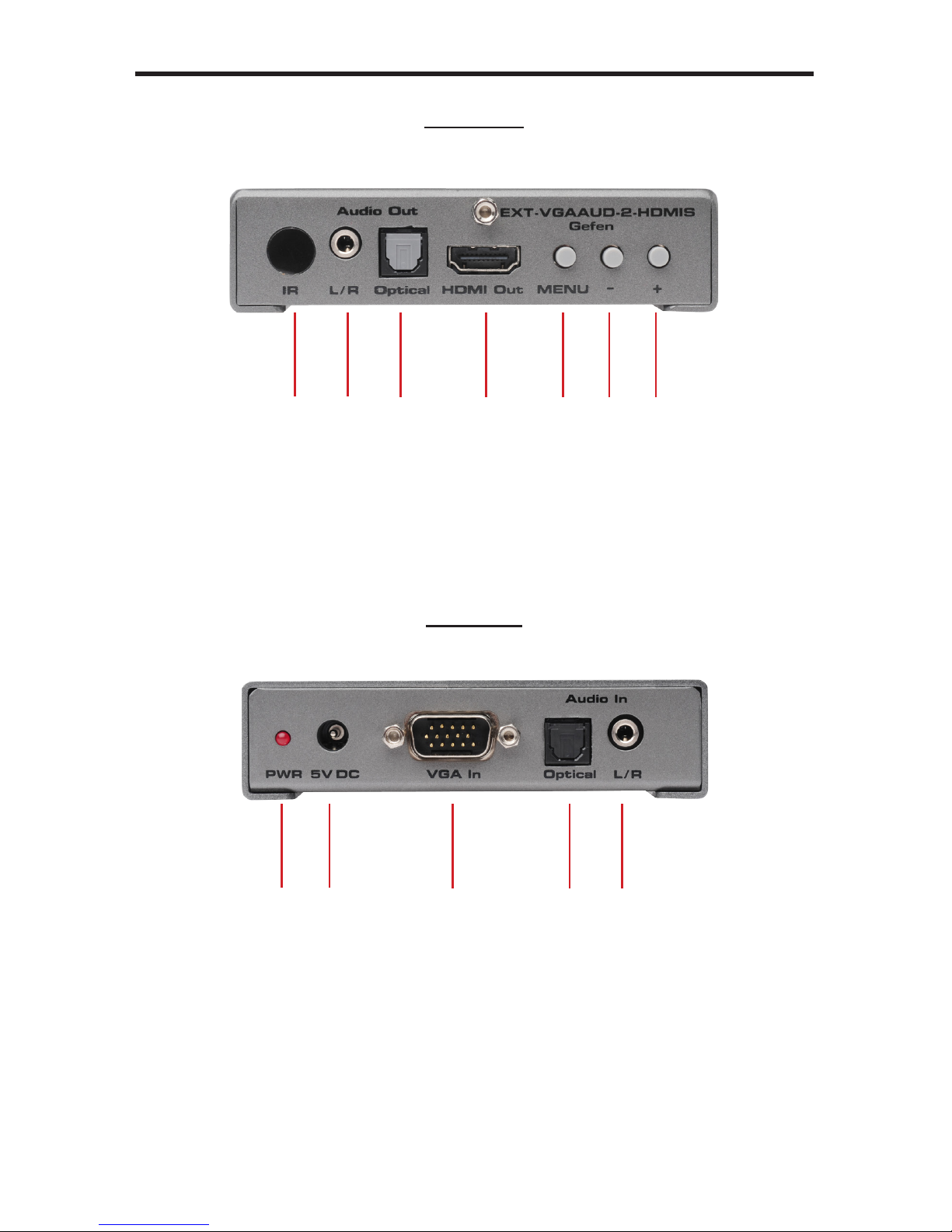

PANEL LAYOUT

Front Panel

Back Panel

1 2 5 63 4 7

8912

10 11

PANEL DESCRIPTION

1 I/R Port

UsethisportasthefocuspointfortheRemoteControl

2 L/R Stereo Analog Audio Output

ConnectthePC3.5mmphonejackoutputporttotheanalogaudioinputportof

yourequipment

3 Optical (TOSLINK) Output

Connecttheopticaloutputporttothedigitalaudioinputportofyouramplier

4 HDMI Output

ConnecttheHDMIoutputporttotheHDMIinputportofyourdisplaysuchlike

HDTV

5 Menu Button

PresstheMENUbuttontobringupOSDoperationmenu

6 Decrease Button

OnthersttierofOSDmenu,usethe–buttontomovedownthehighlighted

itemforselection.(Use+and–buttonstotogglebetweensettingvalues.)

7 Increase Button

OnthersttierofOSDmenu,usethe+buttontomoveupthehighlighteditem

forselection.(Use+and–buttonstotogglebetweensettingvalues.)

8 Power LED

WhentheLEDislititshowsthattheunitispowered

9 5V DC Power Receptacle

Plugthe5VDCpowersupplyintotheunithere

10 VGA Input

ConnectthisPCinputD-Sub(15-pinVGA)porttotheVGAoutputportofthe

sourceequipmentsuchasaPC

11 Optical (TOSLINK) Input

Connecttheopticalinputporttothedigitalaudiooutputportofyoursource

equipment

12 L/R Stereo Analog Audio Input

ConnectthePC3.5mmphonejackinputporttotheanalogaudiooutputportof

yoursourceequipment

CONNECTING AND OPERATING

THE VGA AUDIO TO HDMI SCALER

How to Connect the VGA Audio to HDMI Scaler

1. ConnectthevideosourceviaaDE-15connector(VGA)totheVGAinputon

thebackoftheVGAAudiotoHDMIScaler.

2. ConnecttheHDMIoutputfromtheVGAAudiotoHDMIScalertoaHiDefTV

3. Connectthe3.5mmstereoanalogaudioinputtotheanalogaudiooutputportof

theaudiosource.

4. OptionallyconnectaTOSLINKcablefromtheopticalinputoftheVGAAudioto

HDMIScalertotheoutputoftheaudiosource.

5. Connecttheincluded5VDCpoweradaptertothepowerreceptacleonthe

VGAAudiotoHDMIScaler.

6. TheLEDonthefrontoftheunitshouldlightandaclearpictureshould

appearonthedisplaywithaudio.

How to Operate the VGA Audio to HDMI Scaler

TheVGAAudiotoHDMIScalerprovidesanOn-ScreenDisplay(OSD),allowing

youtonavigatethroughthevariousfunctions.

NOTE:IfaVGAinputsignalisnotdetected,a“NoSignal”messagewillbe

displayedonthescreen.InordertoviewtheOSD,asourcemustbeconnected

totheVGAport.

Button    Function

MENU   Display/HideMenu(OSD)

   ItemSelection/Enter

   HoldingdownMENUbuttonduringpower-on

   willresetthescalertotheNativeresolution

   ofthedisplay.

+   MoveMenucursorDOWNinsubmenus

   Increaseparametervalues

-   MoveMenucursorUPinsubmenus

   Decreaseparametervalues

   *Auto-adjustfunction:Holddown-buttonto 

   optimizedisplaysettings.

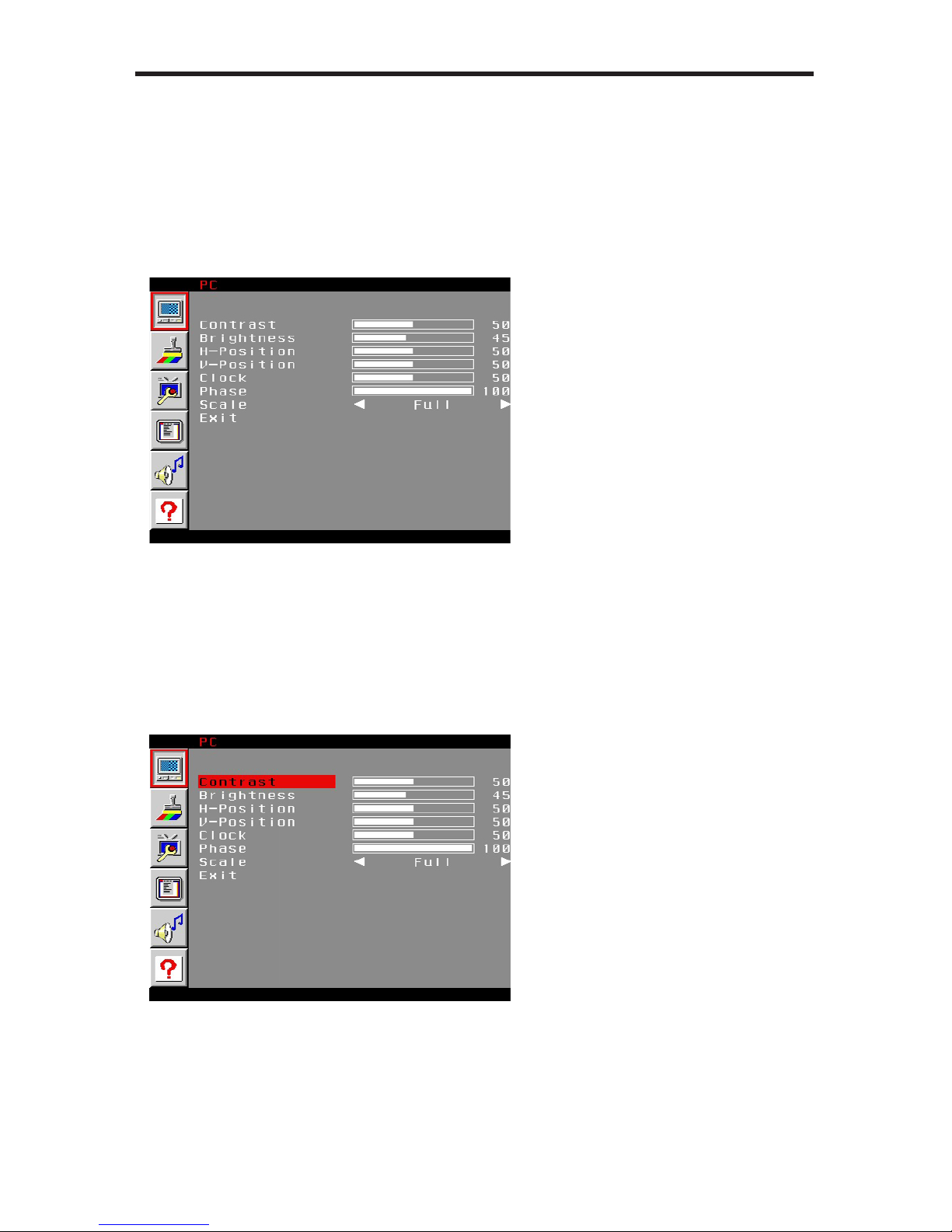

Navigating the OSD (On-Screen Display)

OncetheVGAAudiotoHDMIScalerisconnectedandvideoisbeingdisplayed,

presstheMENUbuttononthefrontpaneltobringuptheOSD.TheOSDis

comprisedofsixmenus,eachidentiedbyaniconontheleft-handside.As

eachmenuisselected,ahighlightedboxwillappeararoundthemenuicon.The

rstofthesemenusisthePCMenu:

EachtimetheOSDisdisplayedbypressingtheMENUbutton,thePCMenuicon

willbethersticontobehighlighted.



Usethe+and-buttonsonthefrontoftheVGAAudiotoHDMIScalertohighlight

thedesiredmenuicon.Inordertoselecttheavailablefunctionswithinamenu,

presstheMENUbuttonagain.AftertheMENUbuttonispressed,therst

functioninthelistwillbeselected:

CONNECTING AND OPERATING

THE VGA AUDIO TO HDMI SCALER
