Gefen DVI-3000HD Bedienungsanleitung

www.gefen.com

$6)s($

%84$6)($

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

DVI •3000HD is a trademark of Gefen Inc.

All trademarks are the property of their respective companies

ASKING FOR ASSISTANCE

CONTENTS

I1. ntroduction / Operation Notes

F2. eatures / Package Includes

S3. ender Panel Descriptions

R4. eceiver Panel Descriptions

Connecting And Operating The DVI • 3005. 0HD

S6. peciﬁcations

Warranty7.

Congratulations on your purchase of the DVI • 3000HD. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen DVI • 3000HD

The DVI • 3000HD KVM (keyboard, video, mouse) extender sends a DVI

display, USB keyboard/mouse, and RS-232C up to 6.25 miles (10km) from your

DVI source. It’s designed using duplex SC single mode or multi mode ﬁbers to

support digital video plus USB 1.1 and RS-232C peripherals for ultra long range

extensions.

How It Works

The DVI • 3000HD sender unit sits next to your computer. The cables supplied

with the DVI • 3000HD connects your DVI source, USB, and RS-232C to the

send unit. The DVI • 3000HD receiver unit sits next to your DVI display - up to

6.25 miles (10km) away. The display and USB plug into the back of the DVI •

3000HD receiver unit. Duplex SC single mode or multi mode ﬁber cables connect

the DVI • 3000HD-S and the DVI • 3000HD-R units to each other.

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE DVI • 3000HD

The DVI • 3000HD units are housed in a metal box for better RF shielding.•

The DVI • 3000HD uses single/multi-mode SC-SC ﬁber optics to connect• between the sender and receiver.

The• DVI • 3000HD is not HDCP compliant

The DVI • 3000HD is USB 1.1 compliant•

OPERATION NOTES

INTRODUCTION

Features

Extension lengths up to 6.25 miles (10km) can be achieved•

Extends any DVI compliant display•

Extends USB 1.1 compliant devices•

Extends RS-232C devices•

Eliminates computer noise where you work•

Uses duplex SC single mode or multi mode ﬁber cables•

Supports VESA Standard resolutions up to 1280x1024 at 24 bit color 60Hz•

Supports DDWG standard for DVI compliant monitors•

Video is transmitted digitally for zero signal loss•

Package Includes

(1) DVI • 3000hd Sender Unit

(1) DVI • 3000hd Receiver Unit

(2) 12V DC Power Supplies

(2) 6 foot DVI Cable (M-M)

(1) 6 foot USB Cable (A-B)

(1) User Manual

FEATURES

Front Panel

USB B Input

12V DC Power Input

SC-SC Single/Multi-mode

Fiber Input

RS-232 Input Power LED

Indicator

DVI Input

Reset Button

DVI LED

Indicator Link LED

Indicator

Back Panel

SENDER PANEL DESCRIPTIONS

Front Panel

Back Panel

12V DC Power Input

SC-SC Single/Multi-mode

Fiber Input

USB A Inputs

RS-232 Output Power LED

Indicator

DVI Output

Reset Button

Link LED

Indicator

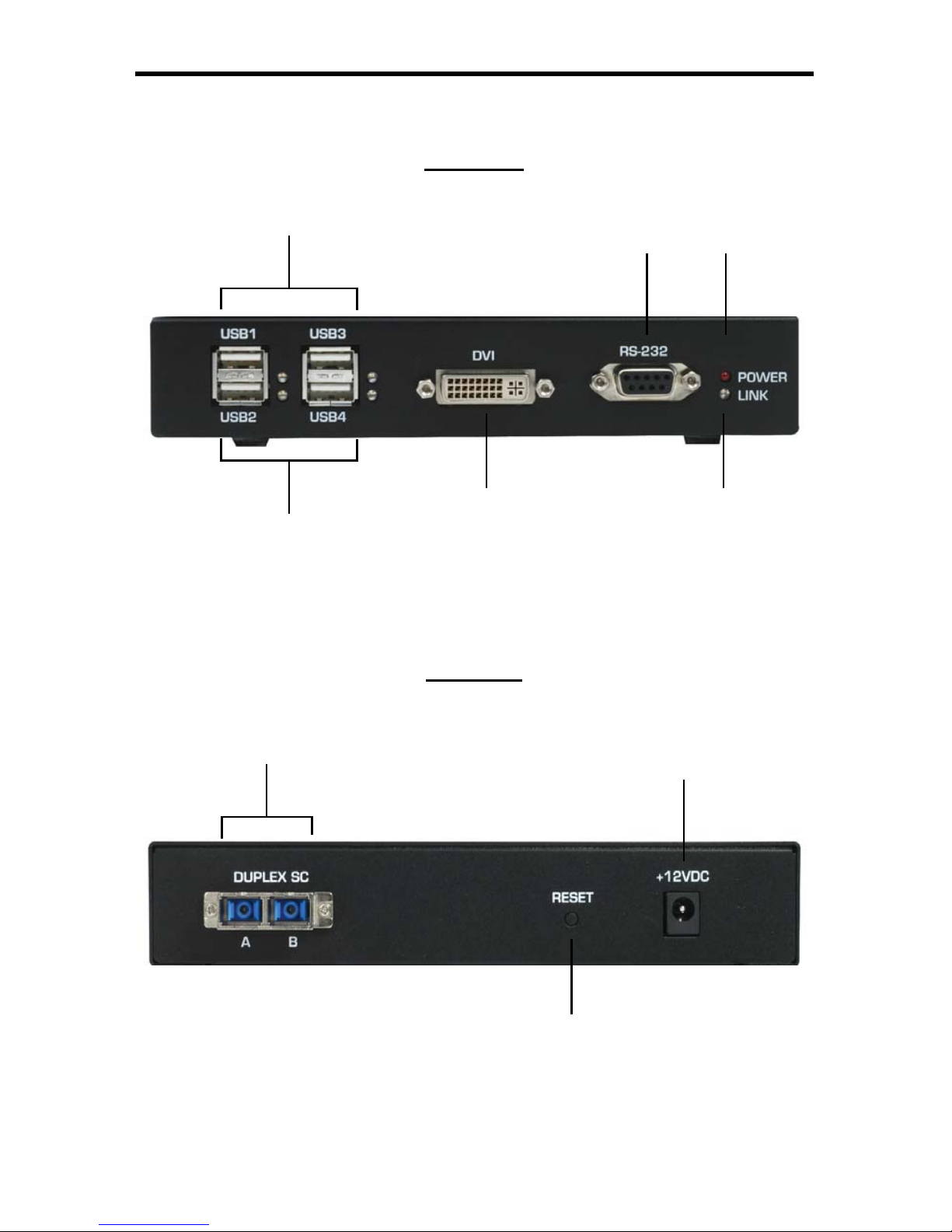

RECEIVER PANEL DESCRIPTIONS

How to Connect the DVI • 3000HD

Connect the DVI source to the DVI • 3000HD sending unit’s DVI input using1. the supplied DVI cable.

Connect the computer’s USB to the DVI • 3000HD sending unit’s USB input2. using the supplied USB A to B cable.

Connect the computer’s RS-232 serial port to the DVI • 3000HD sending3. unit’s RS-232 input using a user supplied RS-232 serial cable.

Connect the display to the DVI • 3000HD receiving unit’s DVI output using a4. user supplied DVI cable.

Connect USB peripherals to the DVI • 3000HD receiving unit’s USB inputs5. using user/device supplied USB cables.

Connect the RS-232 peripheral to the DVI • 3000HD receiving unit’s RS-2326. output using a user supplied RS-232 cable.

Connect the DVI • 3000HD sending and receiving unit’s together using user7. supplied single/multi-mode SC-SC terminated ﬁber optic able.

Plug one of the supplied 12V DC power supplies into the DVI • 3000HD8. sending and receiving units.

Power on the display ﬁrst, and the source second.9.

NOTE: Once the cable connections have been made the power LED indicator

on both sending and receiving units should be active. The link light will also be

active once a sold connection is detected between the sending and receiving

units.

CONNECTING AND OPERATING THE DVI • 3000HD

Video Ampliﬁer Bandwidth ..................................................................... 1.20 Gbps

Input Video Signal .............................................................................. 1.2 Volts p-p

Input DDC Signal ......................................................................... 5 Volts p-p (TTL)

Single Link Range ................................................................................ 1280x1024

DVI Connector .................................................................... DVI-D (19 pin) Female

USB Input ....................................................................... USB Type “B” Connector

USB Output ........................................................... Two USB Type “A” Connectors

Link Connector .................................................................................................. SC

Power Supply ............................................................................................ 12V DC

Power Consumption per unit .......................................................... 36 Watts (max)

Dimensions ........................................................................ 8.4”W x 1.75”H x 4.4”D

Shipping Weight ............................................................................................ 7 lbs.

SPECIFICATIONS
