Gefen DVI Audio Extender Bedienungsanleitung

DVI Audio

Extender

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 884-6294

(800) 545-6900

Fax (818) 884-3108

Technical Support Hours:

9:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

C/O Customer Service

6265 Variel Ave.

Woodland Hills, CA91367-9897

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

The DVI Audio Extender is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

DVI Audio Extender Sender Panel Descriptions

DVI Audio Extender Receiver Panel Descriptions

How To Connect The DVI Audio Extender

Dip Switch Usage Guide

CAT5 Link Cable - Wiring Diagram

Frequently Asked Questions

Terminology

Speciﬁcations

Warranty

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE DVI AUDIO EXTENDER

• The DVIAudio Extender is housed in a metal box for better RF shielding.

• Your CAT-5 cable should not exceed 200 feet for 1280x1024/1080i.

• Your CAT-5 cable should not exceed 150 feet for 1920x1080/1080p.

• If you do not need DDC data you can use a single CAT-5 cable for the video only. The

DDC will not be connected. An additional 5V DC power supply will be needed for the

receiver side.

• If the source requires EDID present, you can use the Gefen DVI Detective to provide

EDID information.

OPERATION NOTES

INTRODUCTION

The DVIAudio Extender sender unit sits next to your computer, DVD player or any set-top

box with a DVI output. The cable supplied with the DVIAudio Extender connects your DVI

source to the send unit. The DVIAudio Extender receiver unit sits next to your DVI display

- up to 200 feet at 1280x1024/1080i ( 150 feet at 1920x1200/1080p). The display plugs

into the back of the DVIAudio Extender receiver unit. Two CAT-5 cables connect the DVI

Audio Extender-S and the DVI Audio Extender-R units to each other.

CONTENTS

The DVI Audio Extender system consists of:

DVI Audio Extender-S

DVI Audio Extender-R

1x 6 ft DVI to DVI Cable M-M

2x 5V DC power supply

1x 6 ft Audio RCA Cable

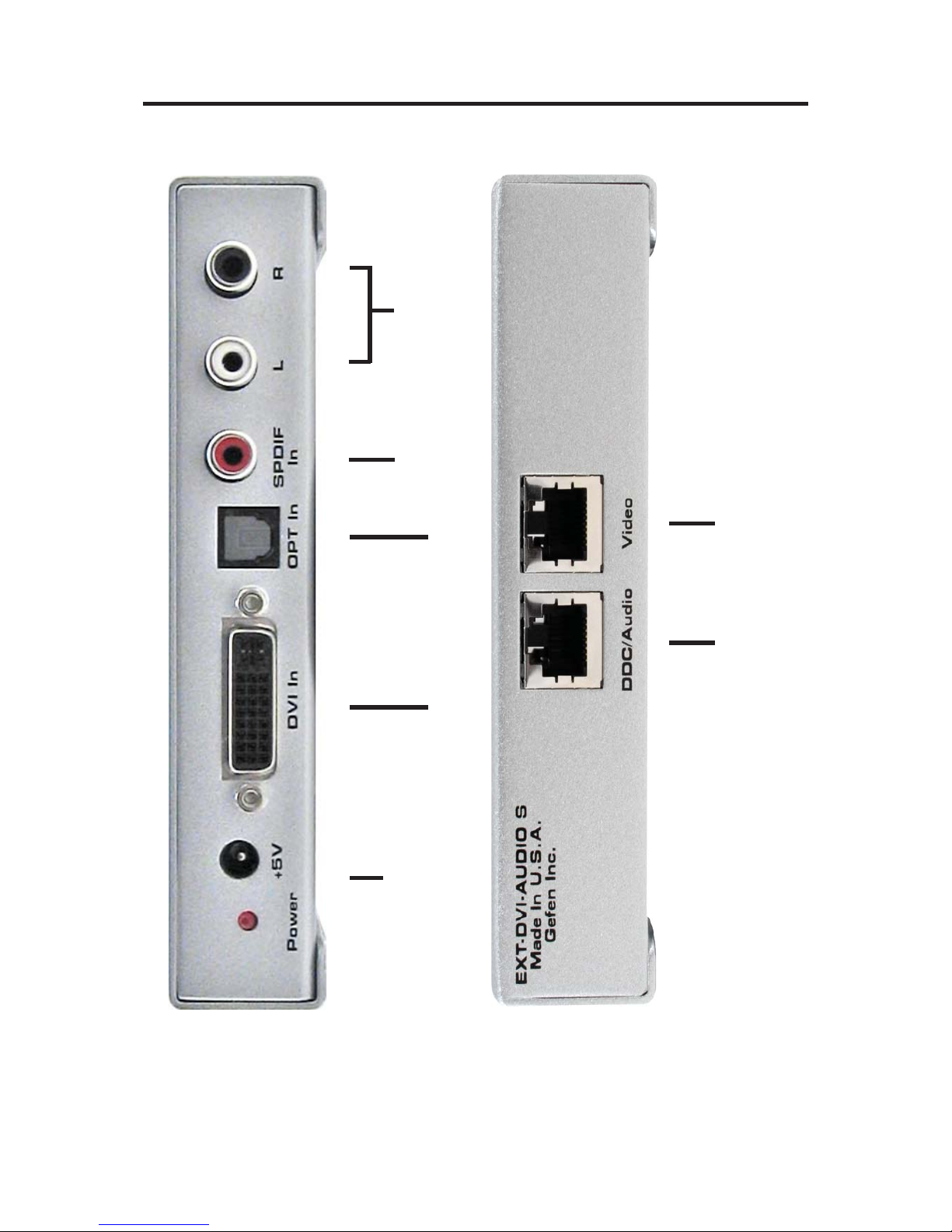

DVI AUDIO EXTENDER SENDER PANEL DESCRIPTIONS

DVI input connects to

DVI source

Connects to 5 volt

power supply Optical Audio In

SPDIF Audio In Analog Audio In

DDC/Audio Video

DVI AUDIO EXTENDER RECEIVER PANEL DESCRIPTIONS

Analog Audio In DVI input connects to

DVI source

Connects to 5 volt

power supply

Optical Audio In

SPDIF Audio In EQ Trim Pod

DDC/Audio Video

Connect your source to the DVI Audio Extender sender unit using the included DVI

Cable.

Connect the audio from your source to the DVI Audio Extender sender using the

included analog RCA cables or optional digital audio cable.

Connect your display to the DVI Audio Extender receiver unit using a DVI Cable.

Connect the audio on your display or audio receiver to the DVI Audio Extender

receiver unit using the analog RCA cables or optional digital audio cable.

Connect your CAT-5 cables between the sender and the receiver

Plug the 5V power supply into the DVI Audio Extender sender and receiver unit

You should now have picture and sound. If you do not see a picture, try unplugging

and re-plugging the DVI input on the DVI sender unit. Make sure your CAT-5 cables

are not crossed. Recycle the power on the unit.

* If problems presist try adjusting the Dip Switches by following the Dip Switch

Usage Guide.

HOW TO CONNECT THE DVI AUDIO EXTENDER

DIP SWITCH USAGE GUIDE

Gefen CAT5 Extreme products (sender and receiver) both contain a pair of dip

switches located underneath the unit. These dip switches are used to select from

sets of conﬁgurations that will equalize the signal to best match the conditions in your

setup.

Receiver Conﬁguration Sender Conﬁguration 10m to 33m Cables

Dip #1 Dip #2 Dip #1 Dip #2

Off Off Off Off Very Good quality cable

On Off Off Off Good quality cable

Off On Off Off Medium cable

On On Off Off Bad cable

Dip #1 Dip #2 Dip #1 Dip #2 2m to 10m Cables

On Off On Off Very Good quality cable

On / Off Off On Off Good quality cable

Off On / Off Off Off Medium cable

On On / Off Off Off Bad cable

Adjustment Guidelines:

1) Dip #1 and Dip #2 on the receiver are Equalization Controllers

a) When both are OFF Equalization is zero => Good quality cables or Bad

quality short cables.

b) When both are ON Equalization is max => Bad quality long cables.

2) Dip #1 on the sender side should be ON when a short and good quality cable is

connected

CAT5 LINK CABLE - WIRING DIAGRAM

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

RJ-45 Jack RJ-45 Jack

1818
