Gefen ToolBox GTB-USB2.0-4LR Bedienungsanleitung

USB 2.0 LR

4-Port Extender

GTB-USB2.0-4LR

GTB-USB2.0-4LR-BLK

User Manual

ASKING FOR ASSISTANCE

Rev A4

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM, Monday thru Friday Paciﬁc Time

Write To:

Gefen, LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefentoolbox.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

USB 2.0 LR 4-Port Extender is a trademark of Gefen, LLC

All trademarks are the property of their respective companies

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Unit Panel Layout

5 Sender Unit Panel Descriptions

6 Receiver Unit Panel Layout

7 Receiver Unit Panel Descriptions

8 Connecting And Operating The USB 2.0 LR 4-Port Extender

9 Troubleshooting

10 Network Cable Wiring Diagram

11 Speciﬁcations

12 Warranty

Congratulations on your purchase of the USB 2.0 LR 4-Port Extender. Your

complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

Why GefenToolBox?

The GefenToolBox line offers portable and easy-to-install solutions for common

A/V system integration setups using HDMI connectivity. GefenToolBox products

are wall-mountable and small in size. GefenToolBox products are easily

transported in the ﬁeld and are ready for immediate and simple installations in

working environments. These products come ﬁnished in a glossy color to blend in

with either a white wall or black cabinet.

The GefenToolBox USB 2.0 LR 4-Port Extender

The GefenToolBox USB 2.0 4-Port Extender extends a USB source up to 330

feet (100 meters) using a single CAT5 cable. This product supports USB 2.0

with data rates up to 480 Mbps in addition to backward-compatibility with USB

1.1. The Receiver Unit allows the connections of up to four (4) USB devices,

providing access to printers, scanners, cameras, external storage media, digital

signage, and automated control systems.

How It Works

Use the supplied USB cable to connect the USB 2.0 4-Port Sender Unit to the

USB host (source) device. Connect the USB devices to the Receiver Unit. Use

a CAT-5 cable to connect the Sender Unit to the Receiver Unit. Connect the

included locking power supply to the Receiver Unit then connect both power

cables to available electrical outlets. The LED indicators on the Sender Unit and

the Receiver Unit provide status on power and data transmission activity.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE USB 2.0 LR 4-PORT EXTENDER

• Use industry standard CAT-5e or CAT-6. Gefen recommends using solid core

cabling for maximum performance.

• The USB 2.0 LR 4-Port Extender is USB 2.0/1.1 compliant

• The USB 2.0 LR 4-Port Extender can extend USB a maximum of 330 ft (100m)

• Use only theAC adapter supplied with the USB 2.0 LR 4-Port Extender. Use

of substitute adapters may cause permanent damage to the system and will

void the warranty.

OPERATION NOTES

Features

• Operate USB 2.0 peripherals up to 330ft (100m) from a computer

• Supports low and high-speed USB

• Uses industry-standard CAT5e or CAT6 cable

• Supports all major operating systems -- Windows, MacOS and Linux.

• True plug-and-play, 100% hardware solution with no drivers required

• Operates at full 480 Mbps speed when running in USB 2.0 mode

• Receiver supports up to 4 powered USB 2.0 connections at 500 mAeach

Package Includes

(1) Gefen USB 2.0 4-Port Extender Sender Unit

(1) Gefen USB 2.0 4-Port Extender Receiver Unit

(1) 5V DC Power Supply with Locking Power Connector

(1) 6 ft. USB Cable

(1) User Manual

FEATURES

Front Panel

Back Panel

SENDER UNIT PANEL LAYOUT

1 2 3

1 USB Input Port

Connect the USB host device to this port.

2 Power Indicator

This LED will become active once a valid connection is made between the

included 5V DC power supply and an open wall power socket.

3 CAT-5 Output Jack

Connects the Sender Unit to the Receiver Unit using CAT-5e/CAT-6 cabling.

4 5V DC Locking Power Connector

This receptacle can be used with an additionally purchased 5V DC power

supply if the host computer does not provide the required 5V for operation.

SENDER UNIT PANEL DESCRIPTIONS

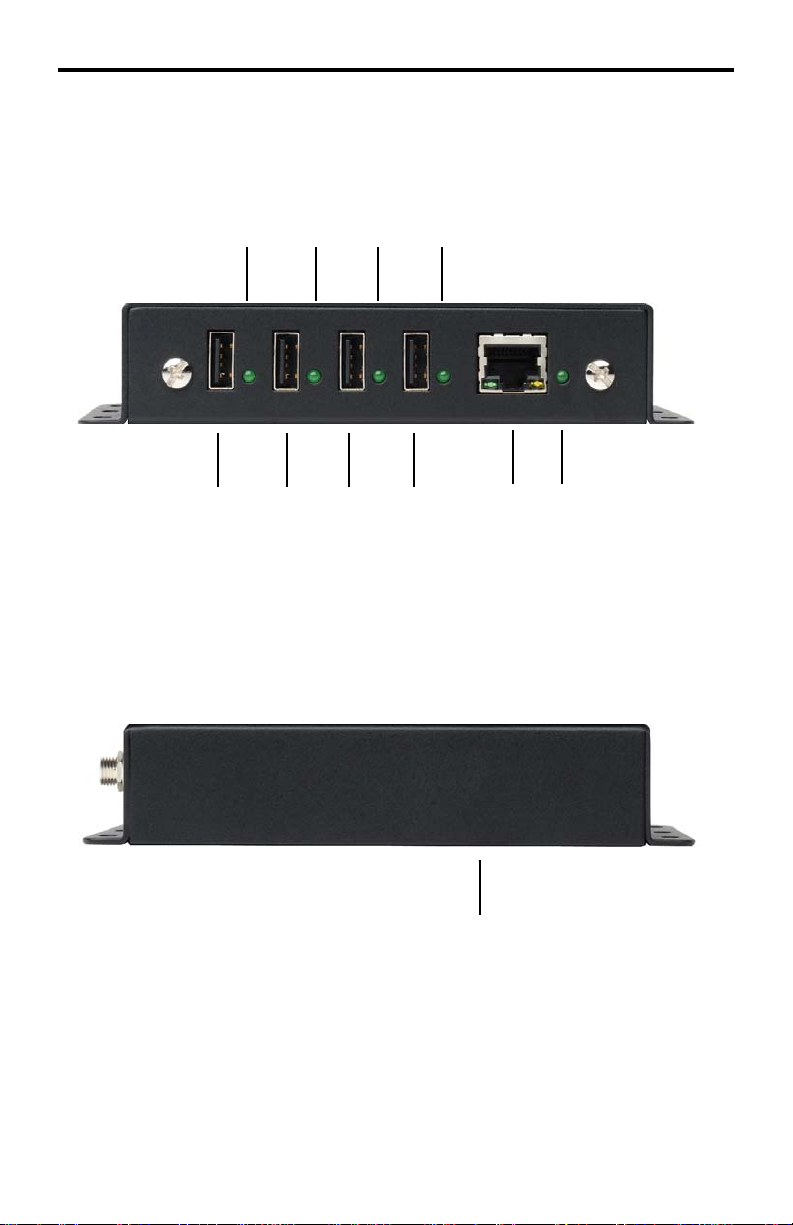

RECEIVER UNIT PANEL LAYOUT

Front Panel

Back Panel

2222

111

1 USB Output Port (1 - 4)

Connect the USB devices to these ports.

2 Host Connection Indicator (1 - 4)

These LEDs will turn bright green once a connection is made from the host

device to a USB accessory device via the USB 2.0 LR 4-Port Extender.

3CAT-5 Input Jack

Connects the Receiver Unit to the Sender Unit using CAT-5e/CAT-6 cabling.

4 Power Indicator

This LED will become active once a valid connection is made between the

included 5V DC power supply and an open wall power socket.

5 5V DC Locking Power Connector

Connect the included 5V DC locking power supply to this connector. Only use

the power supply shipped with this unit.

RECEIVER UNIT PANEL DESCRIPTIONS
