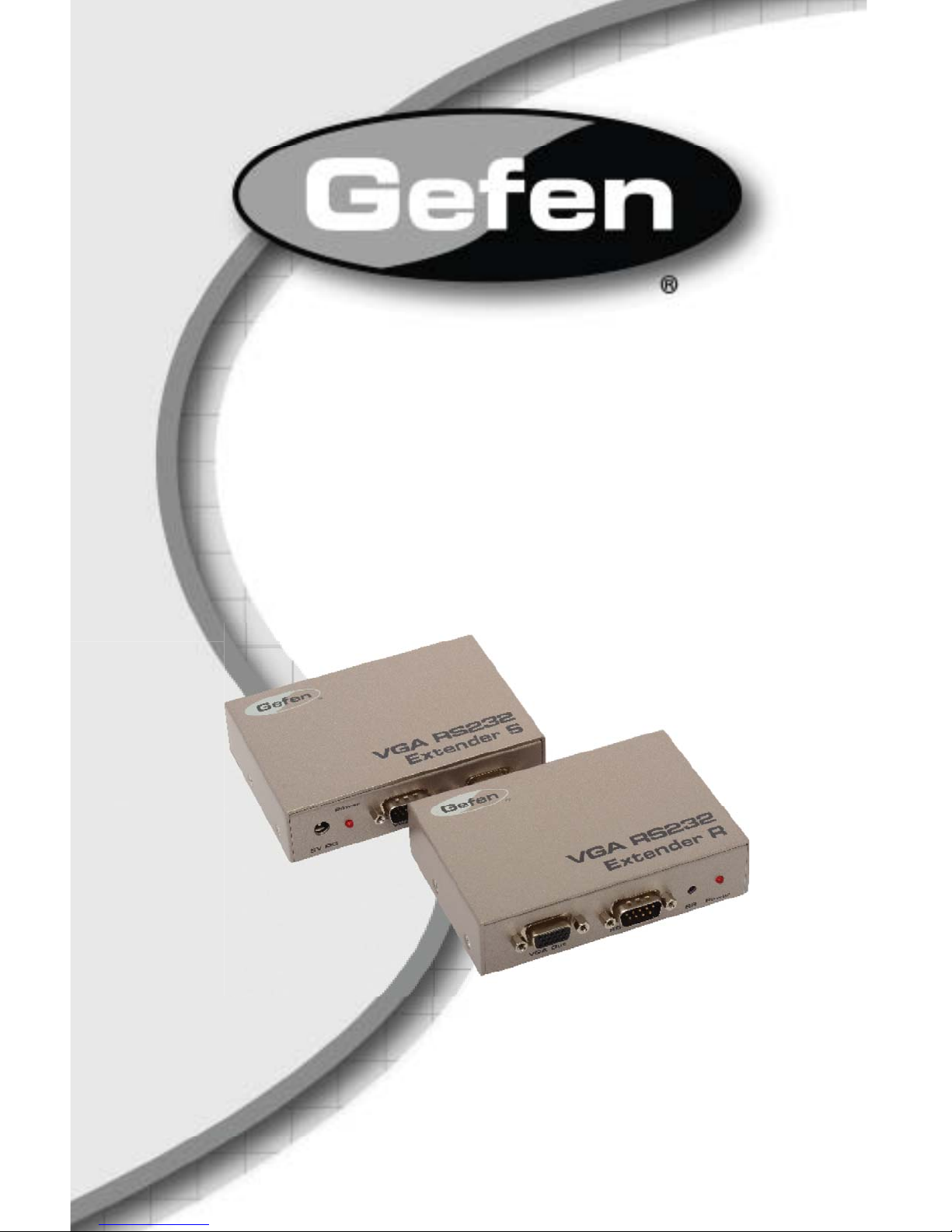

Gefen EXT-VGARS232-141 Bedienungsanleitung
www.gefen.com
VGA RS232
Extender
EXT-VGARS232-141
User Manual
ASKING FOR ASSISTANCE
Rev A2
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday, Pacific Time
Write To:
Gefen LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
VGA RS232 Extender is a trademark of Gefen, LLC
© 2011 Gefen LLC. All rights reserved.
All trademarks are the property of their respective owners.
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Unit Layout
5 Sender Unit Descriptions
6 Receiver Unit Layout
7 Receiver Unit Descriptions
8 Connecting and Operating the VGA RS232 Extender
8 How to Connect the VGA RS232 Extender
8 Wiring Diagram
9 Brightness Control
10 Cable Skew / Color Divergence Control
12 RS-232 Serial Control
13 Network Cable Wiring Diagram
14 Wall Mounting Instructions
15 Specifications
16 Warranty
1
INTRODUCTION
Congratulations on your purchase of the Gefen VGA RS232 Extender. Your com-
plete satisfaction is very important to us.
About Gefen
We specialize in total integration for your home theater, while also focusing on
going above and beyond customer expectations to ensure you get the most from
your hardware. We invite you to explore our distinct product line. Please visit
http://www.gefen.com for the latest offerings in High-Definition signal solutions
or call us between the hours of 8:00 am and 5:00 pm Monday-Friday, Pacific
Standard Time for assistance with your A/V needs. We’ll be happy to assist you.
The Gefen VGA RS232 Extender
The Gefen VGA RS232 extends any VGA source to a monitor or digital signage
application placed up to 330 feet (100 meters) using one CAT-5 cable. This
product also extends RS-232 using the same CAT-5 cable, allowing access to
control devices using RS-232.
How It Works
Place the Sender Unit next to the VGA source. Use the included VGA cable to
connect the source to the Sender Unit. Connect the Receiver Unit to the monitor
or digital signage display with a VGA cable (not supplied). Use one CAT-5 cable,
up to 330 feet (100 meters), to connect the Sender Unit to the Receiver Unit.
Connect an RS-232 serial cable from the RS-232 port on the Sender Unit to the
RS-232 control device. Connect the RS-232 port on the Receiver Unit to the RS-
232 device.
2
OPERATION NOTES
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE GEFEN VGA RS232 EXTENDER
• CAT-5e cables should not exceed 330 feet (100 meters).
• Unshielded (UTP) CAT-5e is recommended.
Features
• Extends any VGA and RS-232 source up to 330 feet (100 meters)
• Supports resolutions up to 1920x1200
• All-digital signal transmission for zero signal loss
• Metal enclosure improves RF shielding
Package Includes
(1) Gefen VGA RS232 Extender Sender Unit
(1) Gefen VGA RS232 Extender Receiver Unit
(1) 6 ft. VGA cable (M-F)
(1) 6 ft. serial cable (M-F)
(2) 5V DC Power Supplies
(1) Set of Wall Mounting Plates
(1) User Manual
3
FEATURES
4
SENDER UNIT LAYOUT
1234
5
Front
Back
5
SENDER UNIT DESCRIPTIONS
1 5V DC Power Connector
Connect the included 5V DC power supply to this connector.
2 Power Indicator
This LED will turn bright red once the included 5V DC power supply has been
properly connected to the unit and the power supply has been connected to an
available electrical outlet.
3 Locking VGA Port
Connect a VGAsource to this port.
4 RS-232 Port
Connect the RS-232 host device to this port.
5 CAT-5 Output Jack
Connects the Sender Unit to the Receiver Unit using a CAT-5 cable.
6
RECEIVER UNIT LAYOUT
1234
55
Front
Back
7
RECEIVER UNIT DESCRIPTIONS
1 Locking VGA Port
Connect a VGAsource device to this VGAport.
2 RS-232 Port
Connect the RS-232 device to this port.
3 Brightness Trimpot
Adjusts the brightness of the picture.
4 Power Indicator
This LED will turn bright red once the included 5V DC power supply has
been properly connected to the unit and the locking power supply has been
connected to an available electrical outlet.
5 5V DC Power Connector
Connect the included 5V DC power supply to this connector.
6 CAT-5 Input Jack
Connects the Sender Unit to the Receiver Unit using CAT-5 cabling.
