VDL•1000

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

VDL•1000 is a trademark of Gefen Inc.

Macintosh is a trademark of Apple Computer Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

INTRODUCTION

OPERATION NOTES

INSTALLATION INSTRUCTIONS

HOW TO ADJUST THE PICTURE

CAT5 WIRING DIAGRAM

WIRING DIAGRAM

SPECIFICATIONS

WARRANTY

Thank you for purchasing the new ex•tend•it VDL•1000 by Gefen, Inc.

The VDL•1000 improves the quality of picture transmission over CAT5, CAT5e, or CAT6

UTPorSTPcables andmay beusedwithanyextender. CAT5/6cable hasbeen optimized

for network data transmission and has four separate twisted pairs each with a different

number of turns per unit length to reduce crosstalk between pairs. This results in each

pair being a slightly different overall length.

When this type of cable is used for high quality video transmission, usually the Red, Green

and Blue signals are each sent down a separate pair (within one 4-pair cable). This may

have a signiﬁcant effect, similar to misconvergence, as signals take a slightly different

time to arrive at the receiving end and as a result suffer visible colour separation between

Red, Green and Blue.

This distortion is worse for higher resolution signals and is often called SKEW - the ef-

fects are removed by adding a short, wide bandwidth delay to the signals that arrive at

the monitor ﬁrst.

Adding the VDL•1000 frequently results in much clearer pictures.

The unit is placed in series with the monitor lead and has three separate delay lines, each

switchable with 4 binary bits of 3nS so the delay is adjustable from 0 to 45nS in 3nS in-

crements.

The unit does not require a separate power supply.

CONTENTS

VDL•1000 system consists of:

(1) VDL 1000

(2) VGA M-F cables (6FT)

(1) User Manual

INTRODUCTION

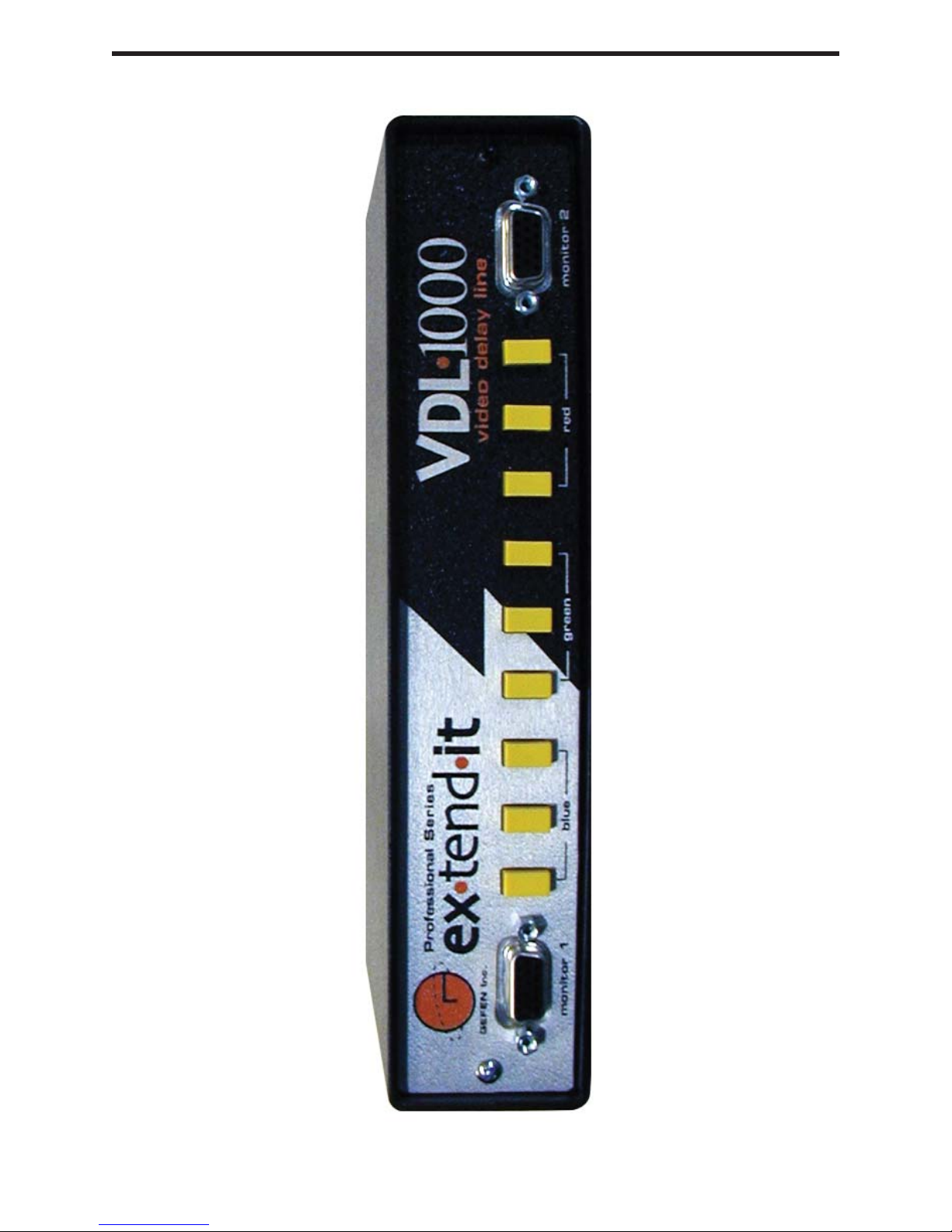

VDL•1000 FRONT PANEL LAYOUT

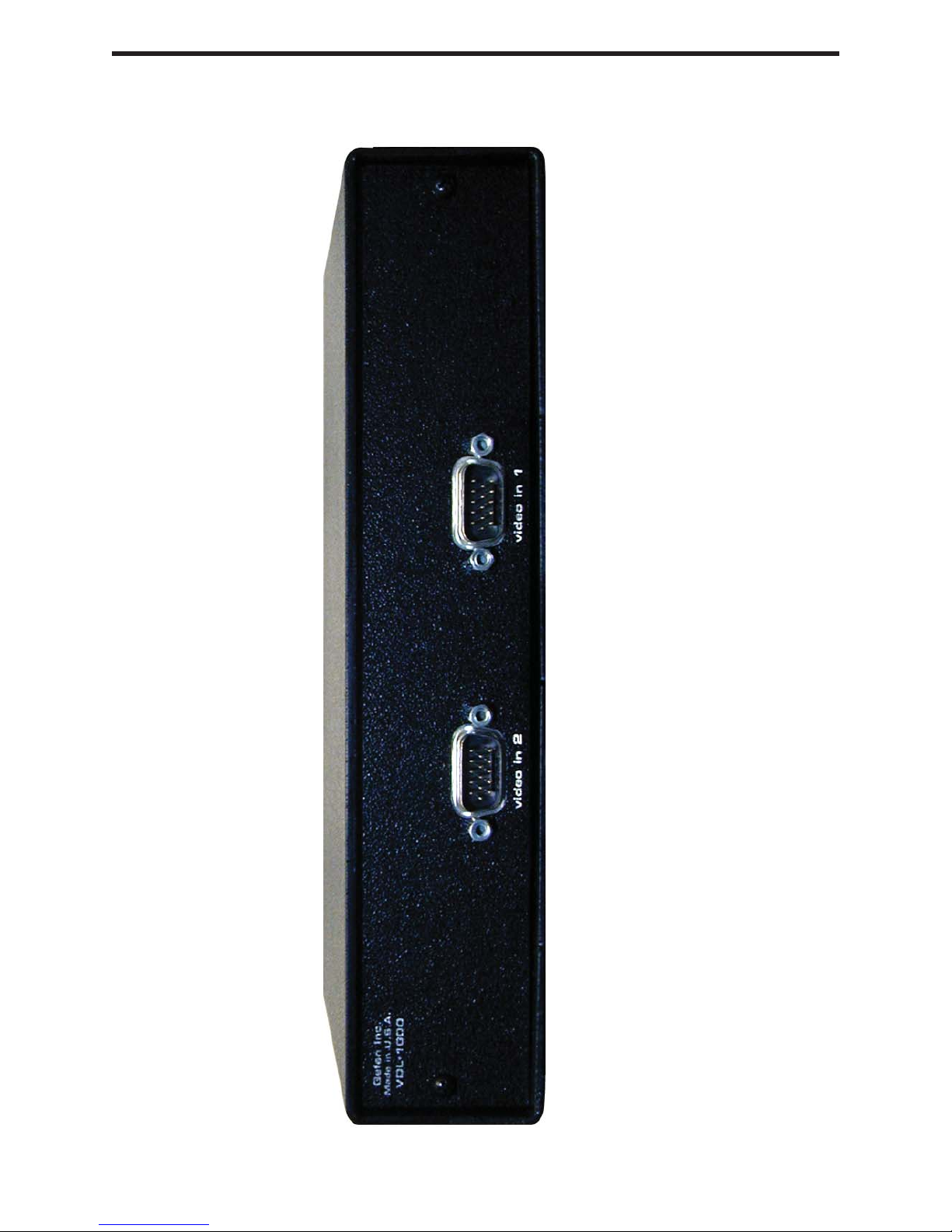

VDL•1000 BACK PANEL LAYOUT

TIMING DETAILS

Video Ampliﬁer Bandwidth .................................................................................. 350 MHz

Actual Bandwidth ................................................................................................ 120 MHz

Input Video Signal ......................................................................................... 1.2 Volts p-p

Video In .................................................................................................................. HD-15

Video out ............................................................................................................... HD-15

Power Consumption ............................................................................................... 1 Amp

Power Supply .......................................................................................... 5VDC (External)

Dimensions .................................................................................... 1.9”H x 1.6”W x 3.5”D

Shipping Weight ....................................................................................................... 2 Lbs

SPECIFICATIONS

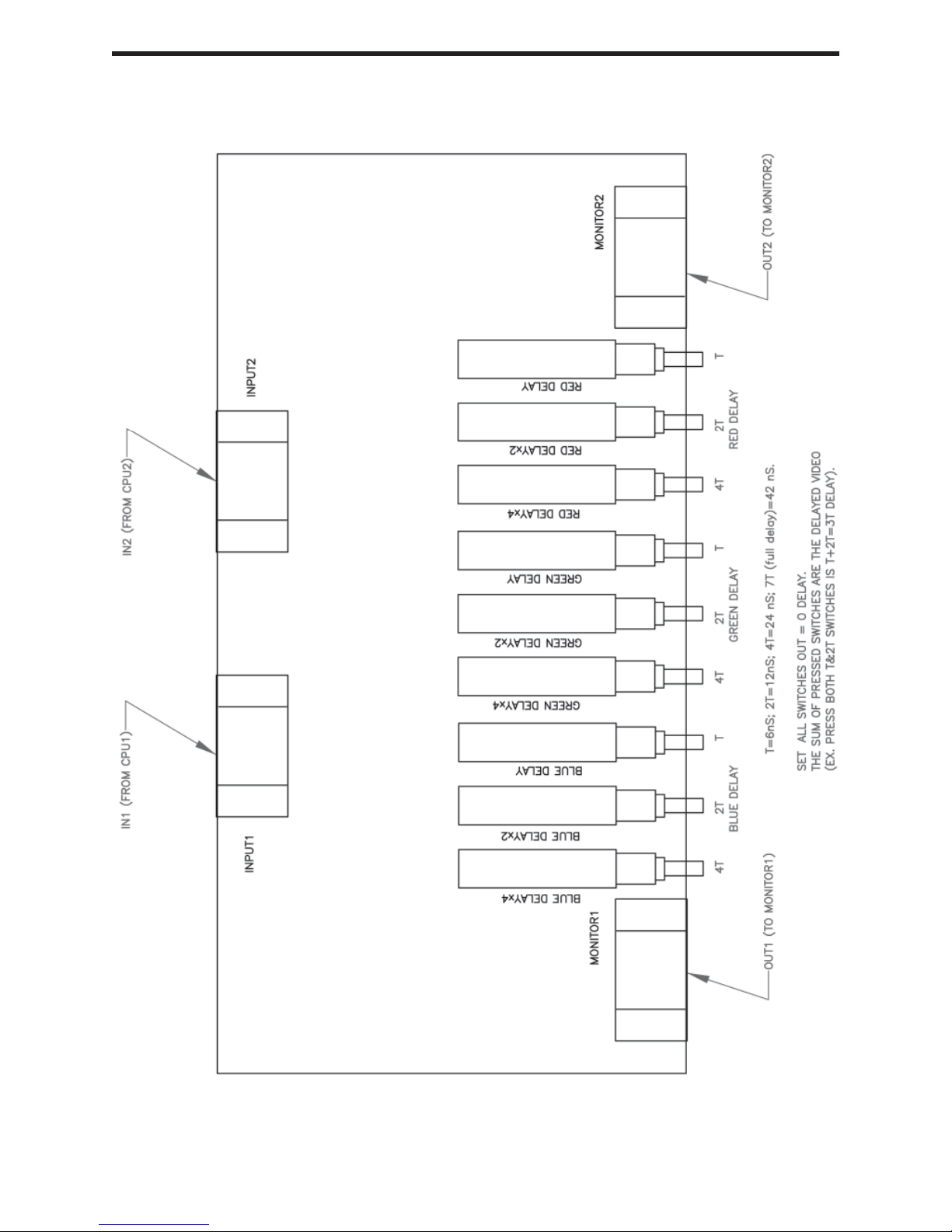

WIRING DIAGRAM

Gefen Inc. warrants the equipment it manufactures to be free from defects in

material and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within two

(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace

the equipment, provided that the equipment has not been subjected to mechanical,

electrical, or other abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the time of repair. Such repairs are warranted

for ninety (90) days from the day of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose,

all of which are expressly disclaimed.

1. Proof of sale may be required in order to claim warranty.

2. Customers outside the US are responsible for shipping charges to and from Gefen.

3. Copper cables are limited to a 30 day warranty and cable must be free from any

scratches, markings, and neatly coiled.

The information in this manual has been carefully checked and is believed to be

accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may

be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,

special, incidental, or consequential damages resulting from any defect or omission

in this manual, even if advised of the possibility of such damages. The technical

information contained herein regarding VDL•1000 features and speciﬁcations is subject

to change without notice.

WARRANTY
