Gefen VGA-141SR Bedienungsanleitung

VGA Extender SR

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 884-6294

(800) 545-6900

Fax (818) 884-3108

Technical Support Hours:

9:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

C/O Customer Service

6265 Variel Ave.

Woodland Hills, CA91367-9897

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

the VGA Extender SR is a trademark of Gefen Inc.

Macintosh is a trademark of Apple Computer Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

INTRODUCTION

OPERATION NOTES

INSTALLATION INSTRUCTIONS

HOW TO ADJUST THE PICTURE

CAT5 WIRING DIAGRAM

WIRING DIAGRAM

SPECIFICATIONS

WARRANTY

Thank you for purchasing the new ex•tend•it VGA Extender SR by Gefen, Inc.

The ex•tend•it VGA Extender SR by Gefen allows users the beneﬁts of extending VGA

signals beyond the desktop. The VGAExtender SR series can be used to extend a VGA

signal to cover the distance of 150 feet. Industry standard Category 5 (CAT-5) cable is

used for the extension.

CONTENTS

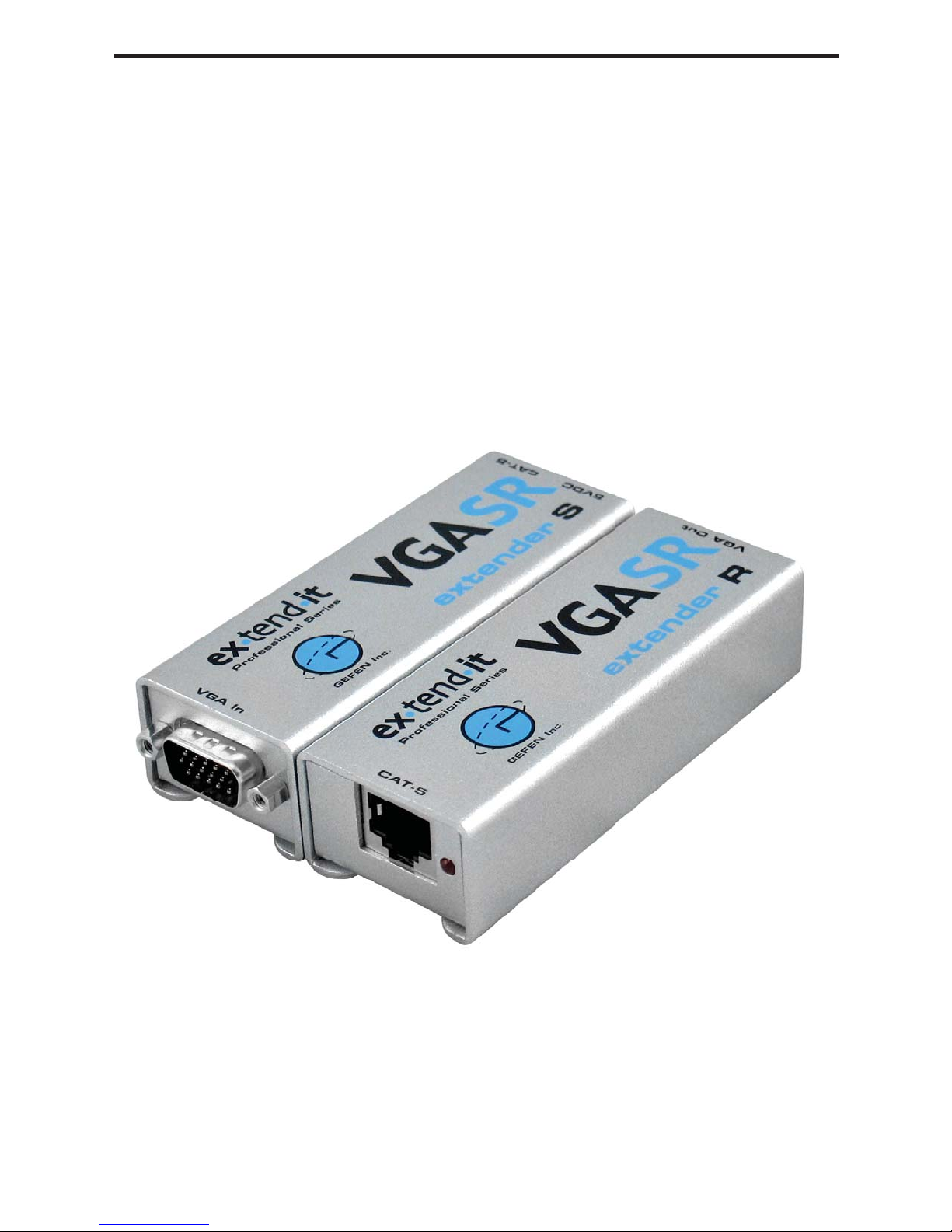

The VGA Extender SR system consists of:

(1) VGA Extender SR sender unit

(1) VGA Extender SR receiver unit

(1) 5 VDC power supply

(1) VGA M-F cables (6FT)

(1) User Manual

HOW IT WORKS

In its most basic application, the VGA Extender SR sender resides next to the computer.

With the supplied VGAcable, the VGAExtender SR sender is connected to the computer.

The VGA Extender SR receiver is then placed next to the monitor or projector. Industry

standard Category 5 (CAT-5) cable is used to link the VGAExtender SR sender and VGA

Extender SR receiver together.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE VGA EXTENDER SR SYSTEM

• UseindustrystandardCategory-5(CAT-5)cabletooperatetheVGAExtenderSRsystem.

CAT-5 e cable is preferred.

• Please connect all the cables between the computer and the VGA Extender SR before

powering up the VGA Extender SR unit.

• The VGA Extender SR units are housed in a metal box for better RF shielding.

OPERATION NOTES

Connect the VGA Extender SR sender unit to the VGA output on the back of your

computer. The supplied six foot M-F VGA cable connects the CPU and sender unit

together.

Connect the VGA Extender SR receiver unit to your monitor with the VGA cable

that is attached to your monitor.

Connect the CAT5 cable between the VGA Extender SR sender and receiver’s

CAT5 input.

Plug the 5 volt power supply into the sender unit. The VGAExtender SR receiver

will draw power from the sender.

INSTALLATION INSTRUCTIONS

HOW TO ADJUST THE PICTURE

The ﬁrst step in adjusting the video quality is to display text and a graphic on your monitor

(i.e. desktop icons). Then set your computer to the resolution that you will be using most

frequently. The dip switches are used to set the focus and sharpness of the picture to the

best possible setting. Set the dip switches to the settings that are recommended for the

different lengths of CAT5 cable (see chart below). Verify that the picture quality is to your

satisfaction. If the recommended setting does not produce a great quality picture, try using

a different dip switch setting.

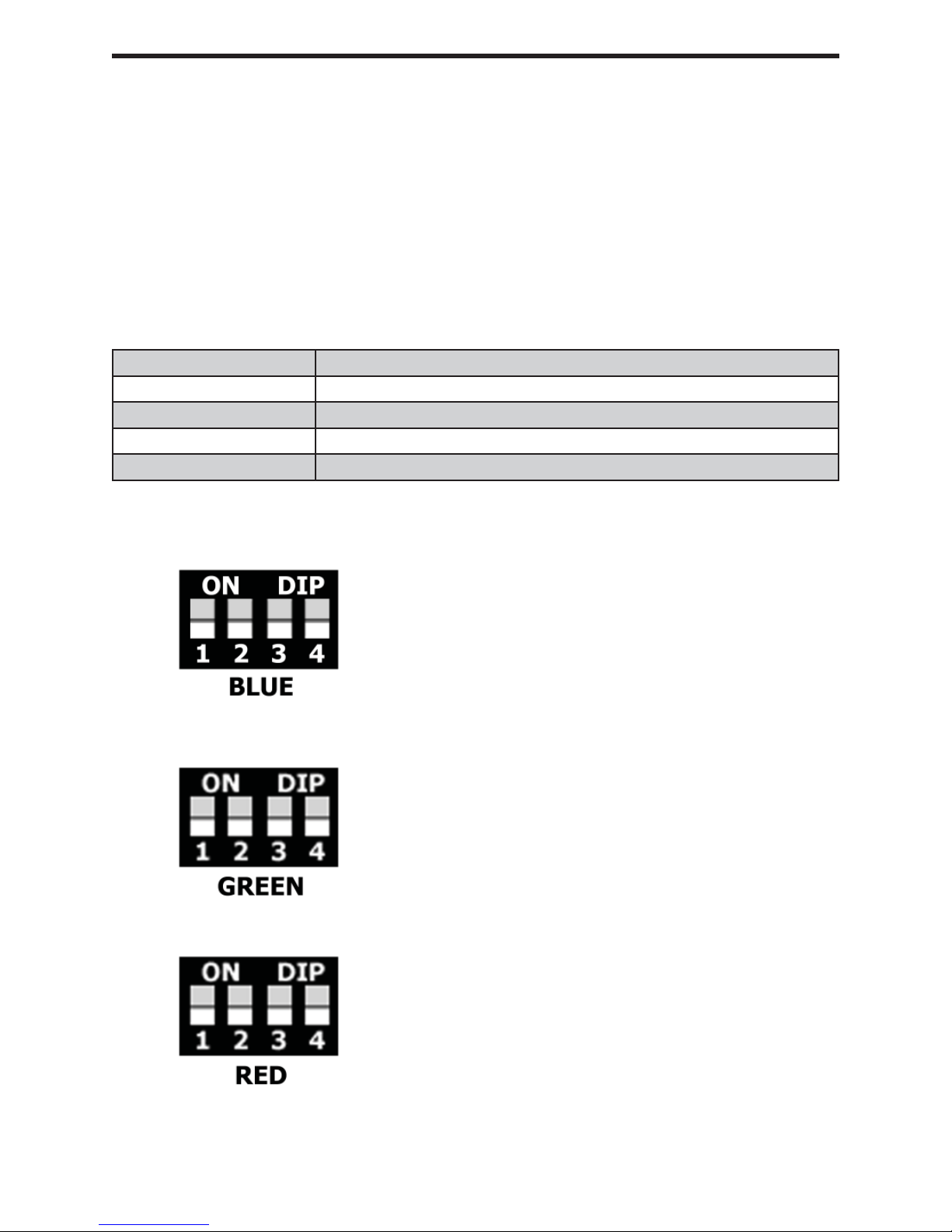

The dip switches are located underneath the Receiver Unit. Peel off the silver sticker to

reveal the dip switch bay.

0-25 Feet All dip switches OFF for all colors.

26-55 Feet Set dip switch #1 ON all colors. 2,3,4 remain OFF.

56-85 Feet Set dip switch #2 ON all colors. 1,3,4 remain OFF.

116-145 Feet Set dip switch #3 ON all colors. 1,2,4 remain OFF.

146 Feet and Up Set dip switch #4 ON all colors. 1,2,3 remain OFF.

NOTE: The dip switches are set to the OFF position when the switch is closest to the

number or in the down position.

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

RJ-45 Jack RJ-45 Jack

1818

CAT5 WIRING DIAGRAM

WIRING DIAGRAM

Video Ampliﬁer Bandwidth .................................................................................. 350 MHz

Input Video Signal ......................................................................................... 1.2 Volts p-p

Video In .................................................................................................................. HD-15

Focus .......................................................................................................... 25 to 150 feet

Video Out ............................................................................................................... HD-15

Link Connector ........................................................................................................ RJ-45

Power Supply ......................................................................................................... 5V DC

Power Consumption .................................................................................... 5 watts (max)

Dimensions .................................................................................... 1.9”H x 1.6”W x 3.5”D

Shipping Weight ....................................................................................................... 2 lbs.

SPECIFICATIONS
