Gefen COMPAUD-44424 Bedienungsanleitung
4x4 Component
Audio Matrix
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday.
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
The 4x4 Component Audio Matrix is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction / Operation Notes
Features
Panel Layout
Using the 4x4 Component Audio Matrix
RMT16-IR Installation
RS-232 Interface
4x4 Component Audio Matrix Rack Mount Diagram
Specifications
Terminology
Warranty
1
2
3
4
5
6
7
8
9
10
INTRODUCTION
Thank you for purchasing the 4x4 Component Audio Matrix.
The 4x4 Component Audio Matrix switches four component video with analog audio
sources to any four component with analog audio displays.
The4x4ComponentAudioMatrix switcherhas fourcomponent videowith analogaudio
inputs and four component with analog audio outputs. There are 4 component video
( 3 RCA) with analog audio ( 2 RCA) inputs and 4 component ( 3 RCA) with analog
audio ( 2 RCA) outputs.
Note: The switching is done by using either the RMT-16-IR remote control or through
the RS232 port. The 4x4 ComponentAudio Matrix is rack mountable.
1
OPERATION NOTES
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE 4X4 COMPONENT AUDIO MATRIX
• The 4x4 ComponentAudio Matrix is housed in a metal box for better RF shielding.
• The 4x4 Component Audio Matrix works with all component displays
2
FEATURES
Features
• Allows any component display to view any source at any time
• Allows any source to be displayed on multiple displays at the same time
• Maintains highest video resolution up to 1080p
• Each display's inputs can be switched with the IR remote control, front panel push
buttons, or through RS232
Includes:
(1) 4x4 Component Audio Matrix
(4) 5 RCA Cables (M-M)
(1) 12VDC 5A Power Supply
(1) User Manual
(1) RMT-16IR Remote Control
(1) Rack Ears
PANEL LAYOUT
3
Display 1
LED Source Indicator
and selector button
Front Panel
RS232 Controller Port
Display 2
LED Source Indicator
and selector button
Display 3
LED source Indicator
and selector button
Display 4
LED Source Indicator
and selector button
IR Sensor
Power Indicator
and Reset button
Back Panel
Connects to 12VDC Power
Supply
Component and Analog
Audio Input 4
Component and Analog
Audio input 3
Component and Analog
Audio Input 2
Component and Analog
Audio Input 1
Component and Analog
Audio Output 1
Component and Analog
Audio Output 2
Component and Analog
Audio Output 3
Component and Analog
Audio Output 4
Connect all the sources to the component and analog audio inputs on the 4x4
Component Audio Matrix using the supplied cables.
Connect the component with audio displays to the outputs on the 4x4
Component Audio Matrix.
Connect the 12VDC power supply to the 4x4 Component Audio Matrix
Use the push buttons for each display on the front of the unit to select the
source for that display.
Controlling the 4x4 Component Audio Matrix using the RMT16-IR:
Pressing Buttons... Switches...
1-4 Display 1 to view Source 1, 2, 3, or 4
5-8 Display 2 to view Source 1, 2, 3, or 4
9-12 Display 3 to view Source 1, 2, 3, or 4
13-16 Display 4 to view Source 1, 2, 3, or 4
USING THE 4X4 COMPONENT AUDIO MATRIX
1
2
3
4
5
4
5
RMT16-IR INSTALLATION
1. Remove battery cover from the back of the RMT16-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up.
The side that is not marked must be facing down.
4. Test the RMT16-IR remote by pressing ONLY one button at a time. The indicator
light on the remote will flash once each time you press a button. WARNING: Do not
press multiple buttons simultaneously and do NOT press buttons rapidly. These ac-
tions will cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT16-IR ships with two batteries. One battery is required for operation,
the second battery is complimentary.
RS-232 INTERFACE
6
Binary Table
ASCII Corresponding
RMT16-IR
Button
Binary ASCII Corresponding
RMT16-IR
Button
Binary
1 1 0011 0001 9 9 0011 1001
2 2 0011 0010 a 10 0110 0001
3 3 0011 0011 b 11 0110 0010
4 4 0011 0100 c 12 0110 0011
5 5 0011 0101 d 13 0110 0100
6 6 0011 0110 e 14 0110 0101
7 7 0011 0111 f 15 0110 0110
8 8 0011 1000 g 16 0110 0111
RS232 Settings
Bits per second ................................................................................................. 19200
Data bits .................................................................................................................... 8
Parity .................................................................................................................. None
Stop bits .....................................................................................................................1
Flow Control ....................................................................................................... None

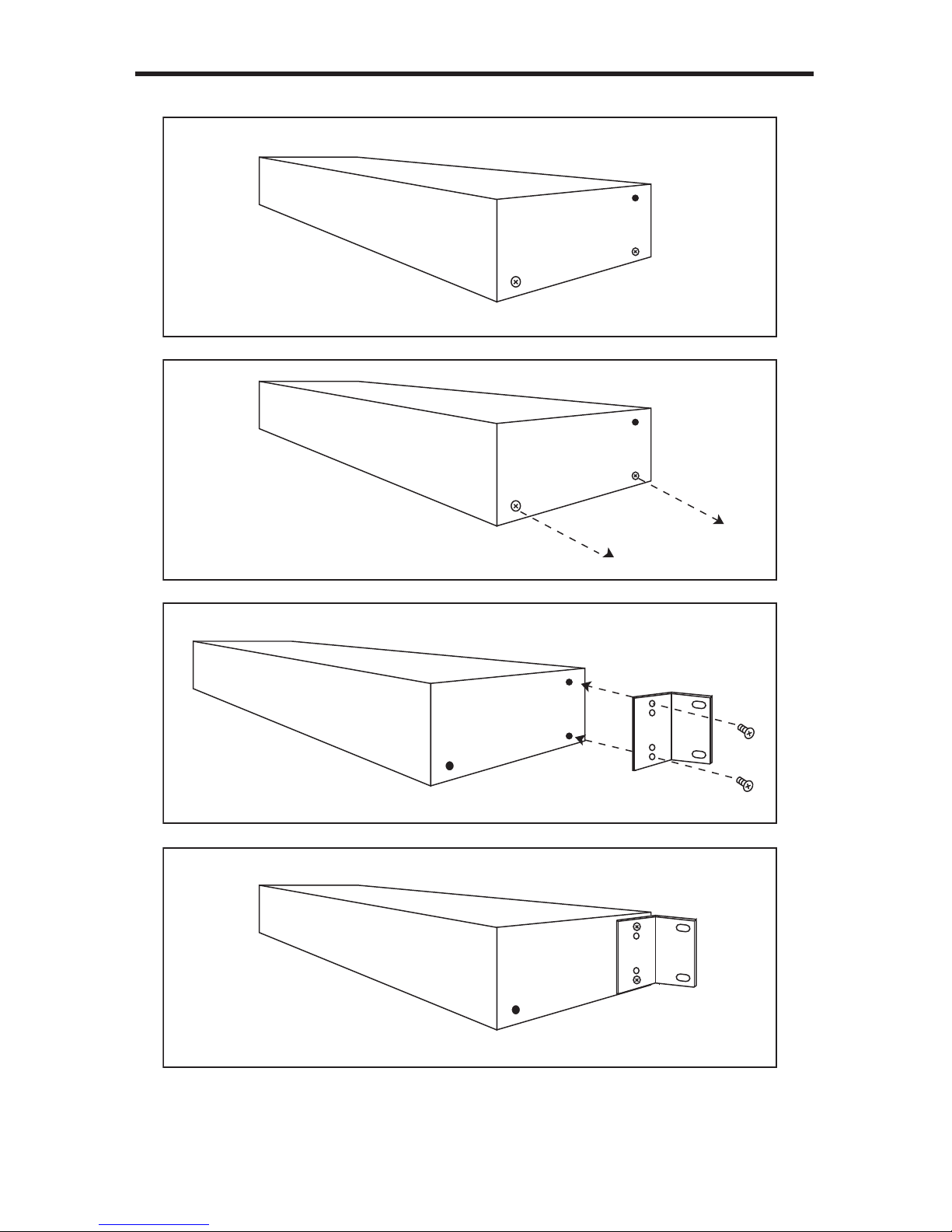

4X4 COMPONENT AUDIO MATRIX RACK MOUNT DIAGRAM
7
