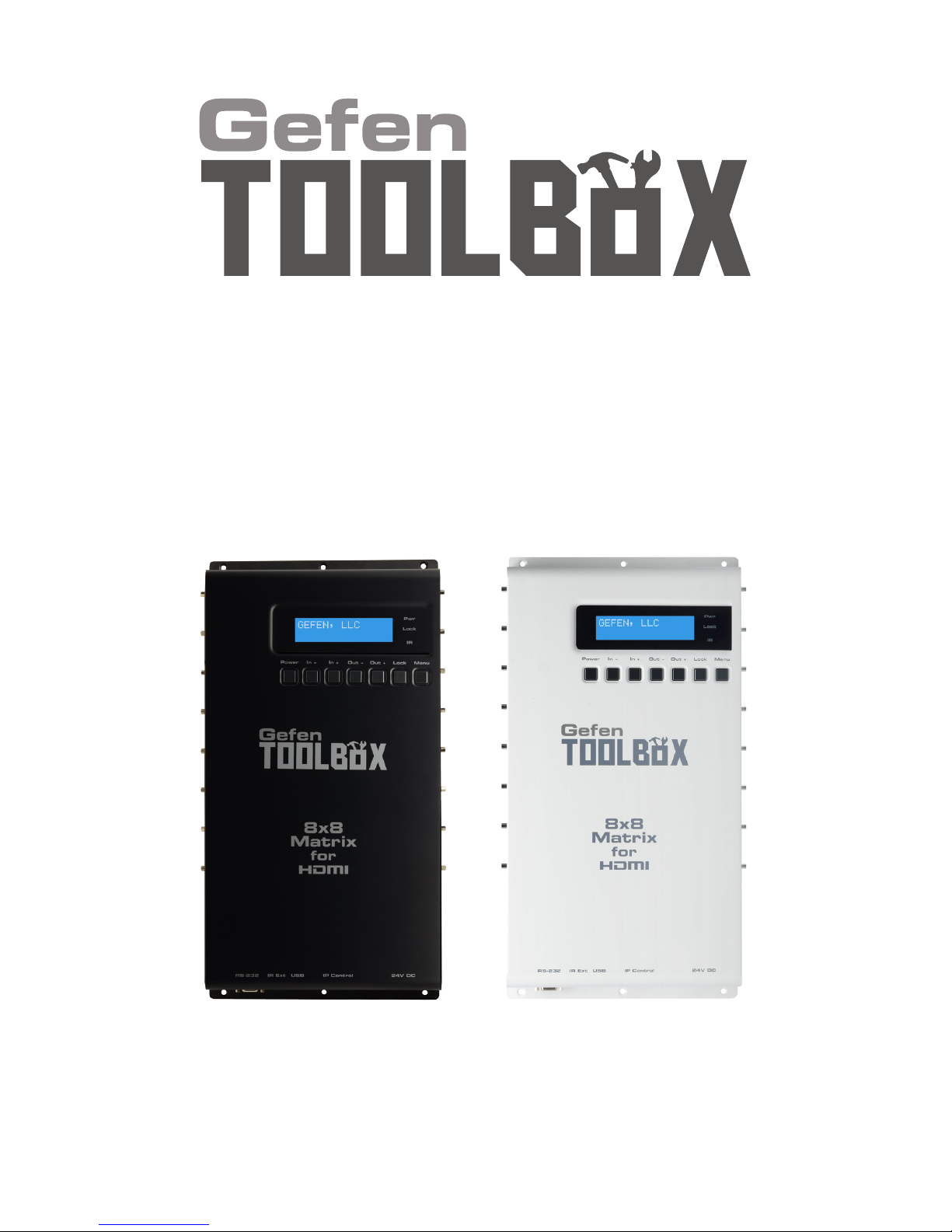

Gefen GTB-HDFST-848 Bedienungsanleitung

8x8 Matrix for HDMI

GTB-HDFST-848

GTB-HDFST-848-BLK

User Manual

gefentoolbox.com

ASKING FOR ASSISTANCE

Rev A7

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday, Pacic Time

Write To:

Gefen, LLC.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefentoolbox.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and any

accompanying documentation without prior written notice.

8x8 Matrix for HDMI is a trademark of Gefen, LLC

HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing in the United States and other countries.

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

4 Top / Front

5 Left Side / Right Side

6 Panel Descriptions

7 Connecting the 8x8 Matrix for HDMI

7 Wiring Diagram

8 Operating the 8x8 Matrix for HDMI

8 Main Display

9 Determining the current Routing State

10 Routing Sources

13 Locking / Unlocking the Front Panel

14 Fast Switching Technology

15 Determining the current Switching Mode

18 Setting the IR channel on the 8x8 Matrix for HDMI

20 IR Remote Control

20 Layout and Descriptions

21 Installing the IR Remote Control Battery

22 Routing Sources using the IR Remote Control

24 Using the IR Extender

25 EDID Management

26 RS-232 Serial Control

27 IP / UDP Conguration

28 RS-232 / IP Commands

28 IP / Telnet Conguration

44 UDP Conguration

48 Routing / Naming / +5V / Presets

58 Status

63 FST

65 Masking

82 Web Interface

105 Firmware Update

105 Firmware Update Procedure (over IP)

106 Firmware Update Procedure (over USB)

108 Wall Mounting Instructions

109 Specications

110 Warranty

111 Licensing

Congratulations on your purchase of the GefenToolBox 8x8 Matrix for HDMI. Your complete

satisfaction is very important to us.

About Gefen

We specialize in total integration for your home theater, while also focusing on going above

and beyond customer expectations to ensure you get the most from your hardware. We

invite you to explore our distinct product line. Please visit http://www.gefen.com for the

latest offerings in High-Denition signal solutions or call us between the hours of 8:00 am

and 5:00 pm Monday-Friday, Pacic Standard Time for assistance with your A/V needs.

We’ll be happy to assist you.

The GefenToolBox 8x8 Matrix for HDMI

The GefenToolBox 8x8 Matrix for HDMI routes eight Hi-Def sources to any eight HDTV

displays. Resolutions up to 1080p Full HD and 1920x1200 plus 3DTV are supported, along

with multichannel digital audio formats such as Dolby® True HD and DTS-HD® Master

Audio™.

The Matrix eliminates the need to disconnect and reconnect Hi-Def sources. It works

with any HDMI source that needs to be connected to an HDTV display. Each source is

accessible at all times from any display using the front-panel push buttons, IR remote

control, RS-232 interface, or via Telnet protocol.

How It Works

Connect the Hi-Def audio/video sources to the eight HDMI inputs using the supplied HDMI

cables. Connect up to eight HDTV displays to the HDMI outputs. 3D content can be dis-

played when connecting a 3DTV and 3D source. Connect the power supply to the matrix

and plug the power cable into an available electrical outlet. Apply power to the sources and

displays. The Hi-Def sources will be routed according to the current routing selection.

Fast Switching Technology (FST) is a Gefen software implementation for HDMI products.

FST was created to improve the lengthy HDMI authentication process, based on the HDMI

and HDCP specications. FST allows for connecting/disconnecting or turning any of the

HDTV displays on or off without affecting other displays within the audio/video distribution

system.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE GEFENTOOLBOX 8X8 MATRIX FOR HDMI

• EDID contains the A/V capabilities of a display device in regards to video resolutions

and audio formats supported. This information is used by the source device to

determine the format of the A/V signal on the outputs. The GefenToolBox 8x8 Matrix

for HDMI incorporates advanced EDID management to ensure compatibility with all

sources and display devices. See pages 25 for more details.

• The GefenToolBox 8x8 Matrix for HDMI can detect the presence of Deep Color (12-

bit signal) automatically and will disable Deep Color EDID features across all other

outputs if any connected device or display is not capable of processing Deep Color.

This automatic behavior ensures compatibility among all output devices in a mixed-

device environment. This feature cannot be disabled.

• When powering the GefenToolBox 8x8 Matrix for HDMI, the Matrix will undergo a

momentary initialization sequence. This is normal operation and may take a few

seconds.

OPERATION NOTES

FEATURES

Supported HDMI Features

• 225 MHz (up to 12 bit YUV 444 @ 1080p)

• Deep Color

• Dolby® TrueHD and DTS-HD Master Audio™

• Lip-Sync

Features

• Route any eight Hi-Def sources to any eight HDTV displays

• Supports resolutions up to1080p Full HD and 12-bit Deep Color

• 3DTV pass-through

• Supports LPCM 7.1 audio, Dolby Digital® Plus, Dolby® TrueHD, and DTS-HD Master

Audio™

• Advanced EDID Management for rapid integration of sources and displays

• Gefen FST speeds up the HDCP authentication process

• Fast and Slow FST Modes

• Front Panel Push-Button Switching

• Supports the use of DVI sources and displays with HDMI-to-DVI cables or adapters

• IP Control via Web Graphical User Interface and Telnet

• RS-232 serial control for automation

• IR Remote Control (handheld remote included)

• Field-upgradable rmware via built in Web Graphical User Interface

• 24V DC Power supply

• Wall-mountable

• Uses Gefen Mono-LOK HDMI connectors for secure cable connections

• Available in Black and White nishes

Package Includes

(1) GefenToolBox 8x8 Matrix for HDMI

(1) IR Remote Control

(1) 24V DC Locking Power Supply

(1) AC power cord

(1) Quick Start Guide

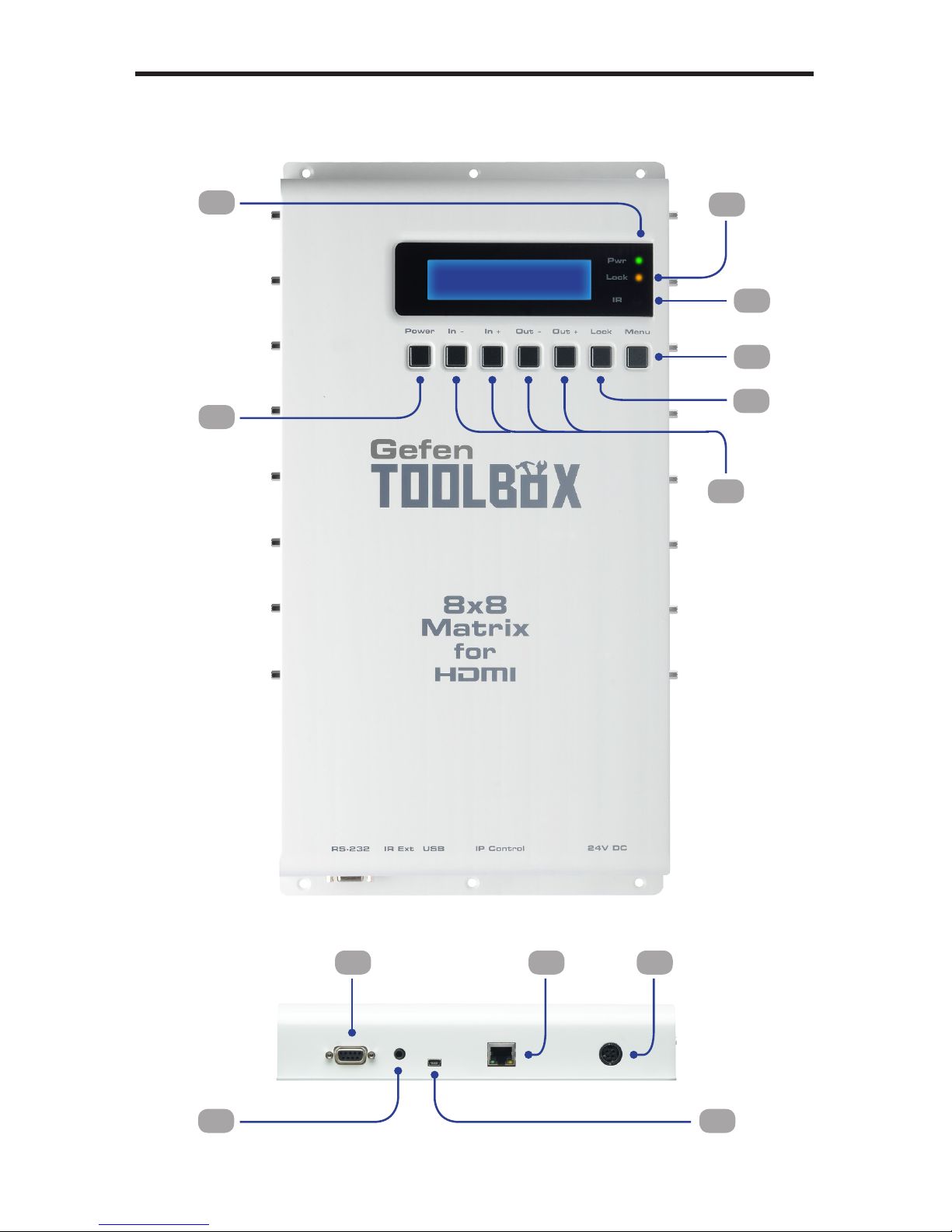

PANEL LAYOUT

Top

Front

1211

GEFEN

8x8 HDMI MATRIX

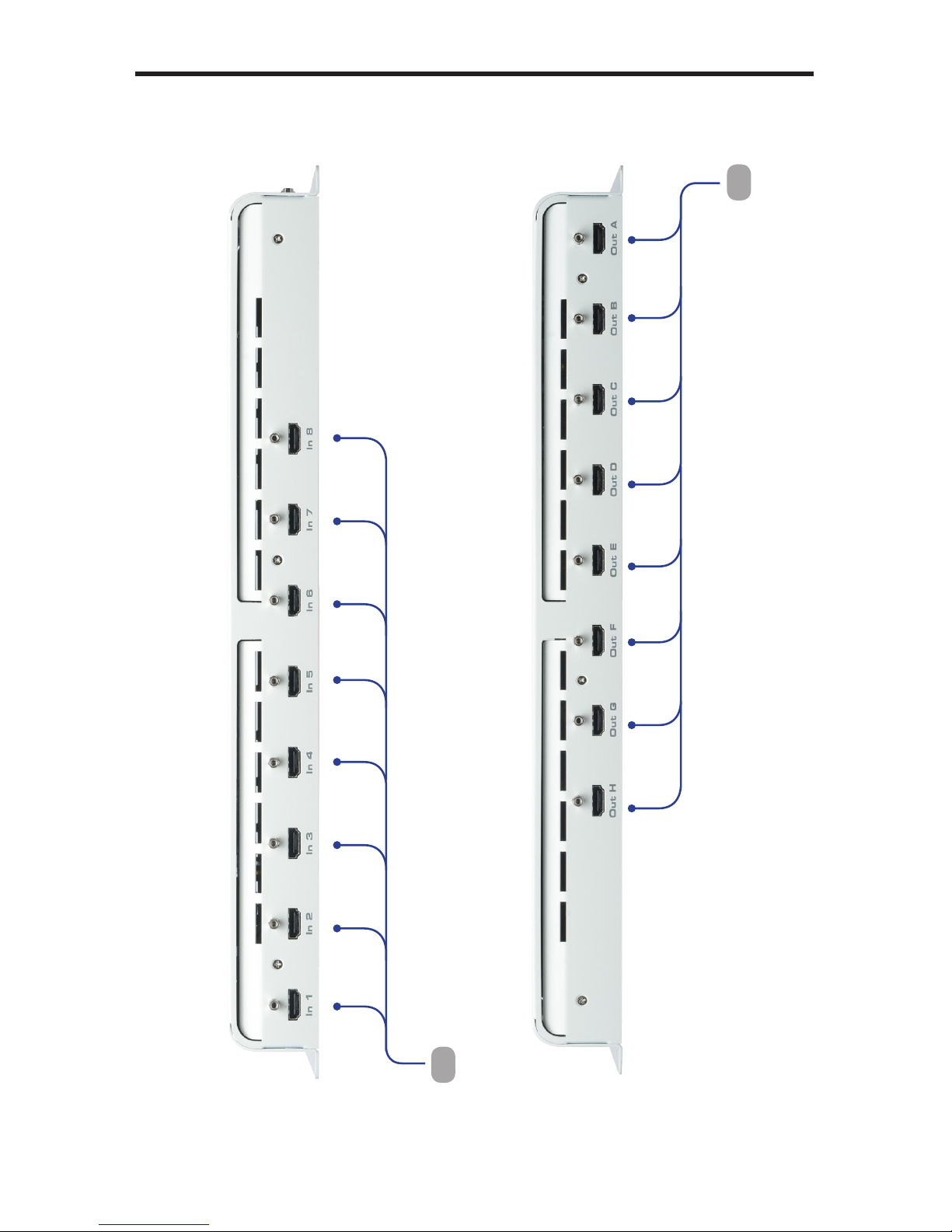

PANEL LAYOUT

Left Side

Right Side

PANEL DESCRIPTIONS

1 Power Indicator

This LED indicator will glow bright green when the matrix is powered on.

2 Lock Indicator

This LED indicator will glow bright orange when the matrix is locked.

3 IR Window

Receives signals from the IR Remote Control unit.

4 Menu

Pressing this button changes between routing mode and status mode.

5 Lock

Temporarily locks the front panel buttons. This prevents inadvertent routing changes or

power-down using the front panel buttons. The LED above the button turns bright orange

when the front panel is locked. Press once to lock

the front panel buttons. Press this button again to unlock the front panel buttons.

6 Navigation Buttons

These buttons are used to navigate between the inputs and outputs of the Gefen 8x8

Matrix for HDMI. For details on how these controls are used, see page 10.

7 Power

Turn the power on or off by pressing this button.

8 RS-232

Connects to the RS-232 control device. The 8x8 Matrix for HDMI may be switched

remotely using this port. See page 26 for more information.

9 IR Ext

Connect an IR extender cable (Gefen part no. EXT-RMT-EXTIR) to this port. See page 24

for more information.

10 USB Service Port

Reserved for future use.

11 IP Control

Connect the 8x8 Matrix for HDMI to a network in order to use IP / Telnet control.

12 24V DC

Connect the included 24V DC power supply to this receptacle.

13 In 1 - In 8

Connect a Hi-Def source device to each of these input ports.

14 Out 1 - Out 8

Connect HDTV displays or other audio/video output devices to these ports.
