Gefen GEF-DVI-32432 Bedienungsanleitung
1080P
www.gefenpro.com

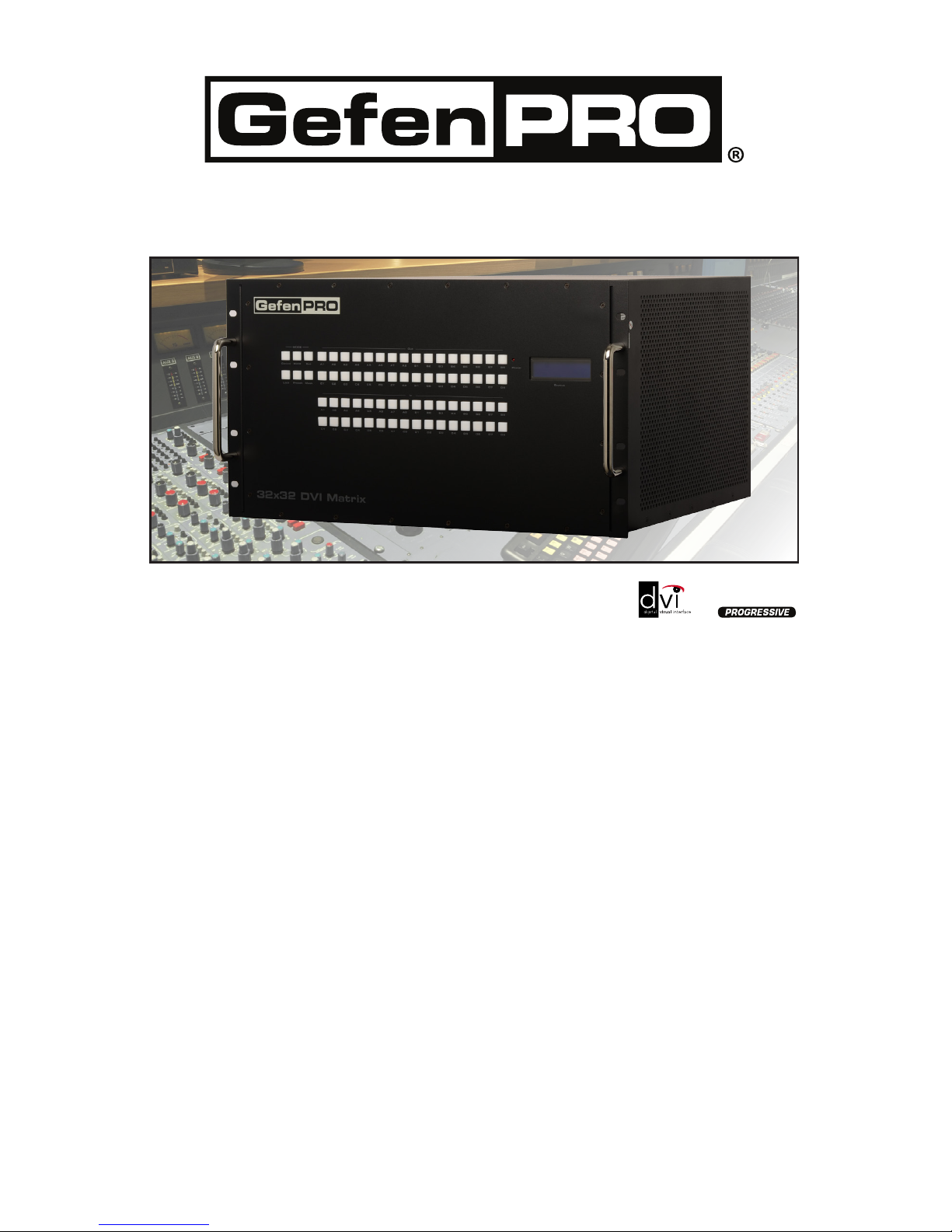

32x32 DVI Matrix
GEF-DVI-32432
User Manual
ASKING FOR ASSISTANCE
Technical Support:
Telephone (818)772-9100
(800)545-6900
Fax (818)772-9120
Technical Support Hours:
8:00AMto5:00PMMondaythroughFriday,PacicTime
For24/7support,seethebackoftheproductforthesupportnumber
Write To:
Gefen,LLC
c/oCustomerService
20600NordhoffSt
Chatsworth,CA91311
www.gefenpro.com
Notice
GefenLLCreservestherighttomakechangesinthehardware,packagingandany
accompanyingdocumentationwithoutpriorwrittennotice.
32x32 DVI Matrix isatrademarkofGefenLLC
©2012Gefen,LLC.Allrightsreserved.
Alltrademarksarethepropertyoftheirrespectiveowners.
Rev A3
CONTENTS
1 Introduction
2 OperationNotes
3 Features
4 FrontPanelLayout
5 FrontPanelDescriptions
6 BackPanelLayout
7 BackPanelDescriptions
8 Connectingthe32x32DVIMatrix
8 WiringDiagram
9 Operatingthe32x32DVIMatrix
9 MainDisplay
9 DisplayingAdditionalInformation
10 DisplayingtheCurrentRoutingState
11 ModeButtons
11 RoutingSources
13 SystemLockMode
14 CancellingaFunction
15 CyclingbetweenInformationScreens
16 SavingthecurrentRoutingState
18 RecallingastoredRoutingState
20 MaskingOutputs
22 EDIDManagement
22 SavingtheDownstreamEDIDdatatoLocalmemory
24 SavingtheDefaultEDIDtoLocalmemory
26 RS-232Control
27 IPConguration
28 RS-232/TelnetCommands
28 EDIDManagement
37 IPConguration
48 Masking
50 Routing
56 System
67 WebInterface
67 Routing
77 Status
79 ManageEDID
83 Conguration
87 FirmwareUpdate
91 RackMountSafetyInformation
92 Specications
93 Warranty
94 Licensing
1
Congratulationsonyourpurchaseofthe32x32DVIMatrix.Yourcompletesatisfactionis
veryimportanttous.
GefenPRO
Intherealmofvideodistribution,certainfeaturesareinvaluableinacommercialor
broadcastenvironment.Accommodationssuchasabuild-inpowersupplyandatblack
rack-mountenclosuressetGefenPROapartfromourtraditionalproducts.Complex
distributionunitsallowforprofessionalDVI,3G-SDI,andHDMIsignalstoberoutedand
convertedeasilyandseamlessly,whilebeingbackedupbyarenownedanddependable
technicalsupportteam.GefeninvitesyoutoexploretheGefenPROproductlineandhopes
thatyoundthesolutionthattsyourneeds.
The Gefen 32x32 DVI Matrix
TheGefenPRO32x32DVIMatrixisamodulardesignforprofessionals.Eachinputcan
routedifferentresolutionsatanytimetoanydisplaybyswitchingfromtheincludedIR
Remote,IPcontrol,RS-232,orbyusingthefront-panelpushbuttons.Thefront-panel
displayprovidesinformationonroutingstatus.Removableinputandoutputmodulesand
dual(redundant)hot-swappablepowersuppliesallowtheMatrixtobeusedinthemost
demandingenvironments,offeringmaximumexibilityforallapplications.
How It Works
TheGefenPRO32x32DVIMatrixhas32DVIinputsand32DVIoutputs.UsingDVIcables,
connect32sourcestotheDVIinputportsontheGefenPRO32x32DVIMatrix.Connectthe
GefenPRO32x32DVIMatrix’s32DVIoutputstothemonitors.ConnectanEthernetcable
fromthenetworktotheRJ-45connectortousethebuilt-inIPinterfacetocontrolrouting,
EDID,andothercommands.ConnectanRS-232cablefromanRS-232controldeviceto
controltheMatrixviaRS-232.PluginthepowercordandpowerontheGefenPRO32x32
DVIMatrix.Theconnectedmonitorswillshowvideoaccordingtotheroutingselection.
INTRODUCTION
2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 32X32 DVI MATRIX
• Thereisnointernalscalinginthe32x32DVIMatrix.Alloftheattachedmonitors
mustbeabletodisplaytheresolutionsoutputbythesourcedevices.Formaximum
compatibilityitisrecommendedthatonlyonecompatible/commonresolutionbeused
byallofthesourcedevices.
• Routingfeaturescanbeaccessedusingtheserialcontrolinterface,Telnet,orthe
built-inWebInterface.Seepage26-86formoreinformation.
OPERATION NOTES
IMPORTANT:Iftheunitisinstalledinaclosedormulti-rack
assembly,donotblocktheventilationholesoftheenclosure.
3
Features
• Combine32cross-platformcomputersand32digitaldisplays
• Supportsresolutionsupto1080pFullHDand1920x1200
• AdvancedEDIDmanagementpermitsuploadofcustomsettings
• RS-232Serialinterfaceforremotecontrolviaacomputerorcontrolautomation
systems
• LCDstatuswindow
• Front-panelpushbuttonsforlocalswitching
• IP/TelnetControlwithbuilt-inWebserver
• Routingstatescanbestoredandrecalledatthetouchofabutton
• Built-indual(redundant)hot-swappablepowersupplies
• Outputmaskingcommand
• Standbymode
• Groundingscrew
• Fanmodule(optional)
• Filtermodule(optional)
• PowerON/OFFswitch
• SupportsDDWGstandardsforDVI
• Rack-mountable
Package Includes
(1)GefenPRO32x32DVIMatrix
(2)ACpowercords
(1)QuickStartGuide
FEATURES
4
FRONT PANEL LAYOUT
Front Panel
2
5
3 41
GEFEN
32x32 DVI MATRIX
5
FRONT PANEL DESCRIPTIONS
Front Panel
1 ModeButtons
Thesebuttonsareusedtocontrolotherfeaturesontheproduct.Seepages11-25for
moreinformation.
2 OutputButtons(1-32)
UsedforroutinganInputtoanOutput.EachofthesebuttonsrepresentsanOutput.
Seepage11formoreinformationonroutingDVIsources.
3 PowerIndicator
ThisLEDindicatorwillglowredwhenthepoweristurnedon.
4 LCDDisplay
DisplaysthecurrentroutingstatusoftheMatrixandisalsousedtomanagesource
routing.
5 InputButtons(1-32)
UsedforroutinganInputtoanOutput.EachofthesebuttonsrepresentsanInput.
Seepage11formoreinformationonroutingDVIsources.
6
BACK PANEL LAYOUT
Back Panel
1
2
3
456 7
