Gefen EXT-HDMI-841 Bedienungsanleitung

RMT IR Extender

Optional

Accessories

8x1 HDMI Switche

Access up to Eight Sources From One Display

8 Sources + 1 Display = Greater Integration Options

Gefen's 8x1 HDMI™ Switcher routes high definition video in multiple resolutions up to 1080p plus

multichannel digital audio from any of eight sources. Eight inputs accommodate the simultaneous

connection of up to eight high definition video sources, such as satellite systems and HD DVD

players. The output sends the high definition audio/video signals to a high definition display.

Switching is done via the IR remote that is provided with the unit.

How It Works

You simply connect all your sources to the Switcher's inputs. Then connect the display on the

output port. Once the sources, the Switcher and the display(s) are powered and connected, you

simply select which source you want to view using the IR remote.

Note: This HDMI product supports BOTH Audio and Video signals.

DVI, HDCP & HDMI Defined

Features:

zSwitch easily between any eight HDMI™ sources

zExtends the range of HDMI™ compliant device by equalizing and reclocking the HDMI

signal

zMaintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and

computer resolutions up to 1920 x 1200 are easily achieved

zDiscrete IR remote (included)

zSerial RS-232 remote port

zHDMI™ pass-through

zHDCP pass-through

Specifications:

zVideo Amplifier Bandwidth: 165 MHz

zInput Video Signal: 1.2 volts p-p

zInput DDC Signal: 5 volts p-p (TTL)

zSingle Link Range: 1080p/1920 x 1200

zHDMI Connector: type A 19 pin female

zRemote Control Port: RS232 female, mini-stereo

zPower Supply: 5V DC

zPower Consumption: 20 watts (max)

zDimensions: 17" W x 1.75" H x 4.375" D

zShipping Weight: 12 lbs.

Package Includes:

zThe 8x1 HDMI Switcher

zRMT-8IR Remote control

zEight 6-foot HDMI cables

z5VDC Power Supply

zUser's Manual

zRack Ears

EXT-HDMI-841

Dystrybucja i sprzedaż: Meditronik Sp. z o.o.

02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46

http://www.meditronik.com.pl e-mail: [email protected]

8x1 HDMI Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday.

Write To:

Gefen Inc.

C/O Customer Service

20600 Nordhoff St.

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

8x1 HDMI Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the 8x1 HDMI Switcher

RMT-8IR Installation

RS-232 Interface

Speciﬁcations

Warranty

Congratulations on your purchase of the ex•tend•it 8x1 HDMI Switcher. Your complete

satisfaction is very important to us.

Gefen’s line of HDMI switches, extenders, and splitters are designed to make yourA/V

equipment use more comfortable, more productive and less expensive.

The 8x1 HDMI Switcher allows access to multiple HDMI devices, using a single HDMI

display.

The ex•tend•it line offers solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of support from a team of outstanding engineers.

The 8x1 HDMI Switcher allows eight HDMI devices to be switched easily through one

HDMI compatible monitor or projector. The 8x1 HDMI Switcher can also be placed at

the end of a long HDMI cable to regenerate the HDMI signal.

INTRODUCTION

FEATURES

Features

• Switch easily between any eight HDMI sources

• Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI

signal

• Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k,

and computer resolutions up to 1920 x 1200 are easily achieved

• Discrete IR remote (included)

• No loss of quality

• Serial RS-232 remote port

• HDCP pass-through

• HDMI pass-through

• Installs in minutes

• Rackmountable

Includes:

(1) 8x1 HDMI Switcher

(1) RMT-8IR Remote control

(8) 6-foot HDMI cables (M-M)

(1) 5VDC Power Supply

(1) User’s Manual

(1) Set of Rack Ears

PANEL DESCRIPTIONS

LED Indicators for the

eight sources

IR Eye

HDMI

Input 1

5v Power HDMI

Input 2

RS-232

Port

HDMI

Input 3 HDMI

Out

HDMI

Input 4 HDMI

Input 5 HDMI

Input 6 HDMI

Input 7 HDMI

Input 8

IR Extender

Port

CONNECTING AND OPERATING THE 8x1 HDMI SWITCHER

How to Connect the 8x1 HDMI Switcher to your devices

1. Connect the supplied HDMI cables from the HDMI sources into the HDMI Switcher

Inputs.

2. Connect the cable from your display (HDTV or projector) into the HDMI Out of the

8x1 HDMI Switcher.

3. Connect 5V power supply to the HDMI 8x1 Switcher.

How to Operate the 8x1 HDMI Switcher

1. Use the RMT8-IR remote control port to remotely switch between sources.

2. Alternatively, use an RS-232 control system to switch between sources.

RMT8-IR INSTALLATION

1. Remove battery cover from the back of the RMT8-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Underneath the unit are a set of dip switches that need to match the switches on the

remote. Find and remove the silver sticker to show the dip switches underneath the

unit. Verify that switches 1 & 2 on the unit are both on the down (OFF) position. There

are 4 possible sets of IR Codes which at least one should relieve any IR conﬂicts with

other Home Theater devices.

5. Test the RMT8-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT8-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

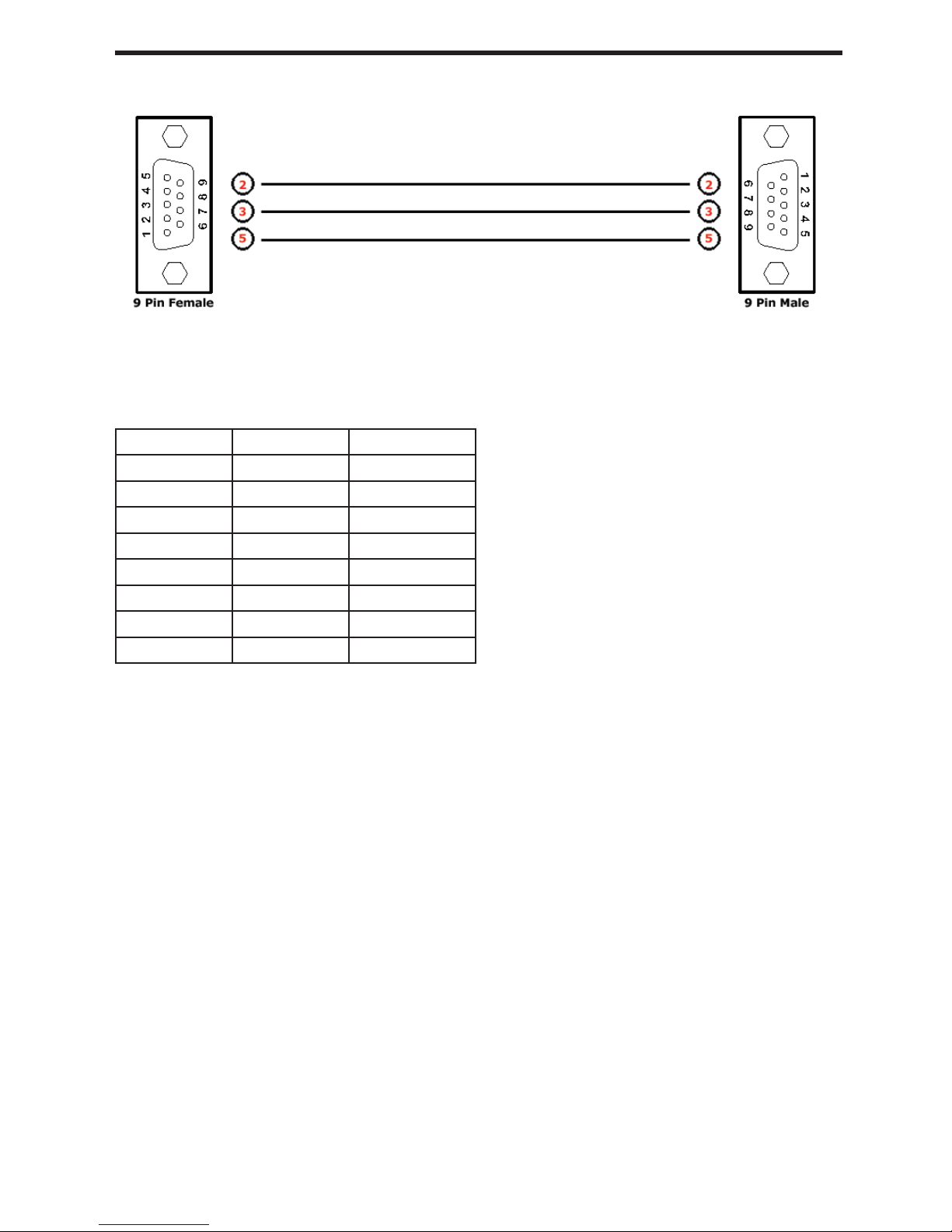

RS-232 INTERFACE

Binary Table

ASCII Input Binary

1 1 0011 0001

2 2 0011 0010

3 3 0011 0011

4 4 0011 0100

5 5 0011 0101

6 6 0011 0110

7 7 0011 0111

8 8 0011 1000

RS232 Settings

Bits per second .......................................................................................................19200

Data bits ........................................................................................................................ 8

Parity ....................................................................................................................... None

Stop bits ..........................................................................................................................1

Flow Control ............................................................................................................ None

Receive

Ground

Transmit
