Gefen RMT-MATRIX-444 Bedienungsanleitung

4x4 DVI KVM

Matrix

USER MANUAL

INTRODUCTION

Thank you for purchasing the 4x4 DVI DL KVM Matrix.

Now you can easily switch four cross-platform DVI Dual Link computers to four DVI Dual

Link displays. Our 4x4 Dual Link DVI KVM Matrix provides a simple, reliable and highly

effective method of creating multiple computer workstations, with each workstation ca-

pable of accessing any one of the computers or sources at any time by remote control.

You also have the option of setting up the four stations locally or extending them with a

Gefen extender. When used with computers, USB 1.1 and Audio matrix control signals

follow the DVI Dual Link input for optimal control.

How It Works

The 4x4 DVI Dual Link KVM Matrix has four Dual Link DVI inputs and four Dual Link DVI

outputs.Yousimply connectyour fourcomputers' DVIDual Linkvideo portsto theSwitcher's

inputs, then connect your four DVI Dual Link displays to the Switcher's outputs. USB 1.1

keyboard and mouse signals and analog audio, once connected, follow the DVI Dual Link

switched input for each computer.

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE 4X4 DVI DL KVM MATRIX

• The 4x4 DVI DL KVM Matrix is housed in a metal box for better RF shielding.

• The 4x4 DVI DL KVM Matrix works with all DVI and HDMI displays.

• The 4x4 DVI DL KVM Matrix is not HDCP compliant.

FEATURES

Features

• Increases your productivity by providing you with access to four computers from four

Dual Link workstations

• Maintains highest resolution digital video with no loss of quality

• Supports either PC or Mac USB keyboards/mice

• USB 1.1 Matrix Switching capabilities

• Supports analog audio matrixing

• Discrete IR remote (included)

• Supports single and dual link resolutions up to 3840x2400

• Supports DDWG standards for DVI monitors

• Includes rack ears

Includes:

(1) 4x4 DVI DL KVM Matrix

(1) RMT-16IR

(1) 5V Power Supply

(4) 6ft DVI cables

(4) 6ft USB cables

(4) 6ft Audio cables

(1) Set of Rack Ears

PANEL LAYOUT

Front Panel

RS232 Controller Port

Display 2

Indicator

Display 1

Indicator Display 3

Indicator Display 4

Indicator

IR Sensor

IR Extender Eye Port Power Indicator

Back Panel

Connects to 5VDC

Power Supply

DVI Inputs DVI Outputs

USB/Audio

Outputs

USB/Audio

Inputs CAT-5 Outputs

1. Connect all the sources to the DVI, USB, and audio inputs on the 4x4 DVI DL KVM

Matrix, using the supplied cables.

2. Connect the HDMI/DVI display, USB, and audio to the outputs on the 4x4 DVI DL

KVM Matrix.

3. Connect the 5VDC power supply to the 4x4 DVI DL KVM Matrix.

4. Controlling the 4x4 DVI DL KVM Matrix using the RMT16-IR:

Pressing Buttons... Switches...

1-4 Display 1 to view Source 1, 2, 3, or 4

5-8 Display 2 to view Source 1, 2, 3, or 4

9-12 Display 3 to view Source 1, 2, 3, or 4

13-16 Display 4 to view Source 1, 2, 3, or 4

*Note for computers connected to the DVIKVM Matrix - When your computer boots

up, it looks for an EDID (extended display identiﬁcation data) from the display to tell it

what monitor is connected and what resolution to output. During boot up of the comput-

er you should have ONLY one output selected to one input at a time so that the comput-

er gets the EDID of the display that is selected. If you have multiple outputs selected to

one computer, the computer will read the EDID of the last output selected to it. If all your

displays are the same, or all displays are

capable of running at the same resolution then this step does not matter.

You can also use a DVI Detective to eliminate the need to have that matrix selected to

the computer during bootup.

USING THE 4x4 DVI DL KVM MATRIX

RMT16-IR INSTALLATION

The RMT-16-IR remote control will allow the user to select which source each of the

4 connected displays will be viewing. Each of the 4 displays are assigned a group of

4 buttons that correspond to the 4 source inputs. Please use the information below

when selecting the desired source for each display.

RMT-16-IR Button Display Source

111

212

313

414

521

622

723

824

931

10 3 2

11 3 3

12 3 4

13 4 1

14 4 2

15 4 3

16 4 4

LED Indicator

4X4 DVI DL KVM MATRIX CONFIGURATION

Remote Channel 1:

Default

1 2

Remote Channel 2:

1 2

Remote Channel 3:

1 2

Remote Channel 4:

1 2

Remote Channel 1:

Default

1 2

Remote Channel 2:

1 2

Remote Channel 3:

1 2

Remote Channel 4:

1 2

RMT-16-IR REMOTE CONTROL 4x4 DVI DL KVM Matrix

12345678

OFF

The 4x4 DVI DL KVM Matrix has a bank of 8 conﬁguration DIP SWITCHES. These

switches are located underneath the unit. Peeling back the black metallic sticker on

the bottom of the 4x4 DVI DL KVM Matrix will reveal the Dip Switch bank. These

service switches are used for a number of conﬁguration options. By default, all Dip

Switches are in the OFF position. Each setting is outlined below.

Switch 1 IR Remote Channel Conﬁguration

Switch 2 IR Remote Channel Conﬁguration

Switch 3 Automatic Link Selection \ Dual Link Only Mode

Switch 4 Not Used

Switch 5 Pre-Empahsis For Display Output 1

Switch 6 Pre-Empahsis For Display Output 2

Switch 7 Pre-Empahsis For Display Output 3

Switch 8 Pre-Empahsis For Display Output 4

IR REMOTE CHANNEL CONFIGURATION

Dip Switches 1 and 2 relate to the IR remote control channel that is used by the 4x4 DVI

DL KVM Matrix and RMT-16-IR remote control. Dip Switch 1 and 2 on the 4x4 DVI DL

KVM Matrix must match Dip Switch 1 and 2 on the RMT-16-IR remote control. Please

view the table below to set the channel on 4x4 DVI DL KVM Matrix and IR remote

control. The remote channel for the RMT-16-IR is located underneath it’s battery

cover.

4X4 DVI DL KVM MATRIX CONFIGURATION

AUTOMATIC LINK SELECTION / DUAL LINK ONLY MODE

The 4x4 DVI DL Matrix has the ability to run both Single Link and Dual Link DVI sources.

There is a feature that will either automatically select the link mode, or lock the unit in Dual

Link mode. By default, Dip Switch 3 is in the OFF position (Automatic Link Selection).

Turning Dip Switch 3 to the ON position will lock the unit in Dual Link mode and will only

allow Dual Link signals to pass properly.

PRE-EMPHASIS

Pre-Emphasis is used to help extend a signal travel over a distance of cable. When a DVI

cable connected to a display is over a long cable, it is recommended that Pre-Emphasis

be enabled. Pre-emphasis is enabled by default on all display outputs. For short

cables, disable pre-emphasis on each output by turing it’s corresponding Dip Switch to

the ON position. If any type of extension device, such as a DVI CAT5 Extreme, is used

pre-emphasis must be disabled for proper operation.

RMT-MATRIX-444 INSTALLATION (OPTIONAL)

You can use up to 4 RMT-MATRIX-444 units to extend switching functionality to remote

locations. Each unit will allow the user to switch their one display between the 4 inputs

on the DVIKVM-444N. Follow these steps for each RMT-MATRIX-444 that will be used

in your setup.

1. Connect a CAT5/6 cable between the RMT-MATRIX-444 and one of the CAT5 ports

on the rear of the DVIKVM-444N. The ports are labeled as RMTA, B, C, and D and

correspond with DVI out ports 1, 2, 3, and 4.

2. Use the contact buttons on the RMT-MATRIX-444 to switch between the different

inputs connected to the DVIKVM-444N. Optionally, you can use a RMT-4IR (infrared

remote) in conjunction with the RMT-MATRIX-444 to switch inputs from a distance.

IR Sensor

(For use with optional IR

remote)

IR Sensor Extension Port

(Extension cable not

included)

RS-232 Port

CAT5/6 Port

Input Selection LED

Input Selection Buttons

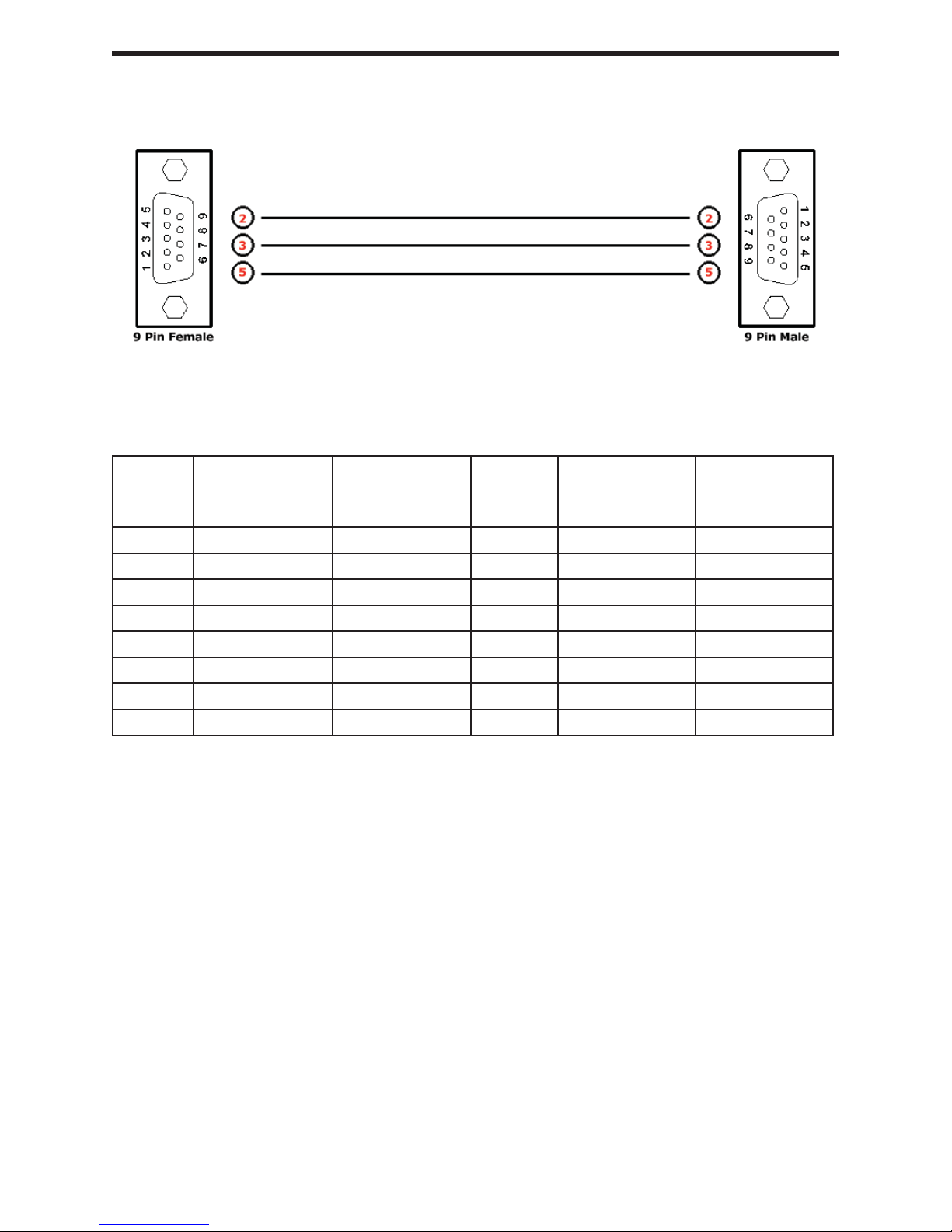

RS-232 INTERFACE

Binary Table

ASCII Corresponding

RMT16-IR

Button

Binary ASCII Corresponding

RMT16-IR

Button

Binary

1 1 0011 0001 9 9 0011 1001

2 2 0011 0010 a 10 0110 0001

3 3 0011 0011 b 11 0110 0010

4 4 0011 0100 c 12 0110 0011

5 5 0011 0101 d 13 0110 0100

6 6 0011 0110 e 14 0110 0101

7 7 0011 0111 f 15 0110 0110

8 8 0011 1000 g 16 0110 0111

RS232 Settings

Bits per second ....................................................................................................... 19200

Data bits .......................................................................................................................... 8

Parity ........................................................................................................................ None

Stop bits ...........................................................................................................................1

Flow Control ............................................................................................................. None
