Gefen EXT-HDMI1.3-242 Bedienungsanleitung

2x2 Switcher

for HDMI® 1.3

EXT-HDMI1.3-242

User Manual

www.gefen.com

ASKING FOR ASSISTANCE

Rev B4

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday PST

Write To:

Gefen, LLC.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen, LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

2x2 Switcher For HDMI 1.3 is a trademark of Gefen, LLC

HDMI, the logo, and High-Deﬁnition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing in the United States and

other countries.

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting And Operating The 2x2 Switcher For HDMI 1.3

7 IR Remote Control Description

8 IR Remote Installation

9 IR Remote Conﬁguration

10 IR Channel Conﬁguration

11 EDID Management

11 Internal EDID

12 External EDID

13 Speciﬁcations

14 Warranty

INTRODUCTION

Congratulations on your purchase of the 2x2 Switcher for HDMI 1.3. Your

complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen 2x2 Switcher for HDMI 1.3

Gefen’s 2x2 Switcher for HDMI 1.3 is equipped with two HDMI inputs and two

HDMI outputs. Two inputs accommodate the simultaneous connection of up to

two high deﬁnition video sources, such as satellite systems and Blu-Ray players.

3D content can be displayed when connecting a 3DTV and 3D source. Two

outputs send the high deﬁnition audio/video signals to up to two HDTV displays.

Switching is done via the included IR remote.

How It Works

Connect all your sources to the 2x2 Switcher for HDMI 1.3 inputs. Then connect

up to two displays on the output ports. Once the sources, the switcher and the

displays are powered and connected, you then select which source you want to

view using the IR remote.

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 2X2 SWITCHER FOR HDMI 1.3

• By default, display information from the display connected to HDMI output port

1 is sent back to the source. Therefore, the other display connected to the 2x2

Switcher for HDMI 1.3 must be capable of accepting the timings, resolutions

and audio formats of the display that is connected to HDMI output port 1. It is

recommended that the display with the lowest native resolution be connected

to HDMI output port 1. This is to ensure that a compatible video signal will

be able to be displayed on all connected monitors. There is a generic EDID

programmed into the 2x2 Switcher for HDMI 1.3 that can be used instead. See

page 11 for more details.

OPERATION NOTES

FEATURES

HDMI Features

• 225 MHz (up to 12 bit YUV 444 supported @ 1080p)

• Deep Color

• Dolby TrueHD and DTS-HD Master Audio

• Lip-Sync

• CEC Pass-Through

Features

• Easily switch between any two Hi-Def sources on up to two (2) HDTV

displays without signal loss

• Maintains sharp HDTV resolutions up to 1080p Full HD and 2K

• 3DTV Pass-Through

• Color Space Conversion

• EDID Management for rapid integration of sources and display devices.

• Mono-LOK™ Locking HDMI Connectors

• Supports the use of DVI sources and DVI displays with an HDMI-to-DVI

converter cable or adapter

• HDMI and HDCP compliant

Package Includes

(1) Gefen 2x2 Switcher for HDMI 1.3

(2) 6 ft. HDMI cables (M-M)

(1) IR Remote Control

(1) 5V DC Power Supply

(1) User Manual

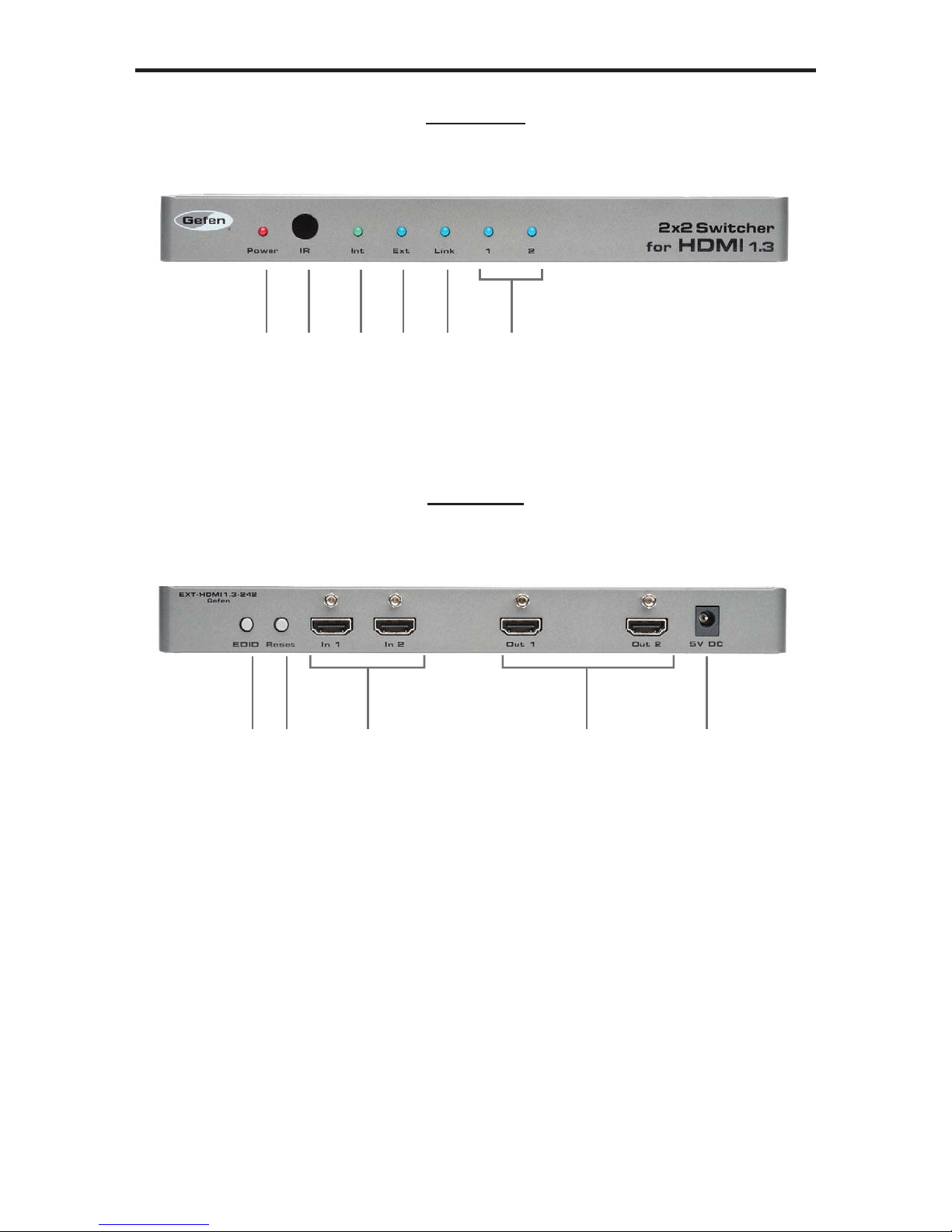

PANEL LAYOUT

Front Panel

Back Panel

1 2 3 4 5 6

7 8 9 10 11

PANEL DESCRIPTIONS

1 Power LED Indicator

This LED will become active once the included 5V DC power supply is properly

connected between the unit and a open wall power receptacle.

2 IR (Infrared) Receiver

This receiver will accept command for switching between input HDMI devices

using the included RMT-2IR remote control.

3 Internal EDID Mode LED Indicator

This LED will become active when the unit is using the pre-loaded EDID. See

page 11 for more details.

4 External EDID Mode LED Indicator

This LED will become active when the unit is using the EDID from the HDMI

deice connected to HDMI output port 1. See page 6 for more details.

5 Link LED Indicator

This LED will become active when the unit is properly connected to an HDMI

capable device on either of the HDMI output ports.

6 Input LED Indicators

There is one LED for each of the four input ports. The LED for the currently

selected HDMI input will be active.

7 EDID Button

This button will toggle between the internal external EDID modes. To determine

which mode is currently being used, please note which EDID mode LED is

active on the front panel of the unit.

8 Reset Button

This button will reset the unit and force all devices in the chain to re-transmit/

re-read EDID. It is essential that the unit be reset after the EDID mode has been

changed.

9 HDMI Input Ports 1-2

Connect up to 2 HDMI source devices to these HDMI input ports. Selection

between these inputs are made using the included RMT-2IR remote control.

10 HDMI Output Ports 1-2

Connect up to 4 HDMI capable devices to these HDMI output ports. The

currently selected HDMI input source device will be output through all of these

HDMI output ports.

11 5V DC Power Input Port

Connect the included 5V DC power supply between this port and an open wall

power receptacle.

How to Connect the 2x2 Switcher for HDMI 1.3

1. Connect up to two HDMI source devices to the 2x2 Switcher for HDMI 1.3

using the supplied HDMI cables.

2. Connect up to four HDMI capable devices to the 2x2 Switcher for HDMI 1.3

using the supplied HDMI cables.

3. Connect the included 5V DC power adapter to the 2x2 Switcher for HDMI

1.3 power input port.

4. Power on the displays ﬁrst and then the source.

How to Operate the 2x2 Switcher for HDMI 1.3

Use the included IR remote control unit to switch between HDMI inputs. See

page 7 for a description of the IR remote control.

Wiring Diagram for the Gefen 2x2 Switcher for HDMI 1.3

EXT-HDMI1.3-242

Hi-Def Source

Switcher for HDMI

HD Display

HDMI CABLE

CONNECTING AND OPERATING

THE 2X2 SWITCHER FOR HDMI 1.3

IR REMOTE DESCRIPTION

1 LED Button Press Indicator

This LED will be activated momentarily each time a button is pressed.

2 Display and Source Selection Buttons

These buttons are used to select which source is routed to the displays.

Example:

Route the source connected to Input 2 to the displays connected to Output 1 and

Output 2.

1. Press button 2 on the IR remote control unit.

The source connected to Input 2 will be routed to the displays connected to Output 1

and Output 2.

RMT-2IR Remote Control Unit
