GEIGER GEIGER-MODULARline Bedienungsanleitung
1
www.geiger.de EN
EN
DE Bedienungsanleitung
Operating Instructions
Manuel d’utilisation
Manual de instrucciones
Istruzioni per l’uso
EN
FR
ES
IT
Tubular motor:
GEIGER-MODULARline
Motor control:
GEIGER-SoftPerfection (GR45..E03)
for rolling shutters with stoppers and anti-lift device
2Gerhard Geiger GmbH & Co. KG | 100W0539 0613
en
EN
EN
Index
1. GEIGER-SoftPerfection: Special features ......................3
2. General information .........................................................4
3. Guarantee ..........................................................................4
4. Safety information ............................................................4
5. Intended use .....................................................................5
6. Installation instructions ...................................................6
7. Setting of end stops .........................................................7
8. Delete the end positions ..................................................7
9. Obstacle recognition ........................................................7
10. End position correction ...................................................8
11. Technical data ...................................................................8
12. Declaration of conformity ................................................8
13. Information for the specialist electrician .......................9
14. Notes on waste disposal .................................................9
15. What to do if… ................................................................10
3
www.geiger.de EN
EN
1.
GEIGER-SoftPerfection: Special features
Application range: rolling shutter systems
Precondition: anti-lift device and stoppers
Initial operation with Plug & Play
• Only one operation to the upper and the lower end stop is required.
Ready! Plug & Play!
Cloth protection with the Soft-System
• The GEIGER Soft position ensures that the hanging stops a few
millimetres before reaching the end position. The hanging is thus
optimally protected. Two exceptions: the programming runs and the
reference runs after 50 cycles.
• During the programming of the reference runs the GEIGER motor
control ensures a “soft shutdown” when reaching the end positions.
Hanging and the rolling shutter system – compared to conventional
torque motors – are well preserved.
Synchronous position in the upper end position
• The GEIGER-SoftPerfection ensures that the bottom lath in the
upper end position is always the same distance away from the upper
end rail.
• When rolling shutters of different sizes are mounted next to each
other, the bottom laths are positioned on the same level. This is
a really nice visual upgrade for the house façade: the GEIGER-
synchronous position.
Obstacle detection
• Protection of the rolling shutter system during retraction
Antifreeze protection
• The situation «hanging frozen to the window sill», is recognized by
the system and the curtain will not be damaged.
4Gerhard Geiger GmbH & Co. KG | 100W0539 0613
en
EN
EN
2.
General information
Dear customer,
By purchasing a GEIGER tubular motor you have decided on a quality product from
GEIGER.
Thank you very much for your decision and the confidence placed in us.
Before you put this drive into operation please observe the following safety
information. It serves for the prevention of danger and for the avoidance of personal
injury and damage to property.
Please retain this information for future reference.
fSuitable for all types of rolling shutters with anti-lift device and stoppers
fDrives are switchable in parallel
3.
Guarantee
In the case of incorrect installation contrary to the operating instructions and/
or constructional modification, the legal and contractual guarantee for property
damage and product liability lapses.
4.
Safety information
I ATTENTION: Important safety information. For personal safety, it is
important to follow these instructions. The instructions should be
kept.
fThis appliance is not to be used by persons (including children) whose
physical, sensorial or mental capacities are impaired, or who have no
expe rience or know-how, unless they have been supervised or been given
instructions on the use of the appliance by someone who is responsible for
their safety.
fChildren must be supervised to make sure they do not play with the
appliance.
fThe installation is to be checked regularly for defective balance, wear and
damage.
fDamaged connecting leads must be replaced by the GEIGER connecting
lead of the same wire type.
fDuring operation observe the danger zone.
fIf people or objects are in the danger zone, do not use the installation.
fUrgently shut down damaged installations until repair.
fUnconditionally shut down the unit during maintenance and cleaning
operations.
fPinching and shearing sites are to be avoided and to be safeguarded
against.
fWhen operating the manual actuator with the open sun protection system,
exercise caution as it can fall down quickly if springs expand or are broken.
fDo not operate the device if operations such as, for example, window
cleaning are to be carried out in the vicinity.
5
www.geiger.de EN
EN
fDisconnect the device from the mains power supply if operations such as,
for example, window cleaning are being carried out in the vicinity.
I ATTENTION: Important safety information. Follow all installation
instructions, as incorrect installation can lead to serious injuries.
fConnection must be carried out by a skilled electrician according to the
regulations in force locally.
fThe mains plug of the tubular motor must be accessible after installation.
fOn the installation of the tubular motor without mechanical protection of
the driven parts, the tubular motor must be installed at a height of at least
2.5 m above the ground or of another level which provides access to the
drive.
fBefore the tubular motor is installed, all leads which are not needed are to
be removed and all equipment which is not needed for actuation is to be
put out of operation.
fIf the tubular motor is controlled by a switch or pushbutton, the switch
or pushbutton must be mounted within eyeshot of the tubular motor. The
switch or pushbutton must not be located in the vicinity of moving parts.
The height of installa tion must be at least 1.5 m above the floor.
If the apparatus is equipped without a pin and a socket connector (STAS3K)
in the connecting lead, or other means for disconnecting from the mains
with at least a 3 mm contact opening on each pole, a disconnecting device
of this type must be incorporated into the permanently installed electrical
installation according to the wiring rules.
fPermanently installed control devices must be attached visibly.
fThe correct dimensioning of the drive is to be observed.
5.
Intended use
The tubular motors of the model range MODULARline (GR45..E03) with the
SoftPerfection system are designed exclusively for the operation of rolling shutters
with anti-lift device and stoppers
If the tubular motors are used for other applications and/or modifications are
performed to the tubular motors, which have not been discussed with GEIGER
Antriebstechnik, then the manufacturer is not liable for personal injury and/or
damage to property and for consequential damage.
6Gerhard Geiger GmbH & Co. KG | 100W0539 0613
en
EN
EN
6.
Installation instructions
Before fixing, the strength of the masonry or of the subsurface is to be checked.
I Before the tubular motor is installed in the shaft, the measurement
from the roller end up to the centre of the carrier is to be measured and
marked on the roller.
When drilling the winding shaft never drill into the
area of the tubular motor!
When inserting into the shaft, the tubular motor
must not be struck and must not be allowed to fall
into the shaft.
GEIGER connector system:
Connection of limit stop and short motor:
1. Snap suitable tubular adapter onto the short
motor.
2. In the case of an electronic limit stop MODULAR-
line SoftPerfection* (GR45..E03), the magnetic
shaft M45B033 must additionally be inserted into
the short motor (see figure).
Disconnection of limit stop and short motor:
1. The drive must first be disconnected from the
mains.
2. Twist the unlocking lever with a 5 mm hexagon
socket key.
3. The short motor can then be removed simply
from the limit stop.
Installation into the rolling shutter:
Fix motor support to available stud bolts or in the
side frame.
Insert motor into the shaft with a suitable adapter
and drive up to the stop of the shaft adapter.
Insert roller capsule on the opposite side.
Clip shaft with motor to motor support.
On the opposite side pull out roller capsule until
bolt fits into ball bearing.
Screw together roller capsule with shaft.
Screw together shaft with tubular carrier.
Fix roller shutter casing to shaft.
I In order to adjust the end positions, a rolling shutter system with upper
end stop and anti-lift device is required.
* The magnetic shaft M45B033 must be installed into the motor with all electronic and radio cont-
rolled limit stops such as GEIGER-Easy (GR45..E01), GEIGER-Soft Zero (GR45..E02), GEIGER-
SoftPerfection (GR45..E03), GEIGER-SoftPerfection-S (GR45..E04) and GEIGER-VariousWireless
(GR45..F01).
unlocking
lever
tubular
adapter
7
www.geiger.de EN
EN
7.
Setting of end stops
1. Connect the connecting cable to the motor
2. Move the shutter to both end positions once (any order will do)
3. DONE!
8.
Delete the end positions
1. Move the curtain to any position of your choice.
I Please note: respect a distance of approximately 50 cm from the end
positions

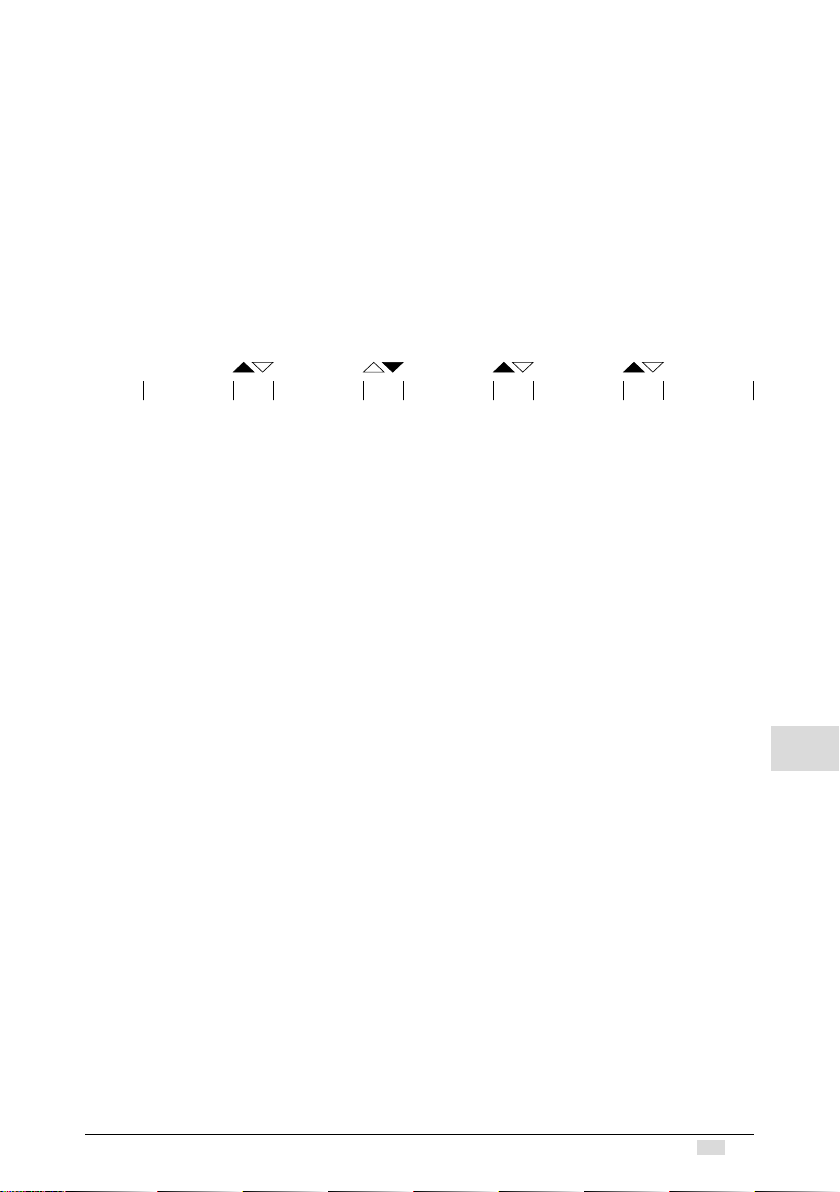

2. Operate as follows:
I Please note: a break of at least 5 seconds must be respected
between the different runs.
3. DONE!
9.
Obstacle recognition
When, after the teaching of the first complete, uninterrupted travel from one end
position to the other end position is carried out, the torque needed is learnt.
In any following complete, uninterrupted travel from end position to end position,
the torque needed is automatically reset. Slow changes in the installation due to
ageing, soiling, cold or heat are thus automatically taken into consideration.
If a travel movement in UP direction is blocked by an obstacle, the motor switches
off and a small return motion takes place.
The running direction in which the obstacle was recognized is blocked.
The block is removed if the motor has been operated in the opposite direction for
a certain time. An obstacle must thus first be released before the motor can be
operated again in the direction of the obstacle.
5 sec1 sec 5 sec1 sec 5 sec1 sec 1 sec
breakUP ––––––breakDOWN break
5 sec
–breakUP UP
5 sec
–break
8Gerhard Geiger GmbH & Co. KG | 100W0539 0613
en
EN
EN
10.
End position correction
I The engine needs to be taught with the end stops
(stopper and anti-lift device).
The motor stops before reaching the end stop in order to avoid a mechanical load
of the sun protection.
Checking of the end position, and if appropriate an end position correction, takes
place after 5, 20, and then every 50 cycles.
Should a hangings elongation have resulted, due to temperature changes, this is
corrected at the next end position correction.
If, due to temperature changes, modified winding behaviour should arise and the
hangings should run against the stop, an immediate end position correction takes
place. In addition, the counter for the end position correction is started afresh.
11.
Technical data
Technical data of short motor MODULARline (GR45..)
GR4510 GR4520
Voltage 230 V~/50 Hz 230 V~/50 Hz
Current 0,47 A 0,63 A
Cos Phi (cosj)>0,95 >0,95
Inrush current (factor) x 1,2 x 1,2
Power 105 W 140 W
Torque 10 Nm 20 Nm
Speed of rotation 16 1/min 16 1/min
Protection type IP 44 IP 44
Total length 400 mm 430 mm
Operating type S2 4 min S2 5 min
Diameter 45 mm 45 mm
Weight approx. 1,5 kg approx. 1,7 kg
Subject to technical modifications
12.
Declaration of conformity
We herewith explicitly declare that this product complies with the essential require-
ments and relevant directives. It is authorised for use in all EC member states and
in Switzerland without any need of prior registration. The Declaration of Conformity
concerning this product is available on our website: www.geiger.de.
9
www.geiger.de EN
EN
13.
Information for the specialist electrician
H Caution: Wrong installation and wrong
connection can lead to serious injuries.
The parallel operation of the several MODULAR-
line SoftPerfection is possible. Please observe the
rating of the control switch used.
Please do not use any installation switch which
allows simultaneous up and down controls.
PVC cables are not suitable for equipment used
outdoors or exposed to prolonged high levels of
UV radiation.
These cables should not be used if they are likely
to touch metal parts that can heat up to tempera-
tures exceeding 100°C.
Connecting cables with plug connectors of the
Hirschmann Company, type STAS 3K or the
Phoenix Mecano Company, type GLS/3+PE may
only be used in connection with the Hirschmann
cable socket STAK 3K.
14.
Notes on waste disposal
Recycling of packaging materials
In the interest of environmental protection, please
contact your local government’s recycling or solid
waste management department to learn more
about the services it provides.
Waste disposal of electric and electronic
equipment
Electronic equipment or batteries cannot be
discarded along with the normal household waste.
Keep for more information on the recycling and
disposal methods envisaged by the local regula-
tions in your area.
12 3
PE N
L1
N
PE
Electronic /
mechanical
limit stop
blue
brown
black
green/yellow
Mains: 230V / 50Hz
10 Gerhard Geiger GmbH & Co. KG | 100W0539 0613
en
EN
EN
15.
What to do if…
Problem Solution
Motor does not run. • Motor not plugged in.
Please check the plug connection.
• Check connecting cable for possible
damage.
• Check the mains voltage and allow
the cause of the voltage break down
to be tested by a specialist
electrician.
Instead of in the downwards
direction, motor runs upwards.
• The control leads are interchanged.
Exchange black/brown control leads.
Motor only runs in one
direction.
• Motor in the end position.
Run motor in the opposite direction.
After running several times,
the motor breaks down and
no longer responds.
• The motor became too hot and has
switched off.
Try it again after a cooling time of
about 15 min.
The motor stops half way. • Magnetic counter M45B033 not
mounted. Remove the end stop
system and place the magnetic
counter into the motor.
Setting is not possible. • Magnetic counter M45B033 not
mounted. Remove the end stop
system and place the magnetic
counter into the motor.
Andere Handbücher für GEIGER-MODULARline
1
Dieses Handbuch passt für folgende Modelle
3
Inhaltsverzeichnis
Andere GEIGER Motor Handbücher
GEIGER
GEIGER GEIGER-SOLIDline Series Bedienungsanleitung
GEIGER
GEIGER SOLIDline GJ56 Series Bedienungsanleitung
GEIGER
GEIGER PRO.TECline GB45 M01 Series Bedienungsanleitung
GEIGER
GEIGER GEIGER-SOLIDline Bedienungsanleitung
GEIGER
GEIGER SOLIDline Bedienungsanleitung
GEIGER
GEIGER GB45MR Series Bedienungsanleitung
GEIGER
GEIGER SOLIDline ZIP-Perfection GU45 E11 Series Bedienungsanleitung
GEIGER
GEIGER SOLIDline GU4510 Bedienungsanleitung
GEIGER
GEIGER GJ5606k F03 Bedienungsanleitung
GEIGER
GEIGER GEIGER-Solid Line Bedienungsanleitung
GEIGER
GEIGER GJ56 e Series Bedienungsanleitung
GEIGER
GEIGER SOLIDline GU45 Series Bedienungsanleitung
GEIGER
GEIGER PRO.TECline Spindle GB45 Series Bedienungsanleitung
GEIGER
GEIGER GJ5606-DuoDrive Bedienungsanleitung
GEIGER
GEIGER GEIGER-SOLIDline Series Bedienungsanleitung
GEIGER
GEIGER GB45SS Series Bedienungsanleitung
GEIGER
GEIGER SOLIDline GU45 Series Bedienungsanleitung
GEIGER
GEIGER SOLIDline GU4506 Bedienungsanleitung
GEIGER
GEIGER GR4510 Bedienungsanleitung
GEIGER
GEIGER INline GSI56 e5 Series Bedienungsanleitung
