Tubular motor:

GEIGER-MODULARline

Motor control:

GEIGER-Easy (GR45..E01)

for rolling shutters and screens

2Gerhard Geiger GmbH & Co. KG | 100W0516 0518V000

Index

1. General information .........................................................3

2. Guarantee ..........................................................................3

3. Safety information ............................................................3

4. Intended use .....................................................................4

5. Installation instructions ...................................................5

6. Setting of the end stops ...................................................6

7. Obstacle detection ...........................................................7

8. Technical data ...................................................................8

9. Declaration of conformity ................................................8

10. Information for the specialist electrician .......................9

11. Notes on waste disposal .................................................9

12. What to do if… ................................................................10

www.geiger.de EN

1. General information

Dear customer,

By purchasing a GEIGER tubular motor you have decided on a quality product from

GEIGER.

Thank you very much for your decision and the conﬁdence placed in us.

Before you put this drive into operation please observe the following safety

information. It serves for the prevention of danger and for the avoidance of personal

injury and damage to property.

Please retain this information for future reference.

fSuitable for all rolling shutter systems and screens

fInstallation without stops possible

fDrives are switchable in parallel

2. Guarantee

In the case of incorrect installation contrary to the operating instructions and/

or constructional modiﬁcation, the legal and contractual guarantee for property

damage and product liability lapses.

3. Safety information

I ATTENTION: Important safety information. For personal safety, it is

important to follow these instructions. The instructions should be

kept.

fThis appliance is not to be used by persons (including children) whose

physical, sensorial or mental capacities are impaired, or who have no

expe rience or know-how, unless they have been supervised or been given

instructions on the use of the appliance by someone who is responsible for

their safety.

fChildren must be supervised to make sure they do not play with the

appliance.

fThe installation is to be checked regularly for defective balance, wear and

damage.

fDamaged connecting leads must be replaced by the GEIGER connecting

lead of the same wire type.

fDuring operation observe the danger zone.

fIf people or objects are in the danger zone, do not use the installation.

fUrgently shut down damaged installations until repair.

fUnconditionally shut down the unit during maintenance and cleaning

operations.

fPinching and shearing sites are to be avoided and to be safeguarded

against.

fWhen operating the manual actuator with the open sun protection system,

exercise caution as it can fall down quickly if springs expand or are broken.

4Gerhard Geiger GmbH & Co. KG | 100W0516 0518V000

fDo not operate the device if operations such as, for example, window

cleaning are to be carried out in the vicinity.

fDisconnect the device from the mains power supply if operations such as,

for example, window cleaning are being carried out in the vicinity.

I ATTENTION: Important safety information. Follow all installation

instructions, as incorrect installation can lead to serious injuries.

fConnection must be carried out by a skilled electrician according to the

regulations in force locally.

fThe mains plug of the tubular motor must be accessible after installation.

fOn the installation of the tubular motor without mechanical protection of

the driven parts, the tubular motor must be installed at a height of at least

2.5 m above the ground or of another level which provides access to the

drive.

fBefore the tubular motor is installed, all leads which are not needed are to

be removed and all equipment which is not needed for actuation is to be

put out of operation.

fIf the tubular motor is controlled by a switch or pushbutton, the switch

or pushbutton must be mounted within eyeshot of the tubular motor. The

switch or pushbutton must not be located in the vicinity of moving parts.

The height of installa tion must be at least 1.5 m above the ﬂoor.

If the apparatus is equipped without a pin and a socket connector (STAS3K)

in the connecting lead, or other means for disconnecting from the mains

with at least a 3 mm contact opening on each pole, a disconnecting device

of this type must be incorporated into the permanently installed electrical

installation according to the wiring rules.

fPermanently installed control devices must be attached visibly.

fThe correct dimensioning of the drive is to be observed.

4. Intended use

The tubular motors of the model range MODULARline (GR45..E01) with the Easy

system are designed exclusively for the operation of rolling shutters and screens.

If the tubular motors are used for other applications and/or modiﬁcations are

performed to the tubular motors, which have not been discussed with GEIGER

Antriebstechnik, then the manufacturer is not liable for personal injury and/or

damage to property and for consequential damage.

www.geiger.de EN

5. Installation instructions

Before ﬁxing, the strength of the masonry or of the subsurface is to be checked.

I ATTENTION:Before the tubular motor is installed in the shaft, the

measurement from the roller end up to the centre of the carrier is to be

measured and marked on the roller.

When drilling the winding shaft never drill into the

area of the tubular motor!

When inserting into the shaft, the tubular motor

must not be struck and must not be allowed to

fall into the shaft.

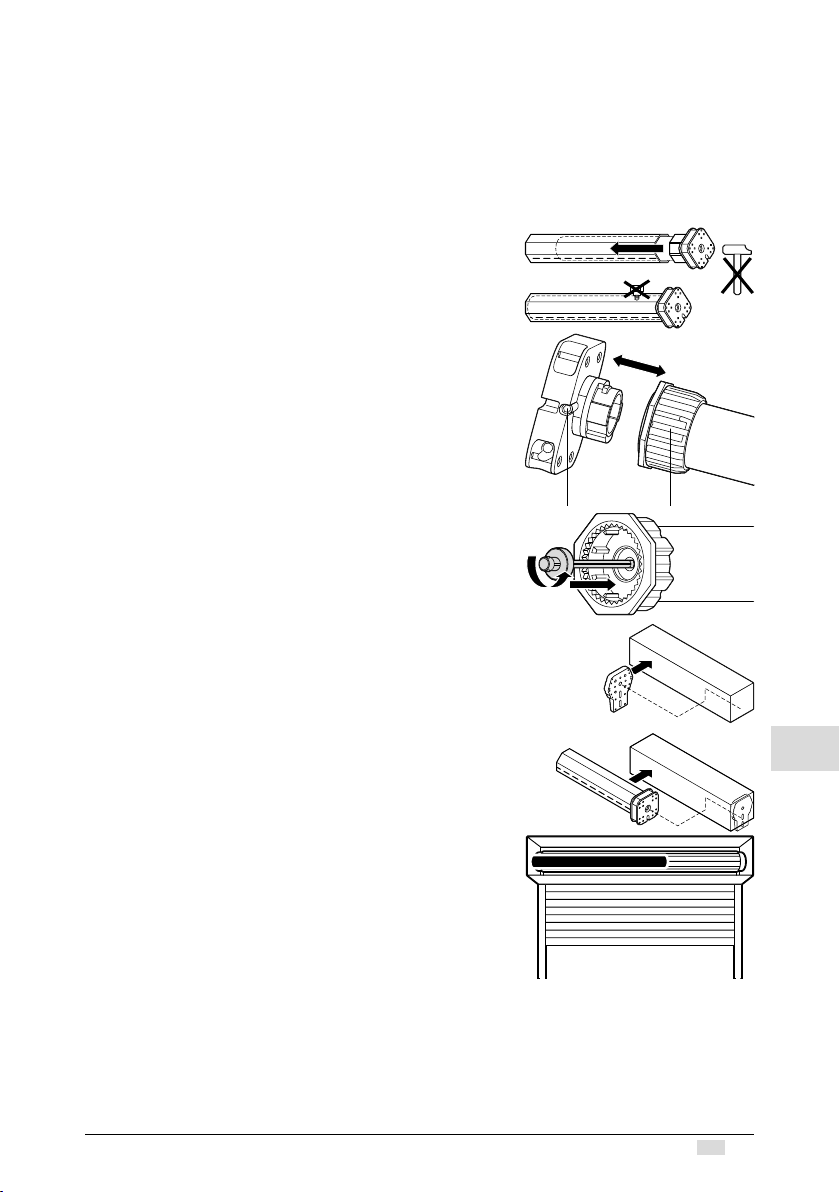

GEIGER connector system:

Connection of limit stop and short motor:

1. Snap suitable tubular adapter onto the short

motor.

2. In the case of MODUALRline Easy* (GR45..E01),

the magnetic shaft M45B033 must additionally be

inserted into the short motor (see ﬁgure).

Disconnection of limit stop and short motor:

1. The drive must ﬁrst be disconnected from the

mains.

2. Twist the unlocking lever with a 5 mm hexagon

socket key.

3. The short motor can then be removed simply

from the limit stop.

Installation into the rolling shutter:

Fix motor support to available stud bolts or in the

side frame.

Insert motor into the shaft with a suitable adapter

and drive up to the stop of the shaft adapter.

Insert roller capsule on the opposite side.

Clip shaft with motor to motor support.

On the opposite side pull out roller capsule until

bolt ﬁts into ball bearing.

Screw together roller capsule with shaft.

Screw together shaft with tubular carrier.

Fix roller shutter casing to shaft.

* The magnetic shaft M45B033 must be installed into the motor with all electronic

and radio controlled limit stops such as GEIGER Easy (GR45..E01), GEIGER

SoftPerfection (GR45..E03), GEIGER SoftPerfection-S (GR45..E04) and GEIGER

VariousWireless (GR45..F01).

unlocking

lever

tubular

adapter

6Gerhard Geiger GmbH & Co. KG | 100W0516 0518V000

6. Setting of the end stops

6.1. Install drive as described.

6.2. Connection of the setting cable

Connect adjusting cable to the connecting leader of the MODULARline Easy;

always connect cores of identical colour here. The assignment of the direction

keys 1 and 2 to the direction of rotation is dependent on the installation situa-

tion of the drive. Then connect the adjusting cable to the 230V mains.

6.3. Adjustment of the upper end position:

Press programming key until the LED blinks, (1 x blink, pause, 1 x blink,

pause,...), then release the programming key. Run MODULARline Easy with

the direction keys to the desired upper end position. Press programming key

until the LED blinks, (2 x blinks, pause, 2 x blinks, pause,...), then release the

programming key.

The upper end position is now adjusted and the programming mode for the

lower end position is active.

6.4. Adjustment of the lower end position:

Run MODULARline Easy with the direction keys to the desired lower end

position. Then press the programming key until the LED lights permanently,

then release the programming key.

The lower end position is adjusted here und the adjustment process is ﬁnished.

6.5. The drive can now be connected to the 230V mains.

I There is no need to ﬁrst delete the end stops (memorised) if you wish to

modify them.

Mains:

230

VSetting cable

M56....

Service

terminals

Connecting cable

to limit stop12

Programming

key

LED

Hirschmann coupling

Adaption cable

M56B265

www.geiger.de EN

7. Obstacle detection

When, after the teaching of the ﬁrst complete, uninterrupted travel from one end

position to the other end position is carried out, the torque needed is learnt.

In any following complete, uninterrupted travel from end position to end position,

the torque needed is automatically readjusted. Slow changes in the installation due

to ageing, soiling, cold or heat are thus automatically taken into consideration.

This process takes place for both running directions independently of one another.

If a travel movement in up direction is blocked by an obstacle, the motor switches

off.

The running direction in which the obstacle was recognized is blocked. The block is

removed if the motor has been operated in the opposite direction for a certain time.

An obstacle must thus ﬁrst be released before the motor can be operated again in

the direction of the obstacle.

8Gerhard Geiger GmbH & Co. KG | 100W0516 0518V000

8. Technical data

Technical data of short motor MODULARline (GR45..)

GR4510 GR4520

Voltage 230 V~/50 Hz 230 V~/50 Hz

Current 0,47 A 0,63 A

Cos Phi (cosj)>0,95 >0,95

Inrush current (factor) x 1,2 x 1,2

Power 105 W 140 W

Torque 10 Nm 20 Nm

Speed of rotation 16 1/min 16 1/min

Protection type IP 44 IP 44

Total length 515,5 mm 545,5 mm

Operating type S2 4 min S2 5 min

Diameter 45 mm 45 mm

Weight approx. 1,520 kg approx. 1,670 kg

Subject to technical modifications DE

geprüfte

Sicherheit

9. Declaration of conformity

We herewith explicitly declare that this product complies with the essential require-

ments and relevant directives. It is authorised for use in all EC member states and

in Switzerland without any need of prior registration. The Declaration of Conformity

concerning this product is available on our website: www.geiger-antriebstechnik.de.

www.geiger.de EN

10. Information for the specialist electrician

H Caution: Wrong installation and

wrong connection can lead to serious

injuries.

The adjusting cable M56K144, M56F150 or

M56F151 must be used for the adjustment

processes.

If required, use the adapter cable with service

clamps M56B265.

The operations with the service clamps must only

be carried out by a skilled electrician.

The parallel operation of several MODULARline

Easy motors is possible. Please observe the rating

of the control switch used.

Please do not use any installation switch which

allows simultaneous up and down controls.

PVC cables are not suitable for equipment used

outdoors or exposed to prolonged high levels of

UV radiation.

These cables should not be used if they are likely

to touch metal parts that can heat up to tempera-

tures exceeding 100°C.

Connecting cables with plug connectors of the

Hirschmann Company, type STAS 3K or the

Phoenix Mecano Company, type GLS/3+PE may

only be used in connection with the Hirschmann

cable socket STAK 3K.

11. Notes on waste disposal

Recycling of packaging materials

In the interest of environmental protection, please contact your local government’s

recycling or solid waste management department to learn more about the services

it provides.

Waste disposal of electric and electronic equipment

Electronic equipment or batteries cannot be discarded along with the normal

household waste. Keep for more information on the recycling and disposal

methods envisaged by the local regulations in your area.

12 3

PE N

Electronic /

mechanical

limit stop

blue

brown

black

green/yellow

Mains: 230V / 50Hz

10 Gerhard Geiger GmbH & Co. KG | 100W0516 0518V000

For technical questions, please call our service team at: +49 (0) 7142 938-333.

They will be happy to assist you.

Gerhard Geiger GmbH & Co. KG

Schleifmühle 6

D-74321 Bietigheim-Bissingen

Telephone: +49 (0) 7142 938-0

Telefax: +49 (0) 7142 938-230

E-Mail: info@geiger.de

Internet: www.geiger.de

12. What to do if…

Problem Solution

Motor does not run. • Motor not plugged in.

Please check the plug connection.

• Check connecting cable for possible

damage.

• Check the mains voltage and allow

the cause of the voltage break down

to be tested by a specialist

electrician.

Instead of in the upwards direction,

motor runs downwards.

• The control leads are interchanged.

Exchange black/brown control leads.

Motor only runs in one

direction.

• Motor in the end position.

Run motor in the opposite direction.

After running several times,

the motor breaks down and

no longer responds.

• The motor became too hot and has

switched off.

Try it again after a cooling time of

about 15 min.

The motor only makes 1/2

a rotation.

• Magnetic shaft not installed.

Withdraw switch, insert magnetic

shaft into motor

Adjustment does not work. • Magnetic shaft not installed.

Withdraw switch, insert magnetic

shaft into motor.

• No adjusting cable.

For adjusting the MODULARline

Easy you need the adjusting cable

M56K144.

Andere Handbücher für GEIGER-MODULARline

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere GEIGER Motor Handbücher

GEIGER

GEIGER GJ5606-DuoDrive Bedienungsanleitung

GEIGER

GEIGER SOLIDline GU45 Series Bedienungsanleitung

GEIGER

GEIGER SOLIDline GJ56 Series Bedienungsanleitung

GEIGER

GEIGER GEIGER-SOLIDline x/55 Series Bedienungsanleitung

GEIGER

GEIGER SOLIDline Bedienungsanleitung

GEIGER

GEIGER GEIGER-SOLIDline Series Bedienungsanleitung

GEIGER

GEIGER SOLIDline ZIP-Perfection GU45 E11 Series Bedienungsanleitung

GEIGER

GEIGER SOLIDline SoftPlus-Qi GU45-E09 Series Bedienungsanleitung

GEIGER

GEIGER GEIGER-SoftZero-55 Bedienungsanleitung

GEIGER

GEIGER GB45SS Series Bedienungsanleitung

GEIGER

GEIGER GJ5606k F03 Bedienungsanleitung

GEIGER

GEIGER SOLIDline GJ56 Series Betriebsanleitung

GEIGER

GEIGER GR4510 Bedienungsanleitung

GEIGER

GEIGER GJ56E11 Series Bedienungsanleitung

GEIGER

GEIGER GEIGER-SOLIDline Series Bedienungsanleitung

GEIGER

GEIGER GEIGER-MODULARline Bedienungsanleitung

GEIGER

GEIGER SOLIDline GU45 Series Bedienungsanleitung

GEIGER

GEIGER SOLIDline GU4506 Bedienungsanleitung

GEIGER

GEIGER GEIGER-Solid Line Bedienungsanleitung

GEIGER

GEIGER GEIGER-SOLIDline Bedienungsanleitung

GEIGER

GEIGER GJ56 E06 Series Bedienungsanleitung

GEIGER

GEIGER INline GSI56 e5 Series Bedienungsanleitung

GEIGER

GEIGER SOLIDline GU4510 Bedienungsanleitung

GEIGER

GEIGER SOLIDline Bedienungsanleitung

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
